Transmission Filler Tube: Installation

NOTE: Coat the O-ring seal at the bottom of the fluid filler tube with transmission fluid. If removed, install the starter wiring harness.

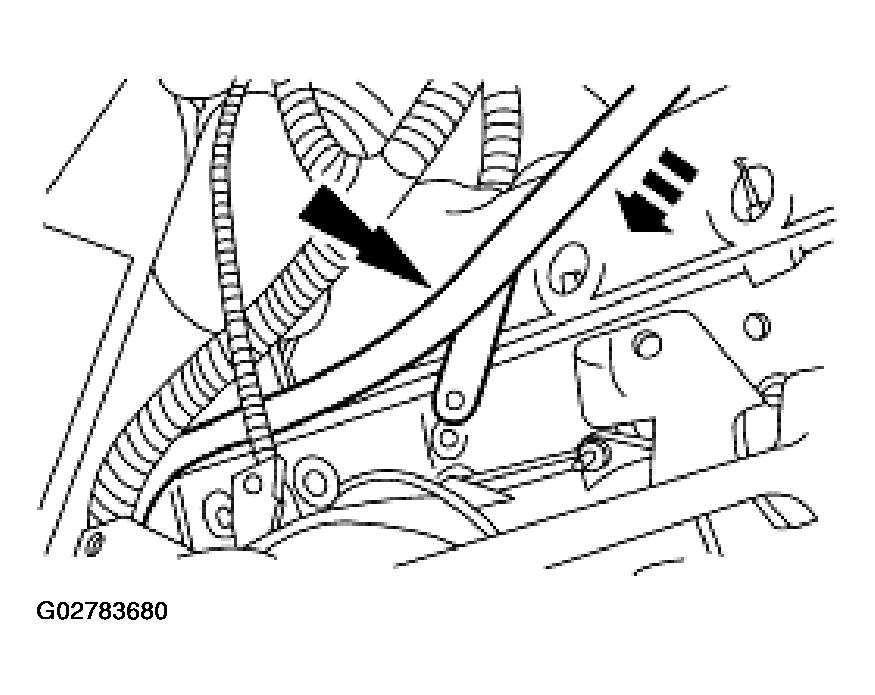

Fig 1: Installing Fluid Filler Tube

Courtesy of FORD MOTOR CO.

Install the fluid filler tube.
Install the fluid filler tube bolt.

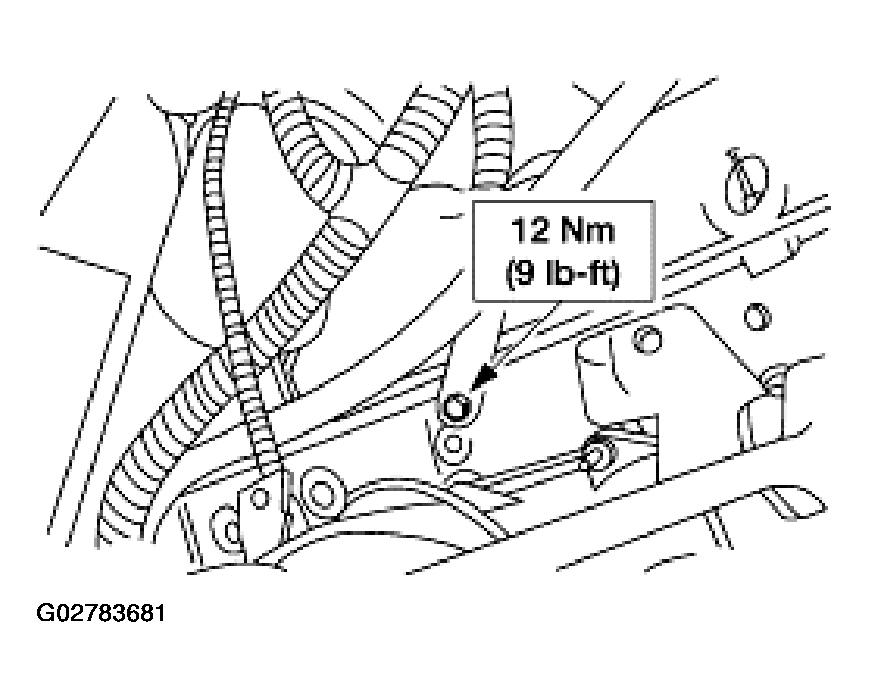

Fig 2: Fluid Filler Tube Bolt Torque Specification
Courtesy of FORD MOTOR CO.
Install the RH front wheel. For additional information, refer to WHEELS & TIRES .
Lower the vehicle.
Install the fluid level indicator.

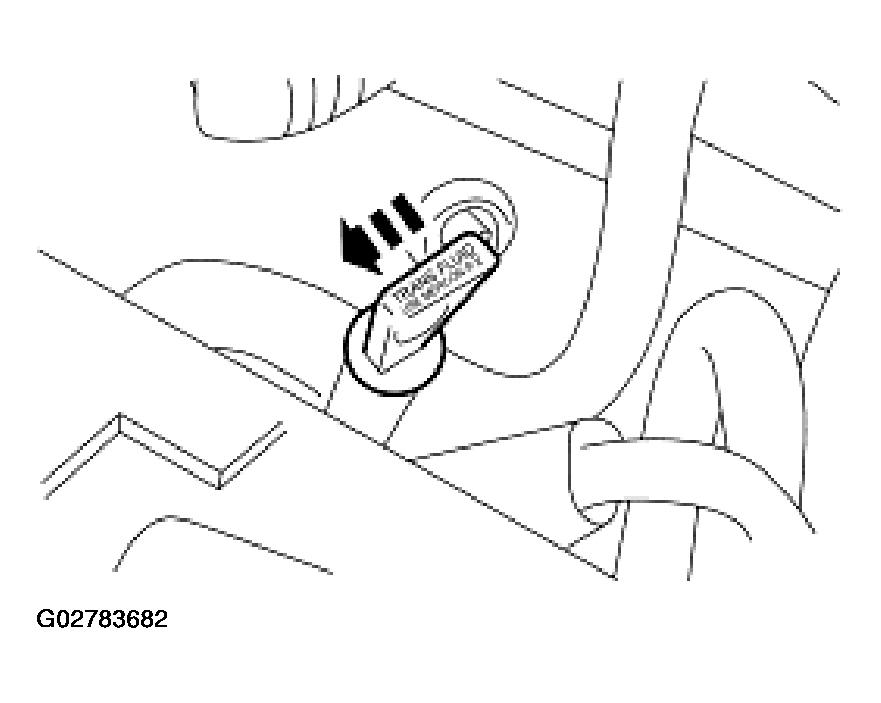

Fig 3: Installing Fluid Level Indicator
Courtesy of FORD MOTOR CO.
