Transmission Filler Tube: Removal

Remove the fluid level indicator.

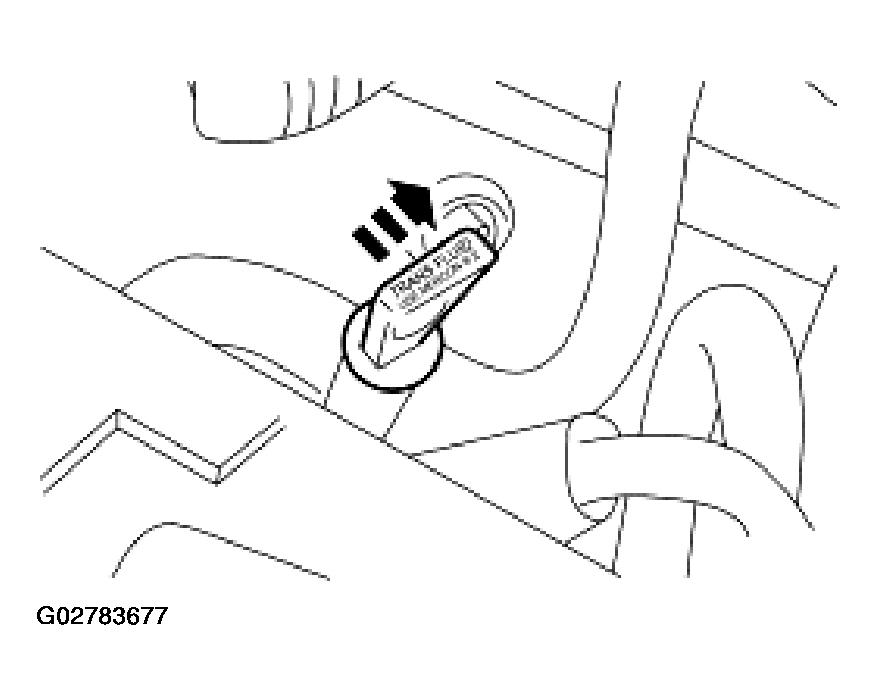

Fig 1: Removing Fluid Level Indicator
Courtesy of FORD MOTOR CO.
Position the vehicle on a hoist. Place in NEUTRAL. For additional information, refer to JACKING & LIFTING .
Remove the RH front wheel. For additional information, refer to WHEELS & TIRES .
Remove the fluid filler tube bolt.

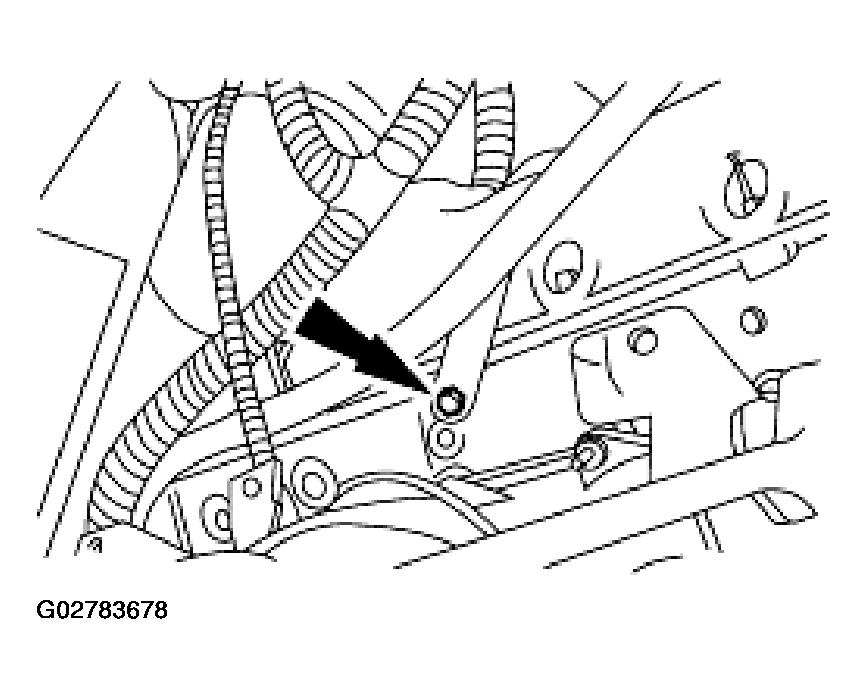

Fig 2: Removing Fluid Filler Tube Bolt
Courtesy of FORD MOTOR CO.

NOTE: It may be necessary to disconnect the wiring harness from the starter motor to remove the fluid filler tube.

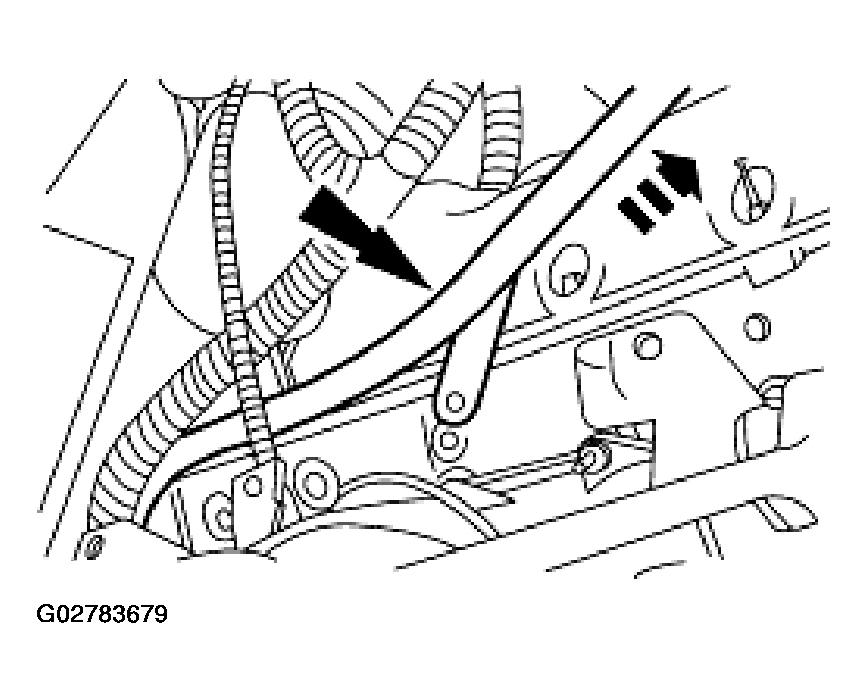

Fig 3: Removing Fluid Filler Tube

Courtesy of FORD MOTOR CO.
