Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component	Location

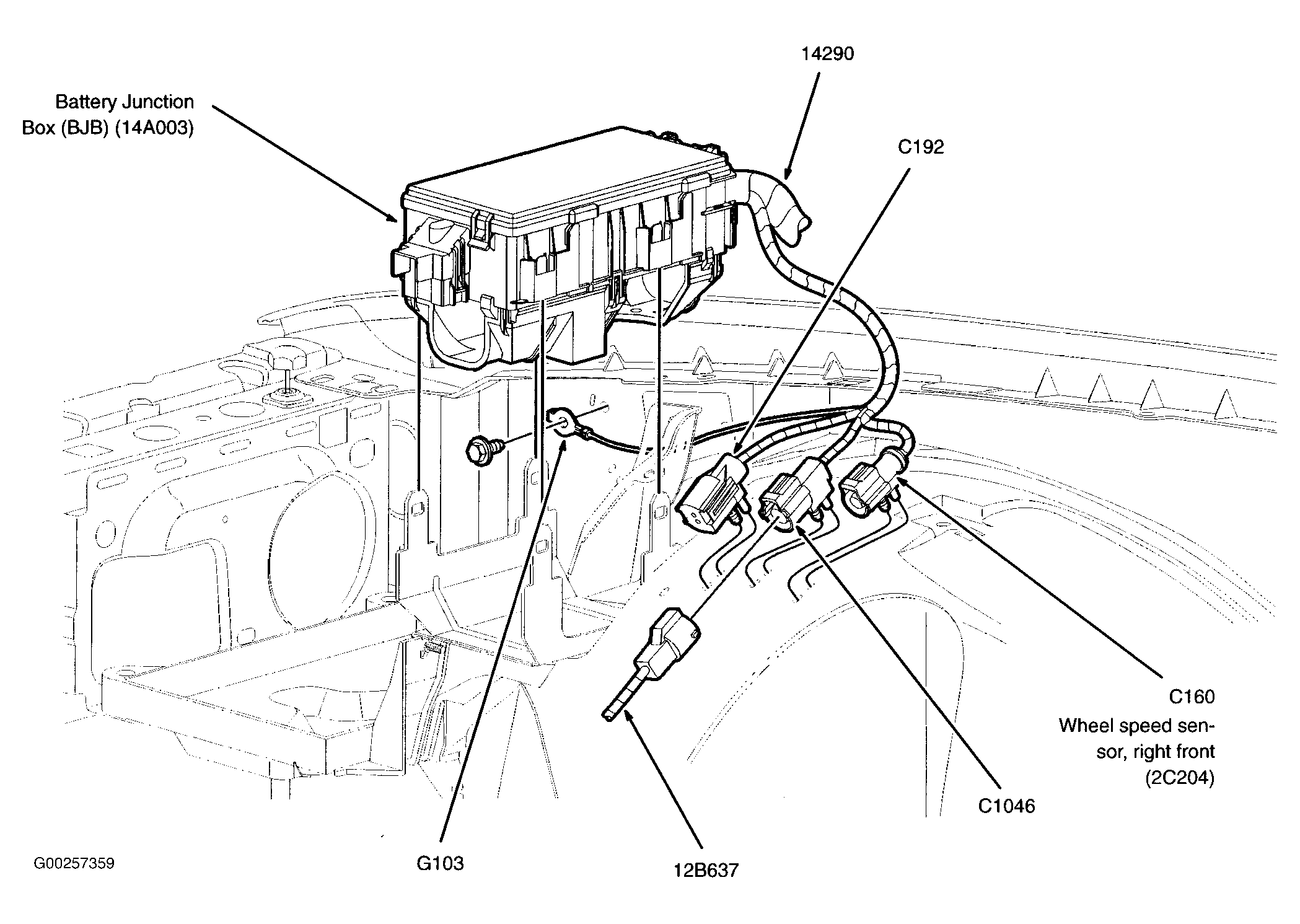

Battery Junction Box	At right front side of engine compartment. See Figure .

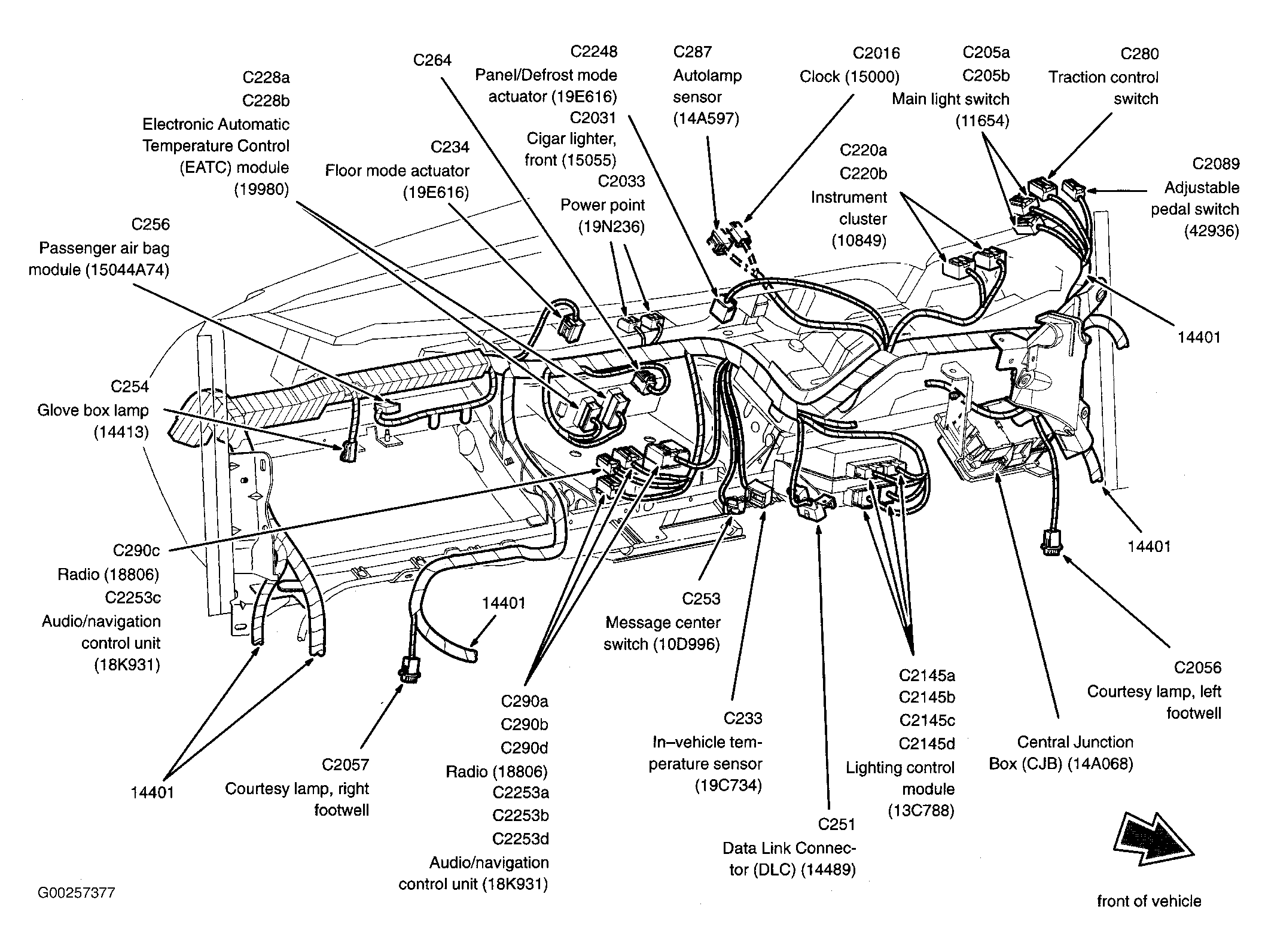

Central Junction Box	Behind left side of dash, to left of steering column. See Figure .
