Removal and Installation

Remove the air cleaner outlet tube (9B659). For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Disconnect the connector from the ignition coil.

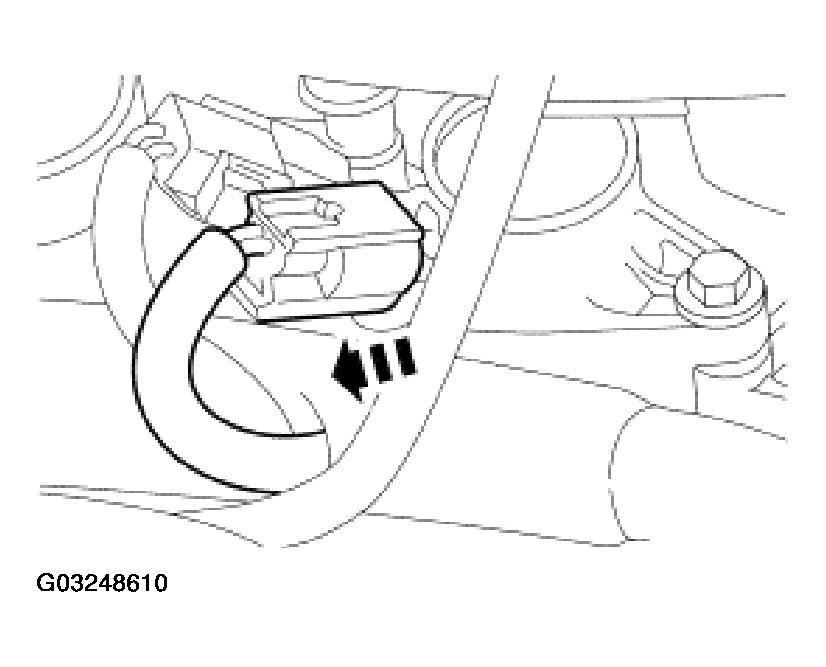

Fig 1: Disconnecting Connector From Ignition Coil
Courtesy of FORD MOTOR CO.
Remove the bolt from the ignition coil.

Fig 2: Removing Bolt From Ignition Coil
Courtesy of FORD MOTOR CO.
Remove the ignition coil on plug.

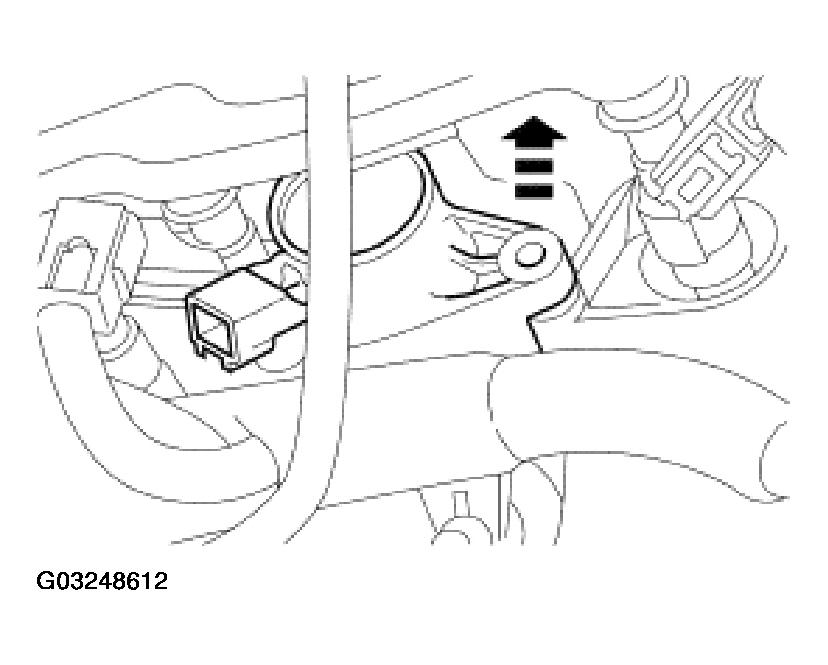

Fig 3: Removing Ignition Coil On Plug
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

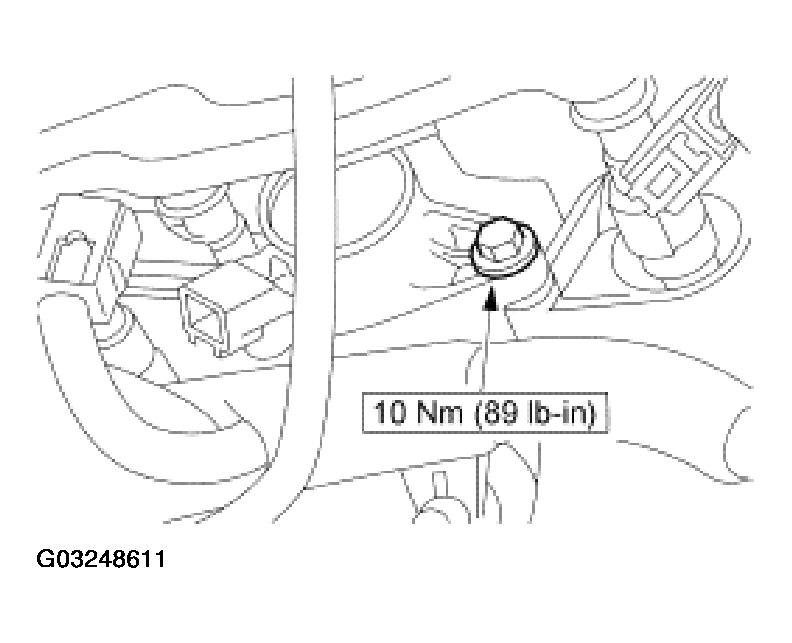

Fig 4: Installing Bolt To Ignition Coil
Courtesy of FORD MOTOR CO.
