Fuel Charging Wiring Harness: Removal

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.

WARNING: Fuel in the fuel system remains under high pressure even when the engine is not running.

Position the power steering pump out of the way. For additional information, refer to POWER STEERING .
Remove the resonator and tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Disconnect the battery ground cable.
Remove the windshield wiper governor. For additional information, refer to WIPERS AND WASHERS .

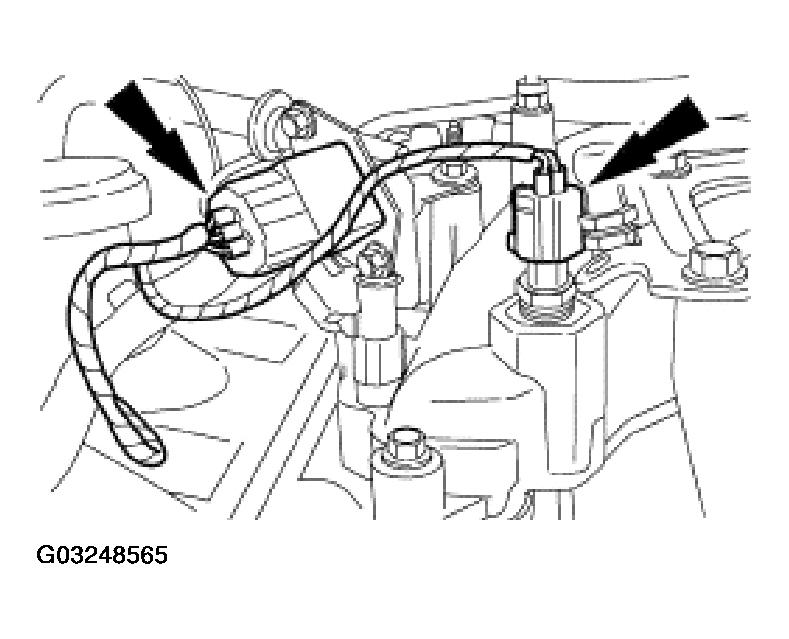

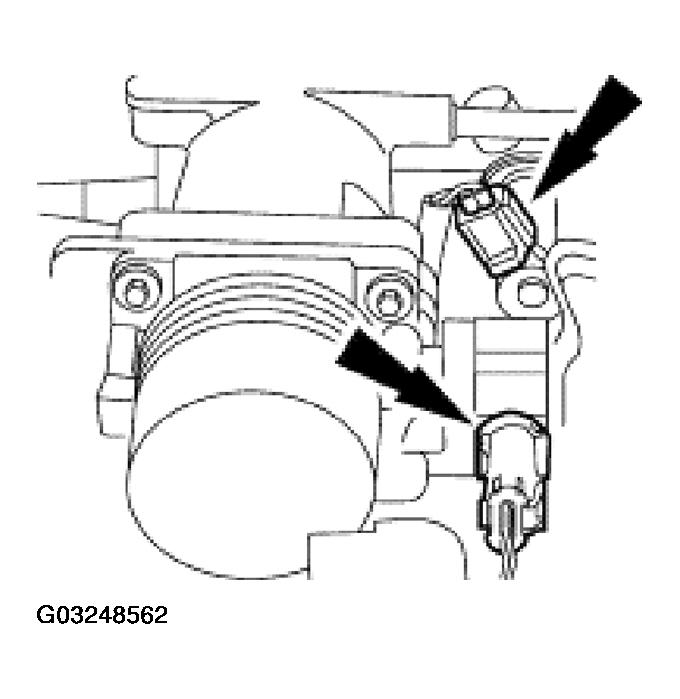

Disconnect the idle air control (IAC) valve and the throttle position (TP) sensor

Fig 1: Disconnecting Idle Air Control (IAC) Valve And Throttle Position (TP) Sensor
Courtesy of FORD MOTOR CO.

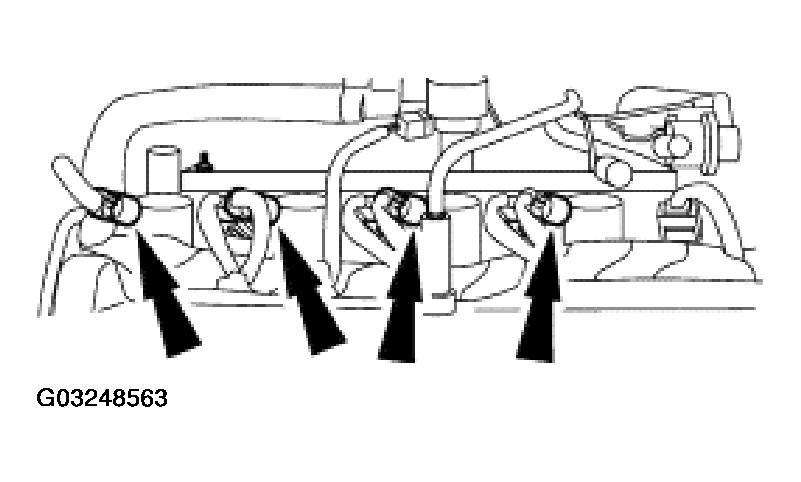

Disconnect the eight ignition coils.

Fig 2: Disconnecting Ignition Coils
Courtesy of FORD MOTOR CO.

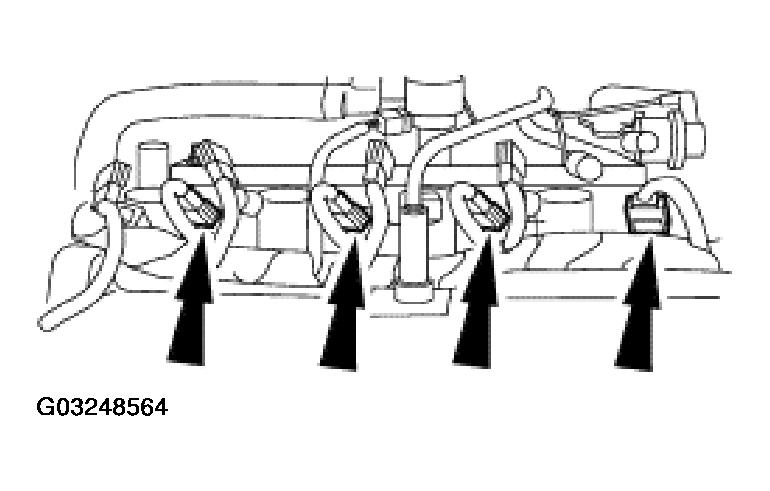

Disconnect the eight fuel injectors.

Fig 3: Disconnecting Fuel Injectors
Courtesy of FORD MOTOR CO.

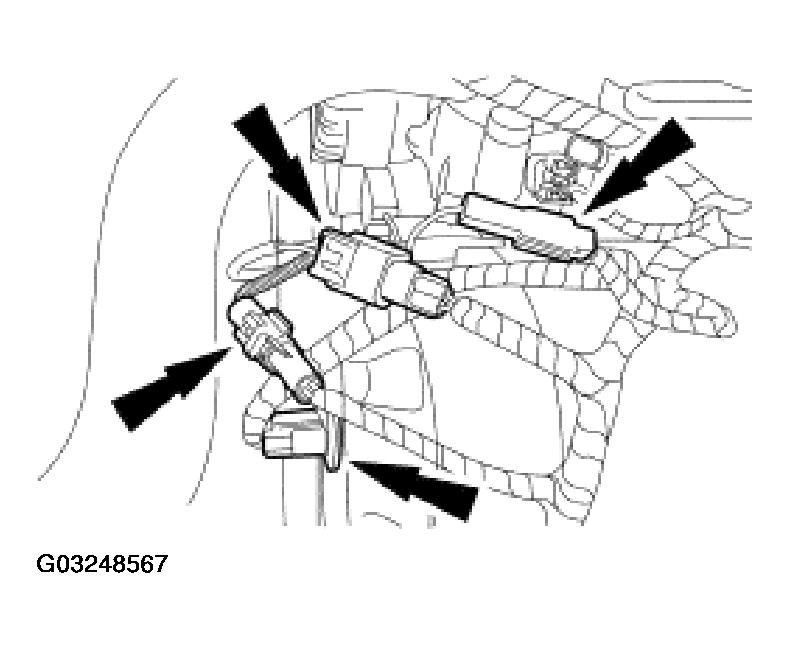

Disconnect the electrical connectors.

Fig 4: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Disconnect the engine bulkhead connectors.

Fig 5: Disconnecting Engine Bulkhead Connectors
Courtesy of FORD MOTOR CO.

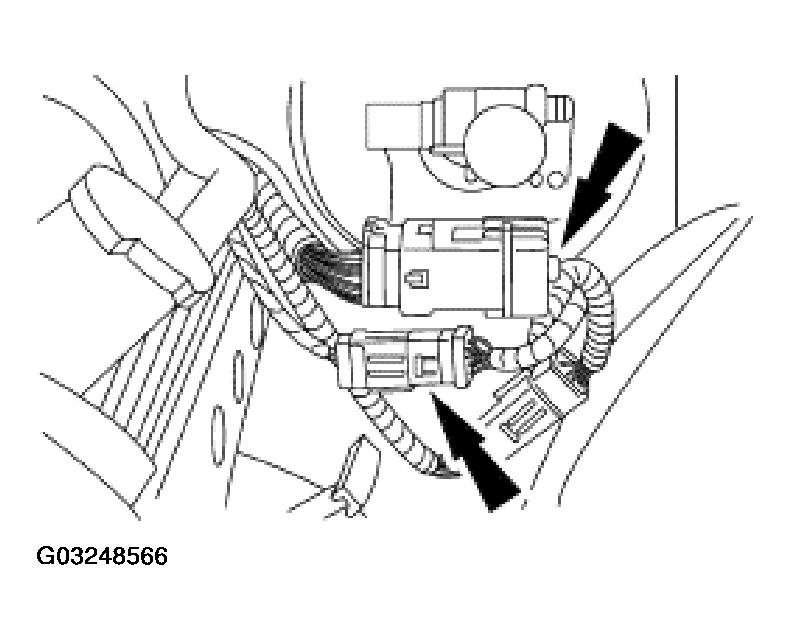

Disconnect the electrical connectors.

Fig 6: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.

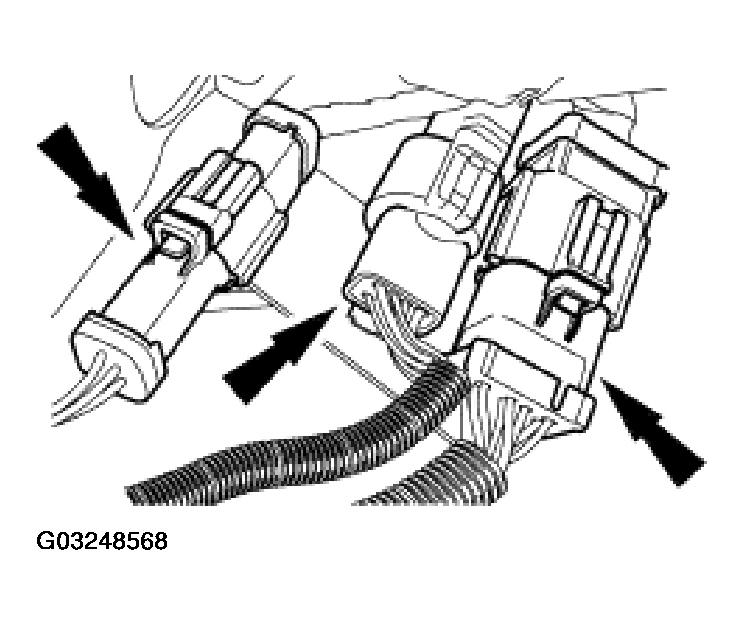

Disconnect the LH heated oxygen sensor connector and the transmission electrical connectors.

Fig 7: Disconnecting LH Heated Oxygen Sensor Connector And Transmission Electrical Connectors
Courtesy of FORD MOTOR CO.

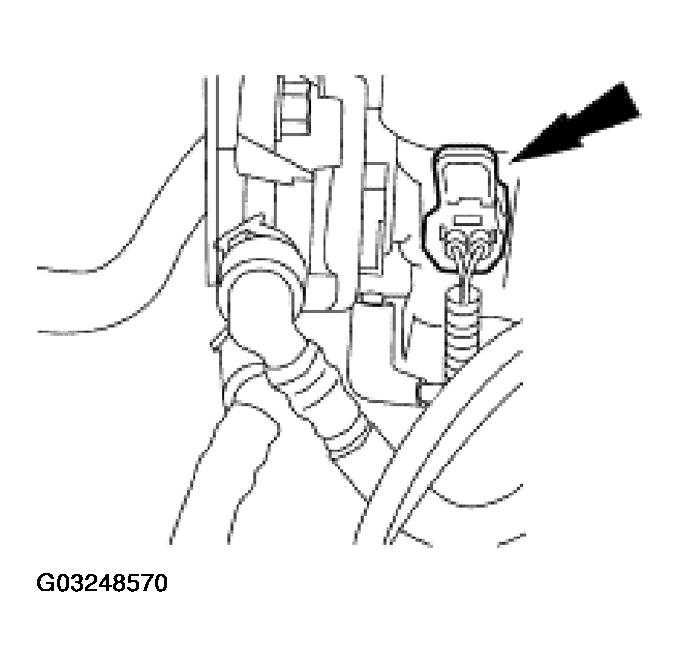

Disconnect the RH heated oxygen sensor connector.

Fig 8: Disconnecting RH Heated Oxygen Sensor Connector
Courtesy of FORD MOTOR CO.

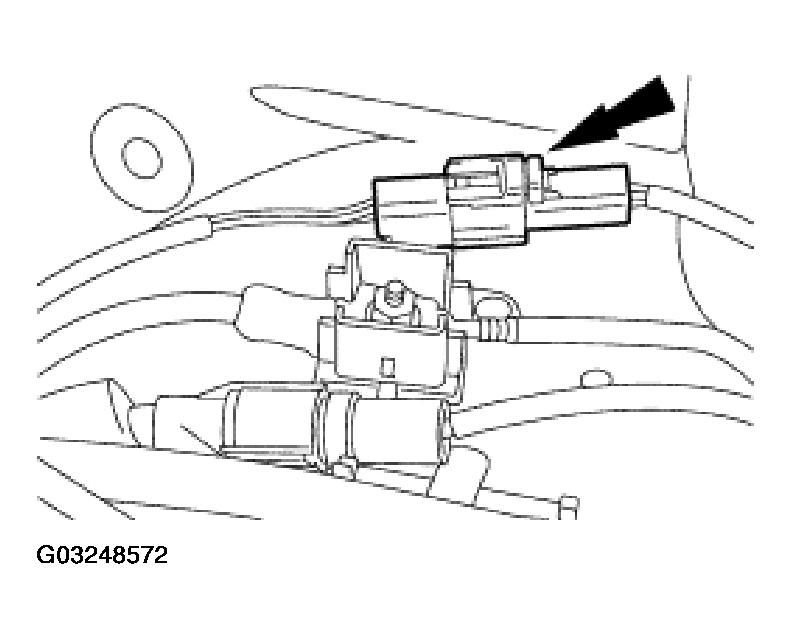

Disconnect the evaporative emission (EVAP) canister purge valve.

Fig 9: Disconnecting Evaporative Emission (EVAP) Canister Purge Valve
Courtesy of FORD MOTOR CO.
Disconnect the EGR vacuum regulator solenoid.

Fig 10: Disconnecting EGR Vacuum Regulator Solenoid
Courtesy of FORD MOTOR CO.
Disconnect the connector.

Fig 11: Disconnecting Connector
Courtesy of FORD MOTOR CO.
Disconnect the A/C cycling switch.

Fig 12: Disconnecting A/C Cycling Switch
Courtesy of FORD MOTOR CO.
Raise the vehicle. For additional information, refer to JACKING & HOISTING .

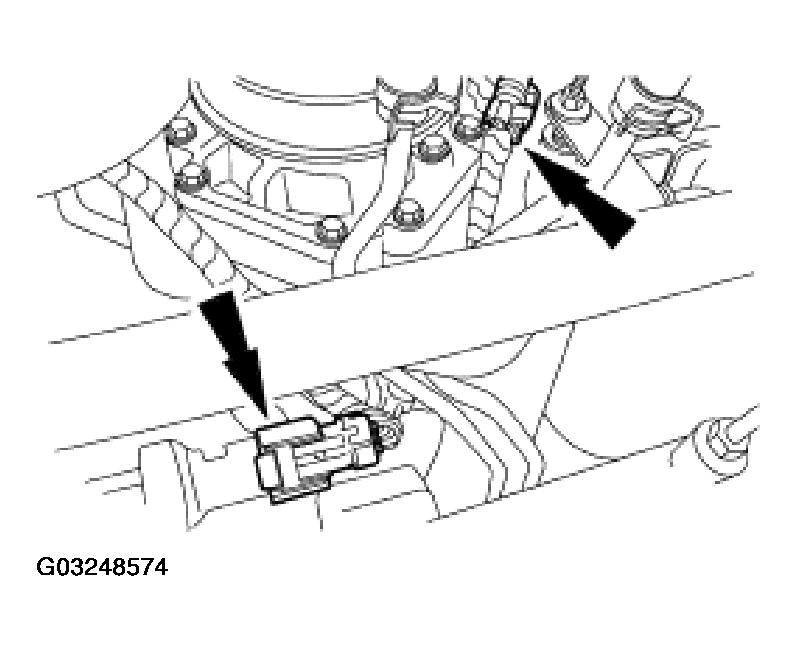

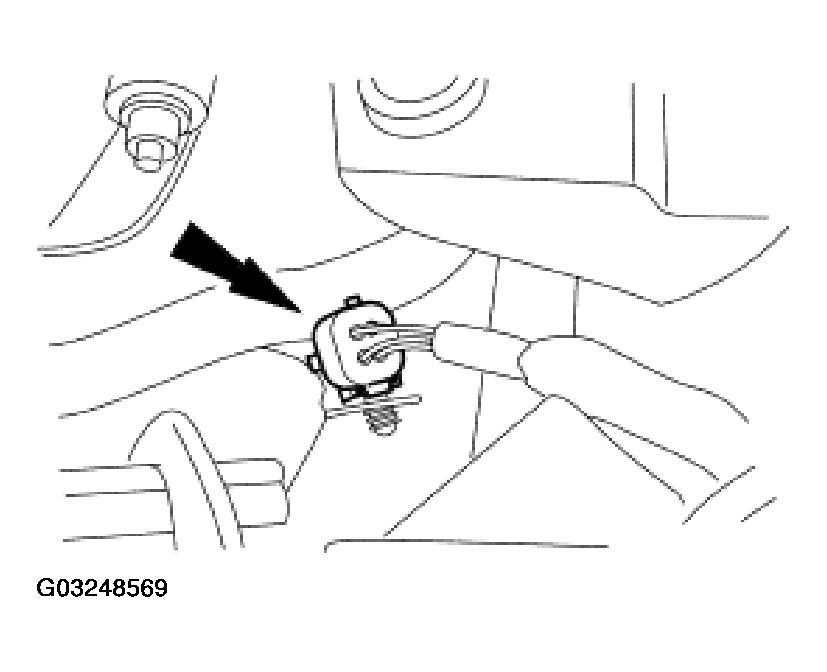

Disconnect the crankshaft position (CKP) sensor and the power steering pressure (PSP) sensor electrical connector.

Fig 13: Disconnecting Crankshaft Position (CKP) Sensor And Power Steering Pressure (PSP) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

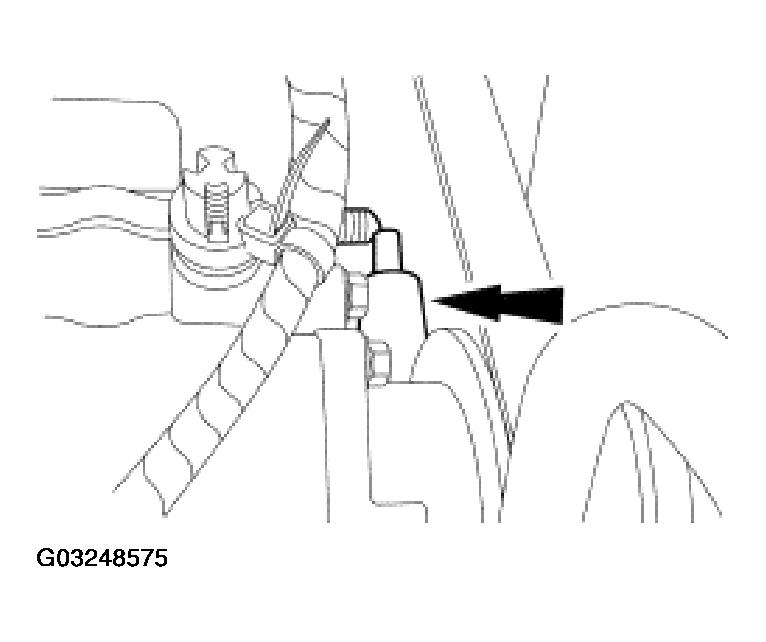

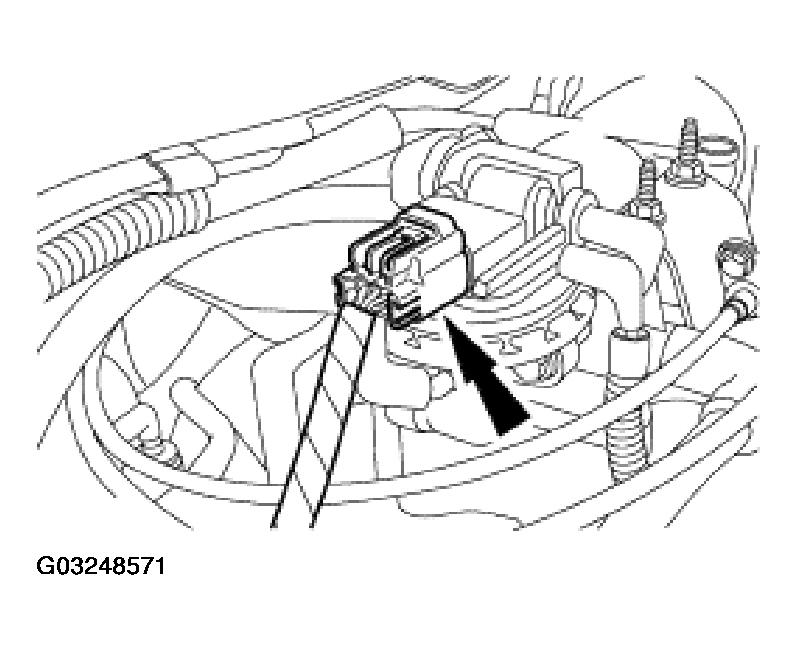

Disconnect the A/C compressor and the wiring harness retainers.

Fig 14: Disconnecting A/C Compressor And Wiring Harness Retainers
Courtesy of FORD MOTOR CO.

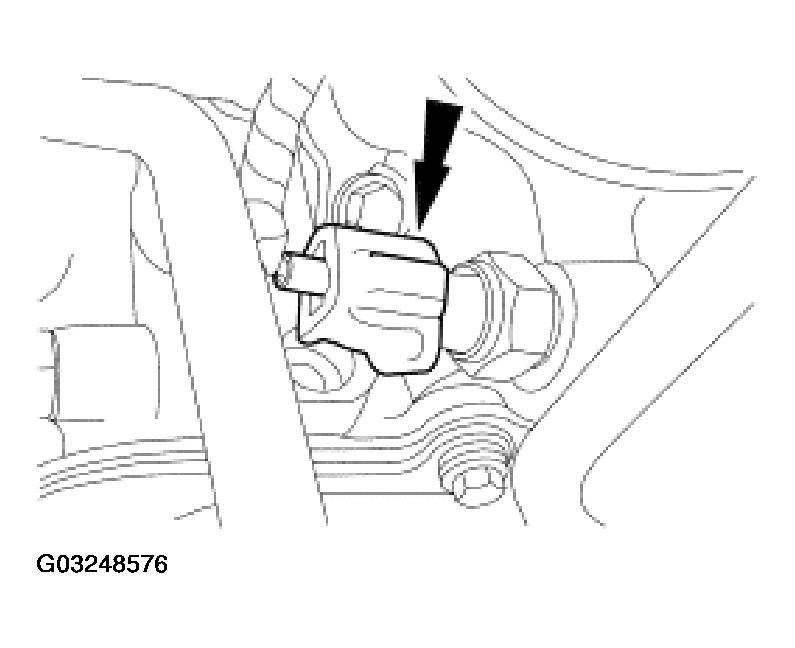

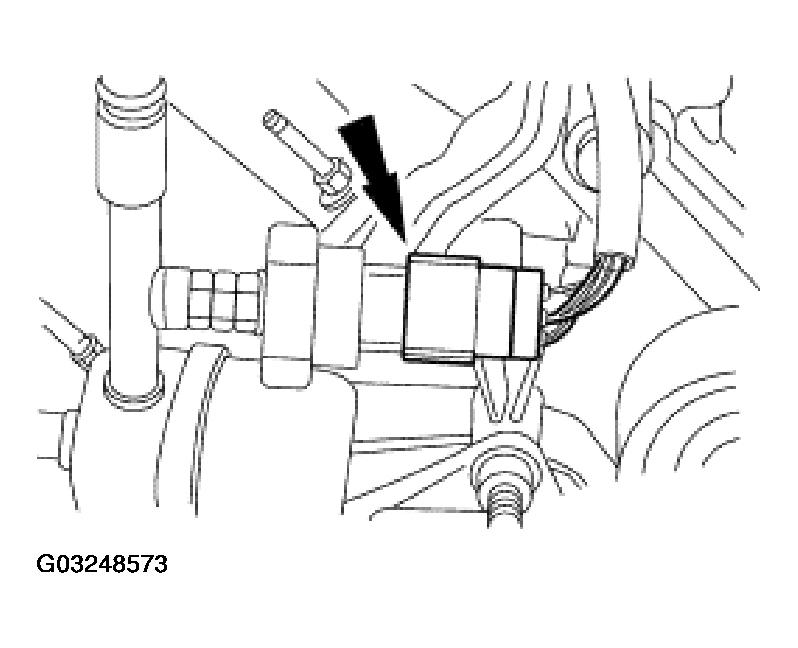

Disconnect the oil pressure sensor.

Fig 15: Disconnecting Oil Pressure Sensor
Courtesy of FORD MOTOR CO.

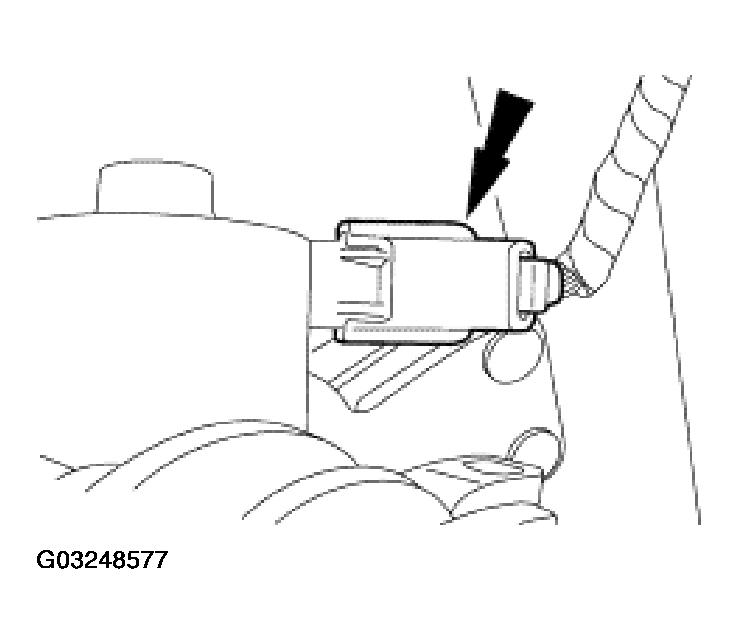

Disconnect the power steering electrical connector.

Fig 16: Disconnecting Power Steering Electrical Connector
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Separate the fuel charging wiring from the rear of the intake manifold and remove from the vehicle.
