Power Liftgate Module C4174a
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

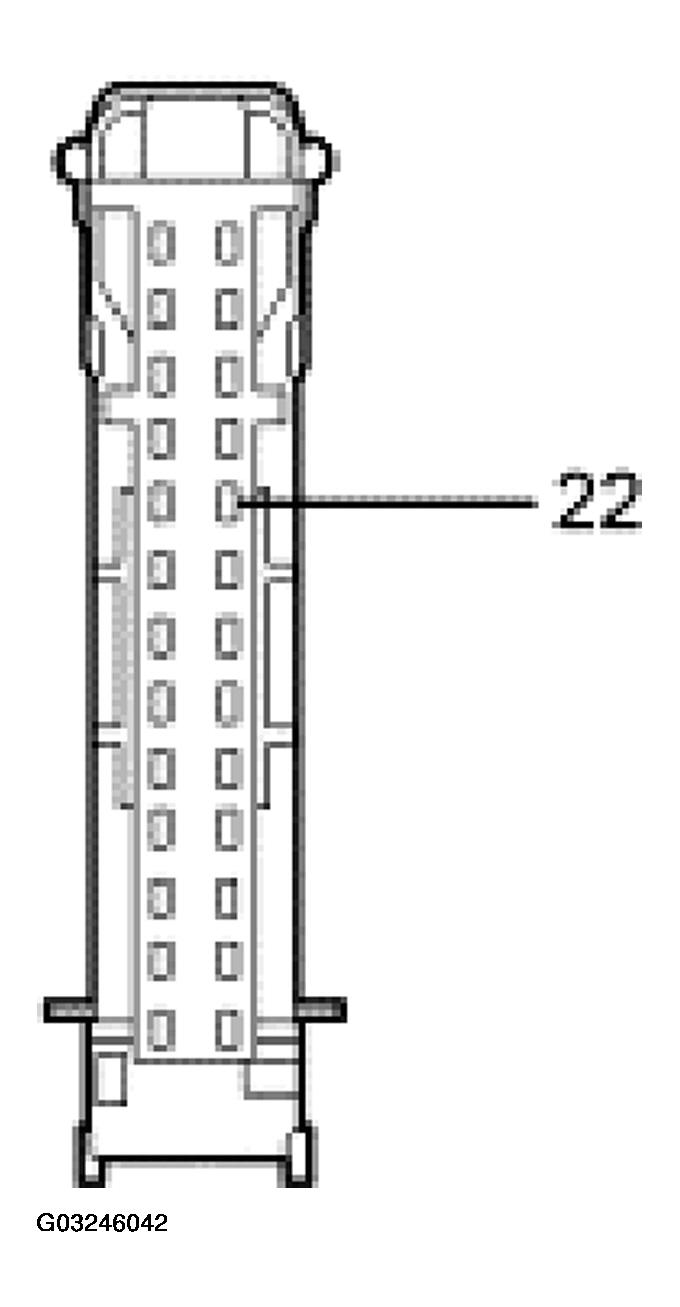

POWER LIFTGATE MODULE C4174a
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 22 | 1351 (TN) power liftgate module liftgate ajar switch signal circuit | 10 volts or greater between the power liftgate module and ground. 5 ohms or less between the power liftgate module and the SJB C2280c-17. 10,000 ohms or greater between the power liftgate module and ground. |
