SJB 2280f
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

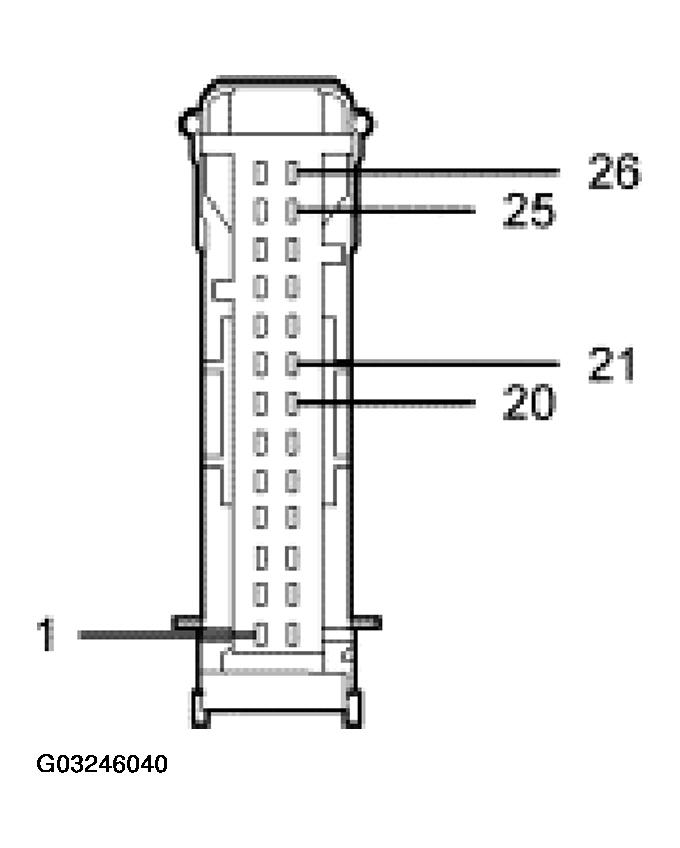

SJB 2280f
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 53 (BK/LB) LH and RH vanity mirror lamp power | 10,000 ohms or greater between the SJB and ground with the vanity mirror lamps disconnected. 5 ohms or less between the SJB and the LH vanity mirror lamp C907-1 or the RH vanity mirror lamp C906-1. |
| 20 | 1458 (VT/WH) rear dome/map and cargo lamps power | 10,000 ohms or greater between the SJB and ground with the rear dome/map and cargo lamps disconnected. 5 ohms or less between the SJB and the second row dome/map lamp C931a-1, the third row dome/map lamp C932a-1 or the cargo lamp C926a-1. |
| 21 | 1334 (OG/WH) rear dome/map and cargo lamps ground return to SJB | 10,000 ohms or greater between the SJB and ground with the SJB disconnected. 5 ohms or less between the SJB and the second row dome/map lamp C931b-2, the third row dome/map lamp C932b-2 or the cargo lamp C926b-2. |
| 25 | 54 (LG/YE) front row dome/map lamps ground return to SJB | 10,000 ohms or greater between the SJB and ground with the SJB disconnected. 5 ohms or less between the SJB and the overhead console C930-11 or front row dome/map lamp C981b-2. |
| 26 | 705 (LG/OG) front row dome/map lamps power | 10,000 ohms or greater between the SJB and ground with the front row dome/map lamps disconnected. 5 ohms or less between the SJB and the overhead console dome/map lamps C930-2 or front row dome/map lamp C981a-1. |
