SJB C2280d
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

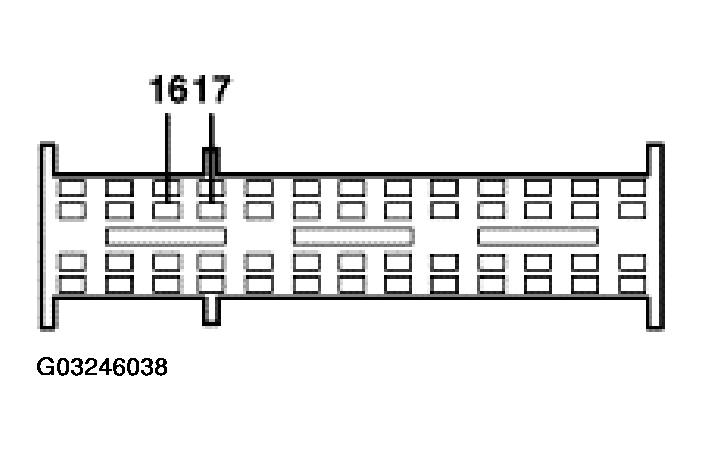

SJB C2280d
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 16 | 1458 (VT/WH) LH stepwell lamp power | 10,000 ohms or greater between the SJB and ground with the LH stepwell lamp disconnected. 5 ohms or less between the SJB and the LH stepwell lamp C371-2. |
| 17 | 1458 (VT/WH) RH stepwell lamp power | 10,000 ohms or greater between the SJB and ground with the RH stepwell lamp disconnected. 5 ohms or less between the SJB and the RH stepwell lamp C391-2. |
