Disassembly And Assembly Of Subassemblies
›
Pump And Intermediate Clutch Piston
›
Pump And Intermediate Clutch Spring And Support - Disassembled View
Pump And Intermediate Clutch Spring And Support - Disassembled View

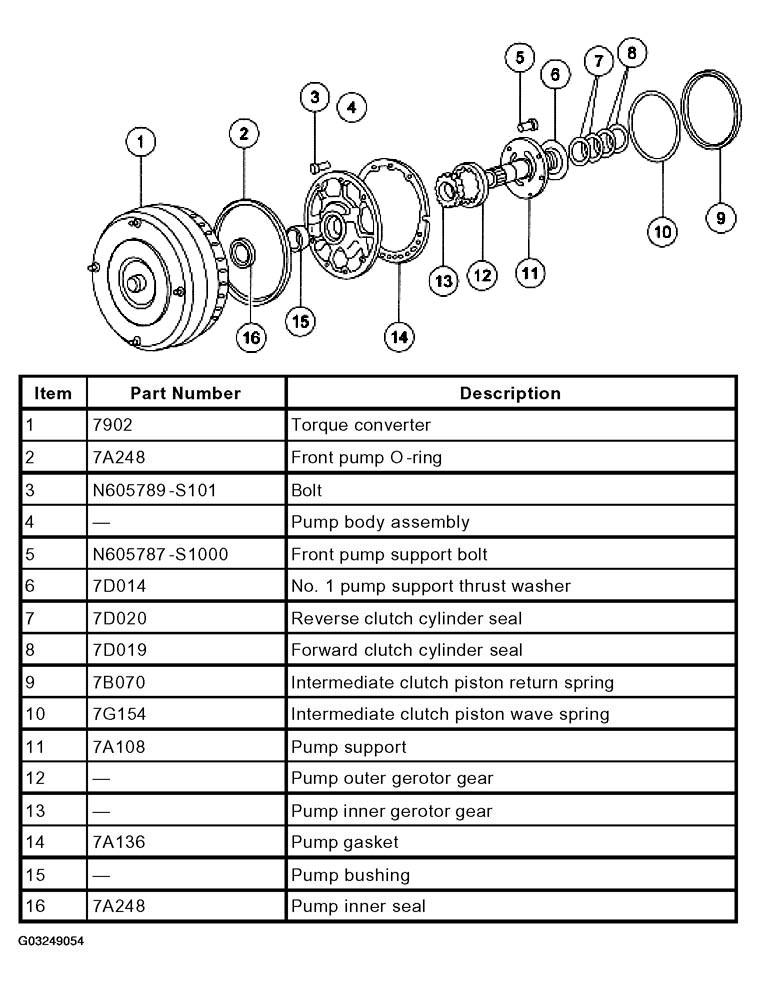

Fig 1: Pump And Intermediate Clutch Spring And Support - Disassembled View
Courtesy of FORD MOTOR CO.
