Multifunction Switch, Turn Portion
Multifunction Switch, Turn Portion

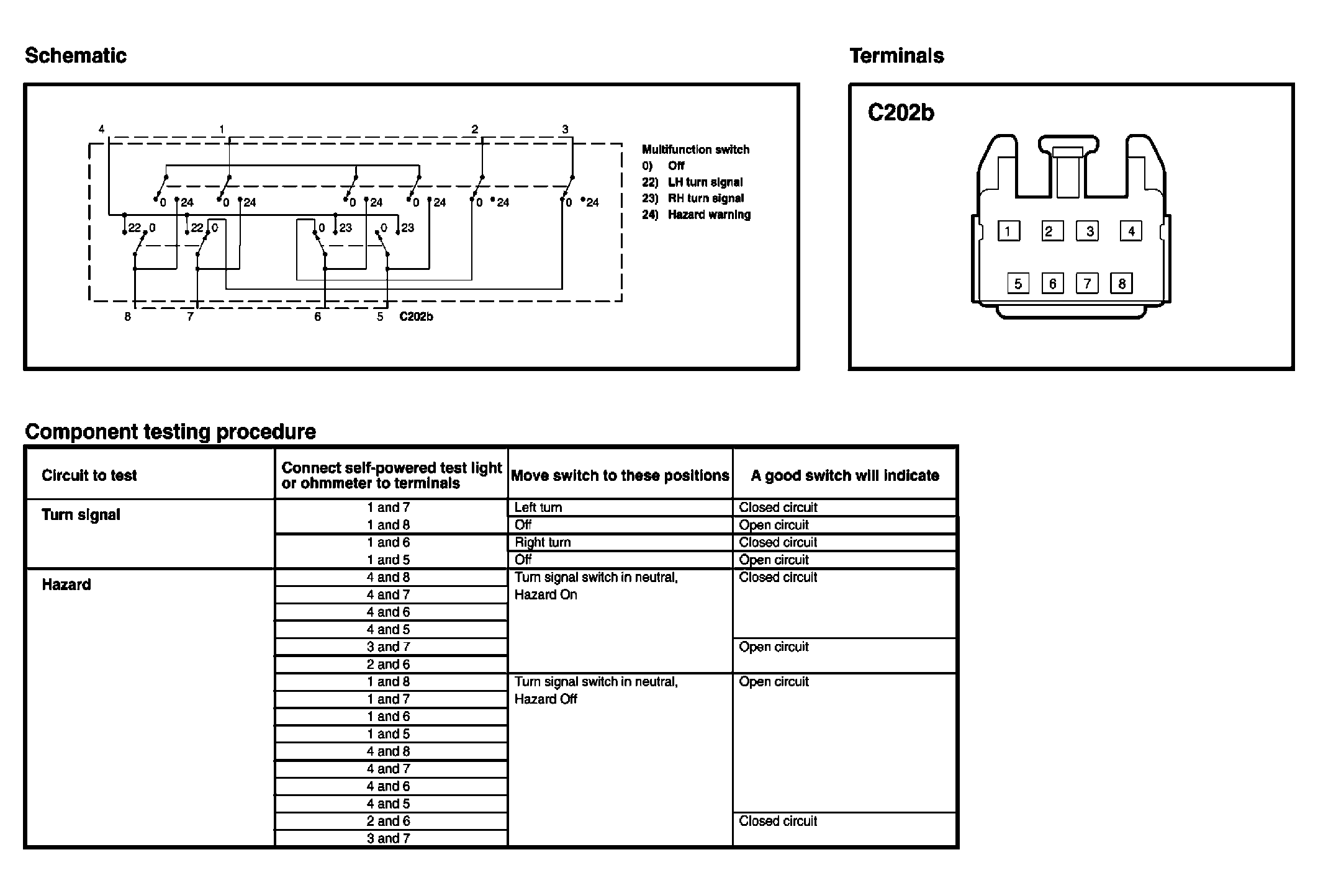

Fig 1: Multifunction Switch, Turn Portion - Component Testing
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
