Multifunction Switch, Wiper/Washer Portion
Multifunction Switch, Wiper/Washer Portion

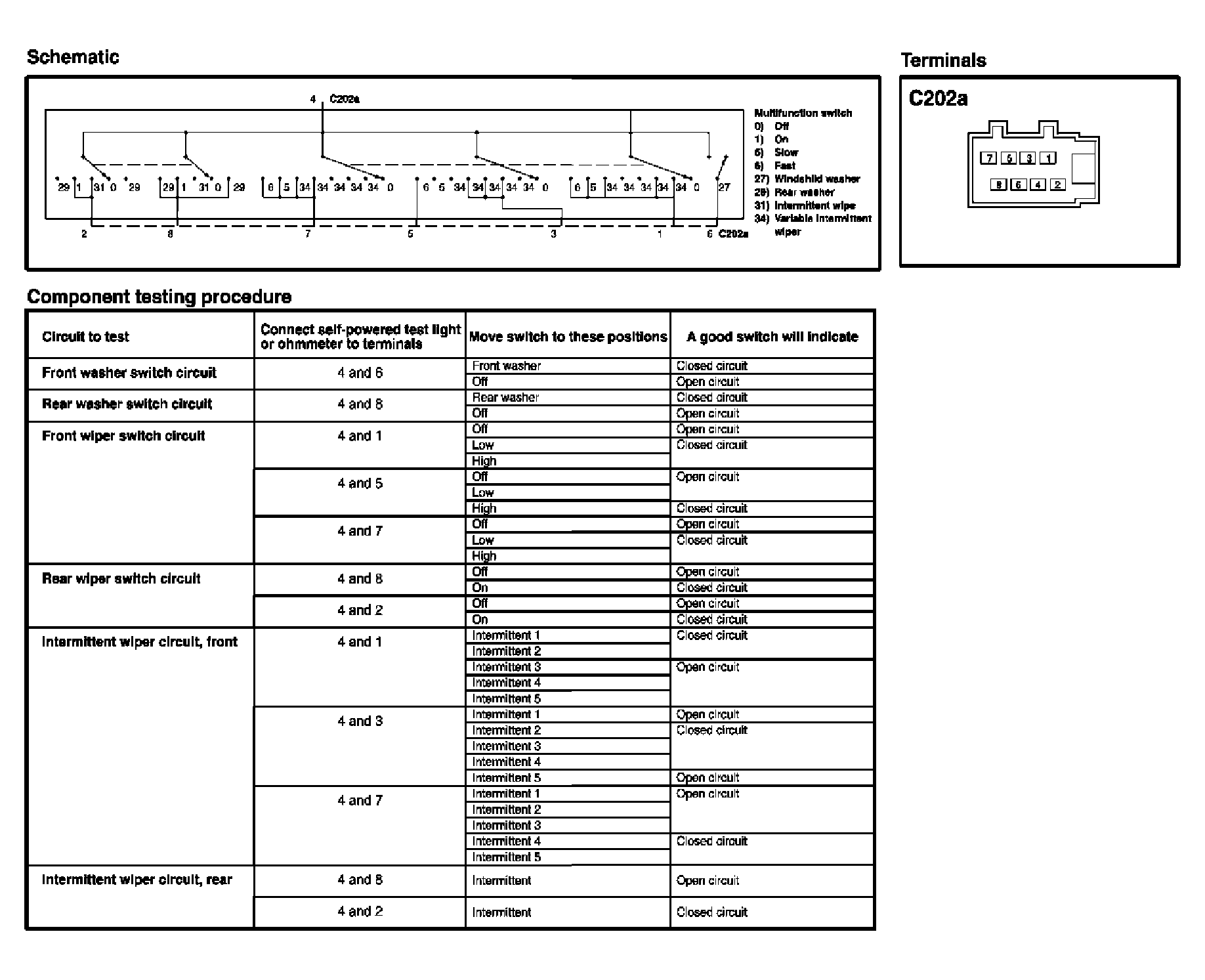

Fig 1: Multifunction Switch, Wiper/Washer Portion - Component Testing
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
