Transmission Support Crossmember: Notes

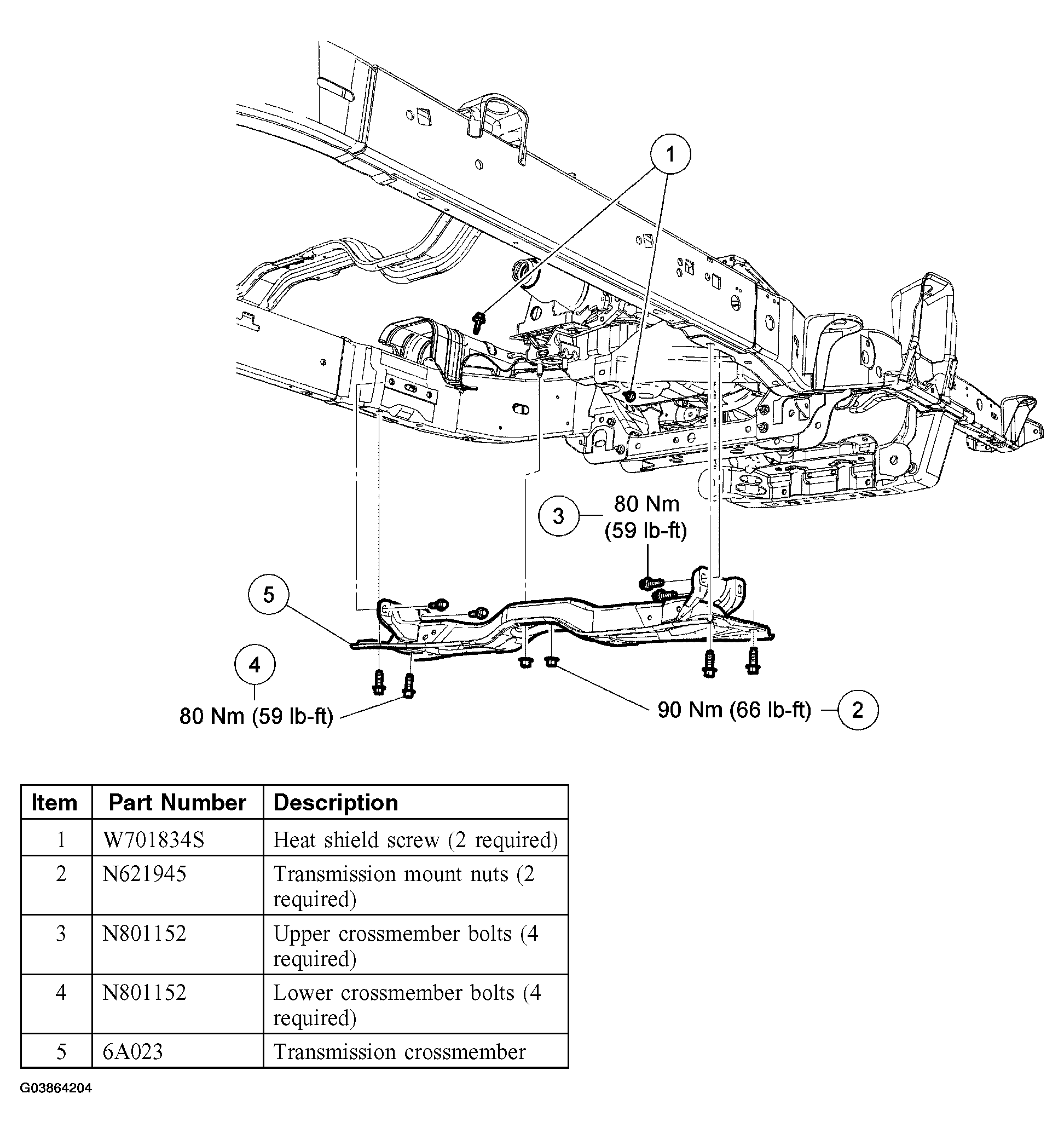

Fig 1: Identifying Transmission Support Crossmember Components
G03864204Courtesy of FORD MOTOR CO.
