Steering Column Multifunction Switch: Notes

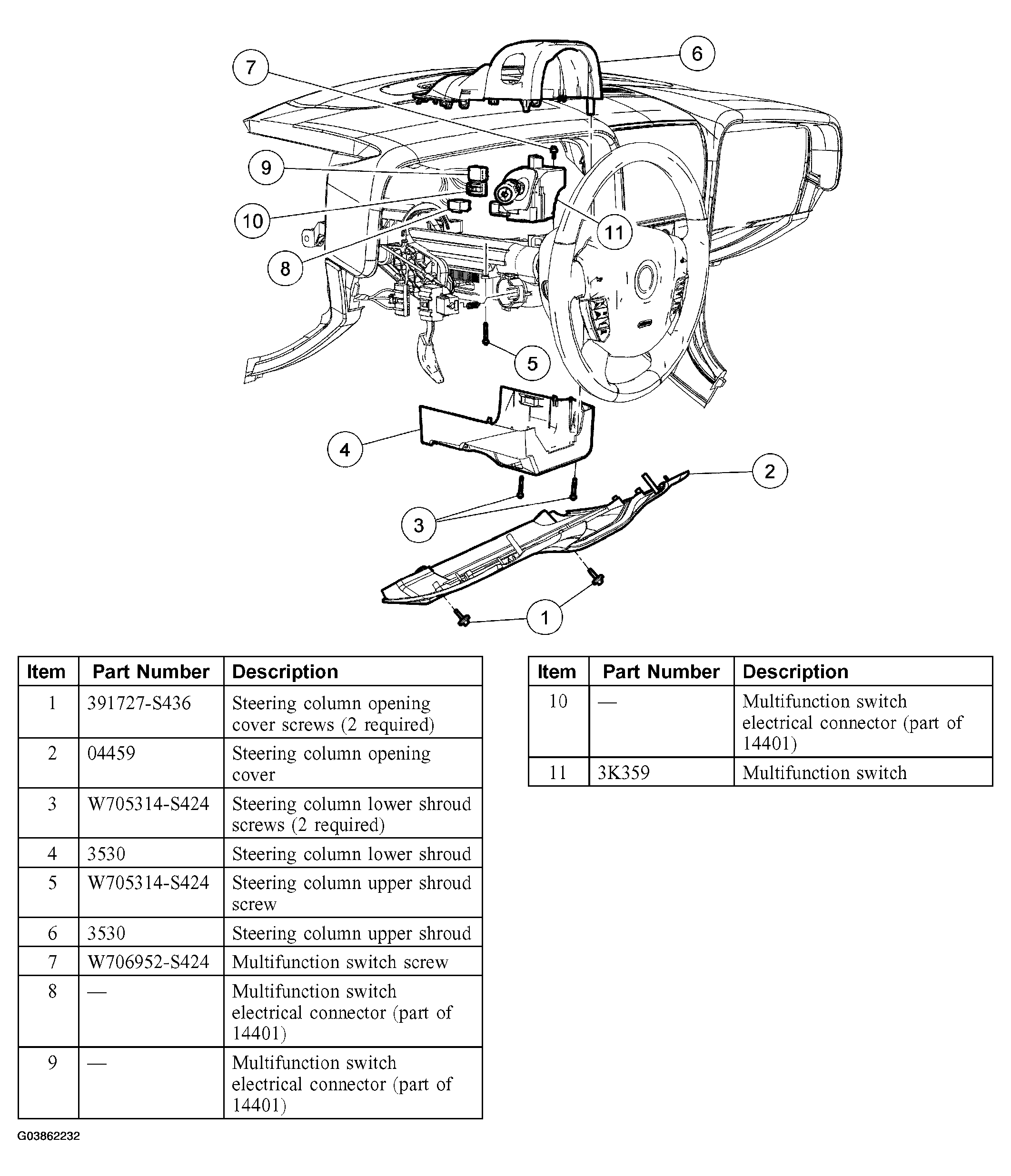

Fig 1: Exploded View Of Steering Column Multifunction Switch
G03862232Courtesy of FORD MOTOR CO.
