Front Seat Backrest: Notes

NOTE: Driver side shown, passenger side similar.

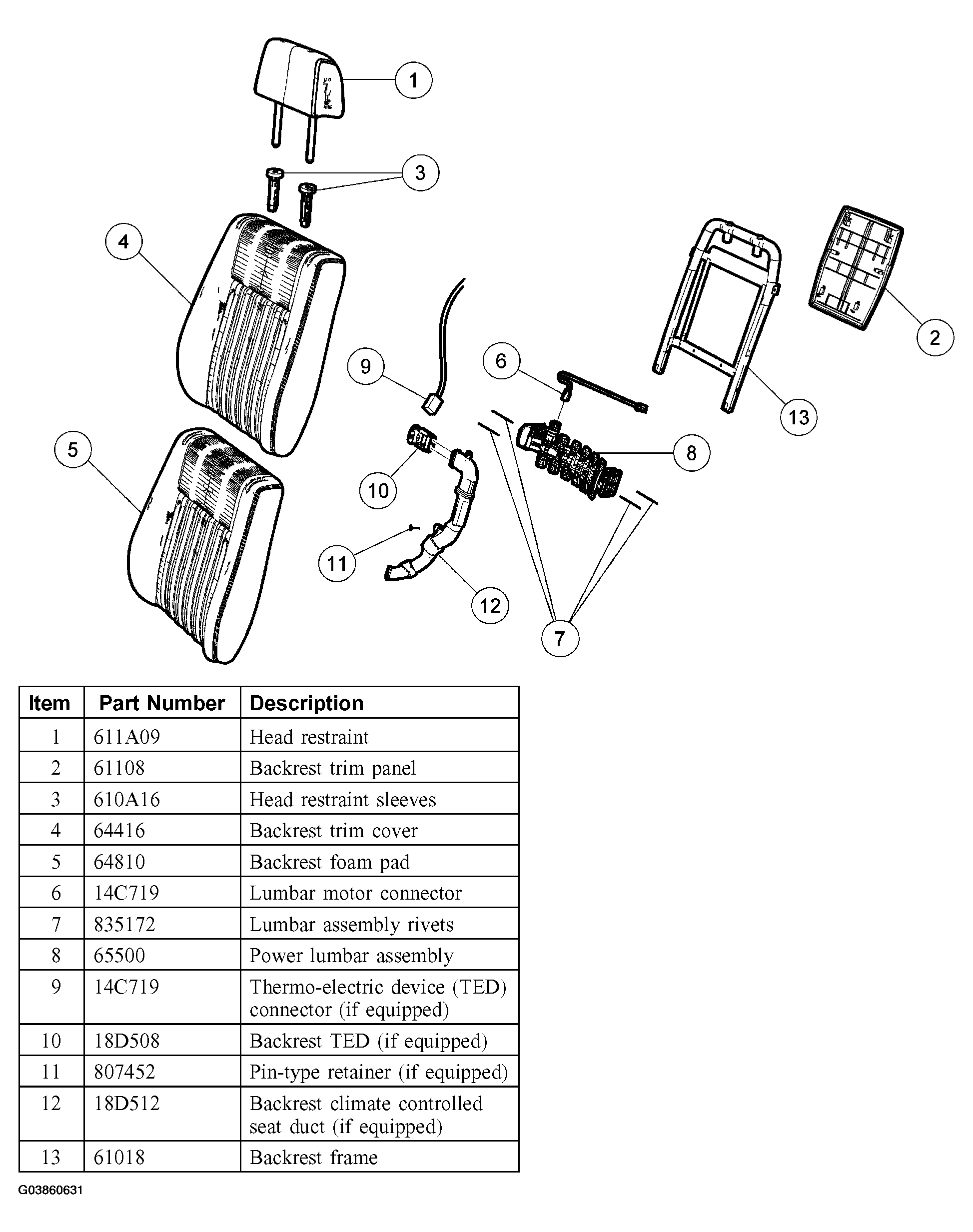

Fig 1: Disassembling Front Seat Backrest (Driver Side)
G03860631Courtesy of FORD MOTOR CO.
