Front Seat: Notes

NOTE: Driver seat shown, passenger seat similar.

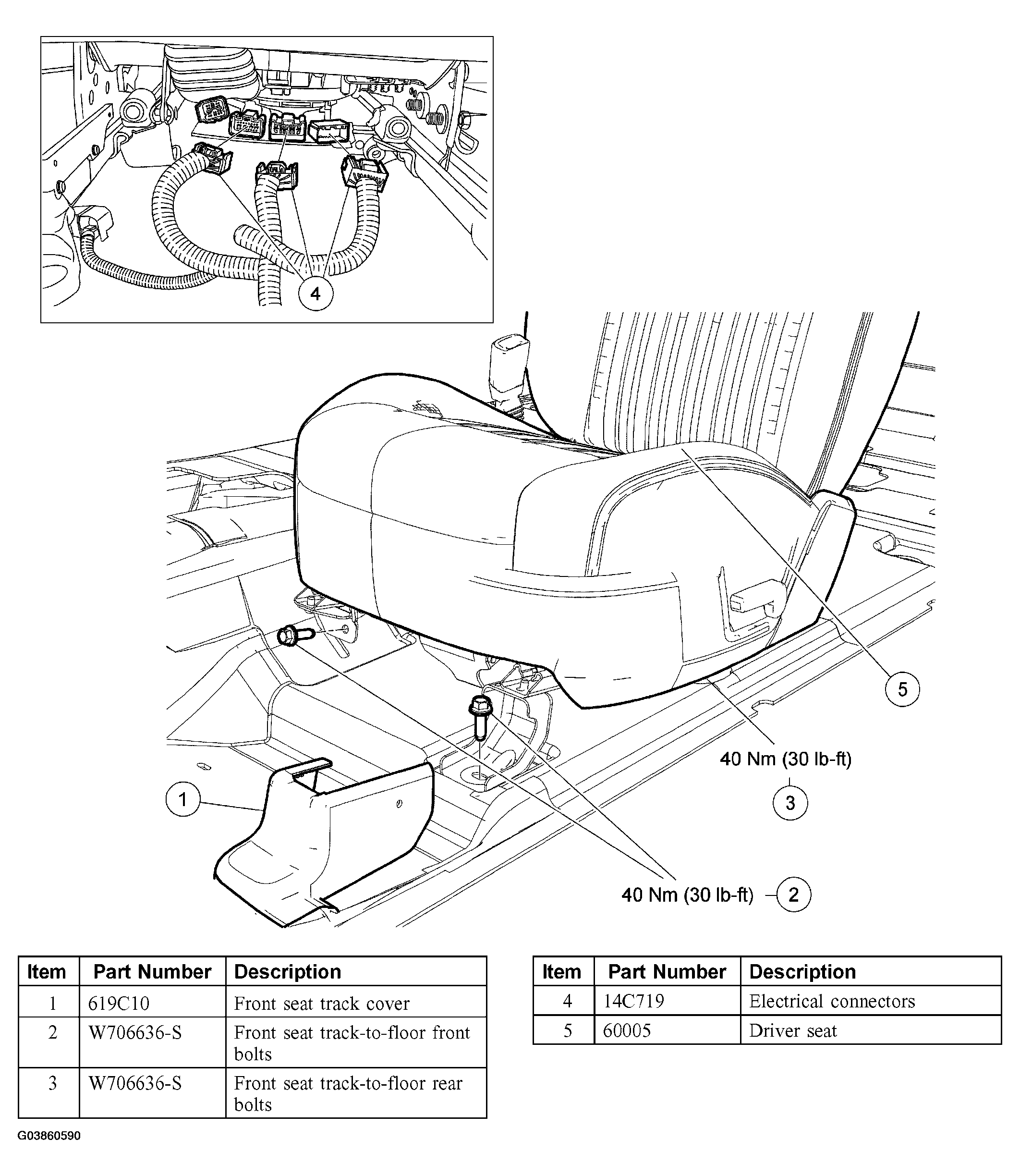

Fig 1: Identifying Front Seat Components
G03860590Courtesy of FORD MOTOR CO.
