Third Row Seat Backrest

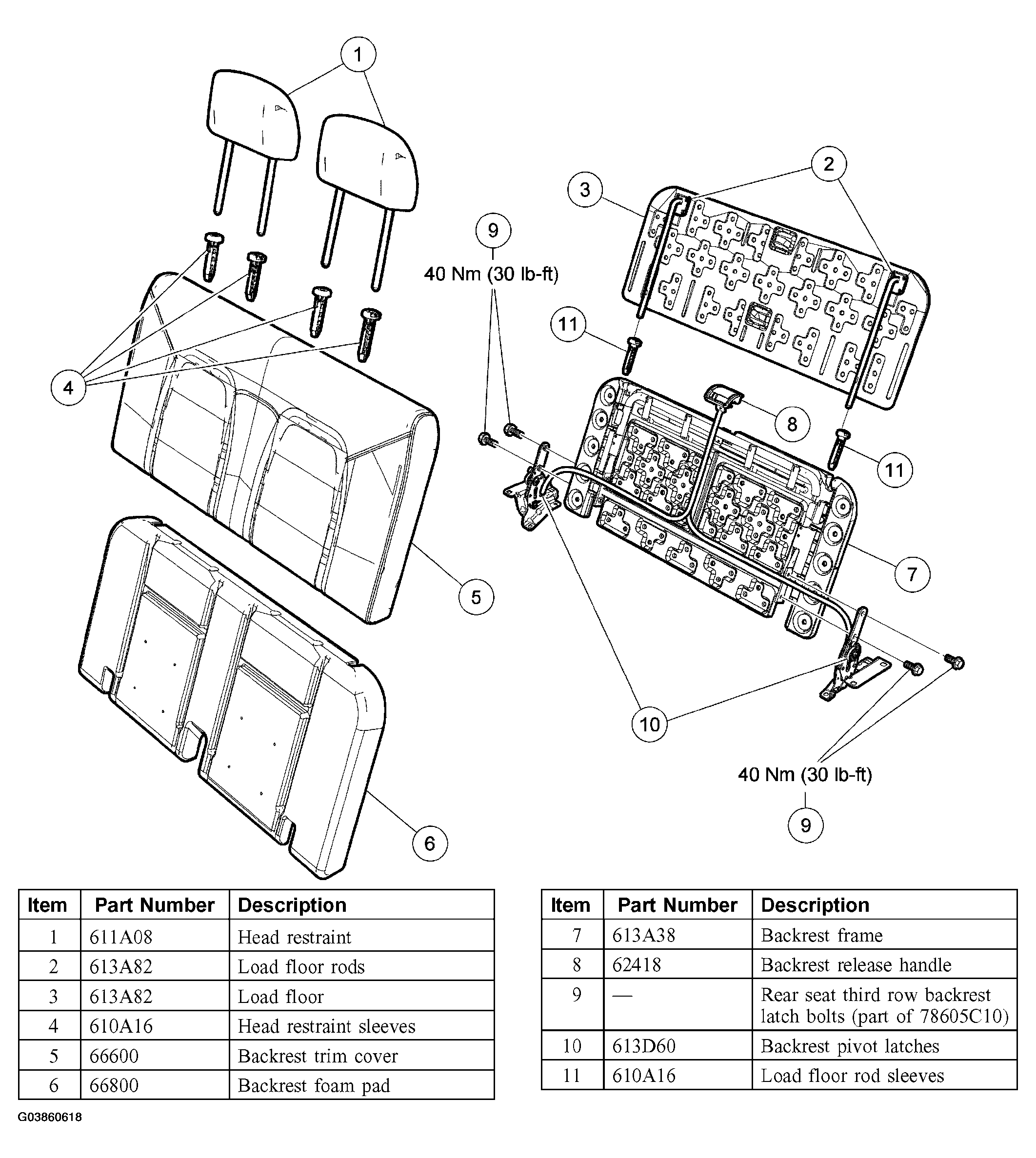

Fig 1: Exploded View Of Seat (Third Row Seat Backrest)
G03860618Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
