Hydraulic Control Unit (HCU): Material

MATERIAL CHART

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1)	ESA-M6C25-A

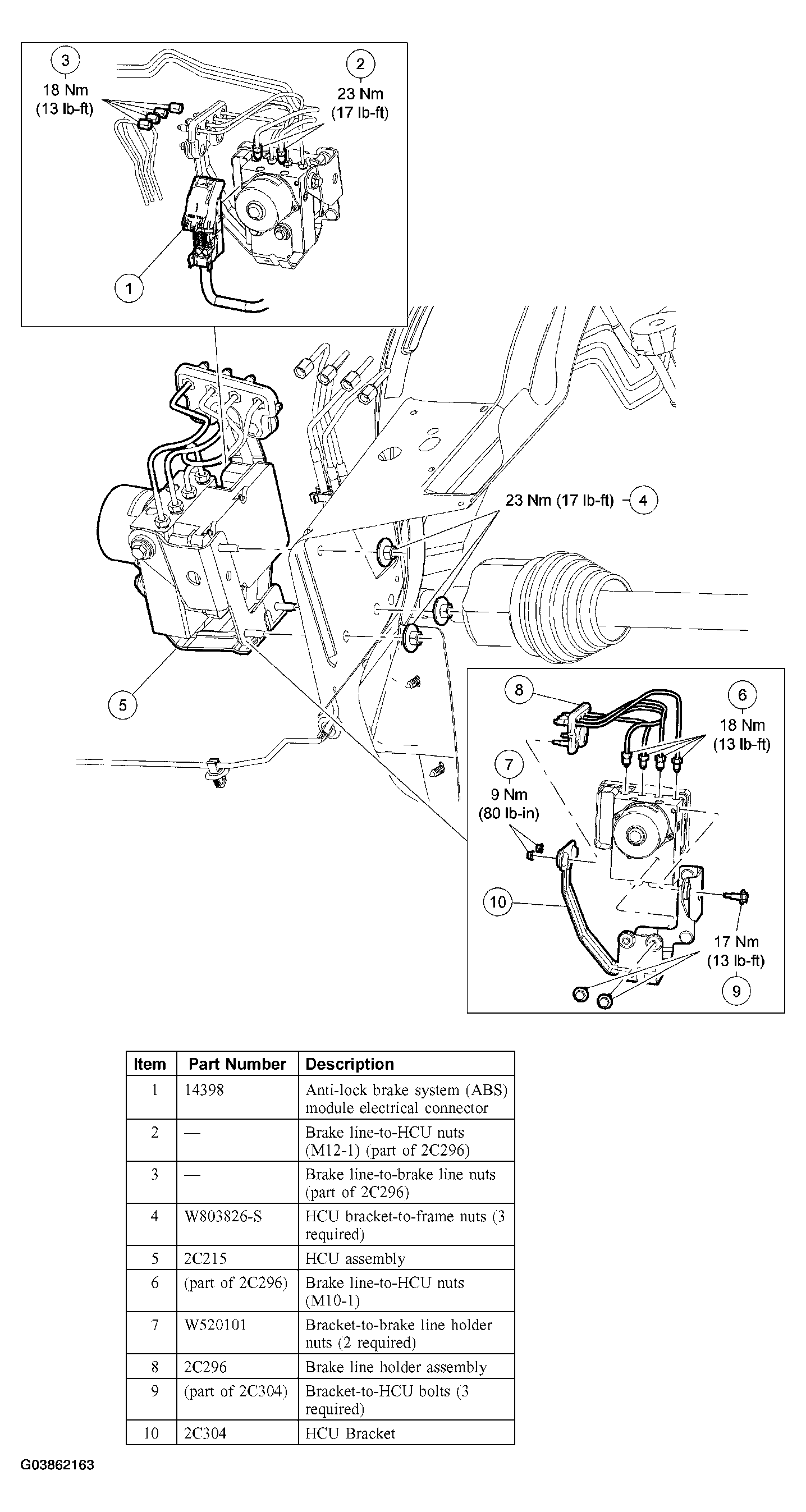

Fig 1: Identifying Anti-Lock Brake System (ABS) Hydraulic Control Unit

Courtesy of FORD MOTOR CO.
