Connecting Rod Twist

  1. Measure the connecting rod twist on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the measurement is within specification.
    • Refer to the appropriate article in ENGINE for the procedure.
    • If out of specification, install new components as necessary. Refer to the appropriate article in ENGINE for the procedure.

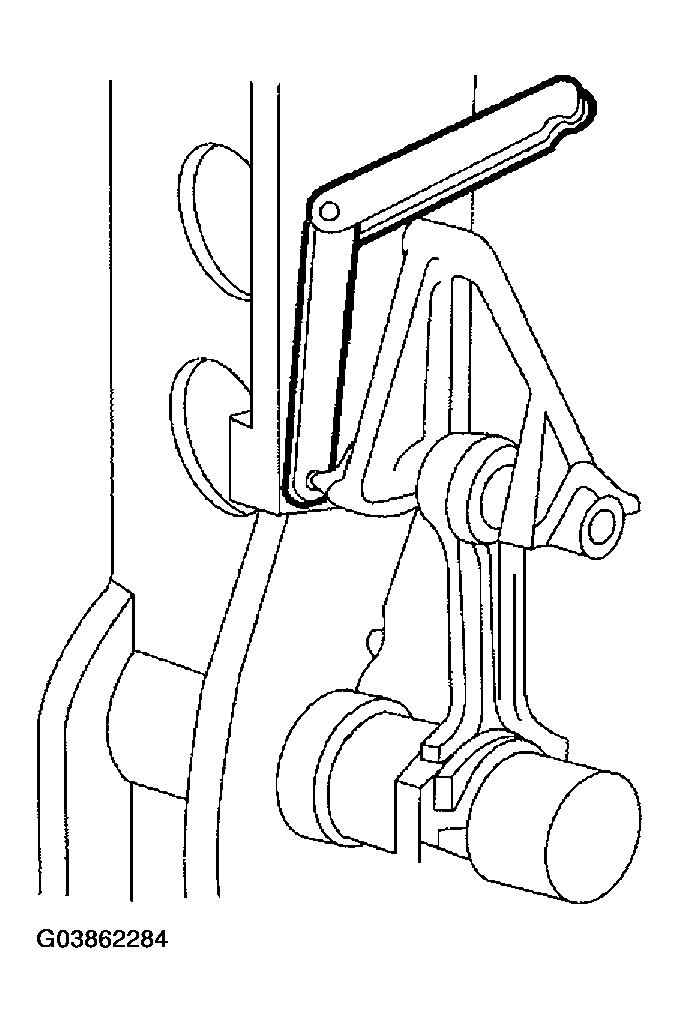

    Fig 1: Measuring Connecting Rod Twist On A Suitable Alignment Fixture
    G03862284Courtesy of FORD MOTOR CO.
