Cylinder Head: Notes

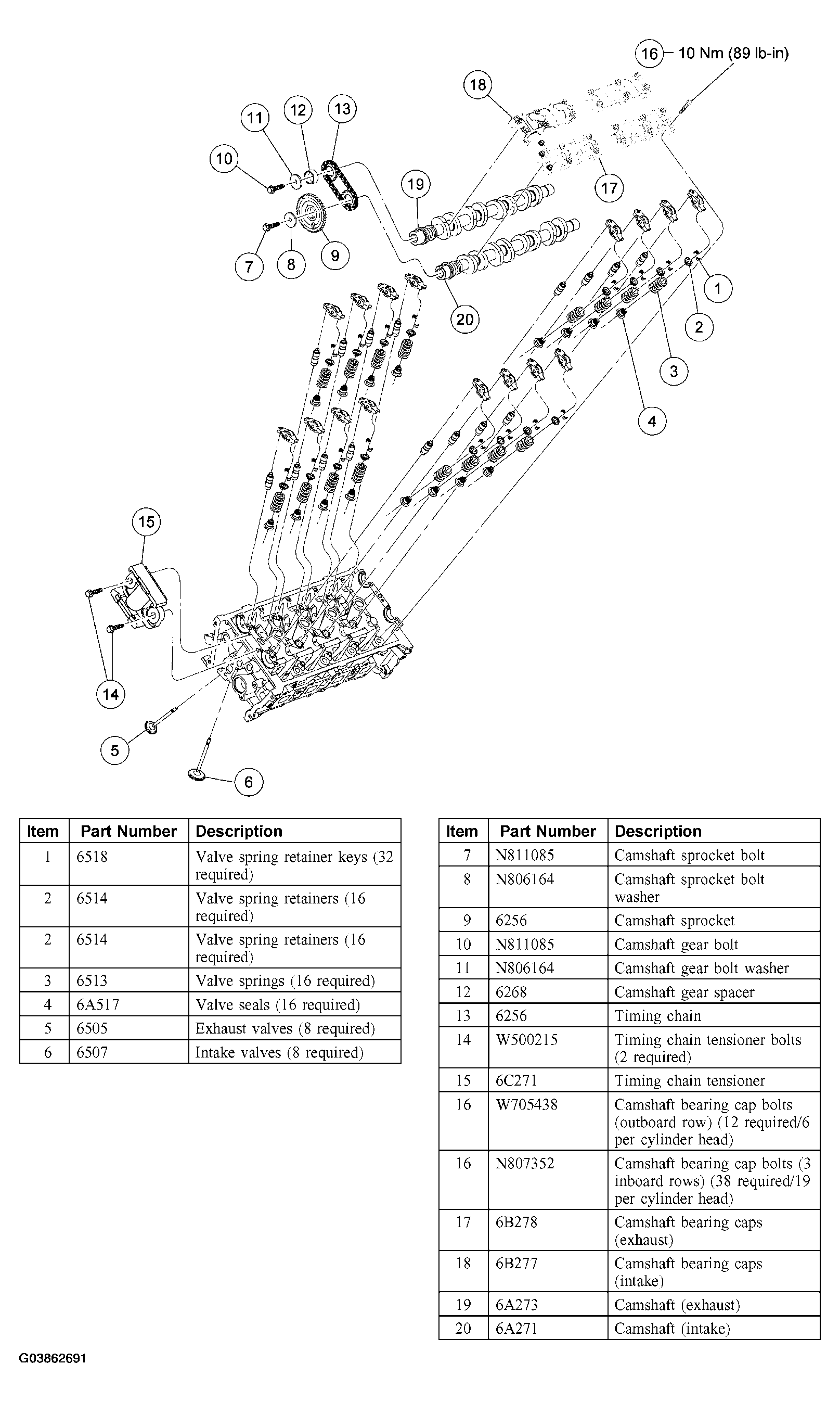

Fig 1: Exploded View Of Cylinder Head Components (Torque Specs)
G03862691Courtesy of FORD MOTOR CO.
