Upper Intake Manifold: Notes

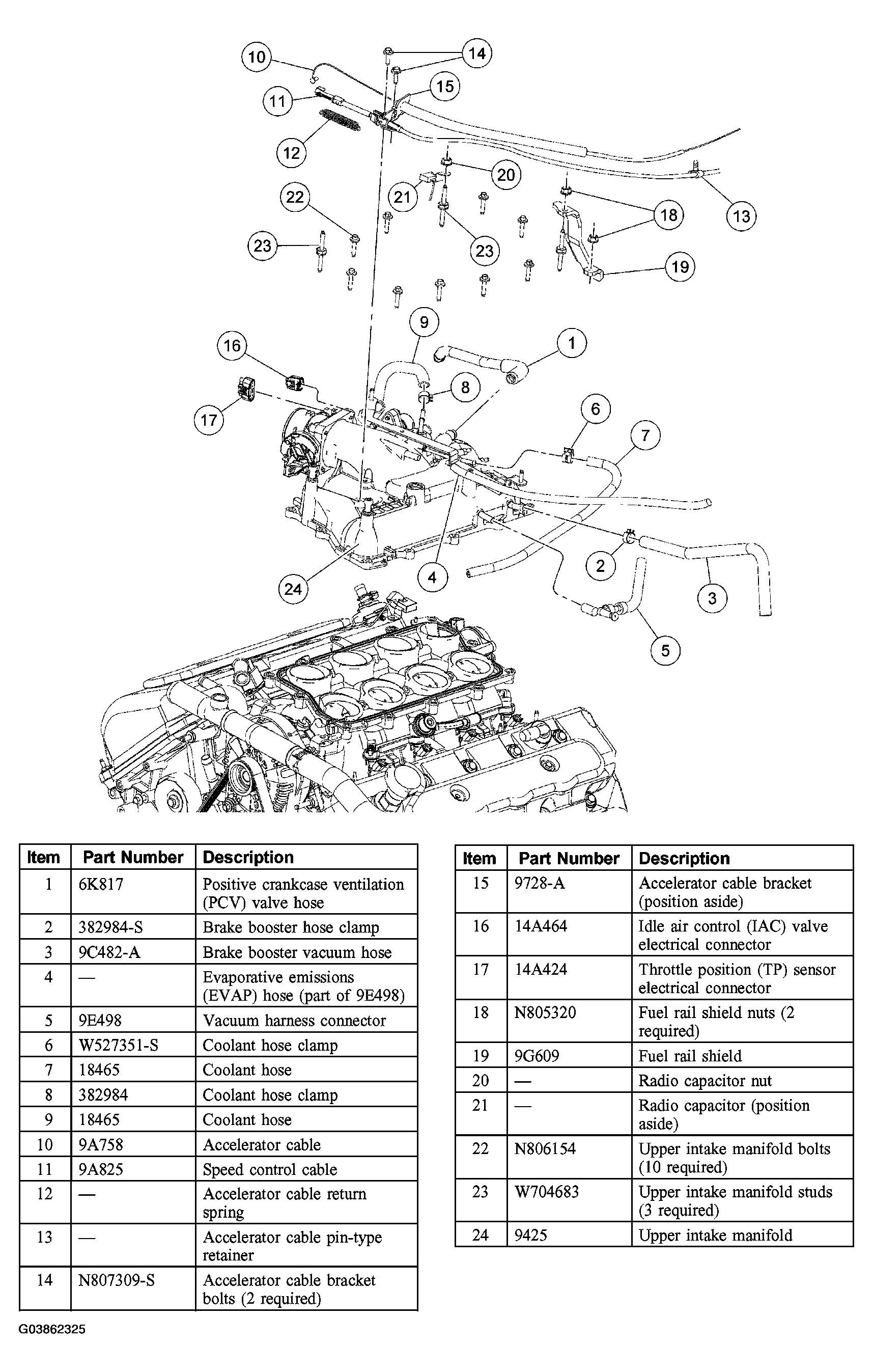

Fig 1: Exploded View Of Upper Intake Manifold Components
G03862325Courtesy of FORD MOTOR CO.
