Fuel Rail and Fuel Injector - Exploded View

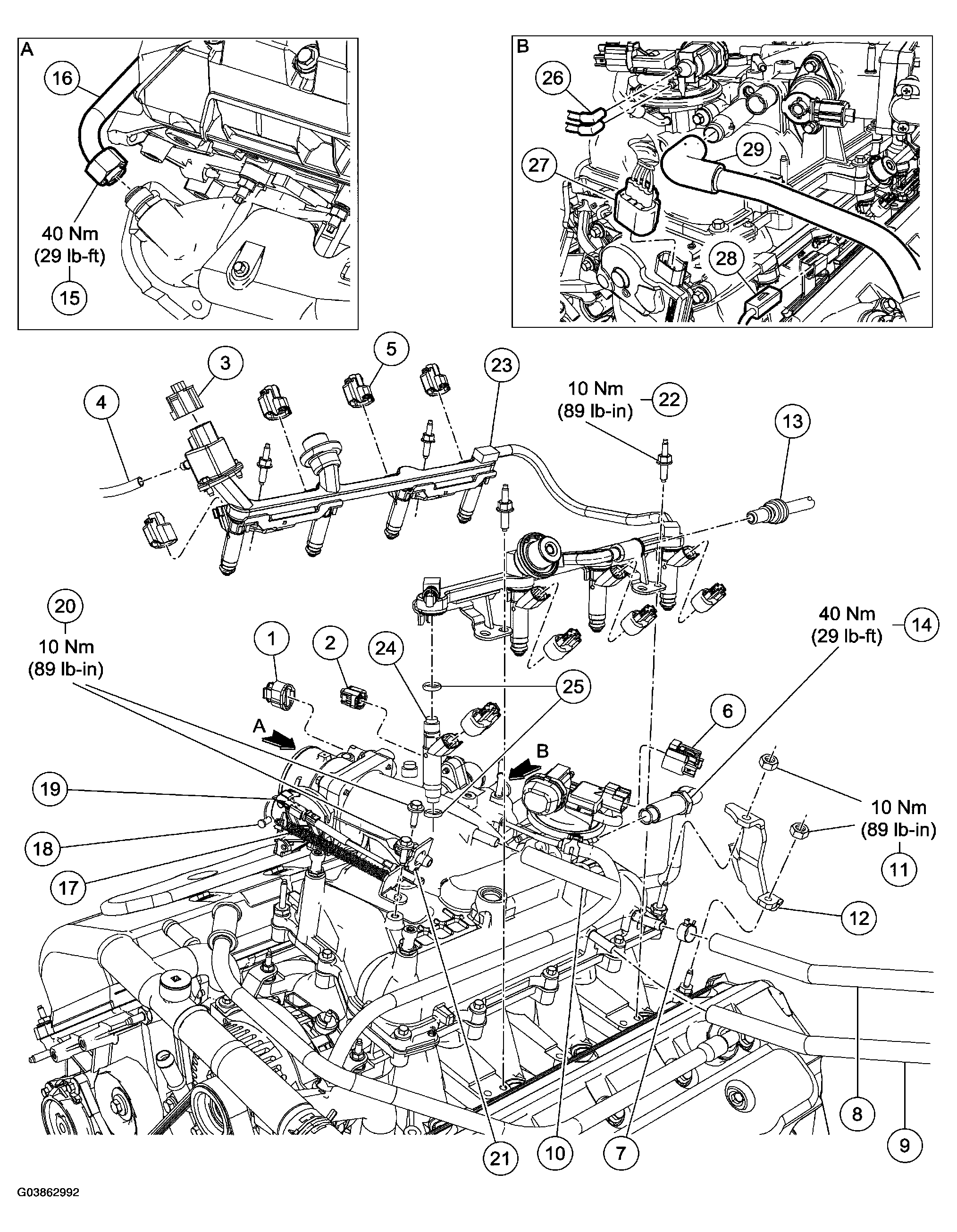

Fig 1: Exploded View Of Fuel Rail And Fuel Injector (Torque Specs)
G03862992Courtesy of FORD MOTOR CO.

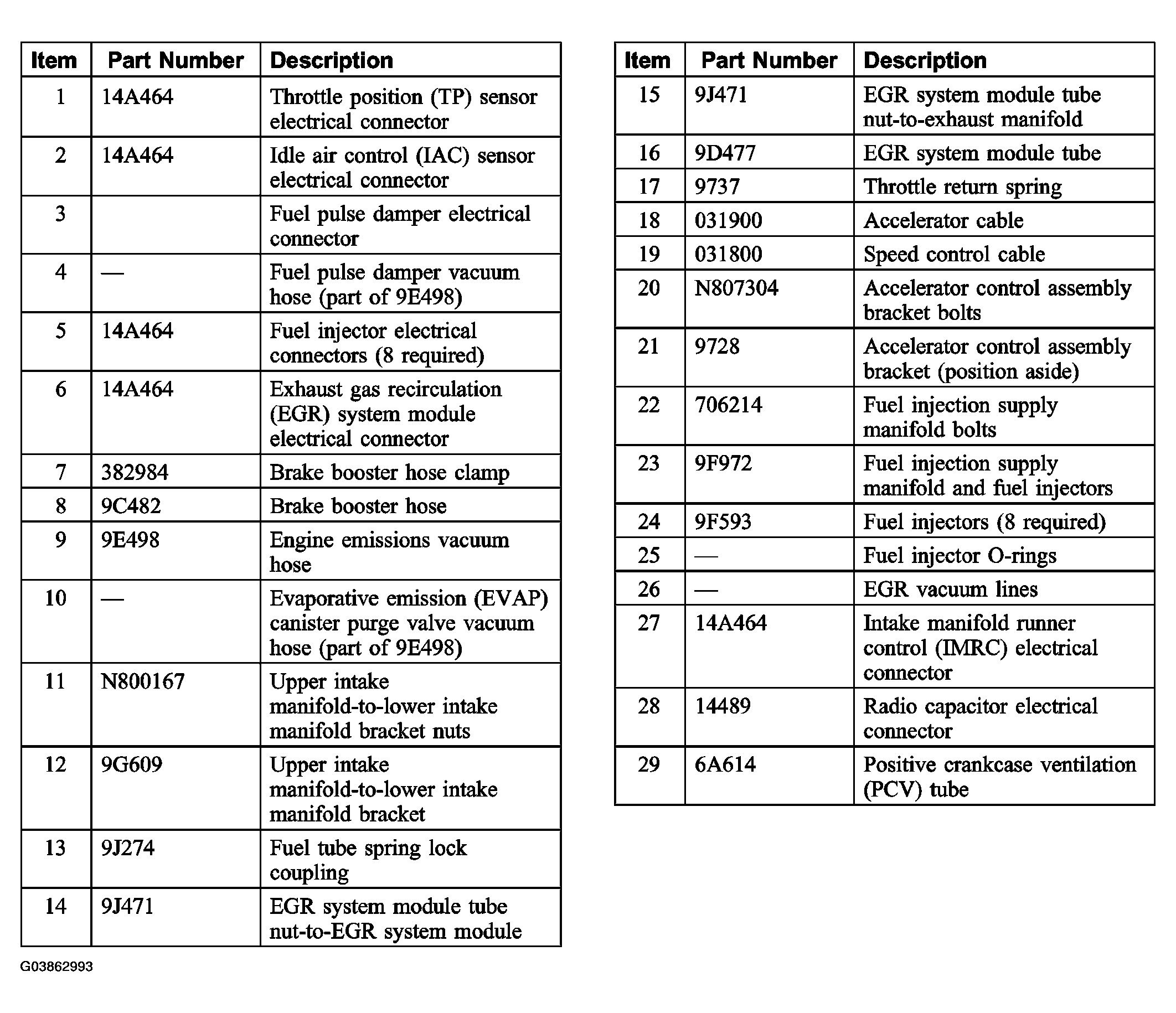

Fig 2: Fuel Rail And Fuel Injector Components Description
G03862993Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
