Climate Control Assembly: Notes

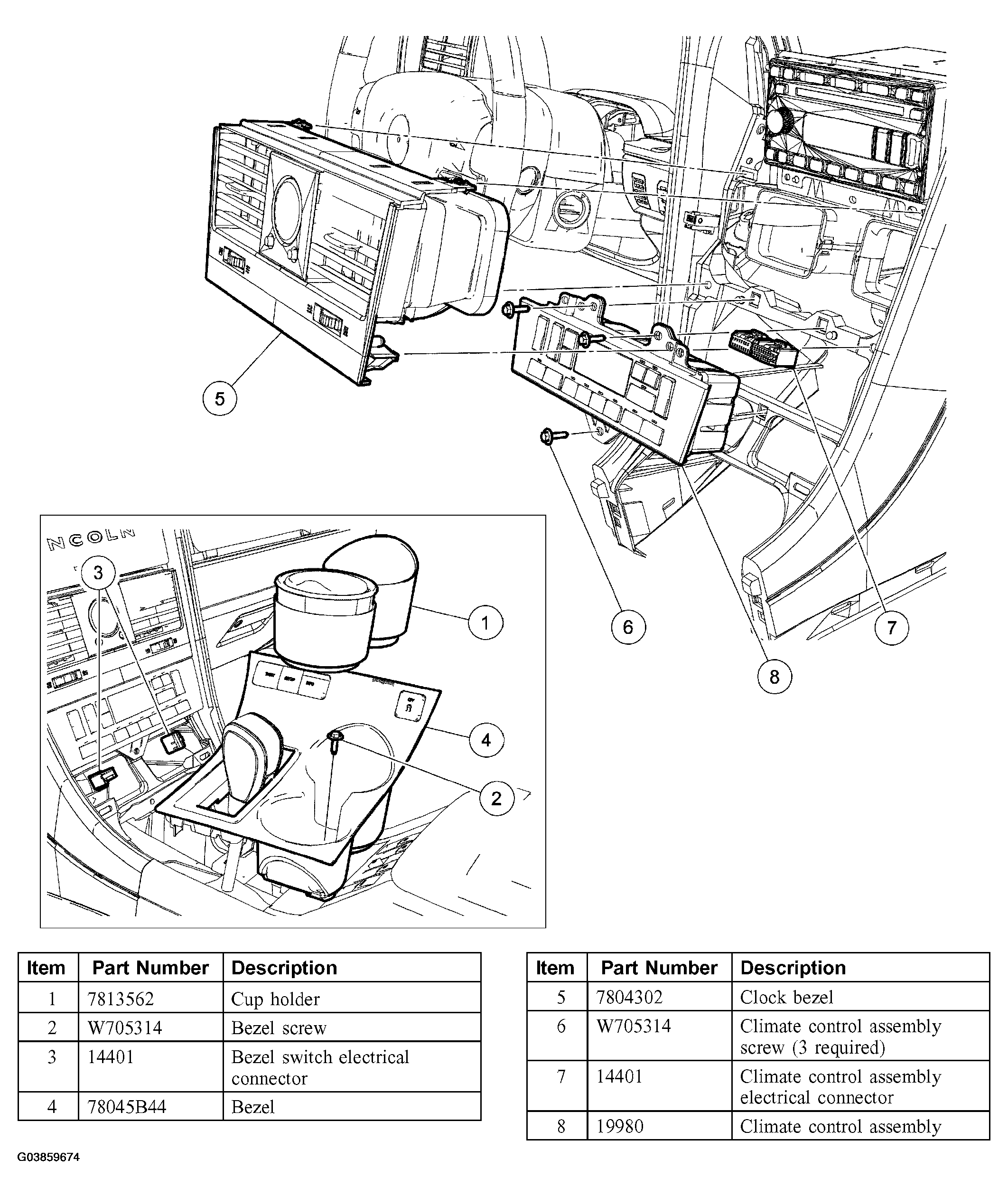

Fig 1: Exploded View Of Climate Control Assembly
G03859674Courtesy of FORD MOTOR CO.
