Removal And Installation: Clockspring: Notes

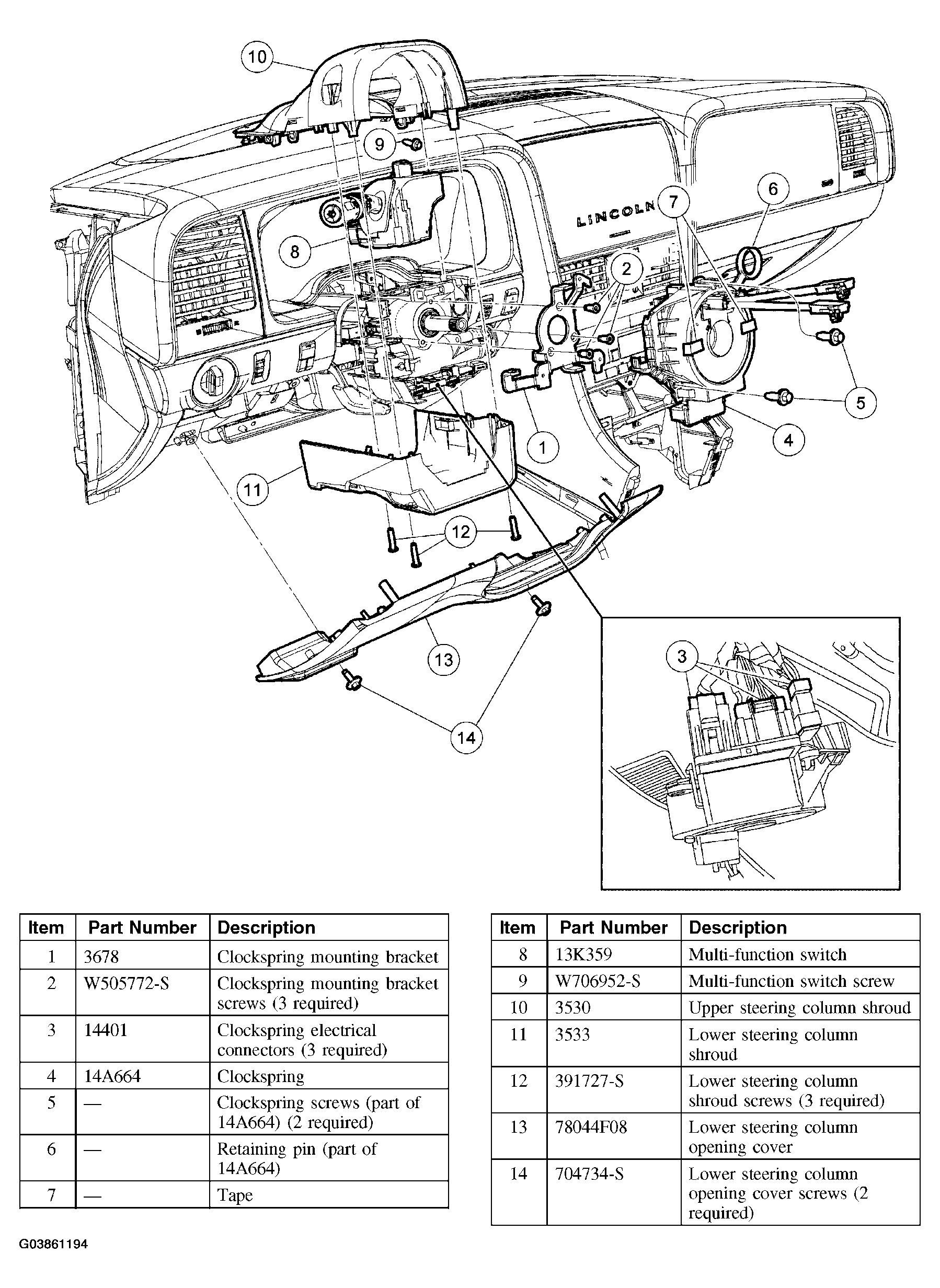

Fig 1: Exploded View Of Clockspring
G03861194Courtesy of FORD MOTOR CO.
