Safety Belt System - Exploded View, Second Row, 40/20/40

NOTE: RH side shown, LH side similar.

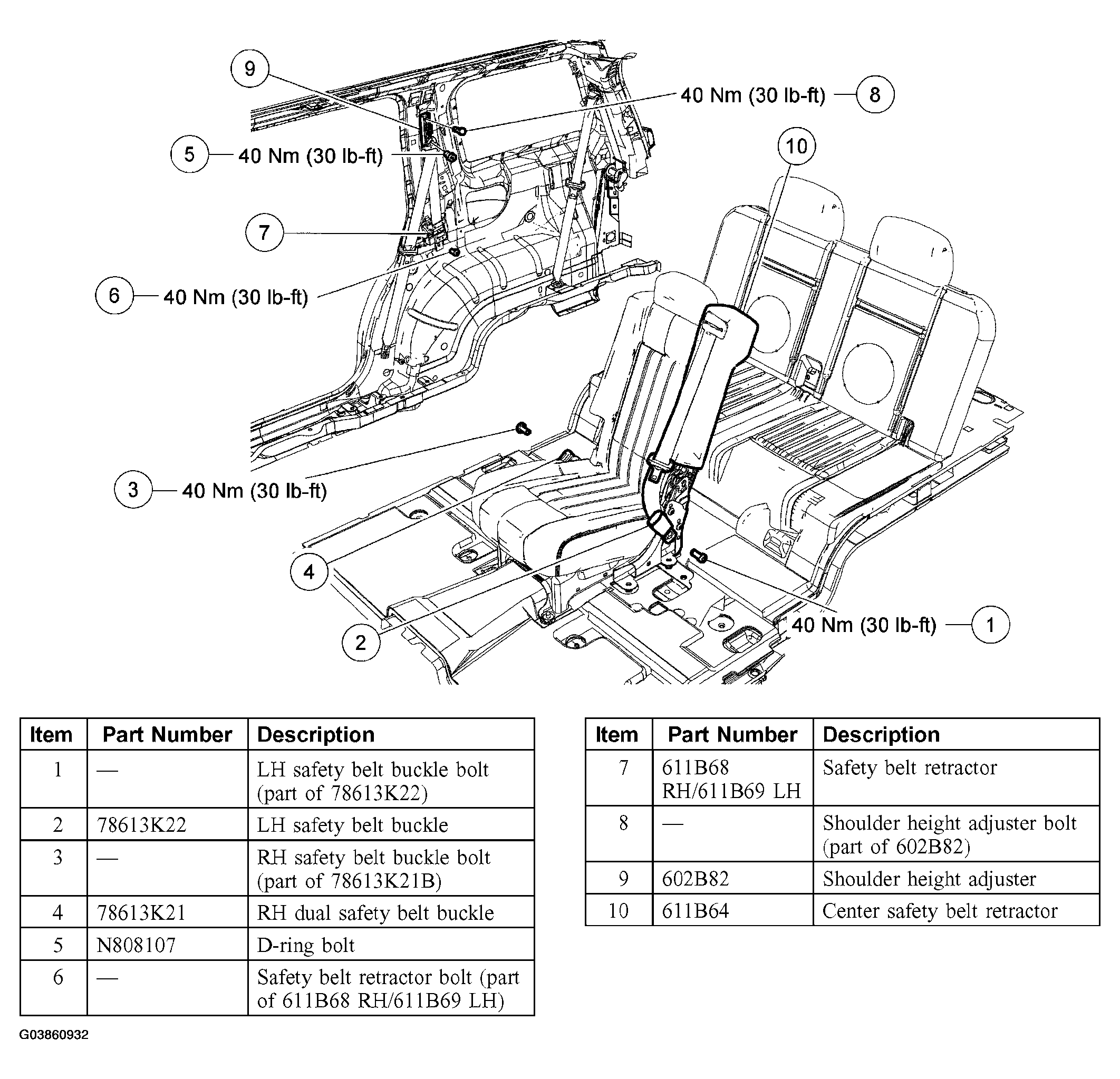

Fig 1: Exploded View Of Safety Belt System - Second Row, 40/20/40

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures.
