Safety Belt System - Exploded View, Third Row
Safety Belt System - Exploded View, Third Row
NOTE:
RH side shown, LH side similar.
NOTE:
Third row seat removed for clarity.

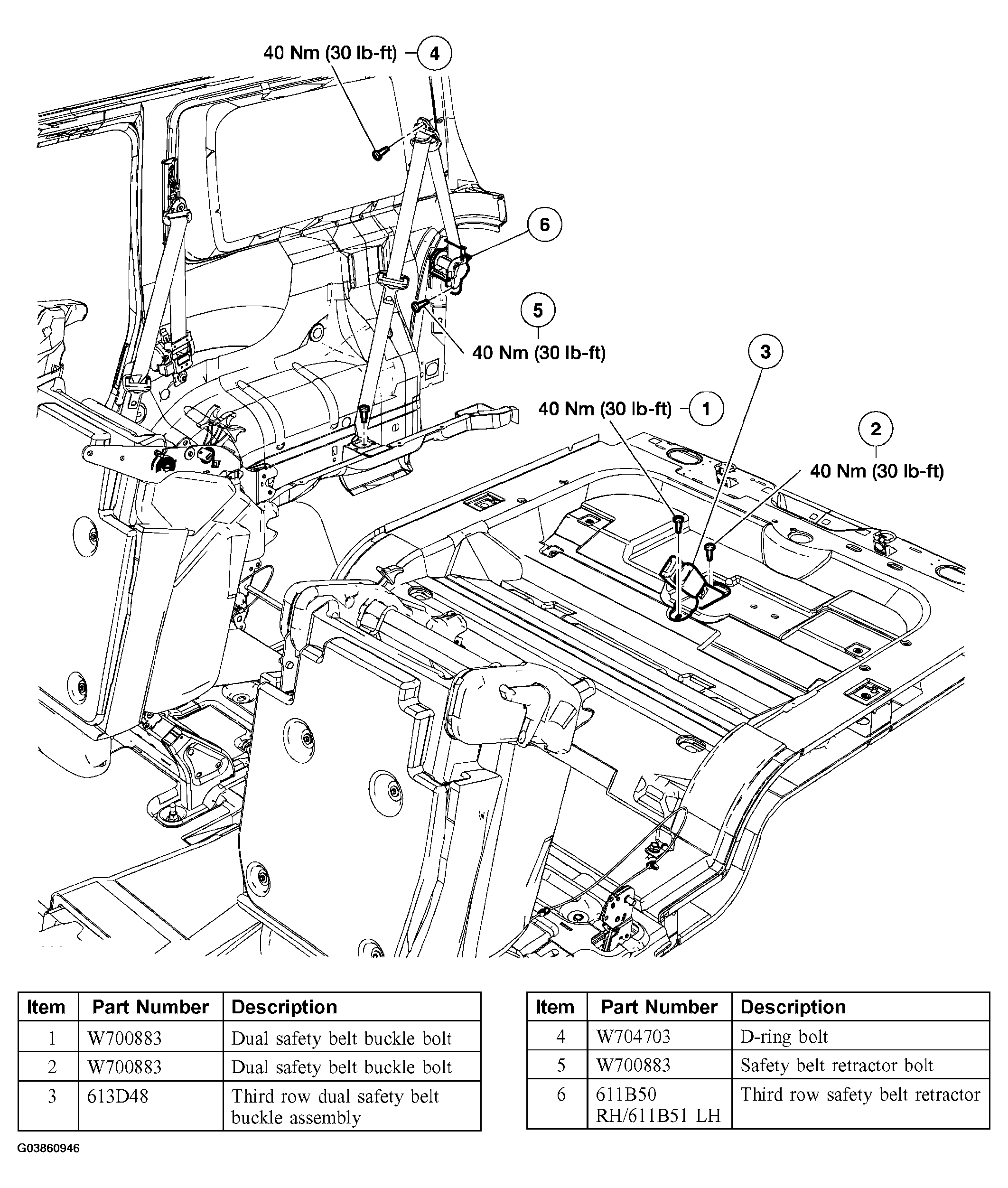

Fig 1: Exploded View Of Safety Belt System - Third Row
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures.
