Vehicle Security Module: Notes

SPECIAL TOOL(S)

Worldwide Diagnostic System (WDS) Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

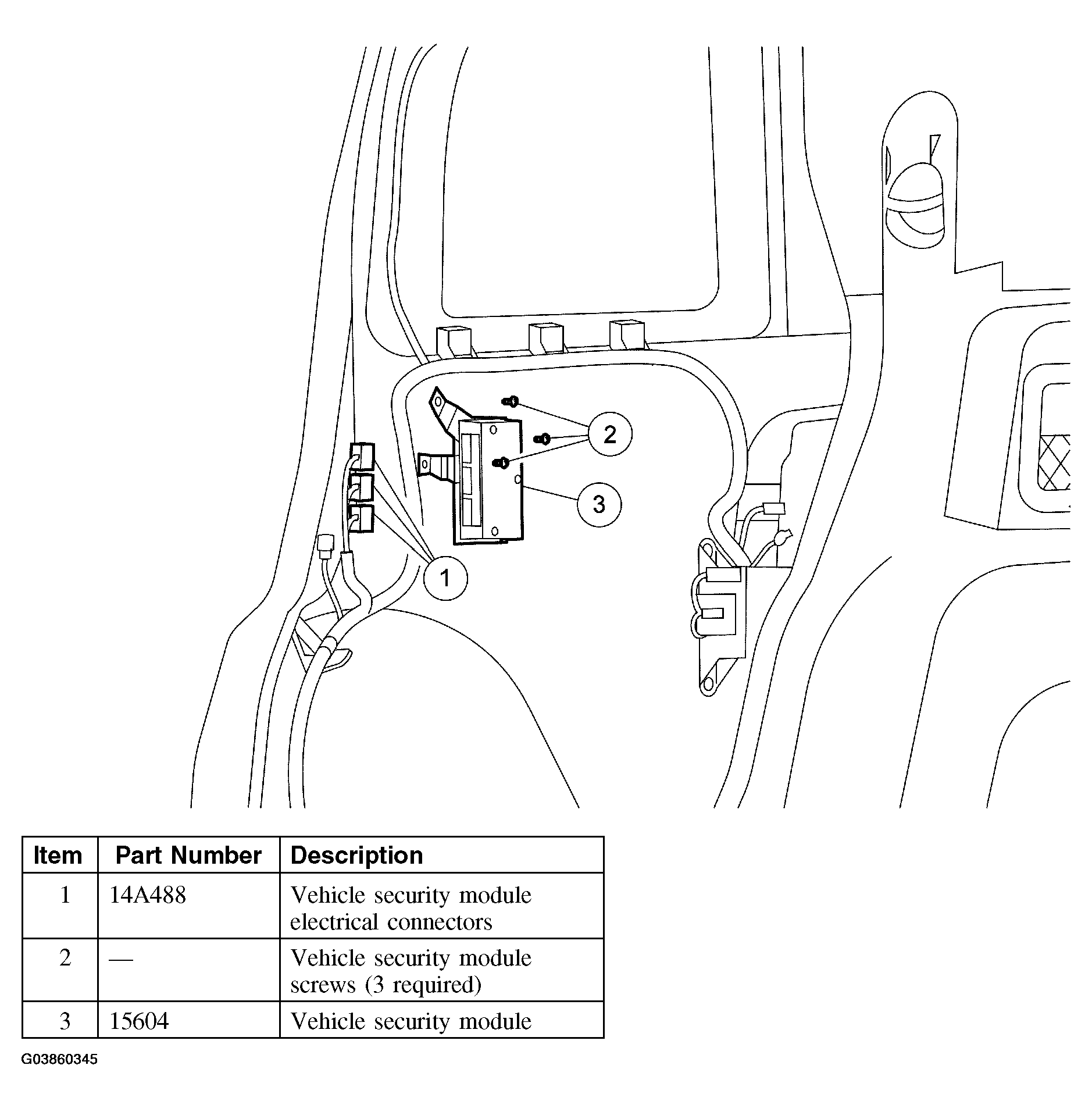

Fig 1: Identifying Vehicle Security Module Components

Courtesy of FORD MOTOR CO.
