Front Seat Backrest

NOTE: Driver side shown, passenger side similar.

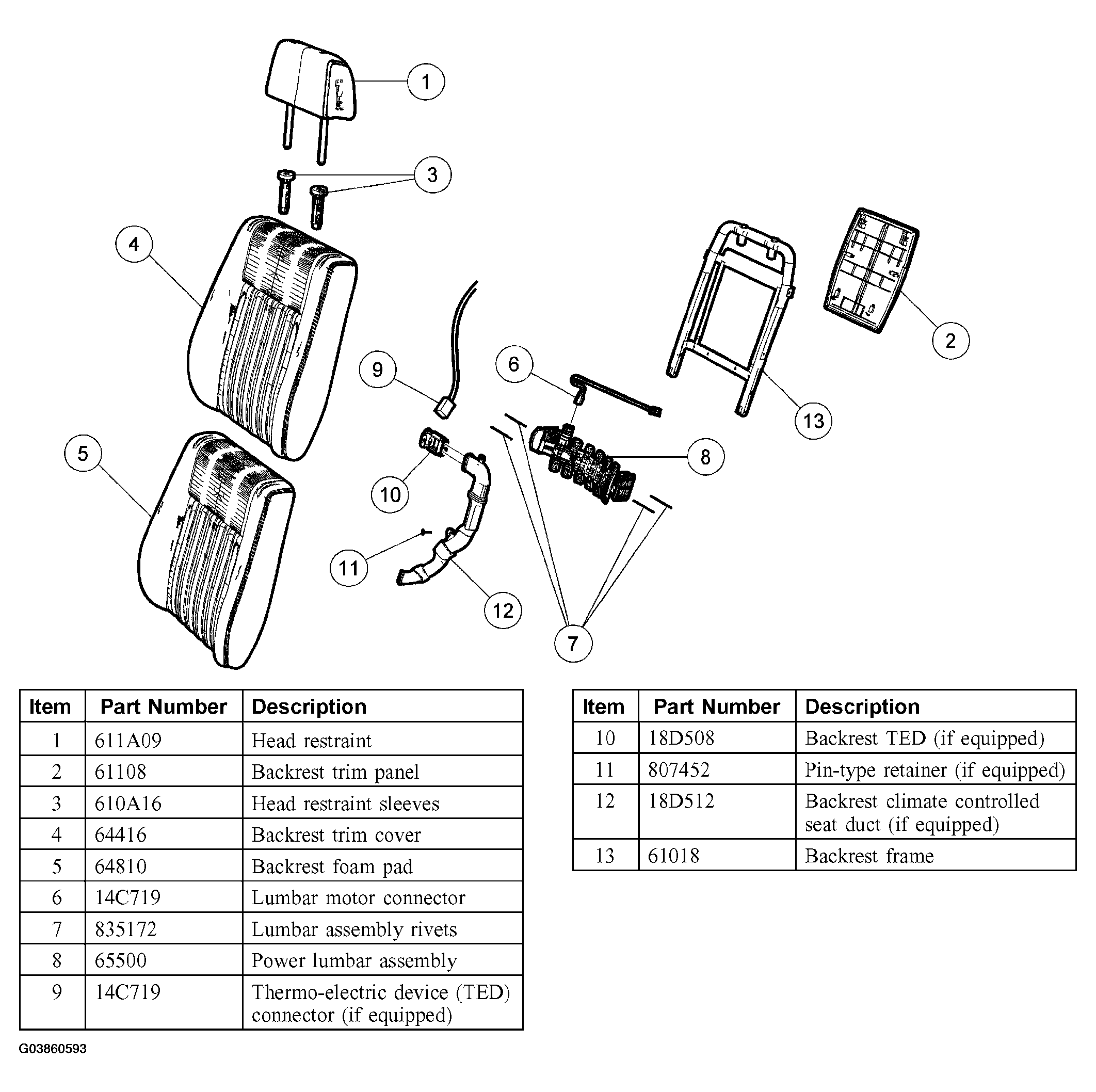

Fig 1: Exploded View Of Front Seat Bracket (Driver Side)
G03860593Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
