Anti-Lock Brake System (ABS) Module: Notes

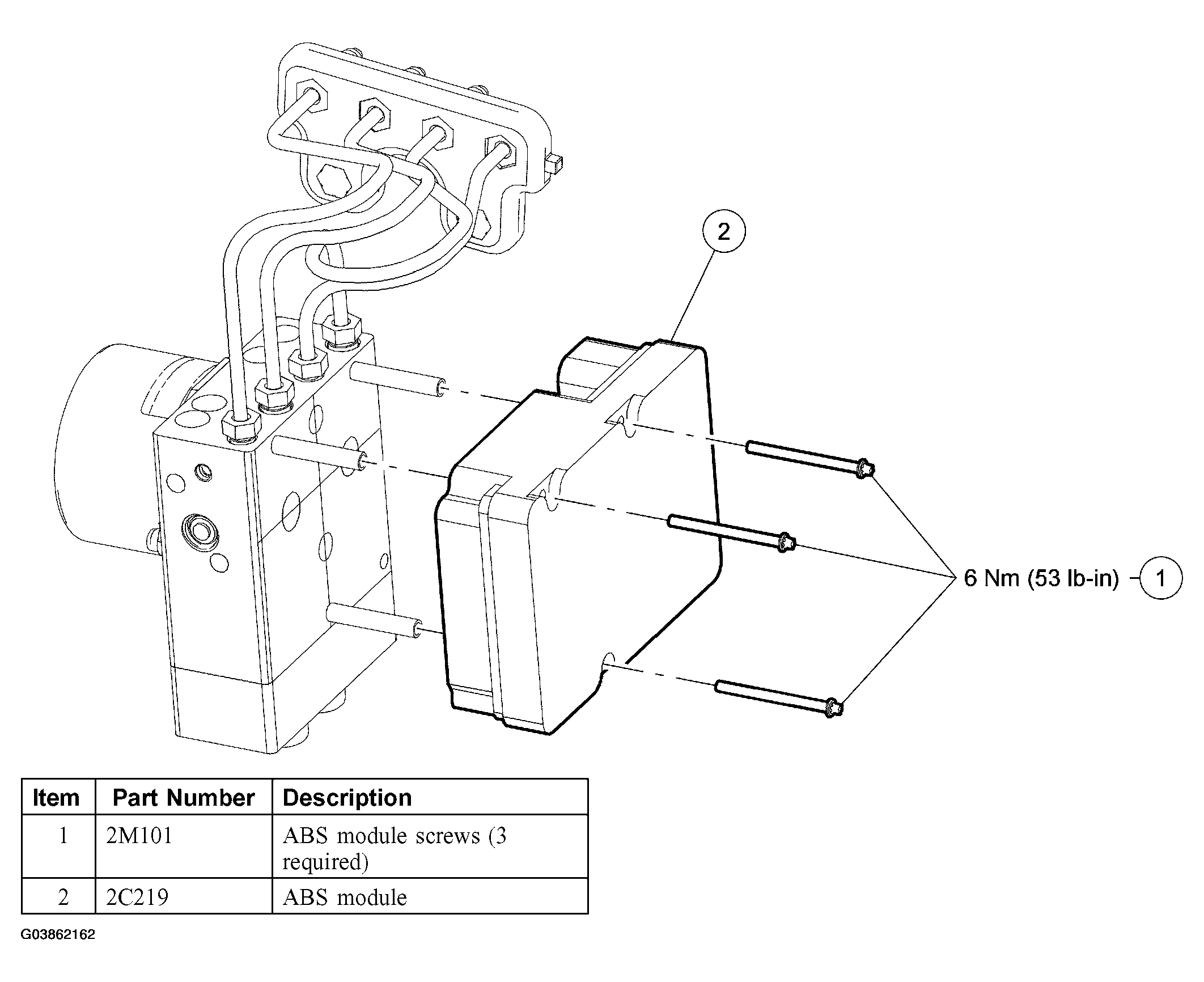

Fig 1: Identifying Anti-Lock Brake System (ABS) Module
G03862162Courtesy of FORD MOTOR CO.
