Transmission Support Insulator - 4x2: Removal

  1. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  2. Support the transmission with a transmission jack.
  3. Remove the transmission support insulator nuts.
    Fig 1: Removing Transmission Support Insulator Nuts
    G03863285Courtesy of FORD MOTOR CO.
  4. Remove the 2 transmission support insulator bolts.

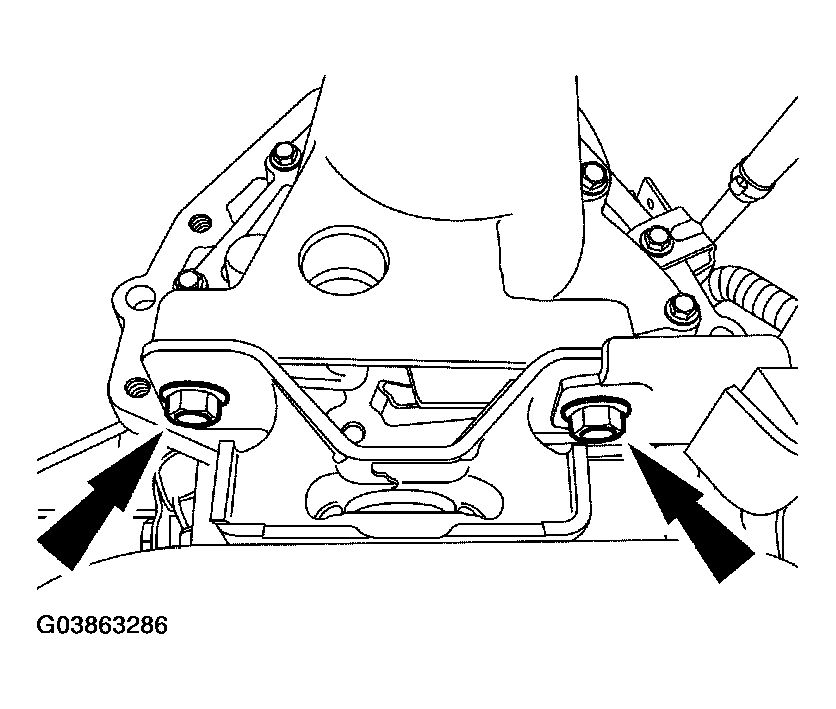

    Fig 2: Removing 2 Transmission Support Insulator Bolts
    G03863286Courtesy of FORD MOTOR CO.
  5. Raise the transmission and remove the transmission support insulator.
    Fig 3: Removing Transmission Support Insulator
    G03863287Courtesy of FORD MOTOR CO.
