Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07842570

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07842571

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102a)

G07842572

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102b)

G07842573

Courtesy of FORD MOTOR CO.

Fig 5: Oil Pressure Switch Connector End View (C103)

G07842574

Courtesy of FORD MOTOR CO.

Fig 6: Engine Oil Temperature (EOT) Sensor Connector End View (C104)

G07842575

Courtesy of FORD MOTOR CO.

Fig 7: Fuel Rail Pressure Transducer Sensor Connector End View (C106)

G07842576

Courtesy of FORD MOTOR CO.

Fig 8: Cylinder-Head Temperature Sensor Connector End View (C107)

G07842577

Courtesy of FORD MOTOR CO.

Fig 9: Knock Sensor 2 Connector End View (C108)

G07842578

Courtesy of FORD MOTOR CO.

Fig 10: Knock Sensor 1 Connector End View (C109)

G07842579

Courtesy of FORD MOTOR CO.

Fig 11: Inline Connector End View (C110)

G07842580

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)

G07842581

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 2 Connector End View (C112)

G07842582

Courtesy of FORD MOTOR CO.

Fig 14: Coil On Plug (COP) 3 Connector End View (C113)

G07842583

Courtesy of FORD MOTOR CO.

Fig 15: Coil On Plug (COP) 4 Connector End View (C114)

G07842584

Courtesy of FORD MOTOR CO.

Fig 16: Coil On Plug (COP) 5 Connector End View (C115)

G07842585

Courtesy of FORD MOTOR CO.

Fig 17: Coil On Plug (COP) 6 Connector End View (C116)

G07842586

Courtesy of FORD MOTOR CO.

Fig 18: Coil On Plug (COP) 7 Connector End View (C117)

G07842587

Courtesy of FORD MOTOR CO.

Fig 19: Coil On Plug (COP) 8 Connector End View (C118)

G07842588

Courtesy of FORD MOTOR CO.

Fig 20: Power Steering Valve Solenoid Connector End View (C120)

G07842589

Courtesy of FORD MOTOR CO.

Fig 21: Power Steering Pressure Switch Connector End View (C121)

G07842590

Courtesy of FORD MOTOR CO.

Fig 22: EVAP Canister Purge Valve Connector End View (C123)

G07842591

Courtesy of FORD MOTOR CO.

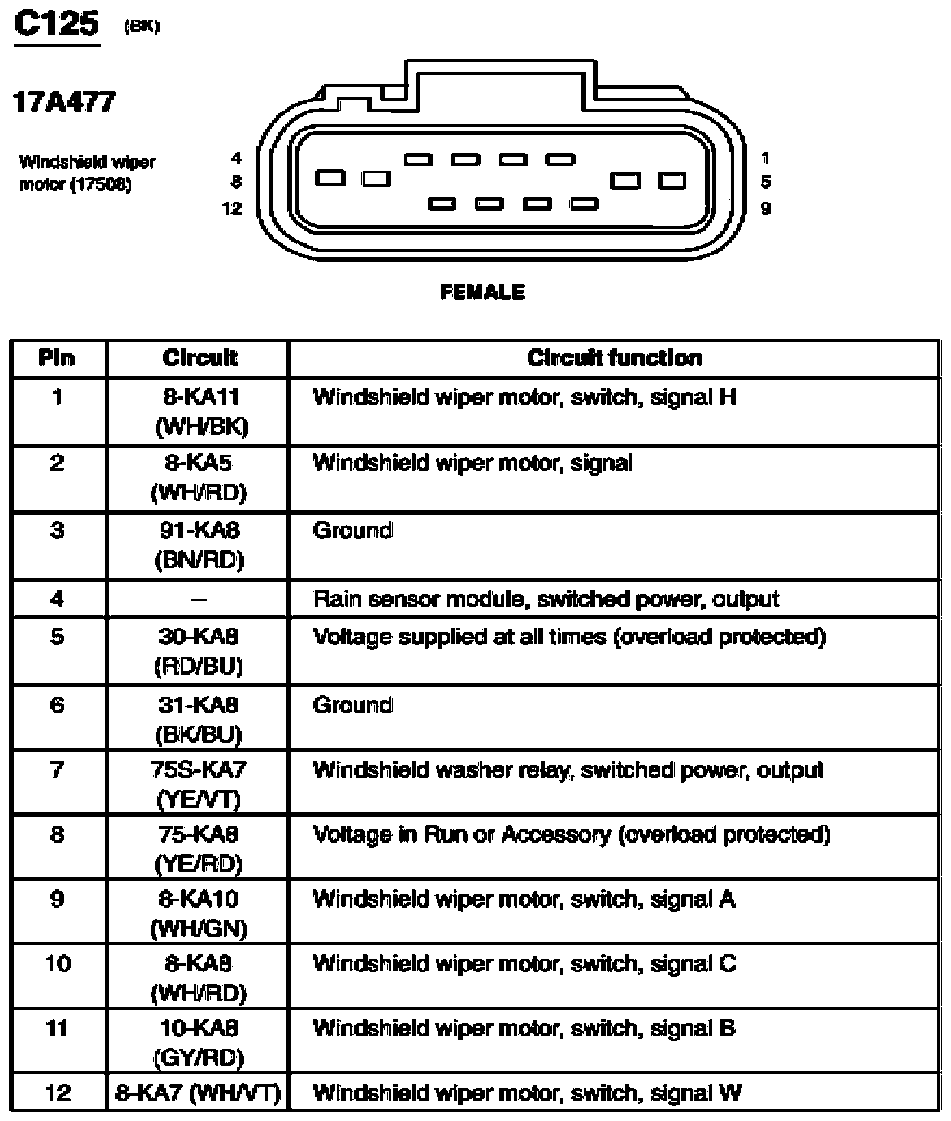

Fig 23: Windshield Wiper Motor Connector End View (C125)

G07842592

Courtesy of FORD MOTOR CO.

Fig 24: ABS Test Connector End View (C126)

G07842593

Courtesy of FORD MOTOR CO.

Fig 25: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07842594

Courtesy of FORD MOTOR CO.

Fig 26: Horn Connector End View (C131)

G07842595

Courtesy of FORD MOTOR CO.

Fig 27: Ambient Air Temperature Sensor Connector End View (C132)

G07842596

Courtesy of FORD MOTOR CO.

Fig 28: Inline Connector End View (C134)

G07842597

Courtesy of FORD MOTOR CO.

Fig 29: Auxiliary Junction Box (AJB), Underhood Connector End View (C136)

G07842598

Courtesy of FORD MOTOR CO.

Fig 30: Windshield Washer Pump Motor Connector End View (C137)

G07842599

Courtesy of FORD MOTOR CO.

Fig 31: Inline Connector End View (C139)

G07842600

Courtesy of FORD MOTOR CO.

Fig 32: Inline Connector End View (C140)

G07842601

Courtesy of FORD MOTOR CO.

Fig 33: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07842602

Courtesy of FORD MOTOR CO.

Fig 34: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07842603

Courtesy of FORD MOTOR CO.

Fig 35: Inline Connector End View (C146)

G07842604

Courtesy of FORD MOTOR CO.

Fig 36: Primary Brake Pressure Sensor Connector End View (C147)

G07842605

Courtesy of FORD MOTOR CO.

Fig 37: Brake Booster Sensor Connector End View (C149)

G07842606

Courtesy of FORD MOTOR CO.

Fig 38: Wheel Speed Sensor, Left Front Connector End View (C150)

G07842607

Courtesy of FORD MOTOR CO.

Fig 39: Fog Lamp, Left Front Connector End View (C152)

G03987692

Courtesy of FORD MOTOR CO.

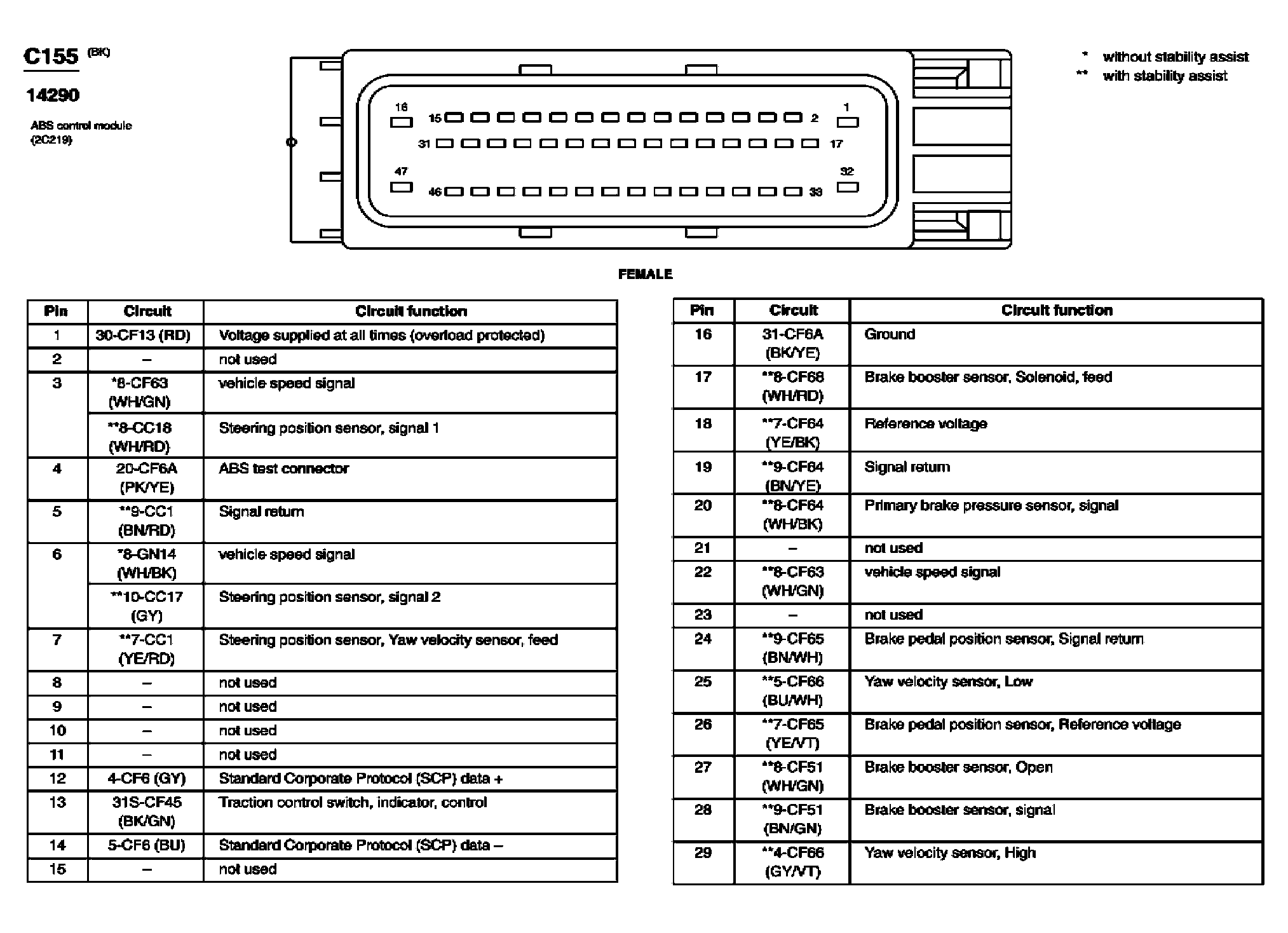

Fig 40: ABS Control Module Connector End View (C155) (1 Of 2)

G03987693

Courtesy of FORD MOTOR CO.

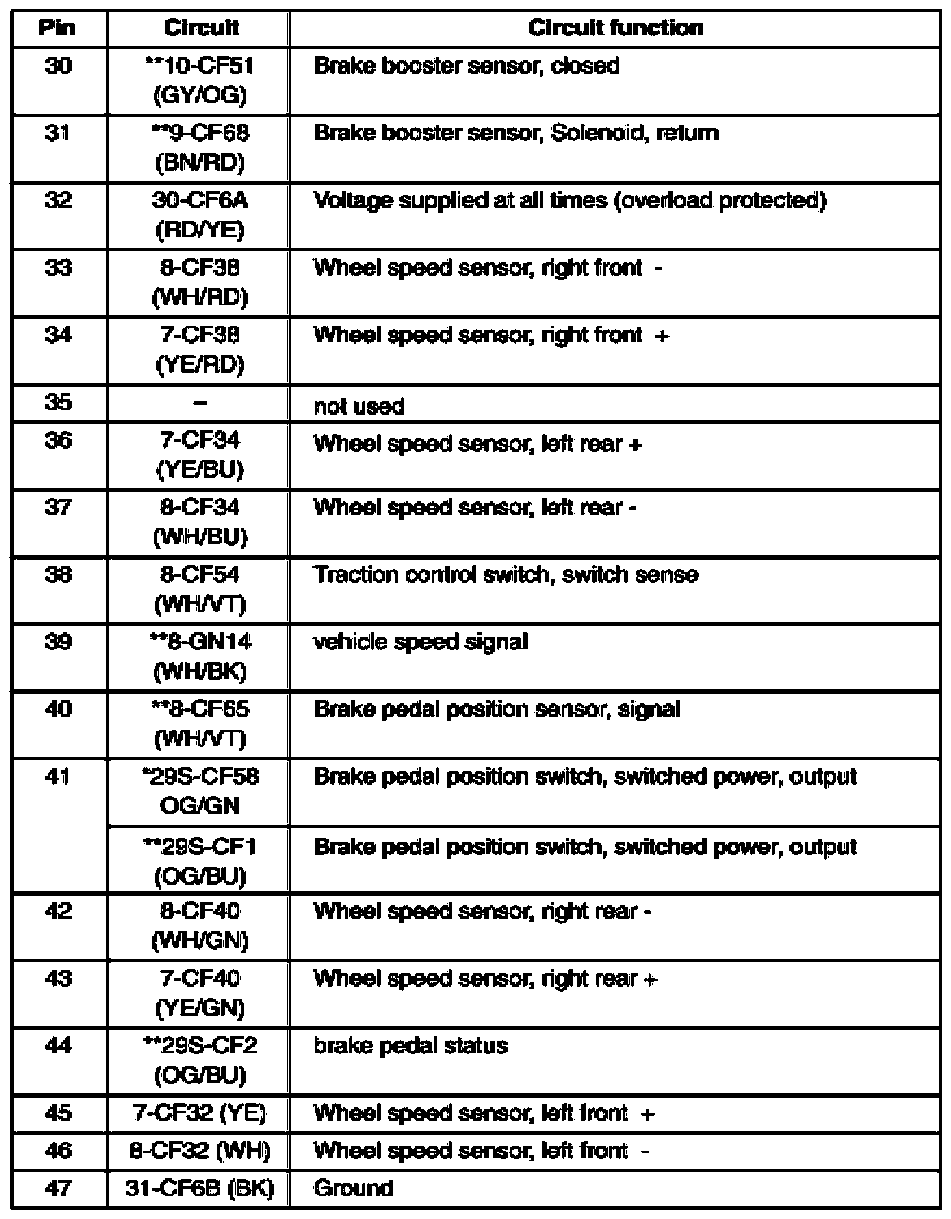

Fig 41: ABS Control Module Connector End View (C155) (2 Of 2)

G03987694

Courtesy of FORD MOTOR CO.

Fig 42: Wheel Speed Sensor, Right Front Connector End View (C160)

G07842608

Courtesy of FORD MOTOR CO.

Fig 43: Fog Lamp, Right Front Connector End View (C162)

G07842609

Courtesy of FORD MOTOR CO.

Fig 44: Auxiliary Coolant Pump Motor Connector End View (C163)

G07842610

Courtesy of FORD MOTOR CO.

Fig 45: Intermediate Shaft Speed (ISS) Sensor Connector End View (C164)

G07842611

Courtesy of FORD MOTOR CO.

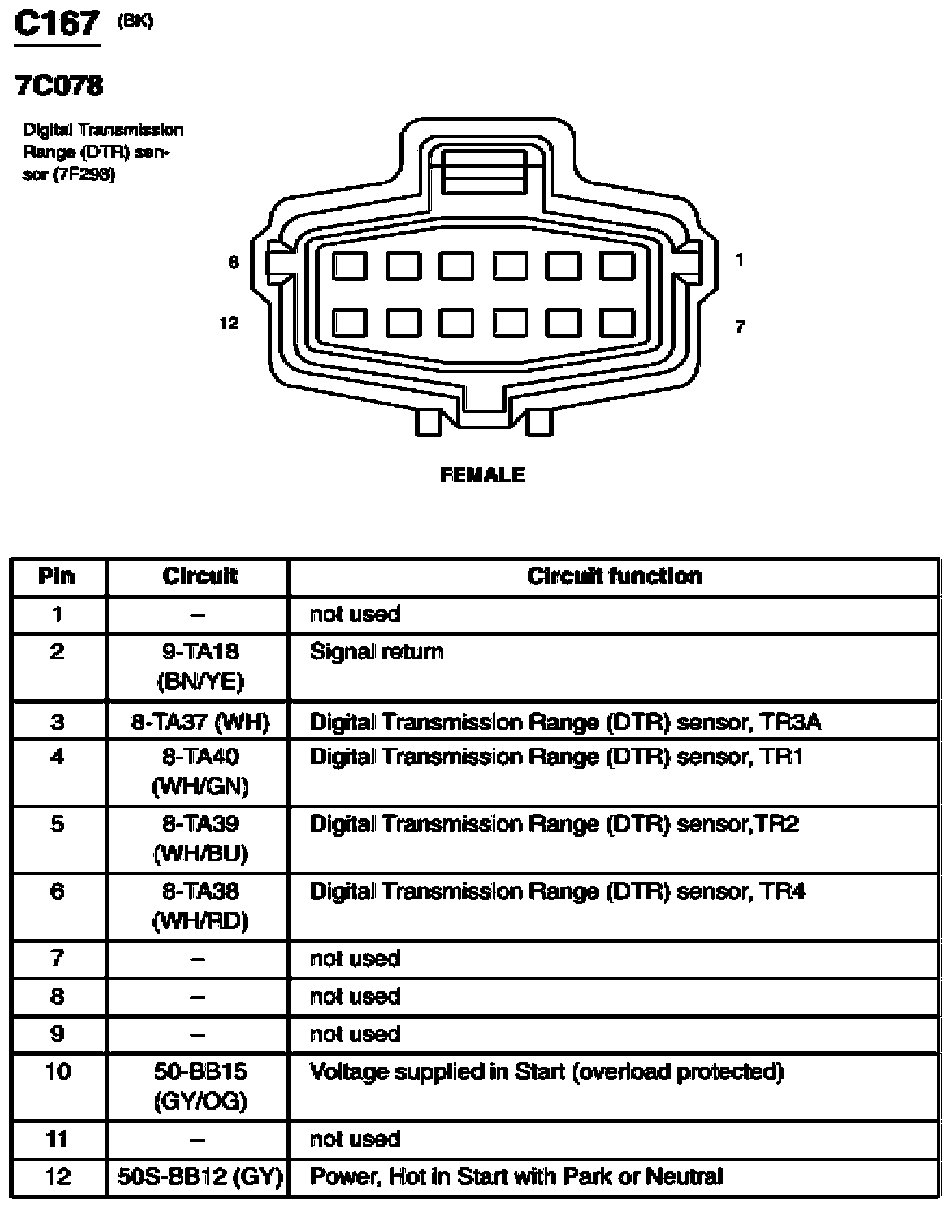

Fig 46: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07842612

Courtesy of FORD MOTOR CO.

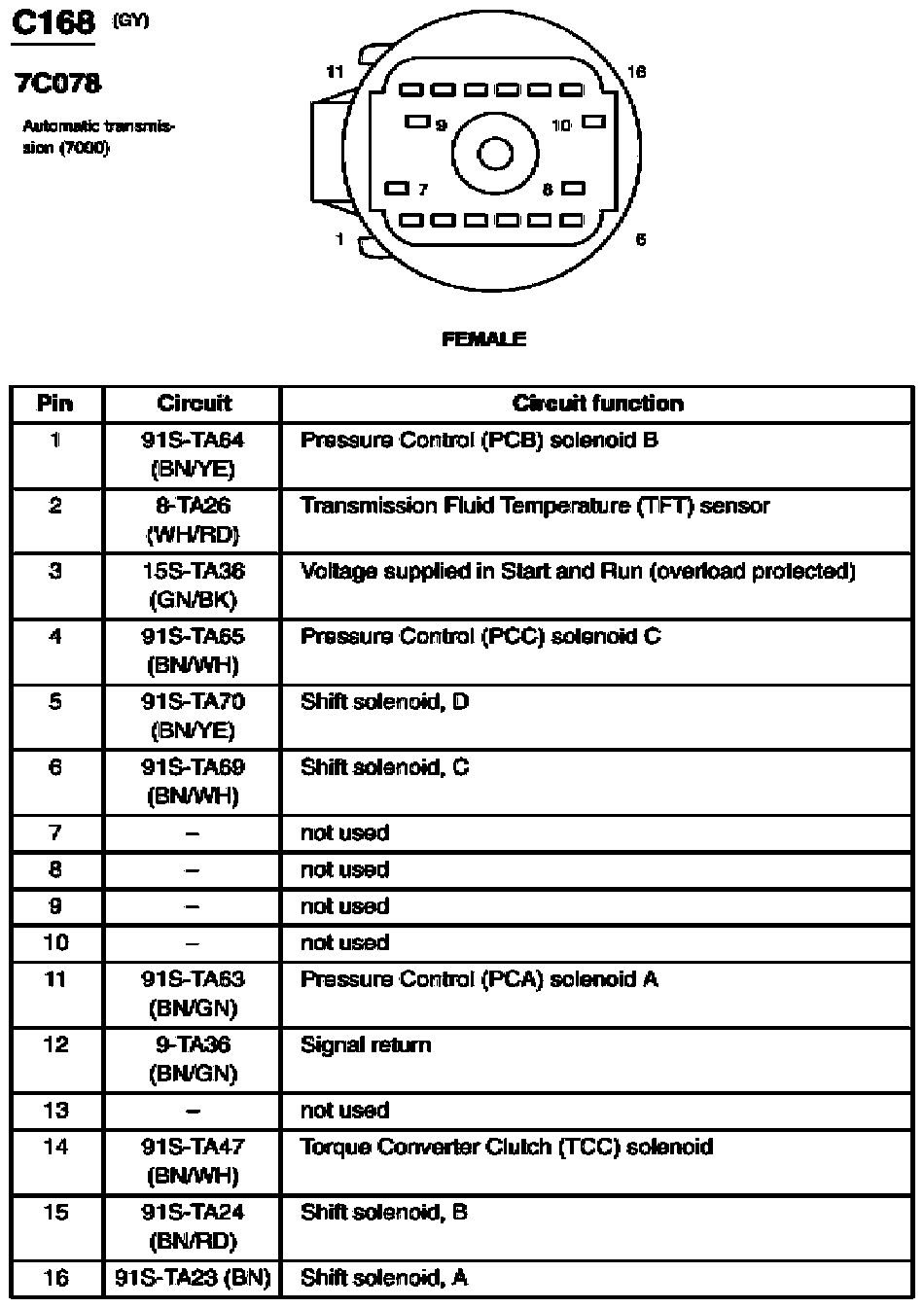

Fig 47: Automatic Transmission Connector End View (C168)

G07842613

Courtesy of FORD MOTOR CO.

Fig 48: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07842614

Courtesy of FORD MOTOR CO.

Fig 49: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07842615

Courtesy of FORD MOTOR CO.

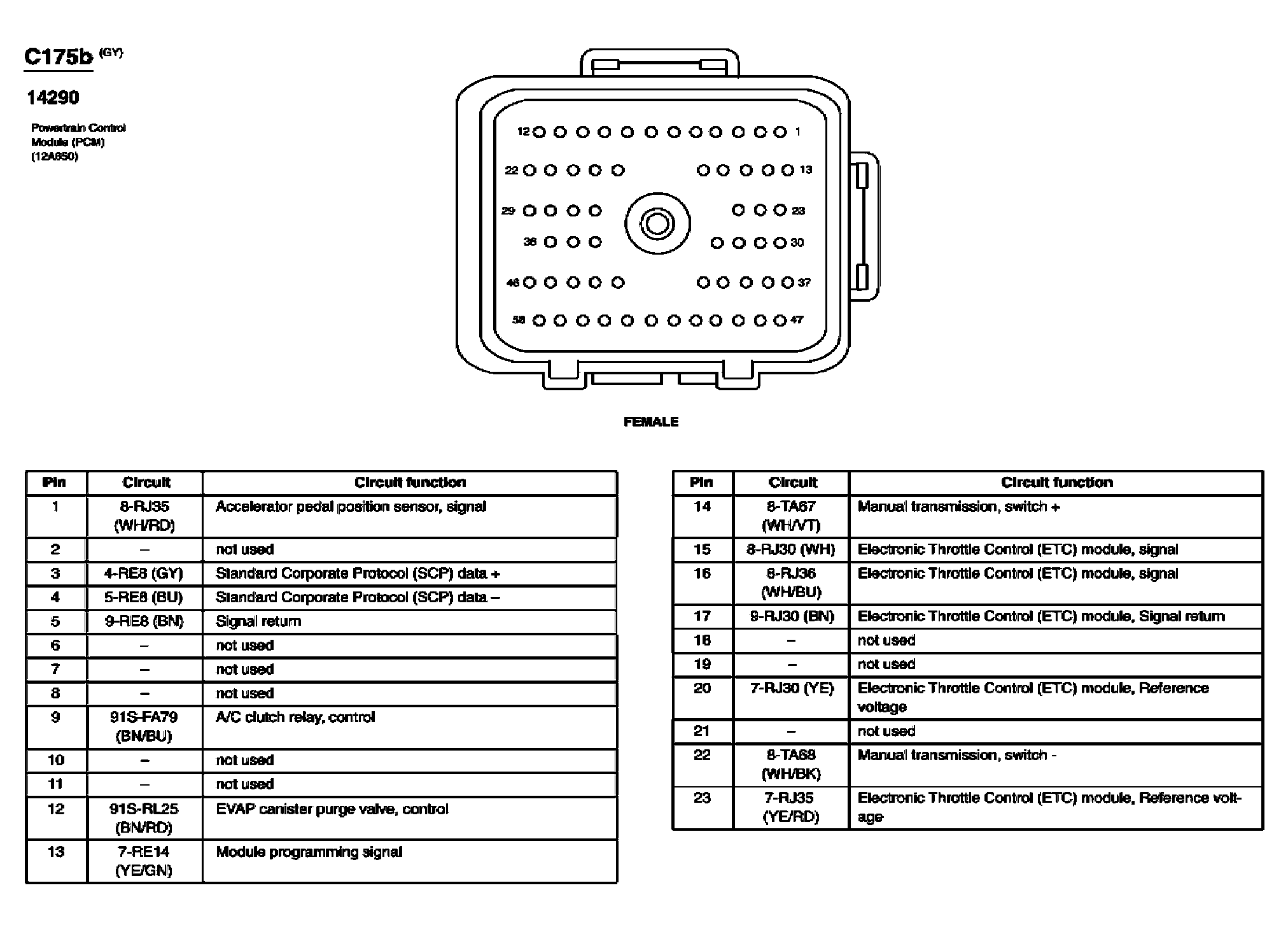

Fig 50: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)

G03987698

Courtesy of FORD MOTOR CO.

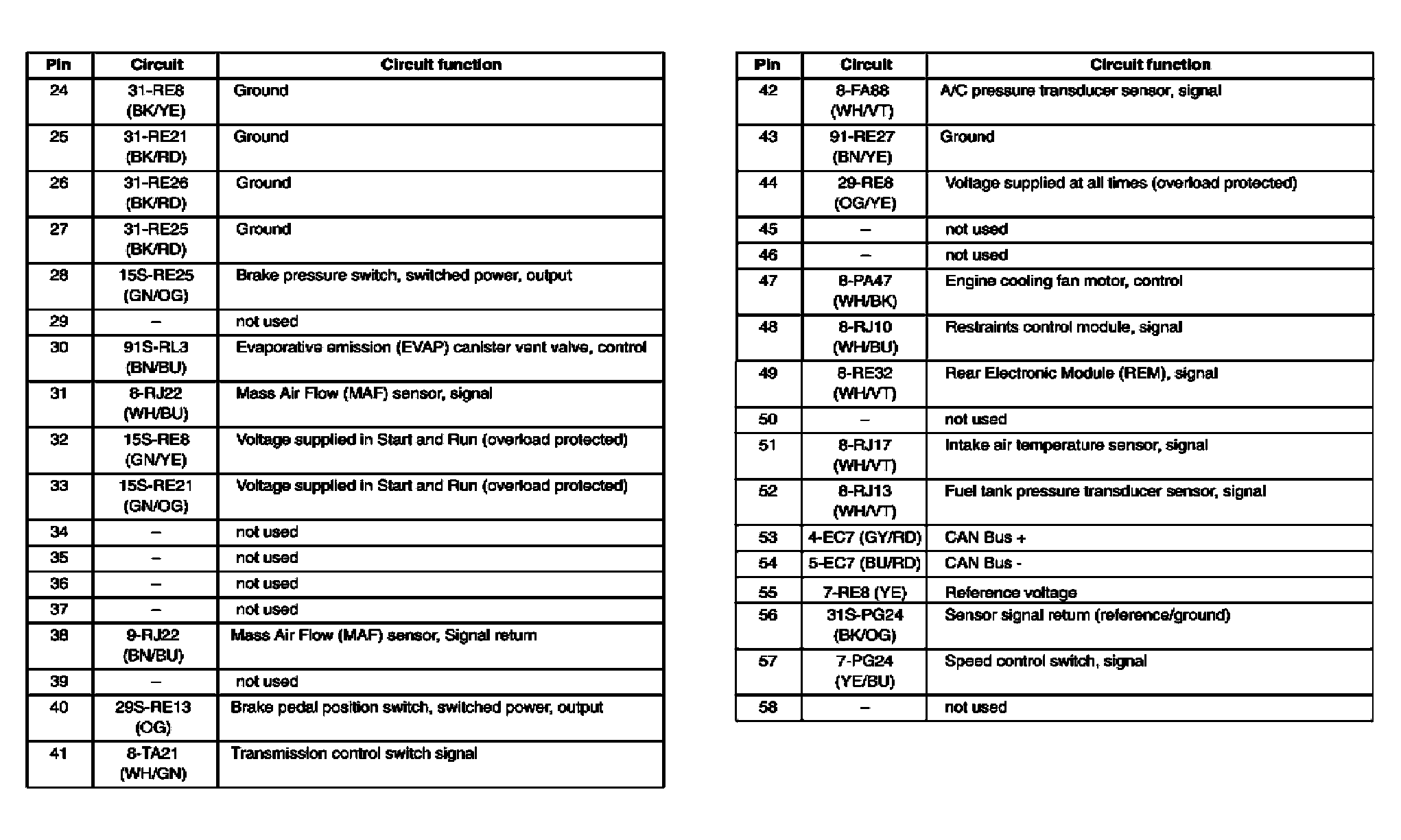

Fig 51: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)

G03987699

Courtesy of FORD MOTOR CO.

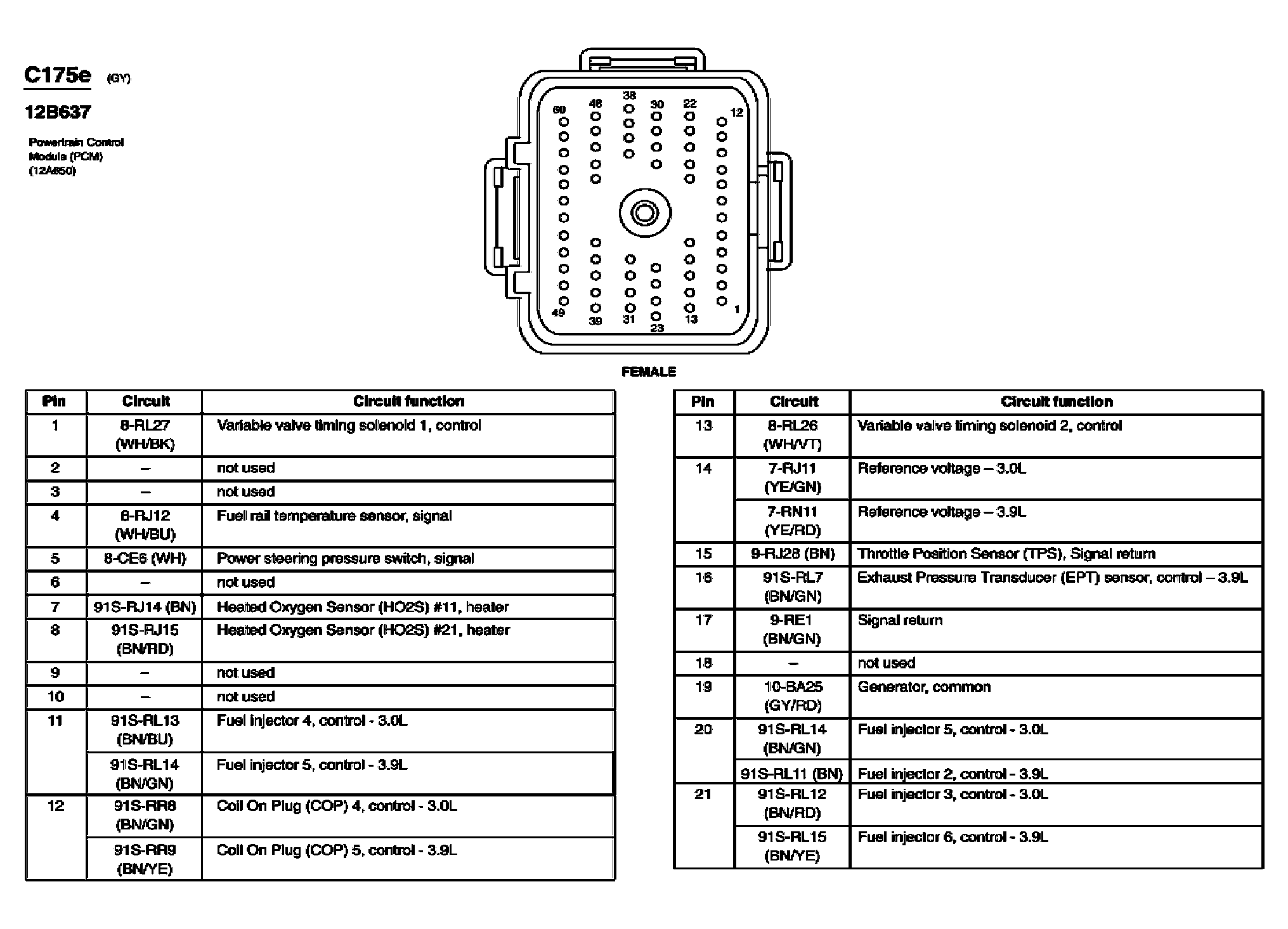

Fig 52: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)

G03987700

Courtesy of FORD MOTOR CO.

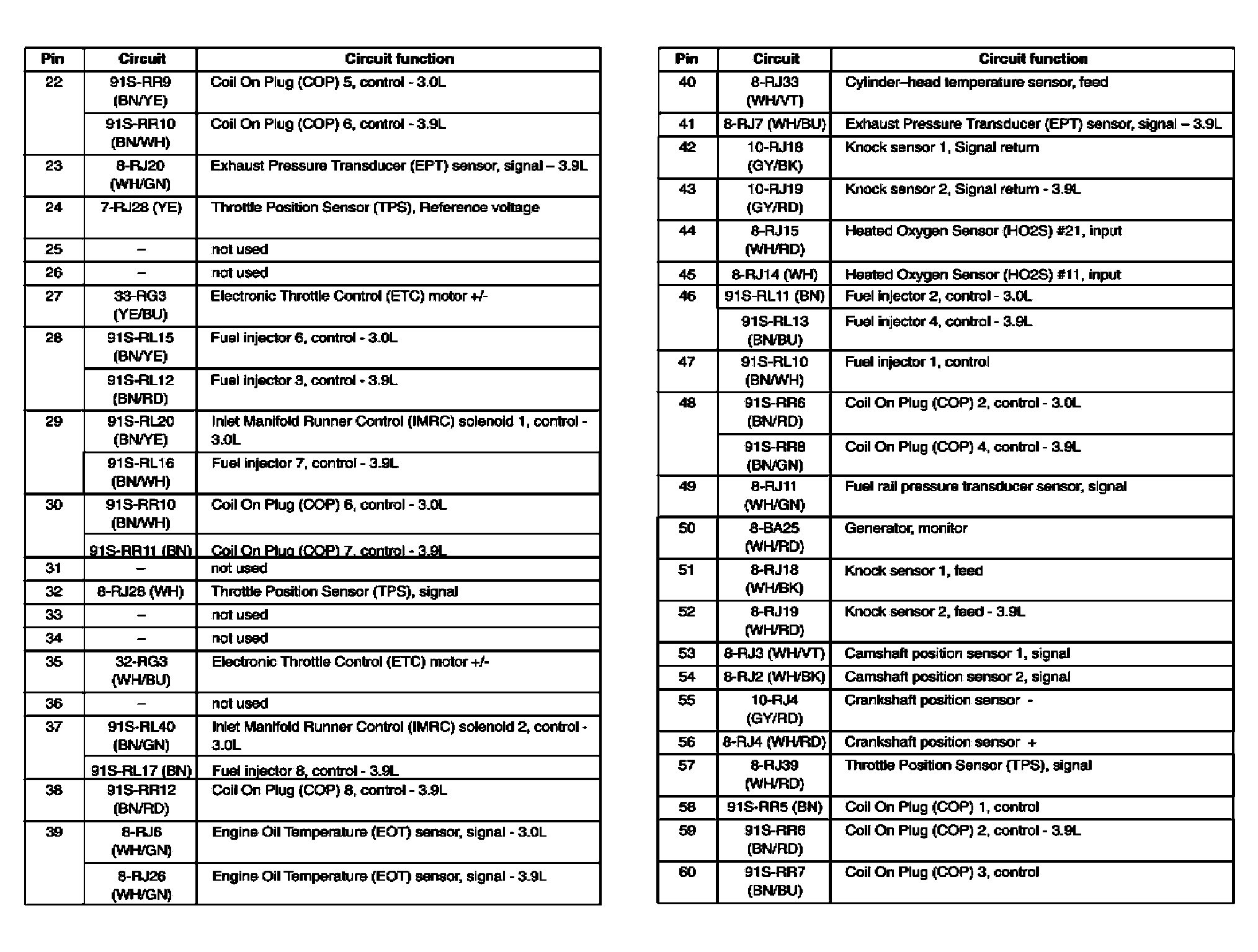

Fig 53: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)

G03987701

Courtesy of FORD MOTOR CO.

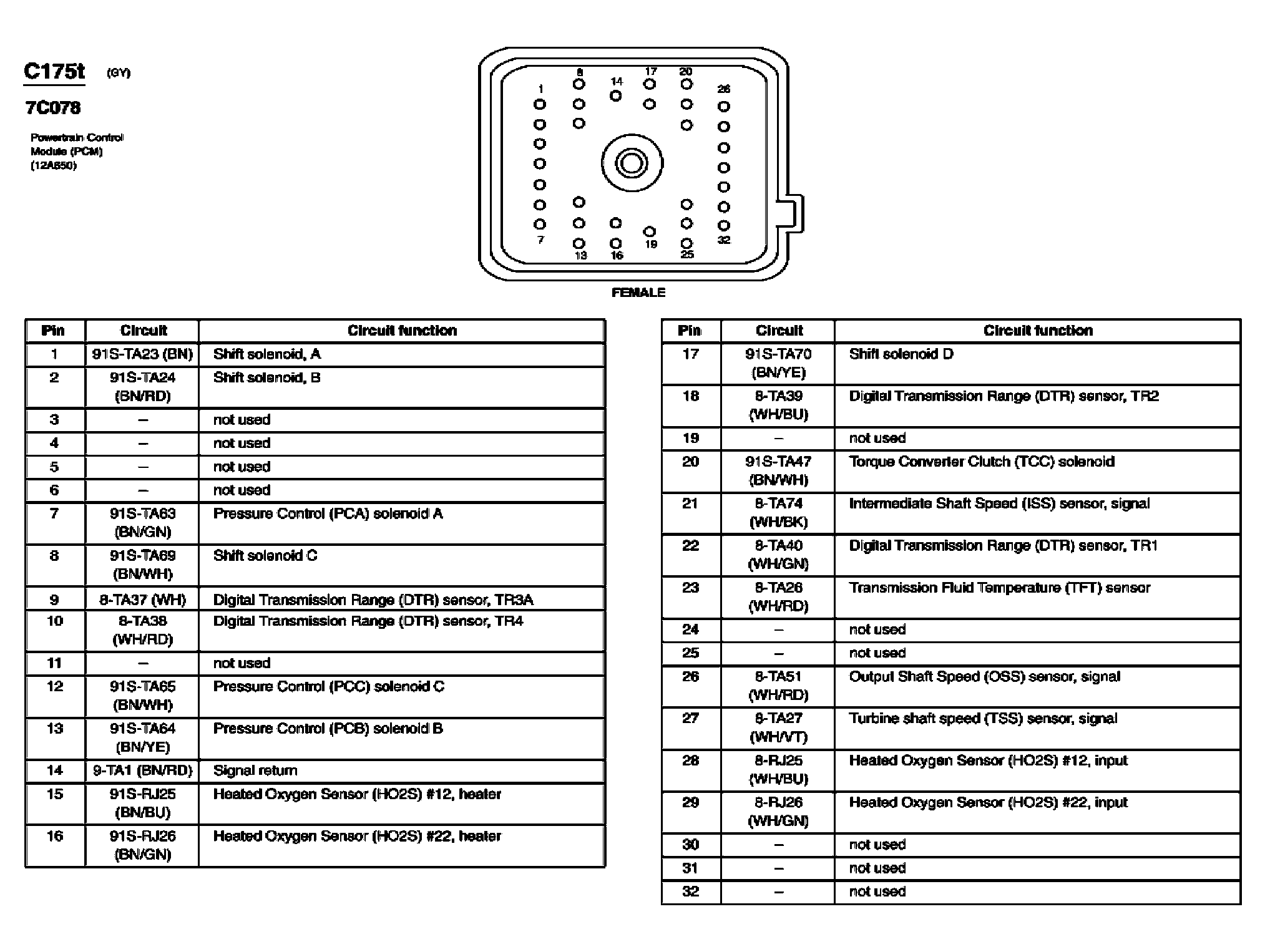

Fig 54: Powertrain Control Module (PCM) Connector End View (C175t)

G03987702

Courtesy of FORD MOTOR CO.

Fig 55: Front Impact Severity Sensor Connector End View (C177)

G07842616

Courtesy of FORD MOTOR CO.

Fig 56: EGR System Module Connector End View (C178)

G07842617

Courtesy of FORD MOTOR CO.

Fig 57: Fuel Injector 1 Connector End View (C181)

G07842618

Courtesy of FORD MOTOR CO.

Fig 58: Fuel Injector 2 Connector End View (C182)

G07842619

Courtesy of FORD MOTOR CO.

Fig 59: Fuel Injector 3 Connector End View (C183)

G07842620

Courtesy of FORD MOTOR CO.

Fig 60: Fuel Injector 4 Connector End View (C184)

G07842621

Courtesy of FORD MOTOR CO.

Fig 61: Fuel Injector 5 Connector End View (C185)

G07842622

Courtesy of FORD MOTOR CO.

Fig 62: Fuel Injector 6 Connector End View (C186)

G07842623

Courtesy of FORD MOTOR CO.

Fig 63: Fuel Injector 7 Connector End View (C187)

G07842624

Courtesy of FORD MOTOR CO.

Fig 64: Fuel Injector 8 Connector End View (C188)

G07842625

Courtesy of FORD MOTOR CO.

Fig 65: Throttle Position Sensor (TPS) Connector End View (C189)

G07842626

Courtesy of FORD MOTOR CO.

Fig 66: Inline Connector End View (C192)

G07842627

Courtesy of FORD MOTOR CO.

Fig 67: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07842628

Courtesy of FORD MOTOR CO.

Fig 68: Ignition Transformer Capacitor 2 Connector End View (C194)

G07842629

Courtesy of FORD MOTOR CO.

Fig 69: Starter Motor Connector End View (C197a)

G07842630

Courtesy of FORD MOTOR CO.

Fig 70: Starter Motor Connector End View (C197b)

G07842631

Courtesy of FORD MOTOR CO.

Fig 71: Starter Motor Connector End View (C197c)

G07842632

Courtesy of FORD MOTOR CO.

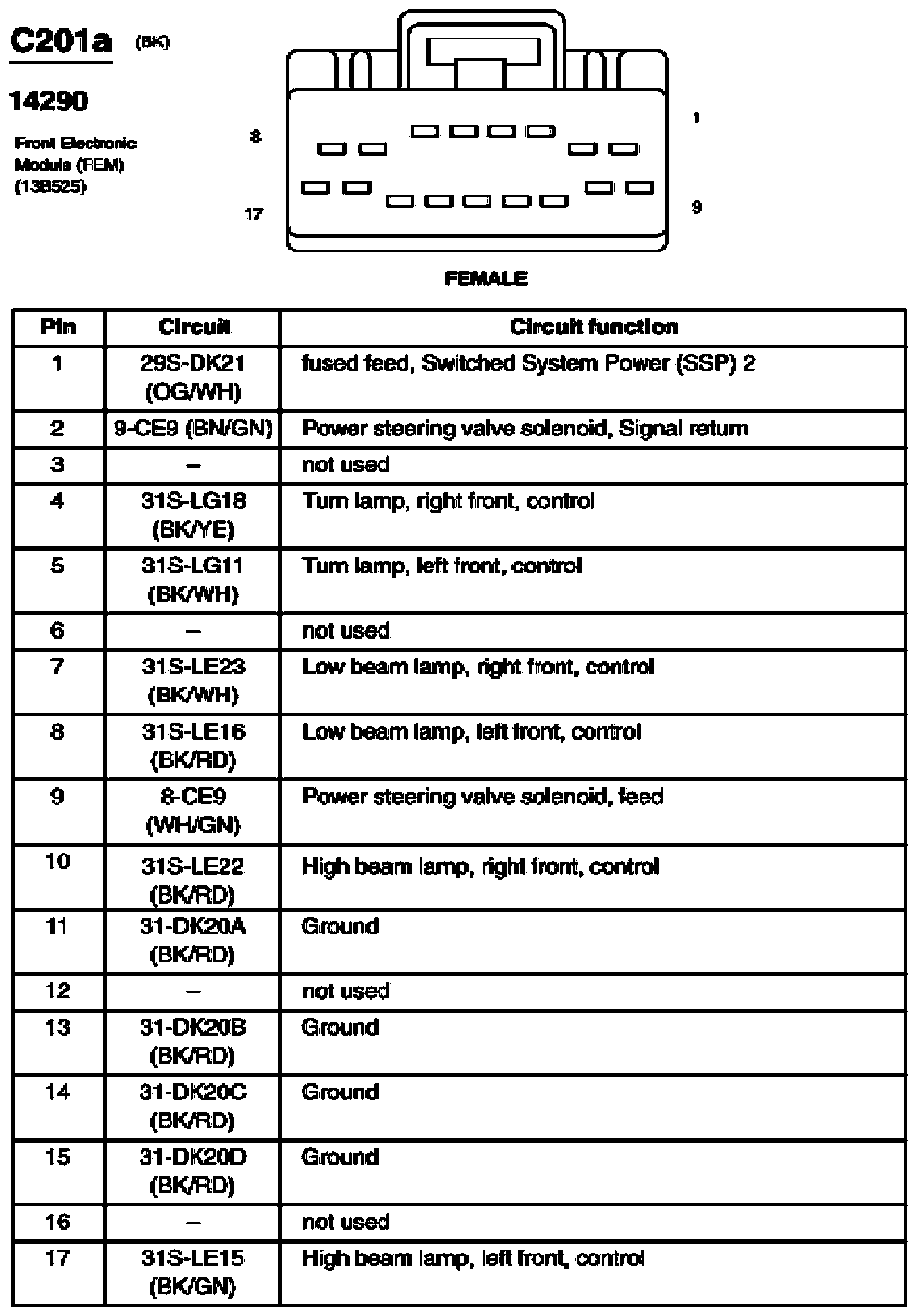

Fig 72: Front Electronic Module (FEM) Connector End View (C201a)

G07842633

Courtesy of FORD MOTOR CO.

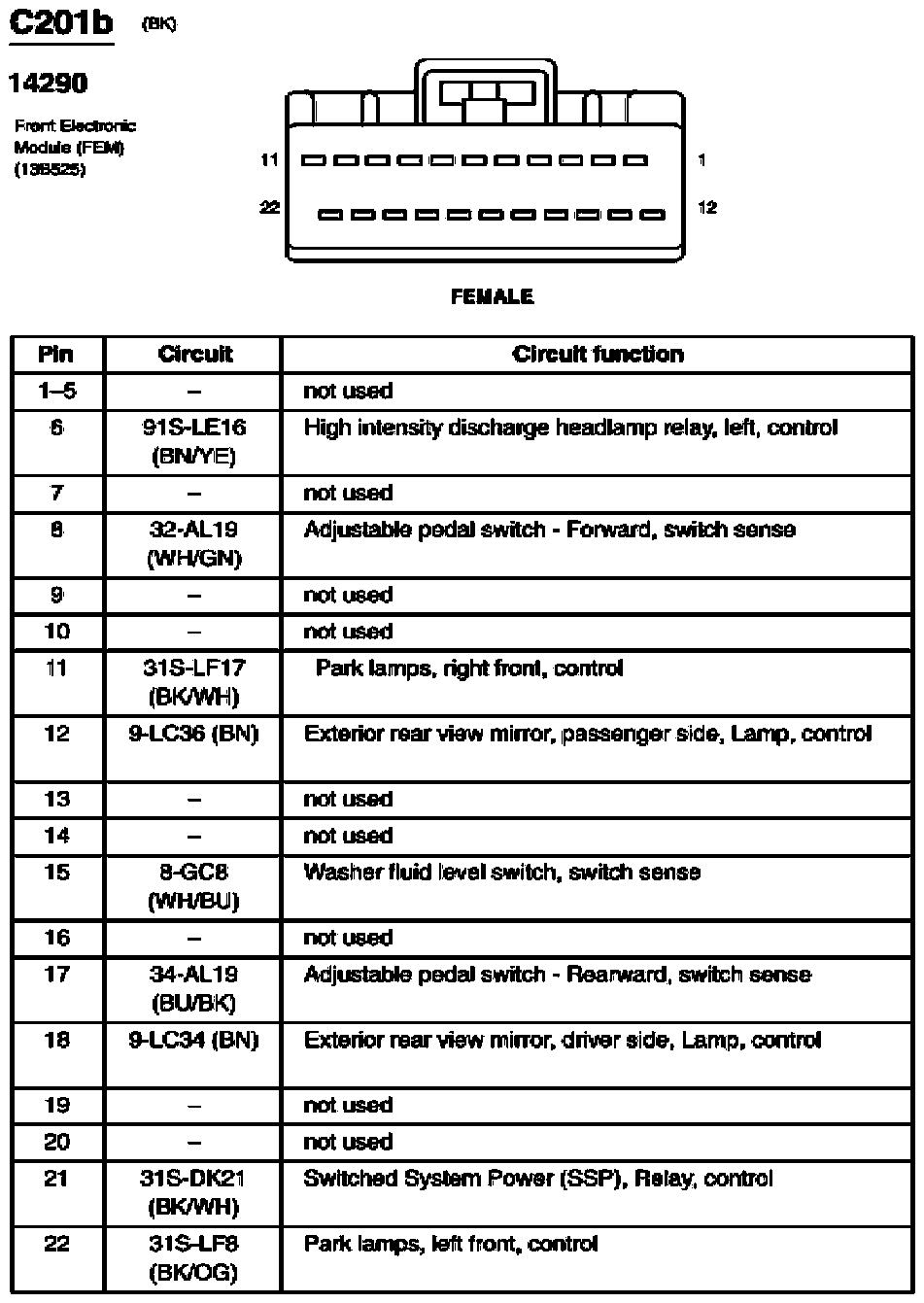

Fig 73: Front Electronic Module (FEM) Connector End View (C201b)

G07842634

Courtesy of FORD MOTOR CO.

Fig 74: Front Electronic Module (FEM) Connector End View (C201c)

G07842635

Courtesy of FORD MOTOR CO.

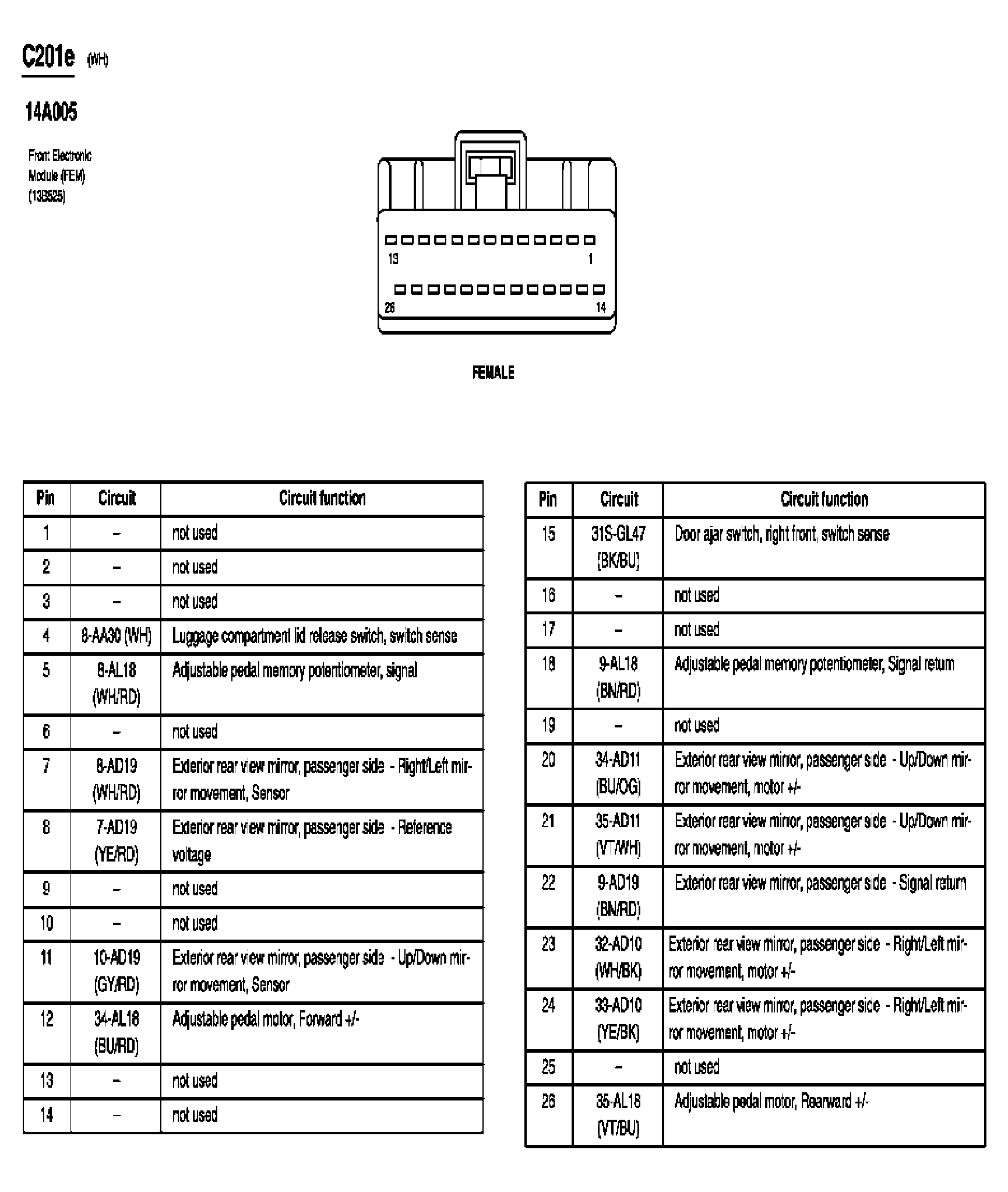

Fig 75: Front Electronic Module (FEM) Connector End View (C201e)

G03987708

Courtesy of FORD MOTOR CO.

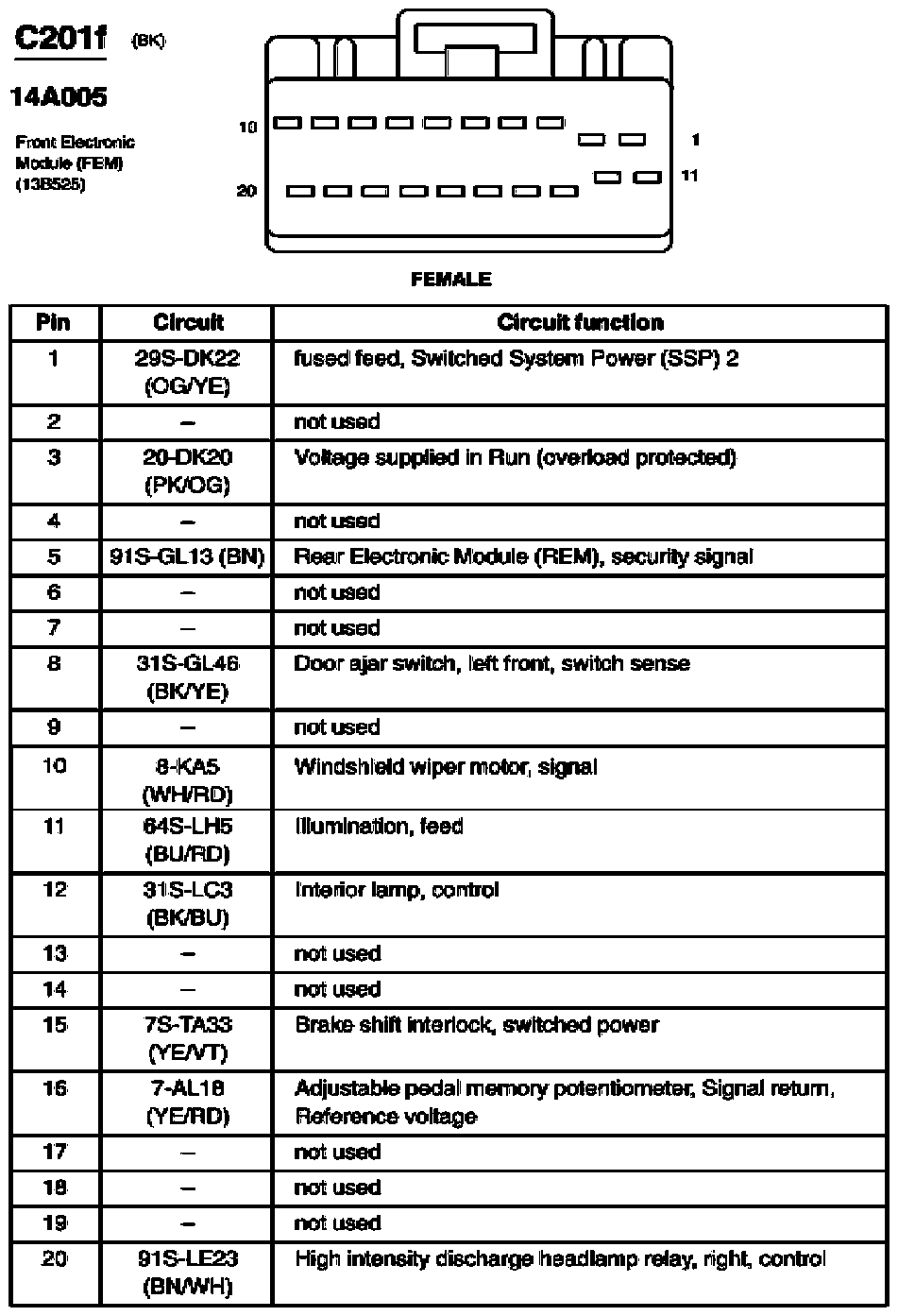

Fig 76: Front Electronic Module (FEM) Connector End View (C201f)

G07842636

Courtesy of FORD MOTOR CO.

Fig 77: Multifunction Switch Connector End View (C202)

G07842637

Courtesy of FORD MOTOR CO.

Fig 78: Main Light Switch Connector End View (C205)

G07842638

Courtesy of FORD MOTOR CO.

Fig 79: Instrument Panel Dimming Module Connector End View (C206)

G07842639

Courtesy of FORD MOTOR CO.

Fig 80: Footwell Lamp, Left Front Connector End View (C209)

G07842640

Courtesy of FORD MOTOR CO.

Fig 81: Inline Connector End View (C210)

G07842641

Courtesy of FORD MOTOR CO.

Fig 82: Inline Connector End View (C211)

G07842642

Courtesy of FORD MOTOR CO.

Fig 83: Inline Connector End View (C212)

G07842643

Courtesy of FORD MOTOR CO.

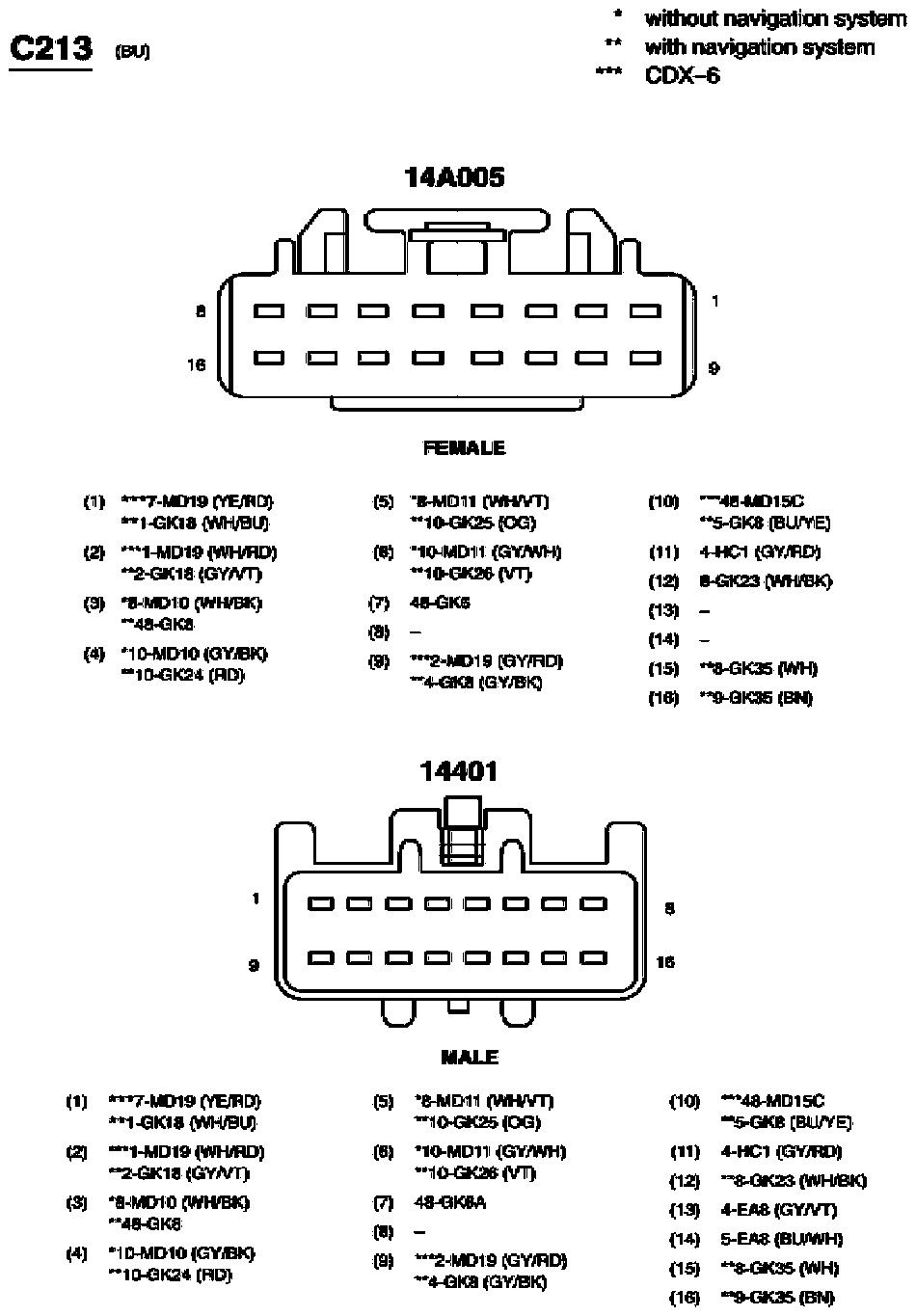

Fig 84: Inline Connector End View (C213)

G07842644

Courtesy of FORD MOTOR CO.

Fig 85: Inline Connector End View (C214)

G07842645

Courtesy of FORD MOTOR CO.

Fig 86: Inline Connector End View (C215)

G07842646

Courtesy of FORD MOTOR CO.

Fig 87: Steering Wheel Assembly Connector End View (C218a)

G07842647

Courtesy of FORD MOTOR CO.

Fig 88: Steering Wheel Assembly Connector End View (C218b)

G07842648

Courtesy of FORD MOTOR CO.

Fig 89: Inline Connector End View (C219)

G07842649

Courtesy of FORD MOTOR CO.

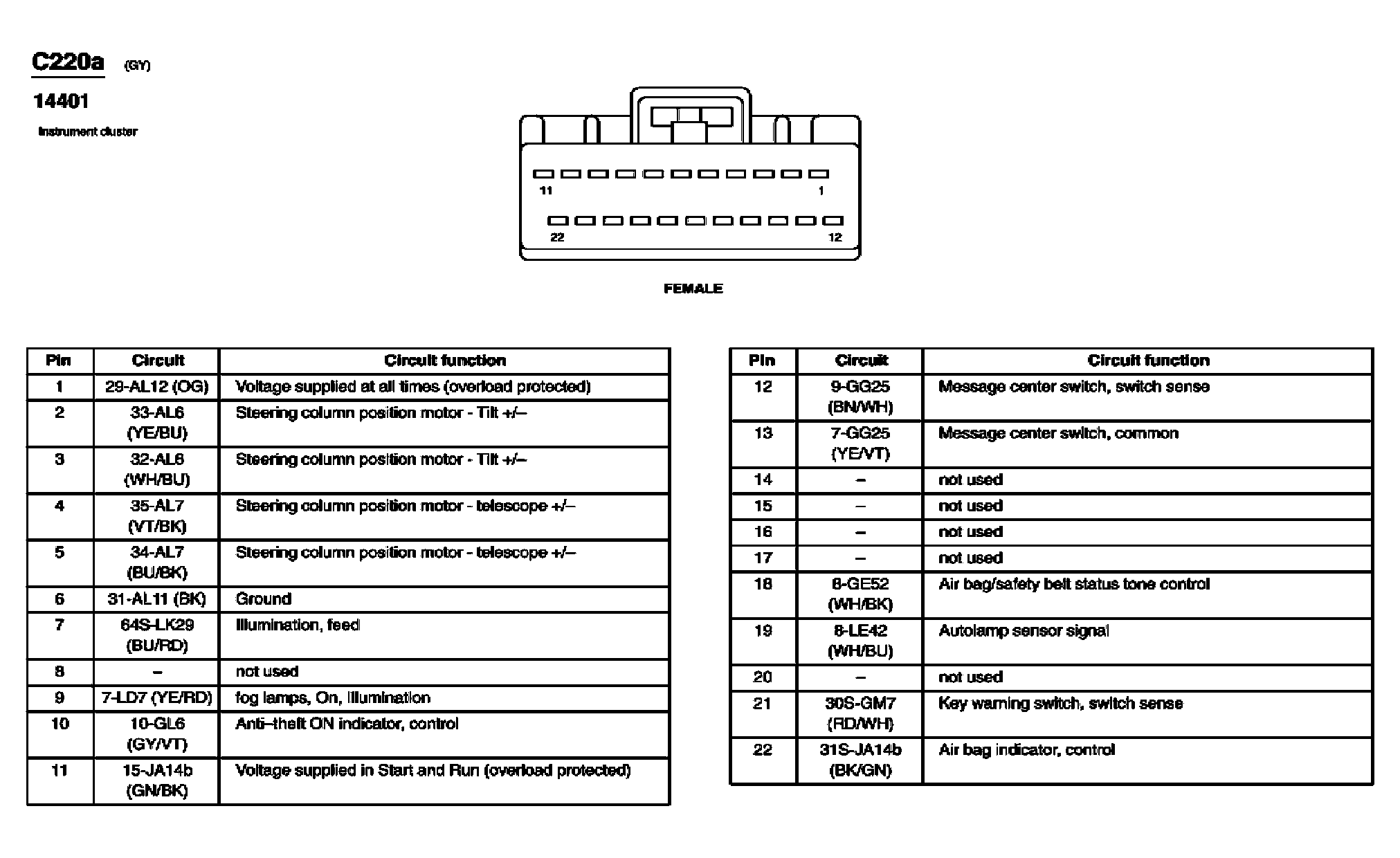

Fig 90: Instrument Cluster Connector End View (C220a)

G03987715

Courtesy of FORD MOTOR CO.

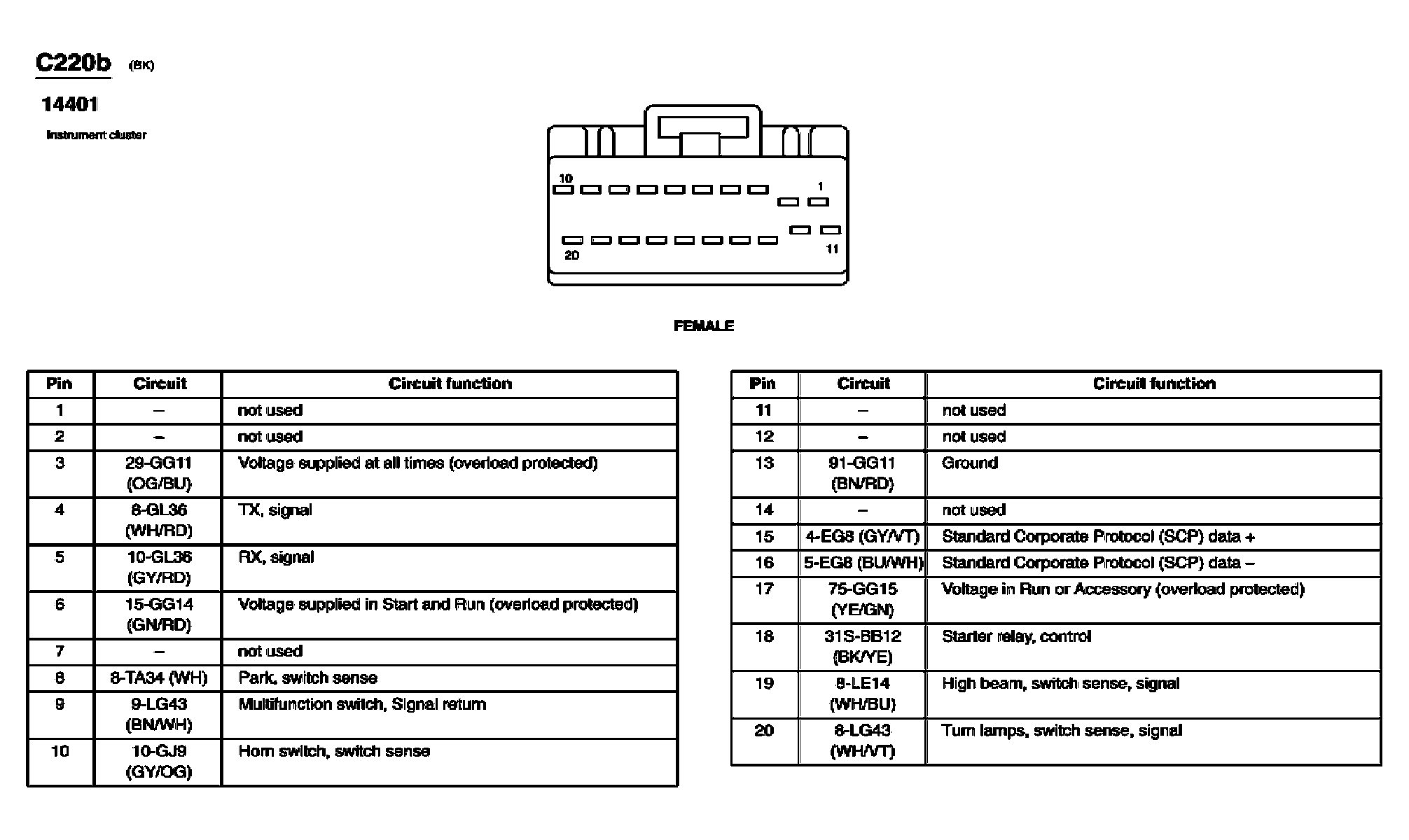

Fig 91: Instrument Cluster Connector End View (C220b)

G03987716

Courtesy of FORD MOTOR CO.

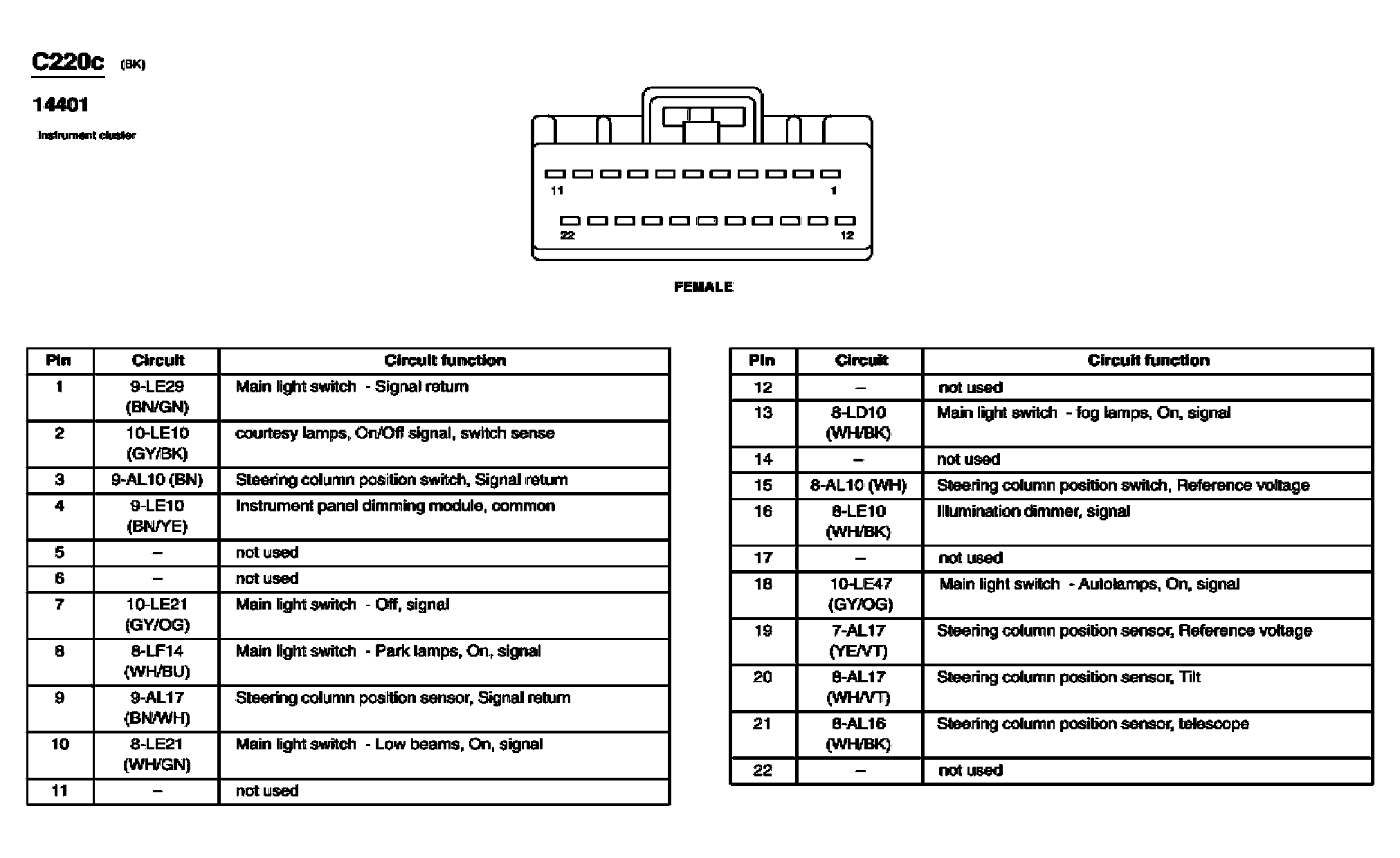

Fig 92: Instrument Cluster Connector End View (C220c)

G03987717

Courtesy of FORD MOTOR CO.

Fig 93: Steering Column Position Sensor Connector End View (C222)

G07842650

Courtesy of FORD MOTOR CO.

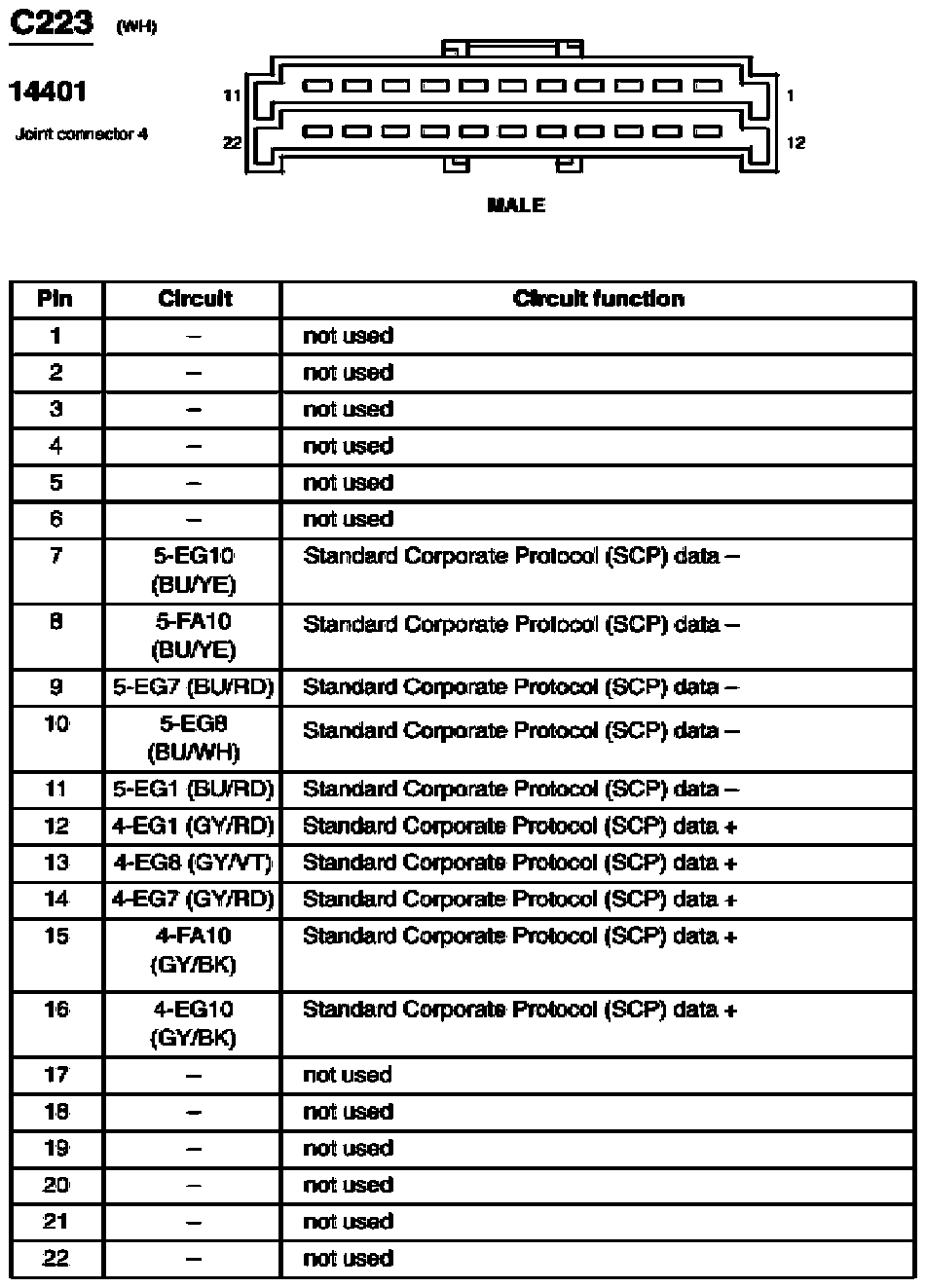

Fig 94: Joint Connector 4 Connector End View (C223)

G07842651

Courtesy of FORD MOTOR CO.

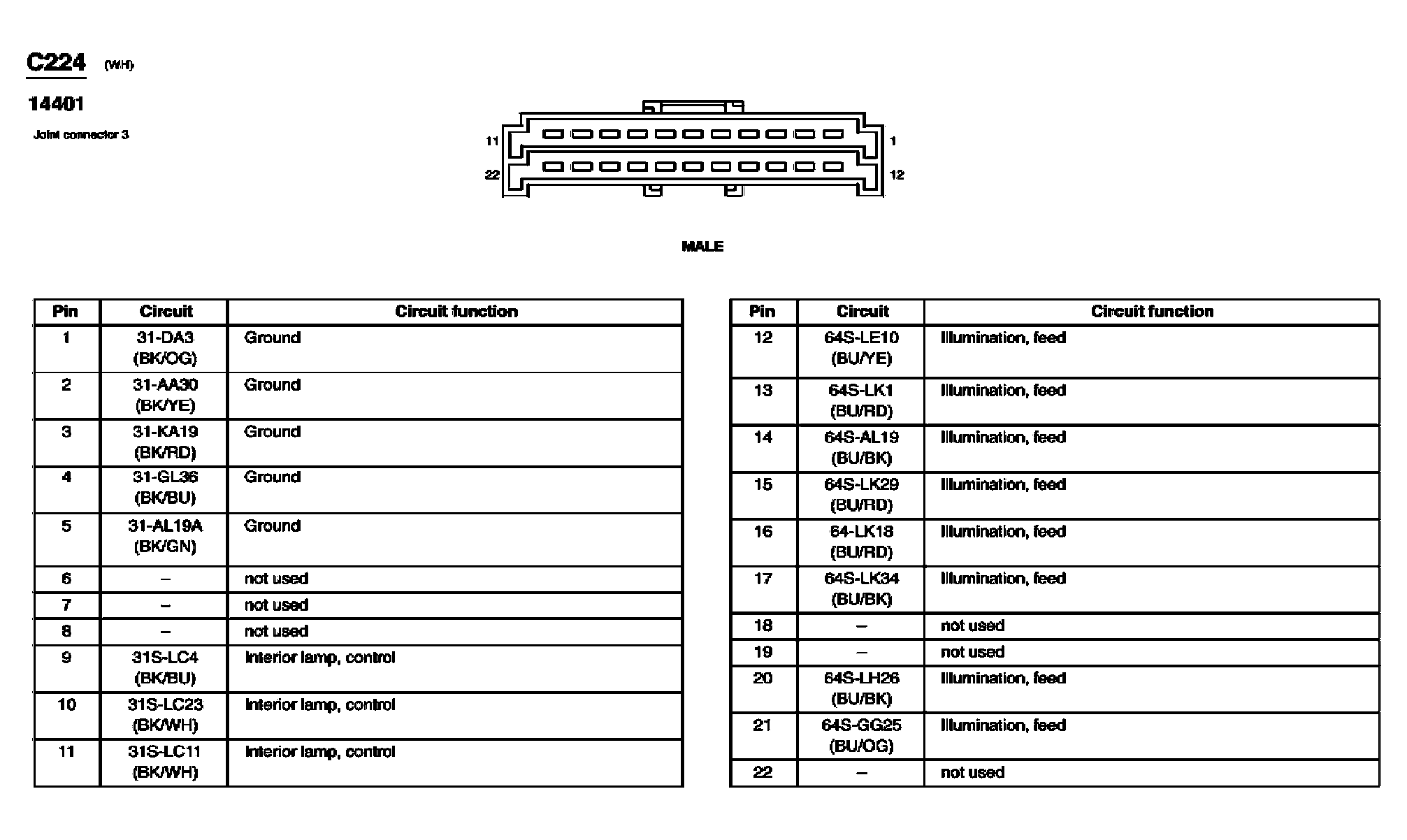

Fig 95: Joint Connector 3 Connector End View (C224)

G03987719

Courtesy of FORD MOTOR CO.

Fig 96: Center Image Amplifier Connector End View (C225)

G07842652

Courtesy of FORD MOTOR CO.

Fig 97: Steering Position Sensor Connector End View (C226)

G07842653

Courtesy of FORD MOTOR CO.

Fig 98: Steering Column Position Motor Connector End View (C227)

G03987721

Courtesy of FORD MOTOR CO.

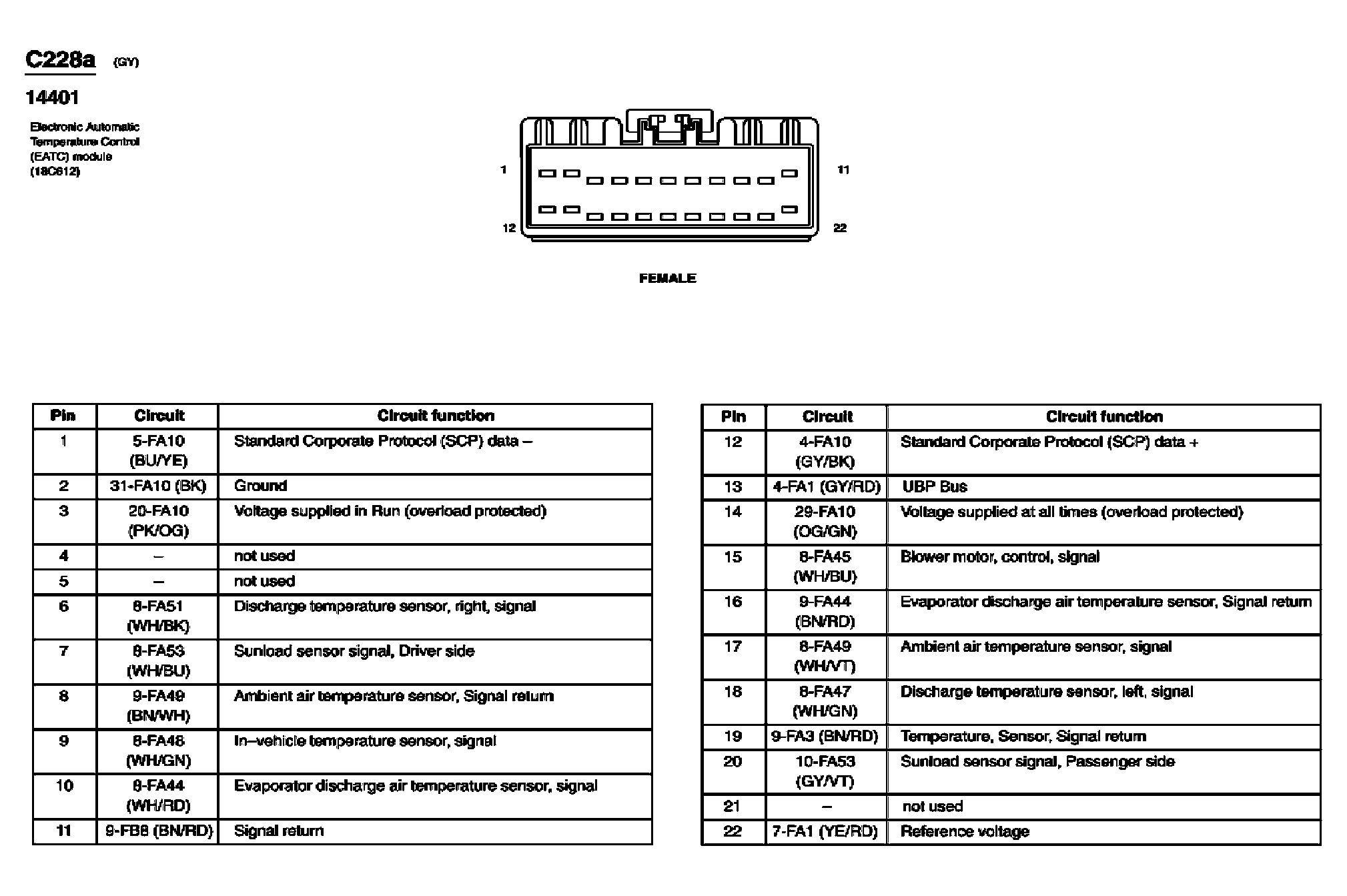

Fig 99: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)

G03987722

Courtesy of FORD MOTOR CO.

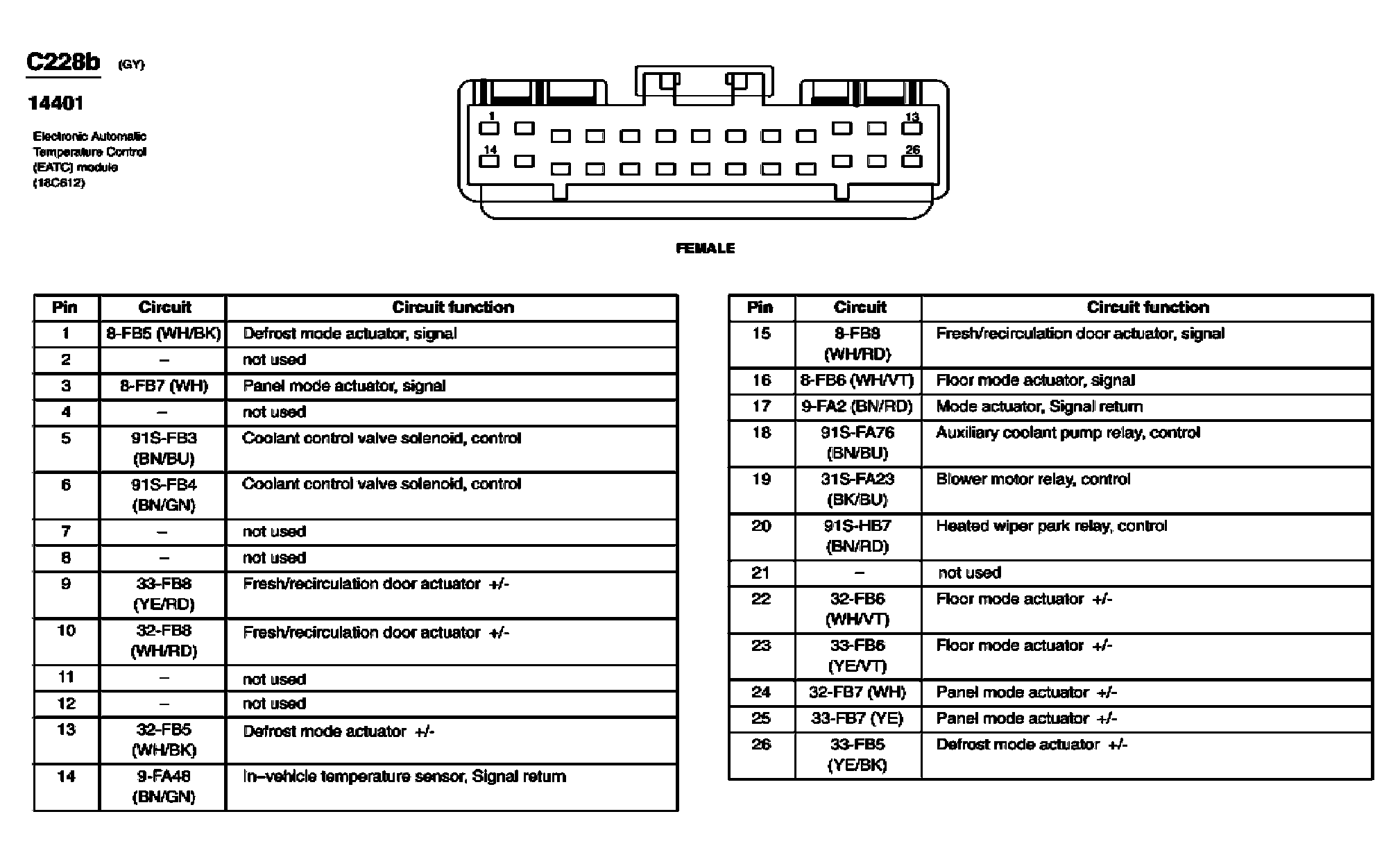

Fig 100: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)

G03987723

Courtesy of FORD MOTOR CO.

Fig 101: Center Image Speaker, Left Connector End View (C230)

G07842654

Courtesy of FORD MOTOR CO.

Fig 102: Center Image Speaker, Right Connector End View (C231)

G07842655

Courtesy of FORD MOTOR CO.

Fig 103: Defrost Mode Actuator Connector End View (C232)

G07842656

Courtesy of FORD MOTOR CO.

Fig 104: In-Vehicle Temperature Sensor Connector End View (C233)

G07842657

Courtesy of FORD MOTOR CO.

Fig 105: Floor Mode Actuator Connector End View (C234)

G07842658

Courtesy of FORD MOTOR CO.

Fig 106: Discharge Temperature Sensor, Left Connector End View (C235)

G07842659

Courtesy of FORD MOTOR CO.

Fig 107: Panel Mode Actuator Connector End View (C236)

G07842660

Courtesy of FORD MOTOR CO.

Fig 108: Inline Connector End View (C237)

G07842661

Courtesy of FORD MOTOR CO.

Fig 109: Inline Connector End View (C238)

G07842662

Courtesy of FORD MOTOR CO.

Fig 110: Inline Connector End View (C248)

G07842663

Courtesy of FORD MOTOR CO.

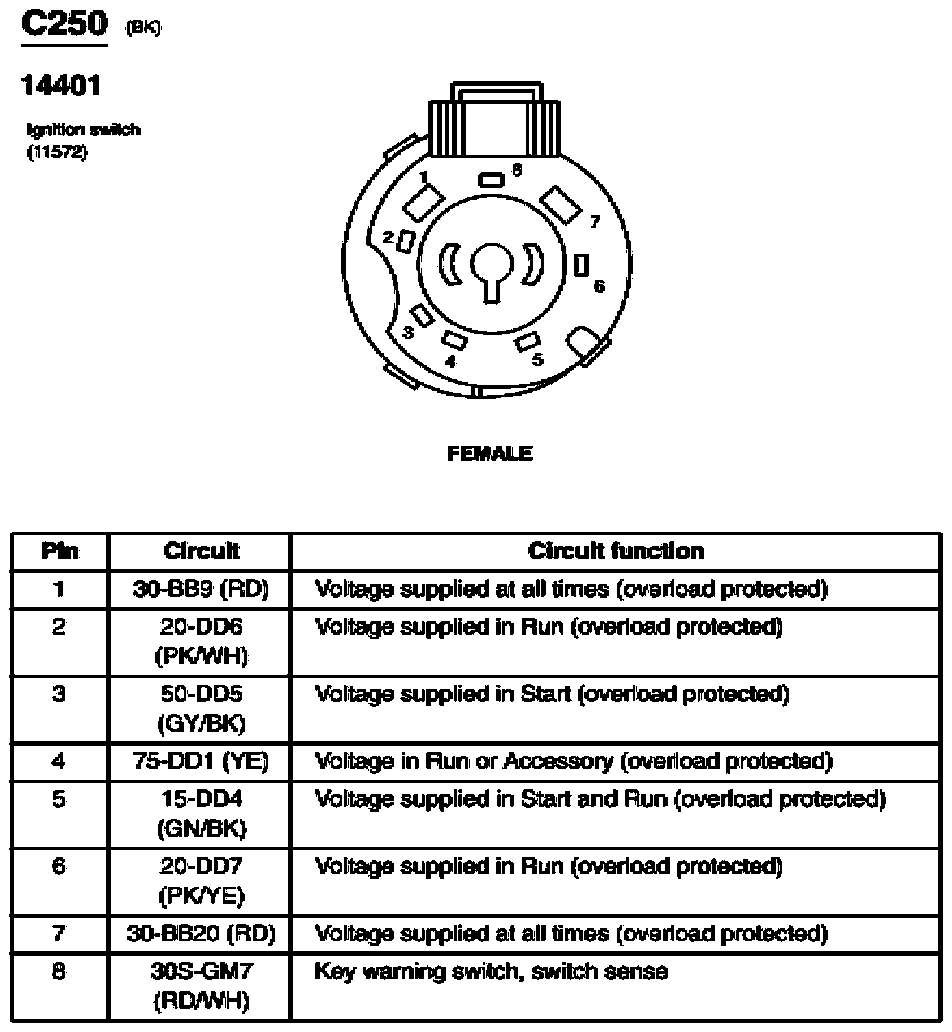

Fig 111: Ignition Switch Connector End View (C250)

G07842664

Courtesy of FORD MOTOR CO.

Fig 112: Data Link Connector (DLC) Connector End View (C251)

G07842665

Courtesy of FORD MOTOR CO.

Fig 113: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07842666

Courtesy of FORD MOTOR CO.

Fig 114: Message Center Switch Connector End View (C253)

G07842667

Courtesy of FORD MOTOR CO.

Fig 115: Glove Box Lamp Connector End View (C254)

G07842668

Courtesy of FORD MOTOR CO.

Fig 116: Discharge Temperature Sensor, Right Connector End View (C255)

G07842669

Courtesy of FORD MOTOR CO.

Fig 117: Passenger Air Bag Module Connector End View (C256)

G07842670

Courtesy of FORD MOTOR CO.

Fig 118: Inline Connector End View (C260)

G03987730

Courtesy of FORD MOTOR CO.

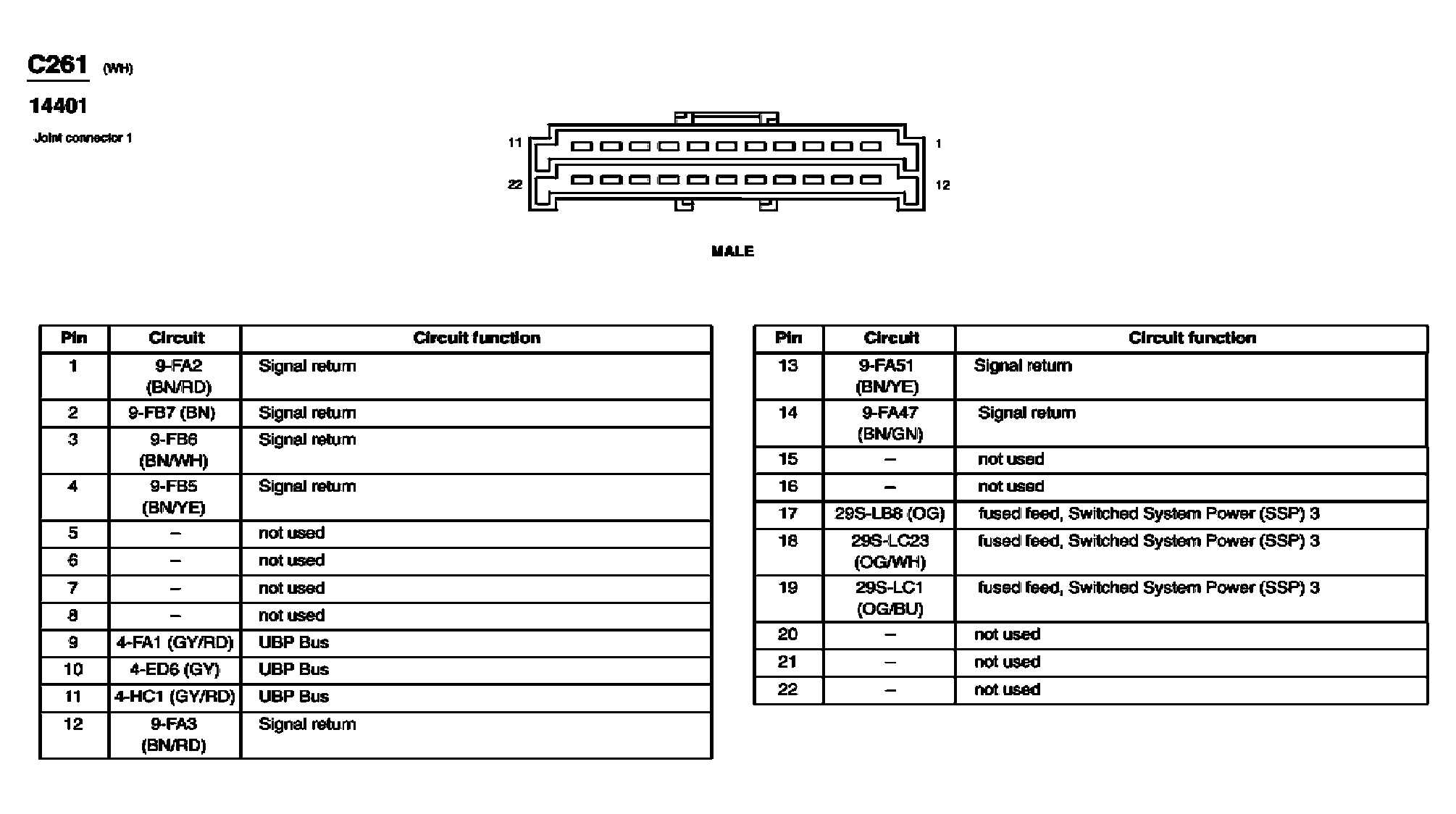

Fig 119: Joint Connector 1 Connector End View (C261)

G03987731

Courtesy of FORD MOTOR CO.

Fig 120: Joint Connector 2 Connector End View (C262)

G07842671

Courtesy of FORD MOTOR CO.

Fig 121: Inline Connector End View (C263)

G07842672

Courtesy of FORD MOTOR CO.

Fig 122: Inline Connector End View (C264)

G07842673

Courtesy of FORD MOTOR CO.

Fig 123: Inline Connector End View (C265)

G07842674

Courtesy of FORD MOTOR CO.

Fig 124: Footwell Lamp, Right Front Connector End View (C266)

G07842675

Courtesy of FORD MOTOR CO.

Fig 125: Inline Connector End View (C268)

G07842676

Courtesy of FORD MOTOR CO.

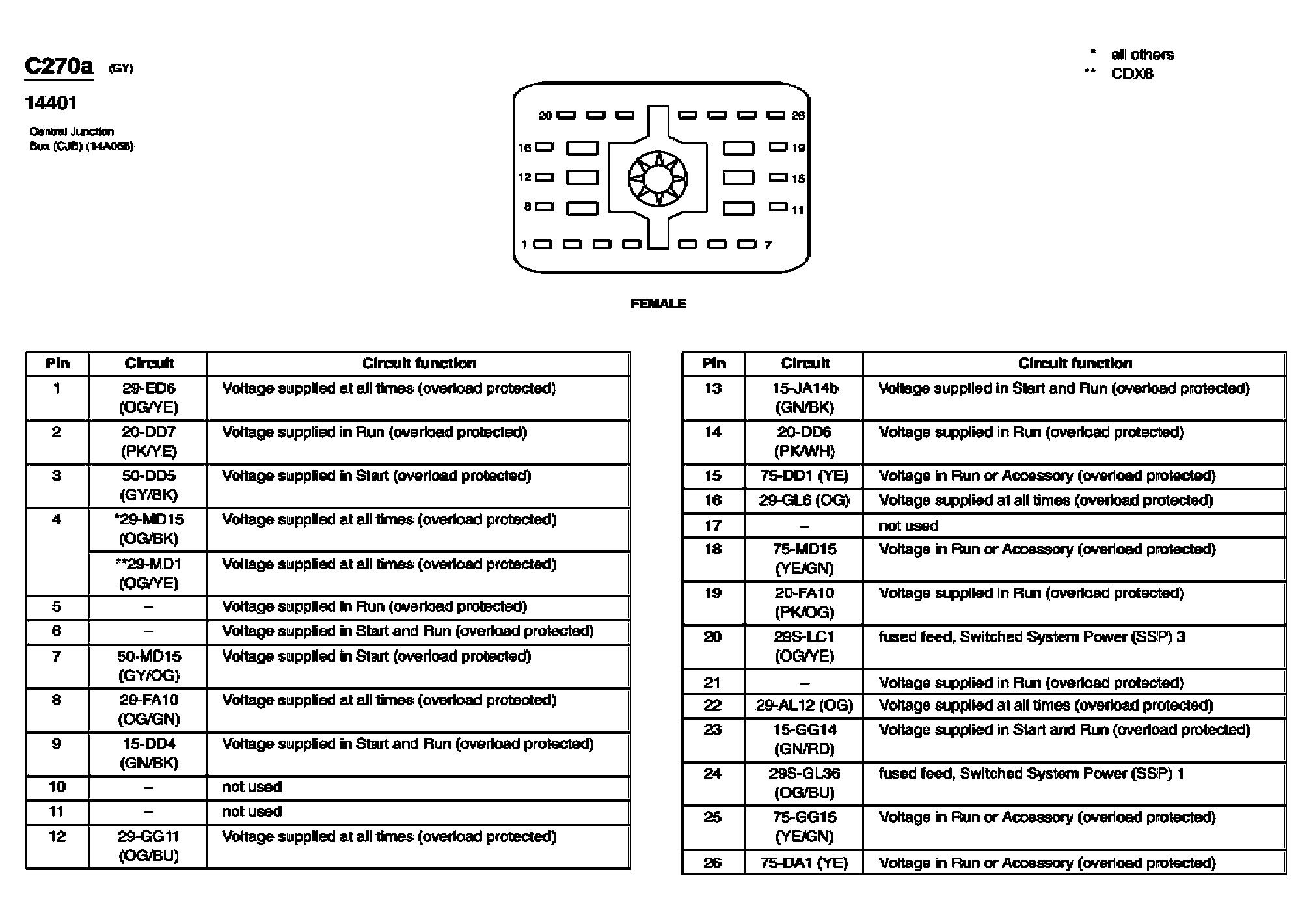

Fig 126: Central Junction Box (CJB) Connector End View (C270a)

G03987734

Courtesy of FORD MOTOR CO.

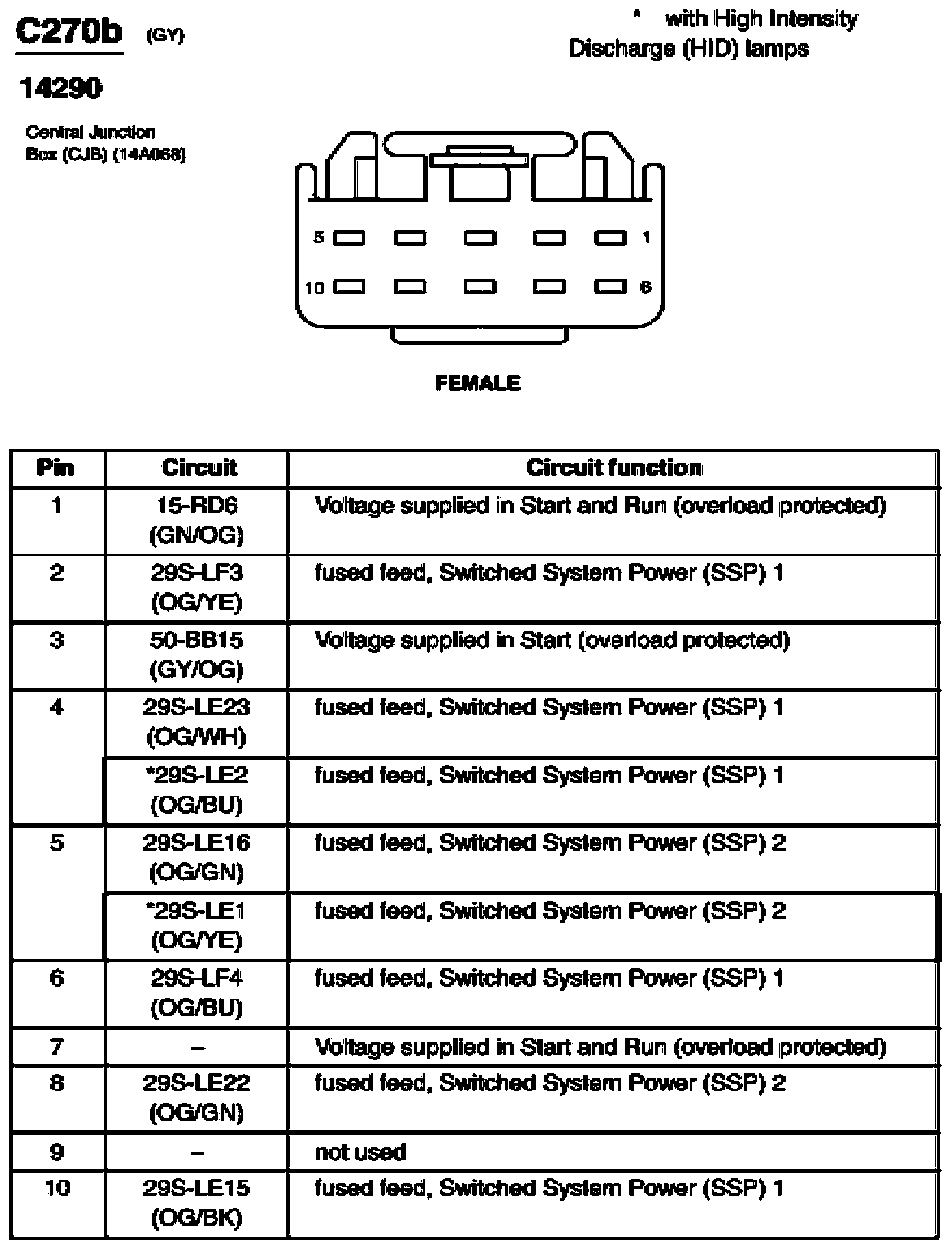

Fig 127: Central Junction Box (CJB) Connector End View (C270b)

G07842677

Courtesy of FORD MOTOR CO.

Fig 128: Central Junction Box (CJB) Connector End View (C270c)

G07842678

Courtesy of FORD MOTOR CO.

Fig 129: Central Junction Box (CJB) Connector End View (C270d)

G03987736

Courtesy of FORD MOTOR CO.

Fig 130: Central Junction Box (CJB) Connector End View (C270e)

G07842679

Courtesy of FORD MOTOR CO.

Fig 131: Inline Connector End View (C275)

G07842680

Courtesy of FORD MOTOR CO.

Fig 132: Brake Pressure Switch Connector End View (C277)

G07842681

Courtesy of FORD MOTOR CO.

Fig 133: Brake Pedal Position Switch Connector End View (C278)

G07842682

Courtesy of FORD MOTOR CO.

Fig 134: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)

G07842683

Courtesy of FORD MOTOR CO.

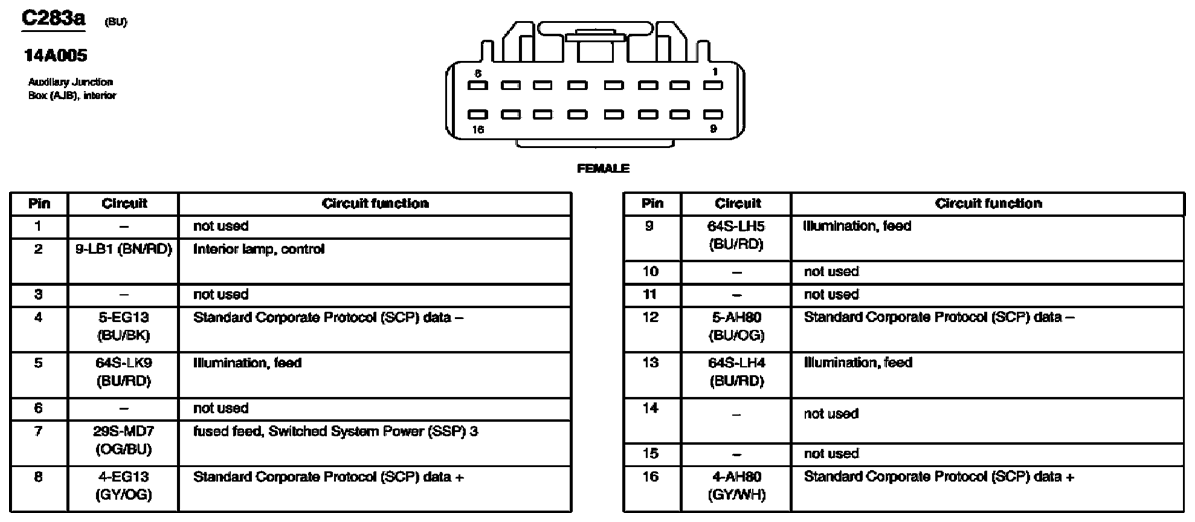

Fig 135: Auxiliary Junction Box (AJB), Interior Connector End View (C283a)

G03987738

Courtesy of FORD MOTOR CO.

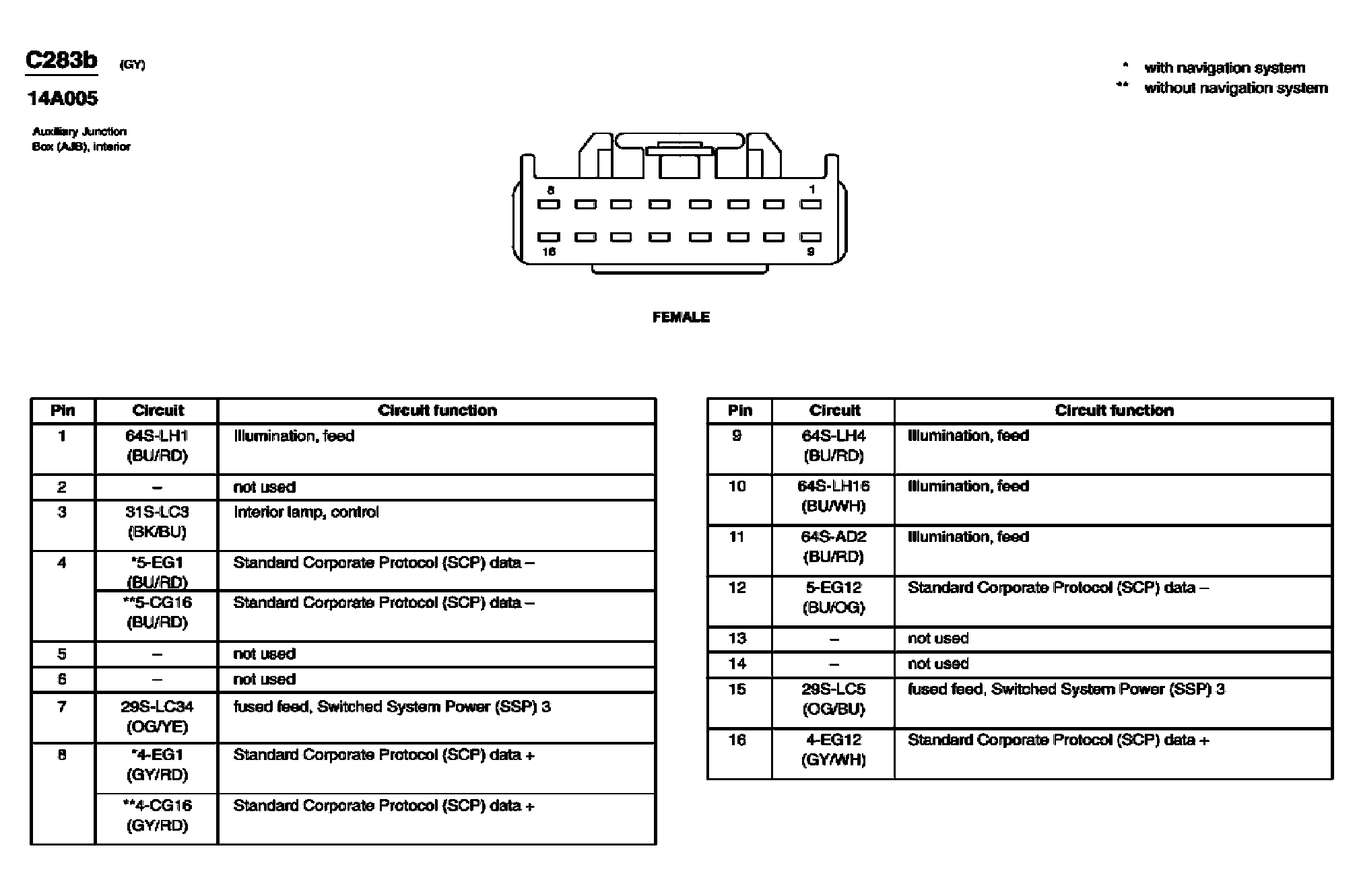

Fig 136: Auxiliary Junction Box (AJB), Interior Connector End View (C283b)

G03987739

Courtesy of FORD MOTOR CO.

Fig 137: Auxiliary Junction Box (AJB), Interior Connector End View (C283c)

G07842684

Courtesy of FORD MOTOR CO.

Fig 138: Auxiliary Junction Box (AJB), Interior Connector End View (C283d)

G07842685

Courtesy of FORD MOTOR CO.

Fig 139: Stud, Junction Box Connector End View (C285a)

G07842686

Courtesy of FORD MOTOR CO.

Fig 140: Stud, Junction Box Connector End View (C285b)

G07842687

Courtesy of FORD MOTOR CO.

Fig 141: Autolamp/Sunload Sensor Connector End View (C286)

G07842688

Courtesy of FORD MOTOR CO.

Fig 142: Heater Blower Motor Connector End View (C288)

G07842689

Courtesy of FORD MOTOR CO.

Fig 143: Fresh/Recirculation Door Actuator Connector End View (C289)

G07842690

Courtesy of FORD MOTOR CO.

Fig 144: Audio Unit Connector End View (C290a)

G07842691

Courtesy of FORD MOTOR CO.

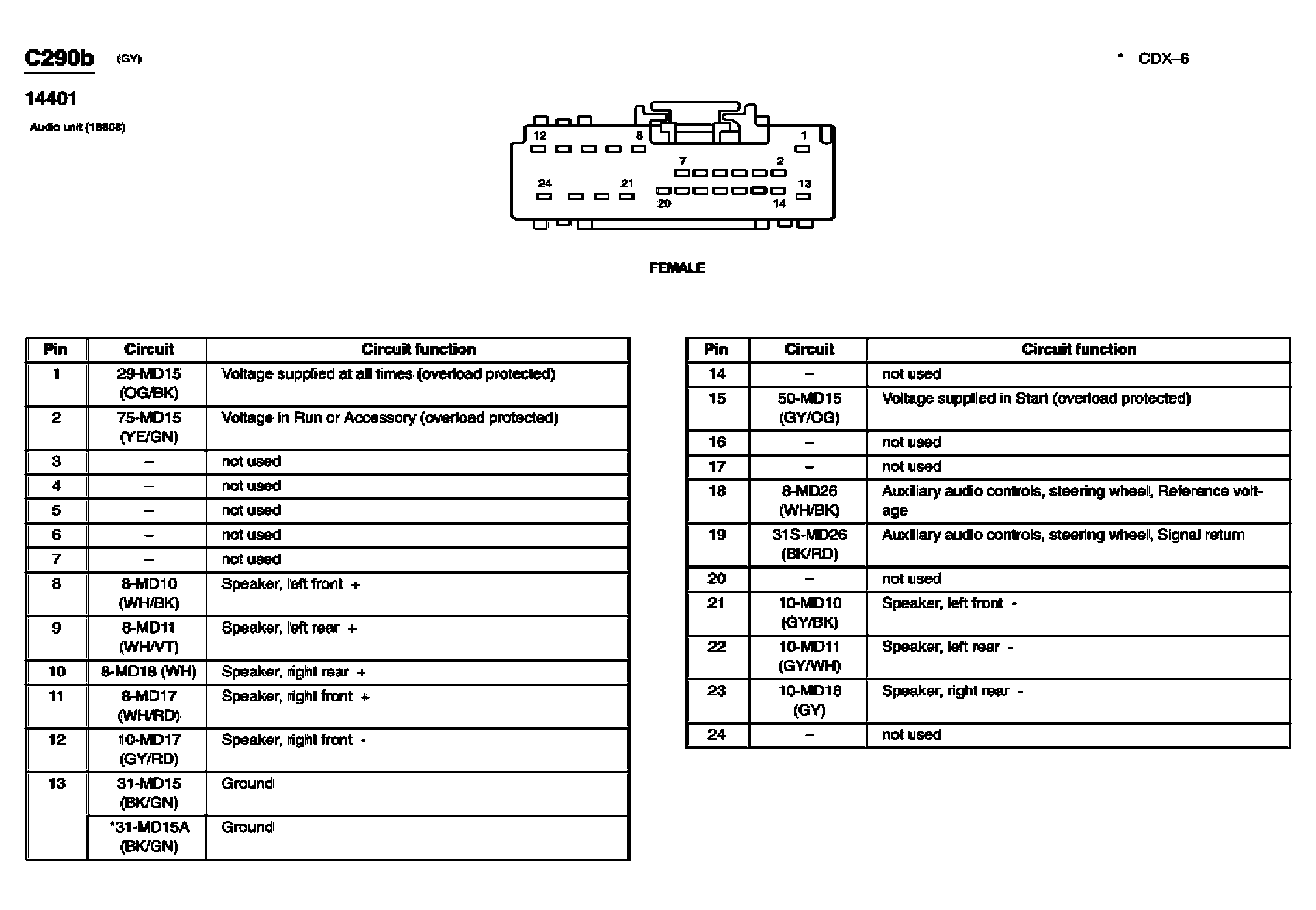

Fig 145: Audio Unit Connector End View (C290b)

G03987743

Courtesy of FORD MOTOR CO.

Fig 146: Audio Unit Connector End View (C290c)

G07842692

Courtesy of FORD MOTOR CO.

Fig 147: Audio Unit Connector End View (C290d)

G07842693

Courtesy of FORD MOTOR CO.

Fig 148: Inline Connector End View (C291)

G07842694

Courtesy of FORD MOTOR CO.

Fig 149: Evaporator Discharge Air Temperature Sensor Connector End View (C296)

G07842695

Courtesy of FORD MOTOR CO.

Fig 150: Inline Connector End View (C298)

G07842696

Courtesy of FORD MOTOR CO.

Fig 151: Inline Connector End View (C300)

G07842697

Courtesy of FORD MOTOR CO.

Fig 152: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)

G07842698

Courtesy of FORD MOTOR CO.

Fig 153: Transmission Shift Selector Connector End View (C307)

G03987747

Courtesy of FORD MOTOR CO.

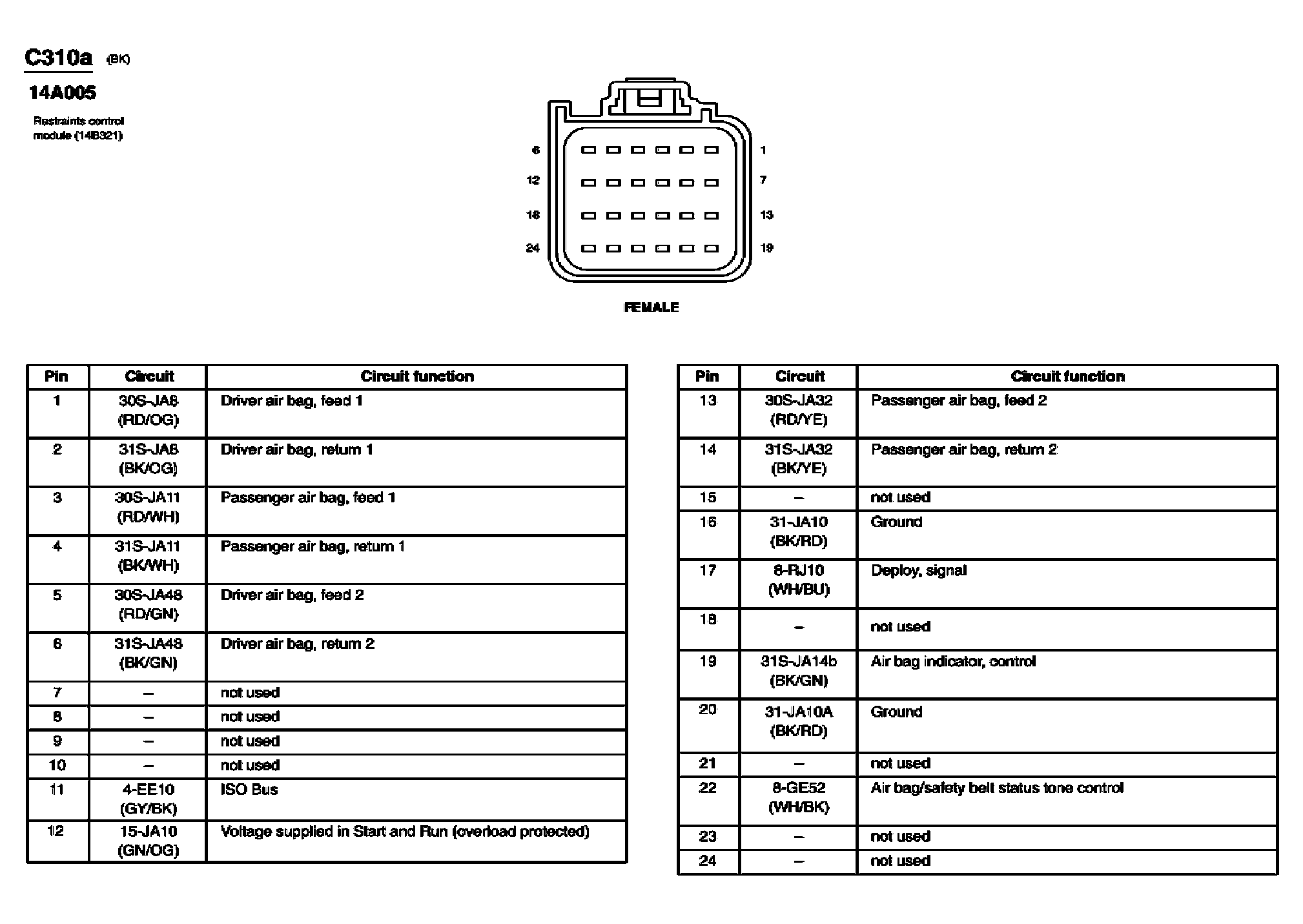

Fig 154: Restraints Control Module Connector End View (C310a)

G03987748

Courtesy of FORD MOTOR CO.

Fig 155: Restraints Control Module Connector End View (C310b) (1 Of 2)

G03987749

Courtesy of FORD MOTOR CO.

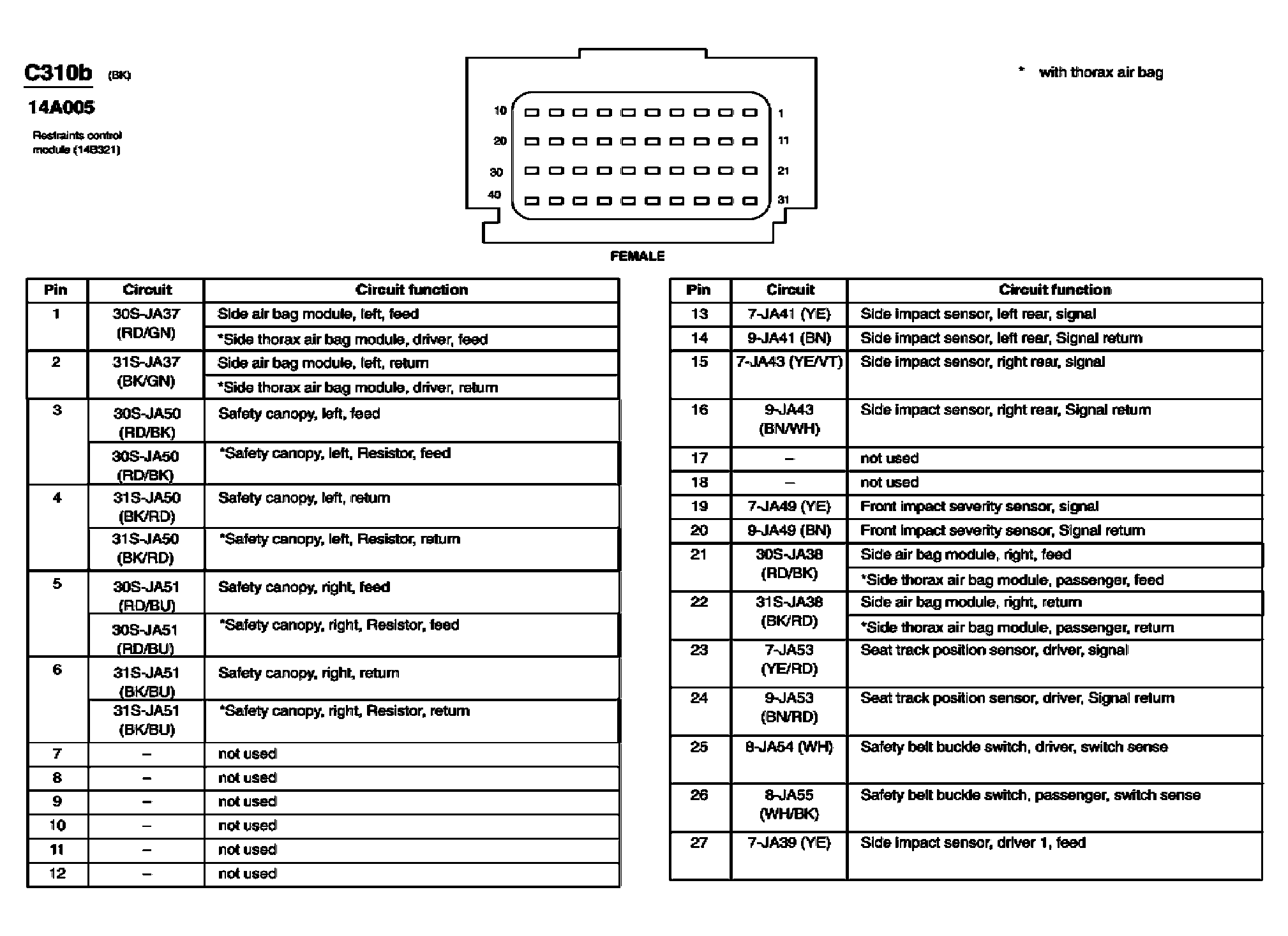

Fig 156: Restraints Control Module Connector End View (C310b) (2 Of 2)

G03987750

Courtesy of FORD MOTOR CO.

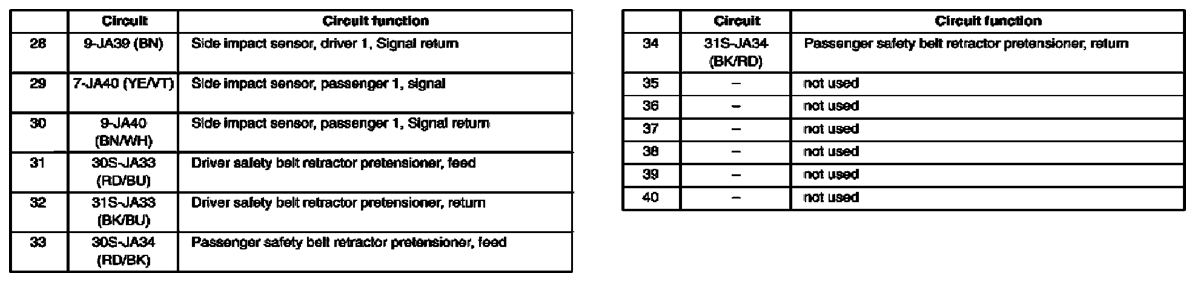

Fig 157: Inline Connector End View (C311)

G07842699

Courtesy of FORD MOTOR CO.

Fig 158: Inline Connector End View (C312)

G07842700

Courtesy of FORD MOTOR CO.

Fig 159: Inline Connector End View (C313)

G07842701

Courtesy of FORD MOTOR CO.

Fig 160: Inline Connector End View (C314)

G07842702

Courtesy of FORD MOTOR CO.

Fig 161: Inline Connector End View (C315)

G07842703

Courtesy of FORD MOTOR CO.

Fig 162: Inline Connector End View (C316)

G07842704

Courtesy of FORD MOTOR CO.

Fig 163: Cigar Lighter, Front Connector End View (C319)

G07842705

Courtesy of FORD MOTOR CO.

Fig 164: Driver Safety Belt Retractor Pretensioner Connector End View (C323)

G07842706

Courtesy of FORD MOTOR CO.

Fig 165: Inline Connector End View (C327)

G07842707

Courtesy of FORD MOTOR CO.

Fig 166: Inline Connector End View (C328)

G07842708

Courtesy of FORD MOTOR CO.

Fig 167: Seat Adjust Switch, Passenger Side Front Connector End View (C330)

G07842709

Courtesy of FORD MOTOR CO.

Fig 168: Lumbar Adjust Switch, Right Front Connector End View (C331)

G07842710

Courtesy of FORD MOTOR CO.

Fig 169: Passenger Seat Horizontal Motor Connector End View (C332)

G07842711

Courtesy of FORD MOTOR CO.

Fig 170: Passenger Seat Vertical Motor Connector End View (C333)

G07842712

Courtesy of FORD MOTOR CO.

Fig 171: Passenger Seat Lumbar Compressor Motor Connector End View (C336)

G07842713

Courtesy of FORD MOTOR CO.

Fig 172: Side Air Bag Module, Right Connector End View (C337)

G07842714

Courtesy of FORD MOTOR CO.

Fig 173: Passenger Seat Backrest Motor Connector End View (C338)

G07842715

Courtesy of FORD MOTOR CO.

Fig 174: Inline Connector End View (C339)

G07842716

Courtesy of FORD MOTOR CO.

Fig 175: Inline Connector End View (C340)

G03987757

Courtesy of FORD MOTOR CO.

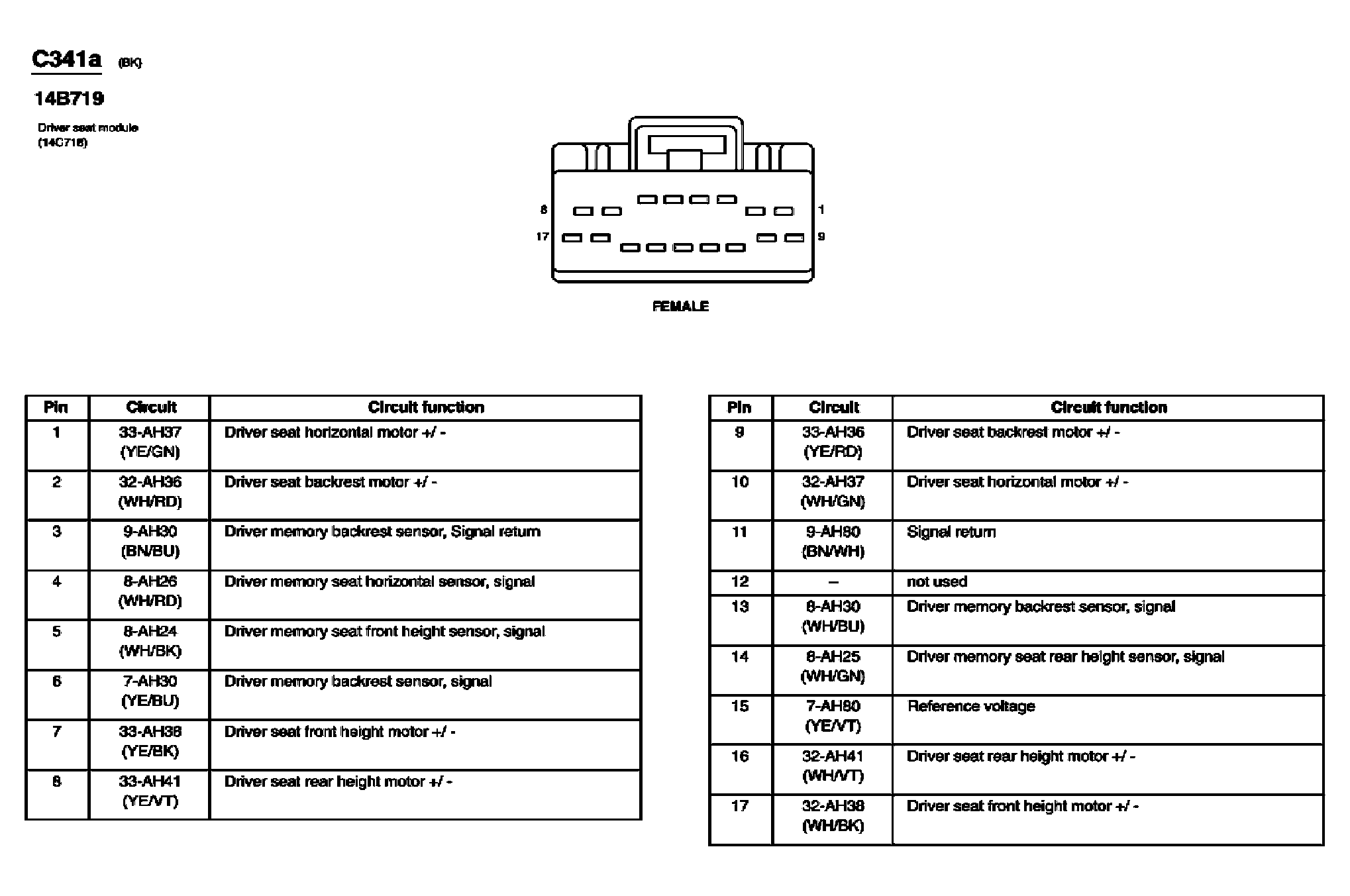

Fig 176: Driver Seat Module Connector End View (C341a)

G03987758

Courtesy of FORD MOTOR CO.

Fig 177: Driver Seat Module Connector End View (C341b)

G03987759

Courtesy of FORD MOTOR CO.

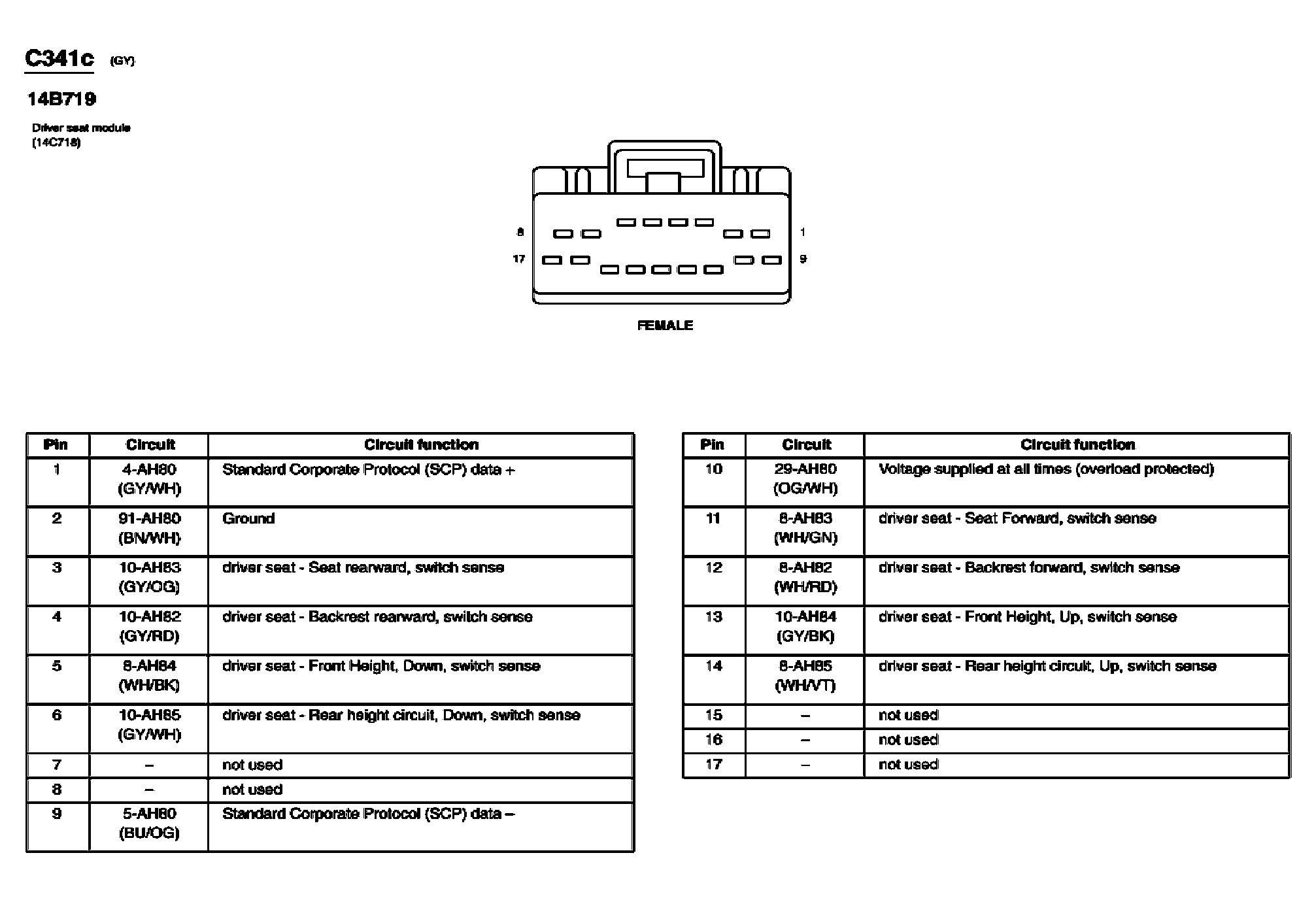

Fig 178: Driver Seat Module Connector End View (C341c)

G03987760

Courtesy of FORD MOTOR CO.

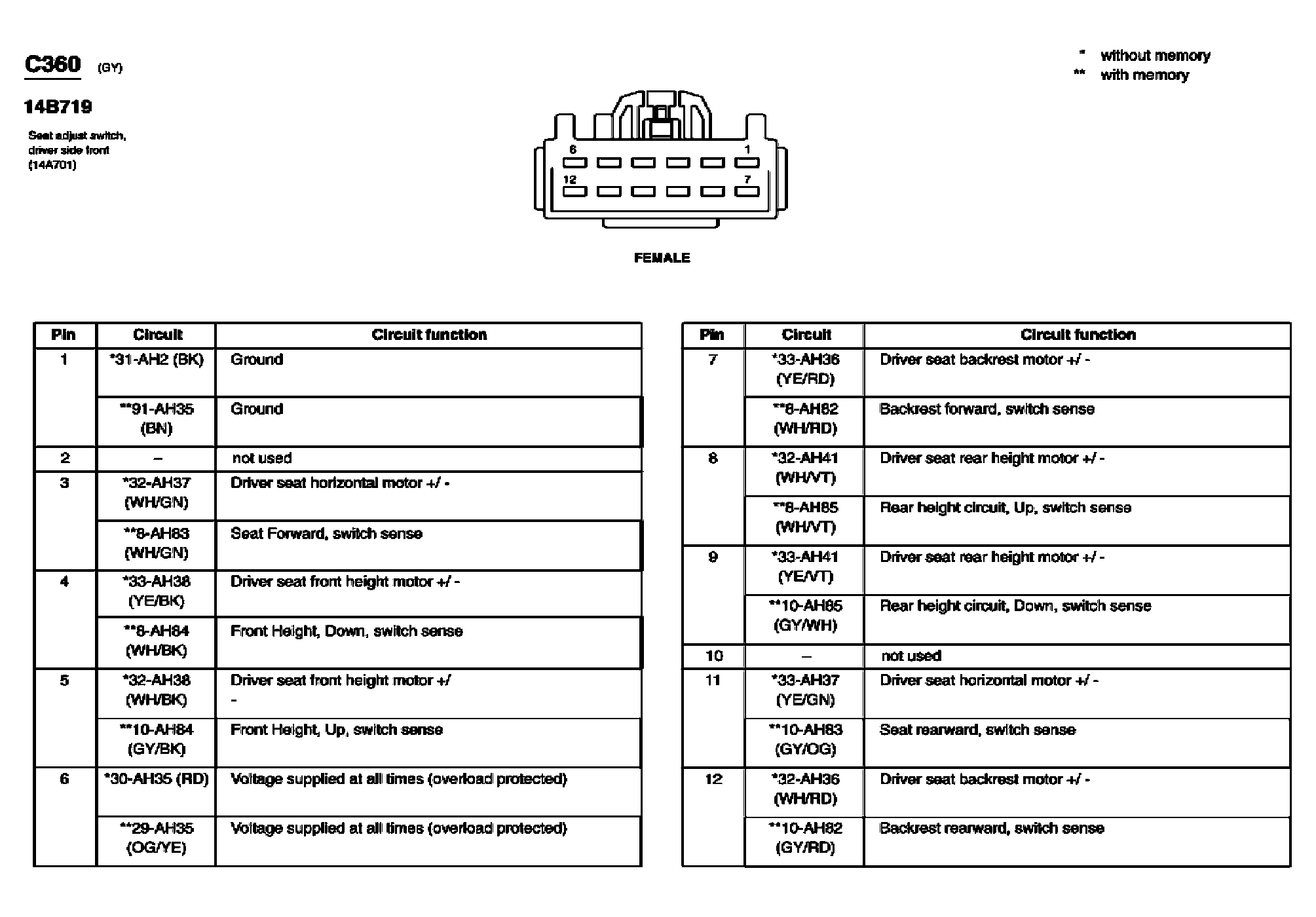

Fig 179: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G03987761

Courtesy of FORD MOTOR CO.

Fig 180: Lumbar Adjust Switch, Left Front Connector End View (C361)

G07842717

Courtesy of FORD MOTOR CO.

Fig 181: Driver Seat Horizontal Motor Connector End View (C362)

G07842718

Courtesy of FORD MOTOR CO.

Fig 182: Driver Seat Rear Height Motor Connector End View (C363)

G07842719

Courtesy of FORD MOTOR CO.

Fig 183: Driver Seat Lumbar Compressor Motor Connector End View (C366)

G07842720

Courtesy of FORD MOTOR CO.

Fig 184: Side Air Bag Module, Left Connector End View (C367)

G07842721

Courtesy of FORD MOTOR CO.

Fig 185: Driver Seat Backrest Motor Connector End View (C368)

G07842722

Courtesy of FORD MOTOR CO.

Fig 186: Driver Memory Seat Horizontal Sensor Connector End View (C372)

G07842723

Courtesy of FORD MOTOR CO.

Fig 187: Driver Memory Seat Rear Height Sensor Connector End View (C373)

G07842724

Courtesy of FORD MOTOR CO.

Fig 188: Driver Memory Backrest Sensor Connector End View (C376)

G07842725

Courtesy of FORD MOTOR CO.

Fig 189: Driver Seat Front Height Motor Connector End View (C382)

G07842726

Courtesy of FORD MOTOR CO.

Fig 190: Driver Memory Seat Front Height Sensor Connector End View (C383)

G07842727

Courtesy of FORD MOTOR CO.

Fig 191: Rear Window Defrost Grid Connector End View (C402a)

G07842728

Courtesy of FORD MOTOR CO.

Fig 192: Rear Window Defrost Grid Connector End View (C402b)

G07842729

Courtesy of FORD MOTOR CO.

Fig 193: Inline Connector End View (C405)

G07842730

Courtesy of FORD MOTOR CO.

Fig 194: Battery Junction Box (BJB) Connector End View (C407a)

G07842731

Courtesy of FORD MOTOR CO.

Fig 195: Battery Junction Box (BJB) Connector End View (C407b)

G07842732

Courtesy of FORD MOTOR CO.

Fig 196: Inline Connector End View (C408)

G07842733

Courtesy of FORD MOTOR CO.

Fig 197: Fuel Door Release Solenoid Connector End View (C409)

G07842734

Courtesy of FORD MOTOR CO.

Fig 198: Inline Connector End View (C410)

G07842735

Courtesy of FORD MOTOR CO.

Fig 199: Inline Connector End View (C411)

G07842736

Courtesy of FORD MOTOR CO.

Fig 200: Turn Lamp, Left Rear Connector End View (C413)

G07842737

Courtesy of FORD MOTOR CO.

Fig 201: Lamp Assembly, Left Rear Connector End View (C414)

G07842738

Courtesy of FORD MOTOR CO.

Fig 202: Turn Lamp, Right Rear Connector End View (C416)

G07842739

Courtesy of FORD MOTOR CO.

Fig 203: Lamp Assembly, Right Rear Connector End View (C417)

G07842740

Courtesy of FORD MOTOR CO.

Fig 204: Rear Electronic Module (REM) Connector End View (C420a)

G03987769

Courtesy of FORD MOTOR CO.

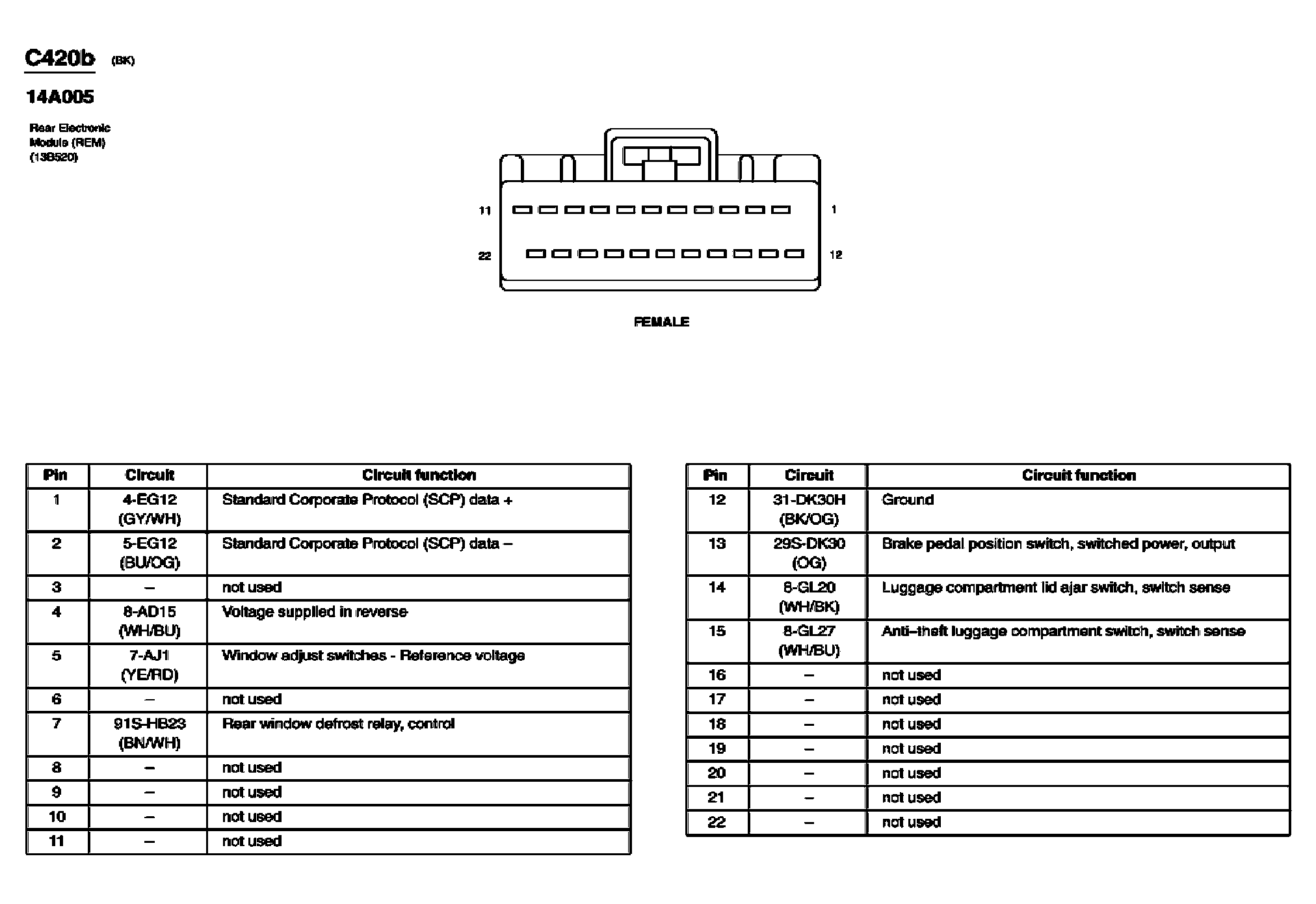

Fig 205: Rear Electronic Module (REM) Connector End View (C420b)

G03987770

Courtesy of FORD MOTOR CO.

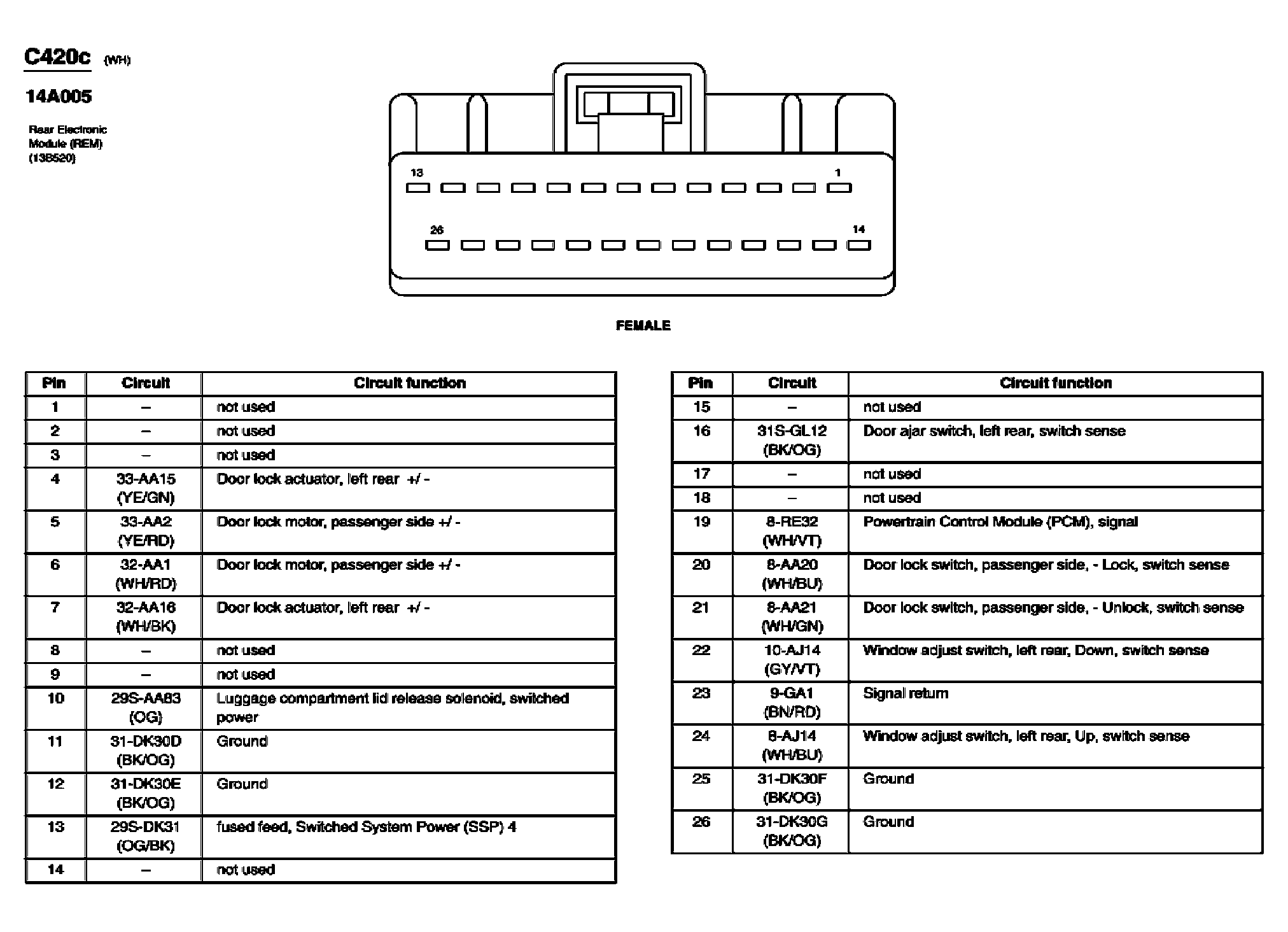

Fig 206: Rear Electronic Module (REM) Connector End View (C420c)

G03987771

Courtesy of FORD MOTOR CO.

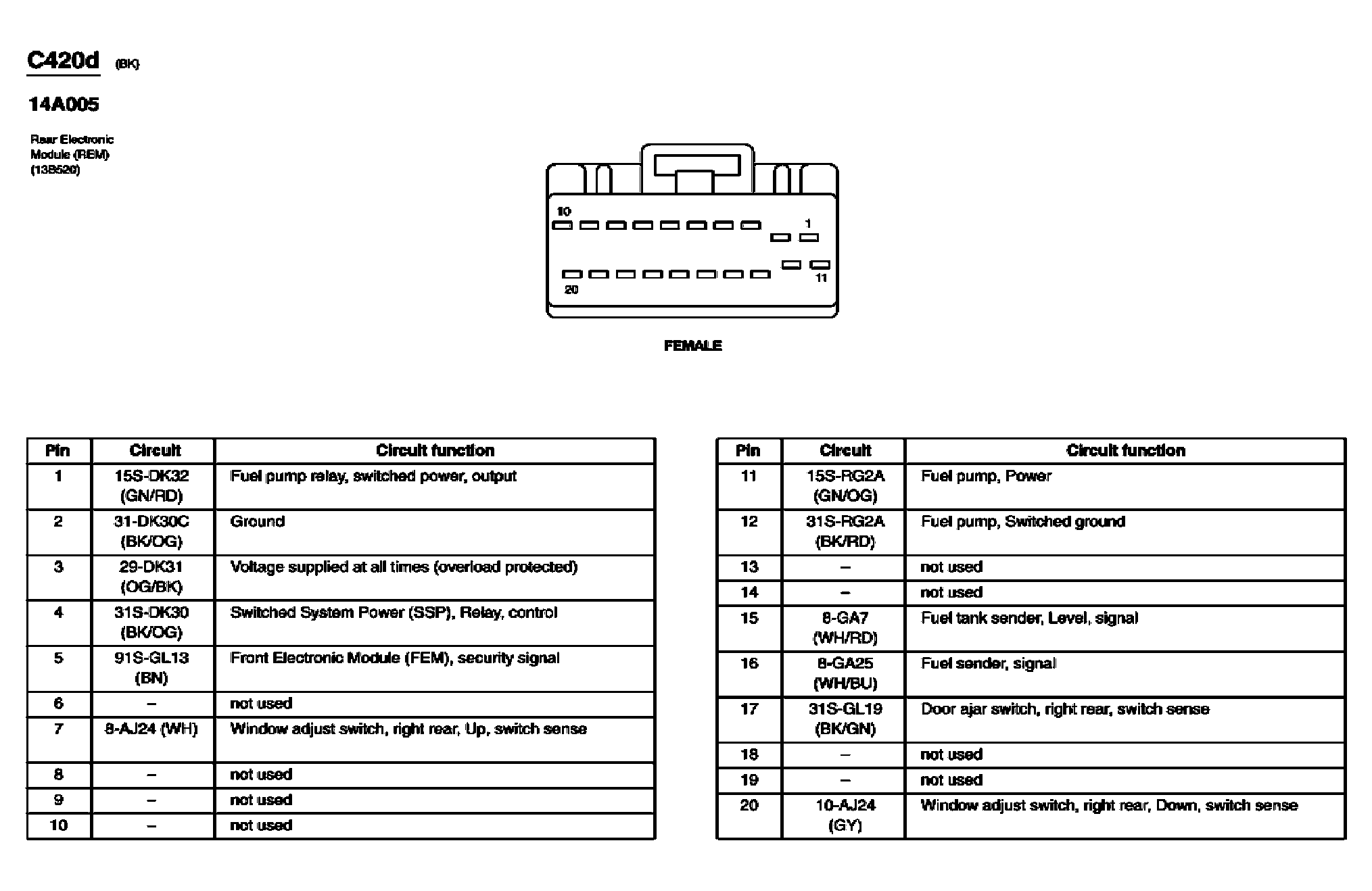

Fig 207: Rear Electronic Module (REM) Connector End View (C420d)

G03987772

Courtesy of FORD MOTOR CO.

Fig 208: Rear Electronic Module (REM) Connector End View (C420e)

G07842741

Courtesy of FORD MOTOR CO.

Fig 209: Rear Electronic Module (REM) Connector End View (C420f)

G07842742

Courtesy of FORD MOTOR CO.

Fig 210: Rear Electronic Module (REM) Connector End View (C420g)

G07842743

Courtesy of FORD MOTOR CO.

Fig 211: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07842744

Courtesy of FORD MOTOR CO.

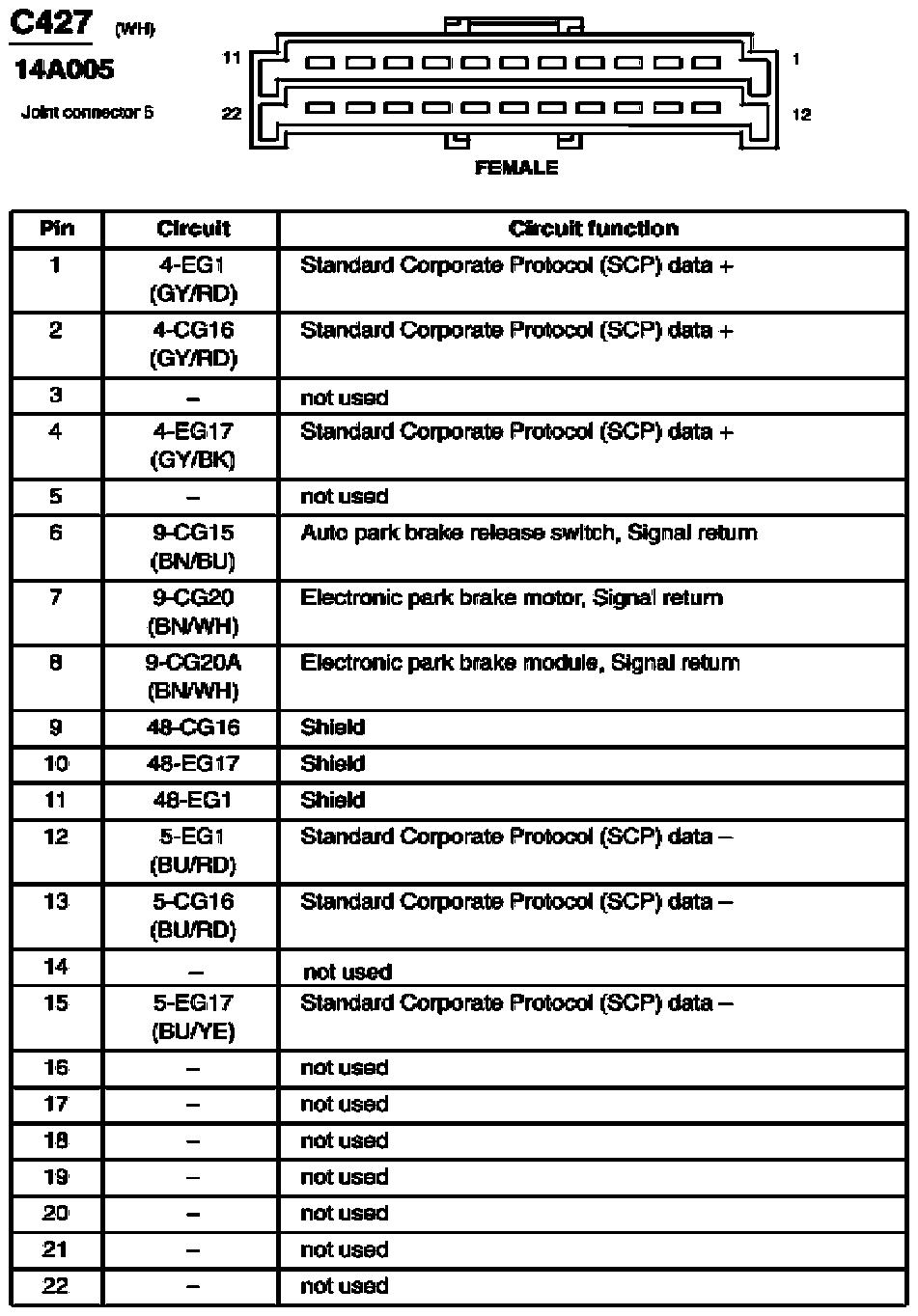

Fig 212: Joint Connector 5 Connector End View (C427)

G07842745

Courtesy of FORD MOTOR CO.

Fig 213: Luggage Compartment Lamp Connector End View (C428)

G07842746

Courtesy of FORD MOTOR CO.

Fig 214: Luggage Compartment Lid Ajar Switch Connector End View (C429)

G07842747

Courtesy of FORD MOTOR CO.

Fig 215: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G07842748

Courtesy of FORD MOTOR CO.

Fig 216: Inline Connector End View (C431)

G07842749

Courtesy of FORD MOTOR CO.

Fig 217: Inline Connector End View (C432)

G07842750

Courtesy of FORD MOTOR CO.

Fig 218: Fuel Tank Unit Connector End View (C433)

G07842751

Courtesy of FORD MOTOR CO.

Fig 219: Fuel Sender Connector End View (C434)

G07842752

Courtesy of FORD MOTOR CO.

Fig 220: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07842753

Courtesy of FORD MOTOR CO.

Fig 221: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07842754

Courtesy of FORD MOTOR CO.

Fig 222: SSP 1 Relay Connector End View (C441)

G07842755

Courtesy of FORD MOTOR CO.

Fig 223: SSP 2 Relay Connector End View (C442)

G07842756

Courtesy of FORD MOTOR CO.

Fig 224: Rear Window Defrost Relay Connector End View (C443)

G07842757

Courtesy of FORD MOTOR CO.

Fig 225: SSP 3 Relay Connector End View (C444)

G07842758

Courtesy of FORD MOTOR CO.

Fig 226: SSP 4 Relay Connector End View (C445)

G07842759

Courtesy of FORD MOTOR CO.

Fig 227: Fuel Pump Relay Connector End View (C446)

G07842760

Courtesy of FORD MOTOR CO.

Fig 228: Fuel Pump Motor Diode Connector End View (C449)

G07842761

Courtesy of FORD MOTOR CO.

Fig 229: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07842762

Courtesy of FORD MOTOR CO.

Fig 230: Reversing Lamp, Left Connector End View (C451)

G07842763

Courtesy of FORD MOTOR CO.

Fig 231: License Plate Lamp, Left Connector End View (C452)

G07842764

Courtesy of FORD MOTOR CO.

Fig 232: Reversing Lamp, Right Connector End View (C461)

G07842765

Courtesy of FORD MOTOR CO.

Fig 233: License Plate Lamp, Right Connector End View (C462)

G07842766

Courtesy of FORD MOTOR CO.

Fig 234: Inline Connector End View (C465)

G07842767

Courtesy of FORD MOTOR CO.

Fig 235: Subwoofer Amplifier Connector End View (C466a)

G07842768

Courtesy of FORD MOTOR CO.

Fig 236: Subwoofer Amplifier Connector End View (C466b)

G07842769

Courtesy of FORD MOTOR CO.

Fig 237: Anti-Theft Luggage Compartment Switch Connector End View (C483)

G07842770

Courtesy of FORD MOTOR CO.

Fig 238: Key Pad Switch Assembly Connector End View (C500)

G07842771

Courtesy of FORD MOTOR CO.

Fig 239: Driver Door Module Connector End View (C501a)

G07842772

Courtesy of FORD MOTOR CO.

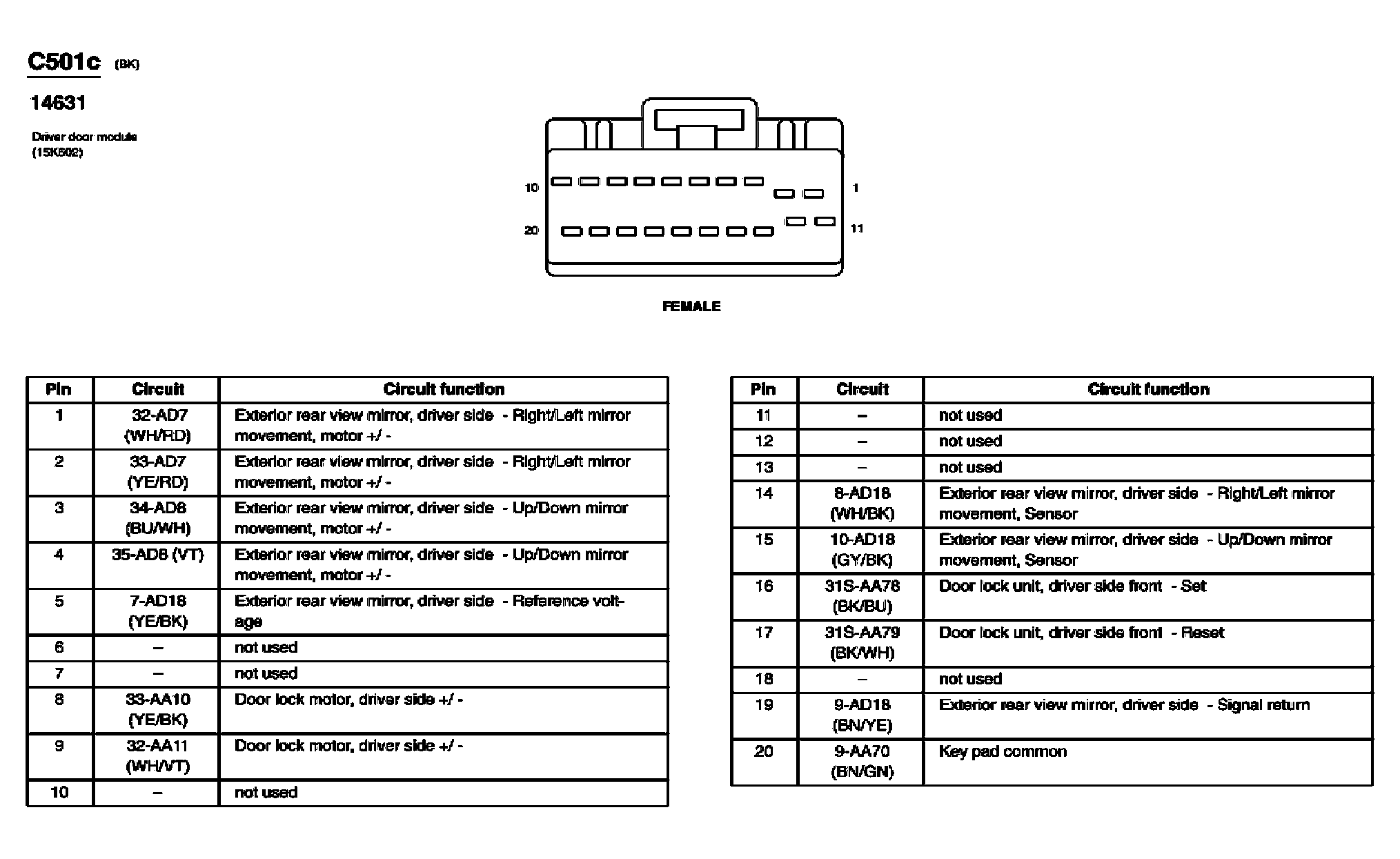

Fig 240: Driver Door Module Connector End View (C501c)

G03987784

Courtesy of FORD MOTOR CO.

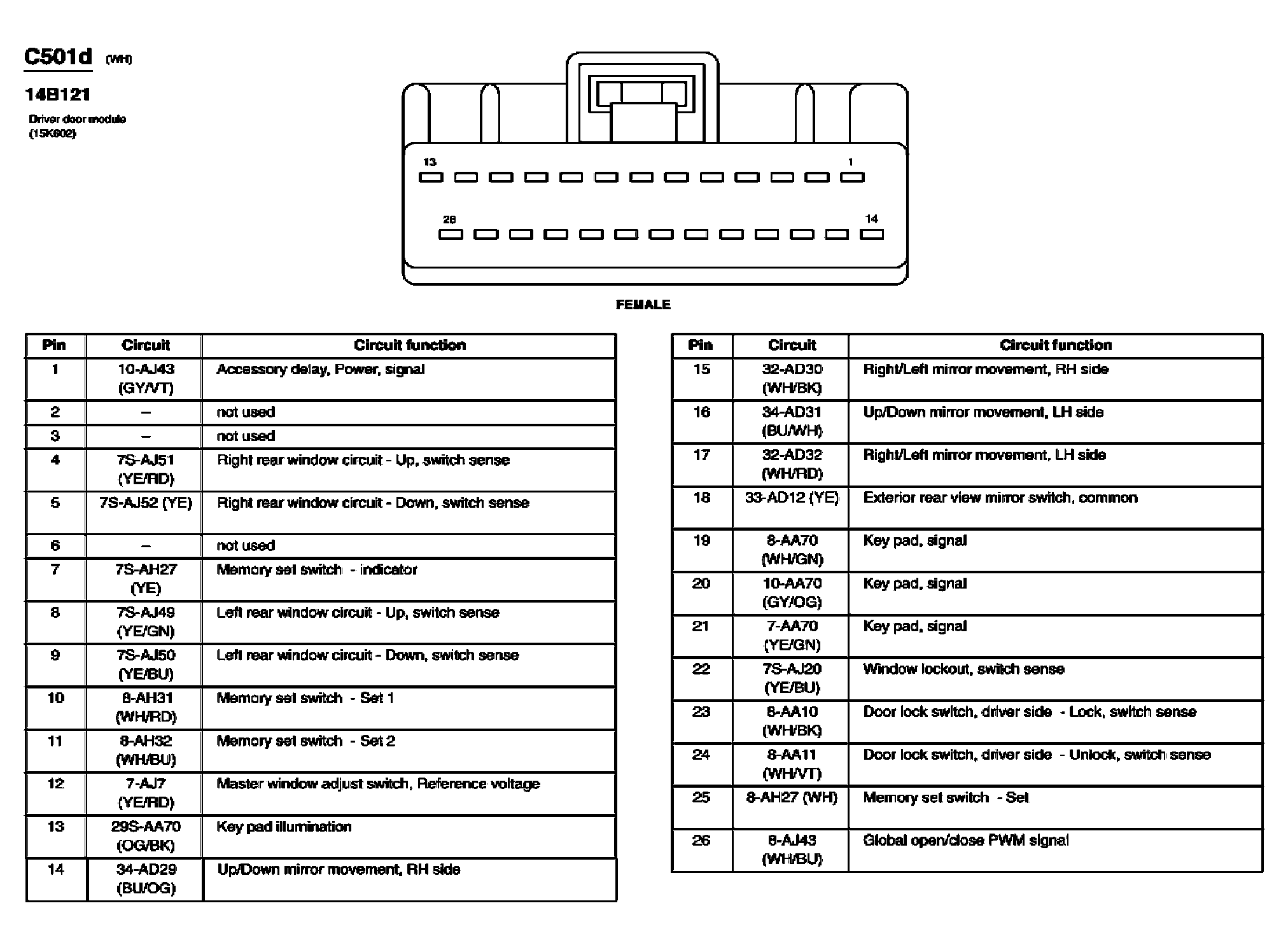

Fig 241: Driver Door Module Connector End View (C501d)

G03987785

Courtesy of FORD MOTOR CO.

Fig 242: Memory Set Switch Connector End View (C503)

G07842773

Courtesy of FORD MOTOR CO.

Fig 243: Master Window Adjust Switch Connector End View (C504a)

G07842774

Courtesy of FORD MOTOR CO.

Fig 244: Master Window Adjust Switch Connector End View (C504b)

G07842775

Courtesy of FORD MOTOR CO.

Fig 245: Door Lock Switch, Driver Side Connector End View (C505)

G07842776

Courtesy of FORD MOTOR CO.

Fig 246: Inline Connector End View (C510)

G07842777

Courtesy of FORD MOTOR CO.

Fig 247: Inline Connector End View (C511)

G07842778

Courtesy of FORD MOTOR CO.

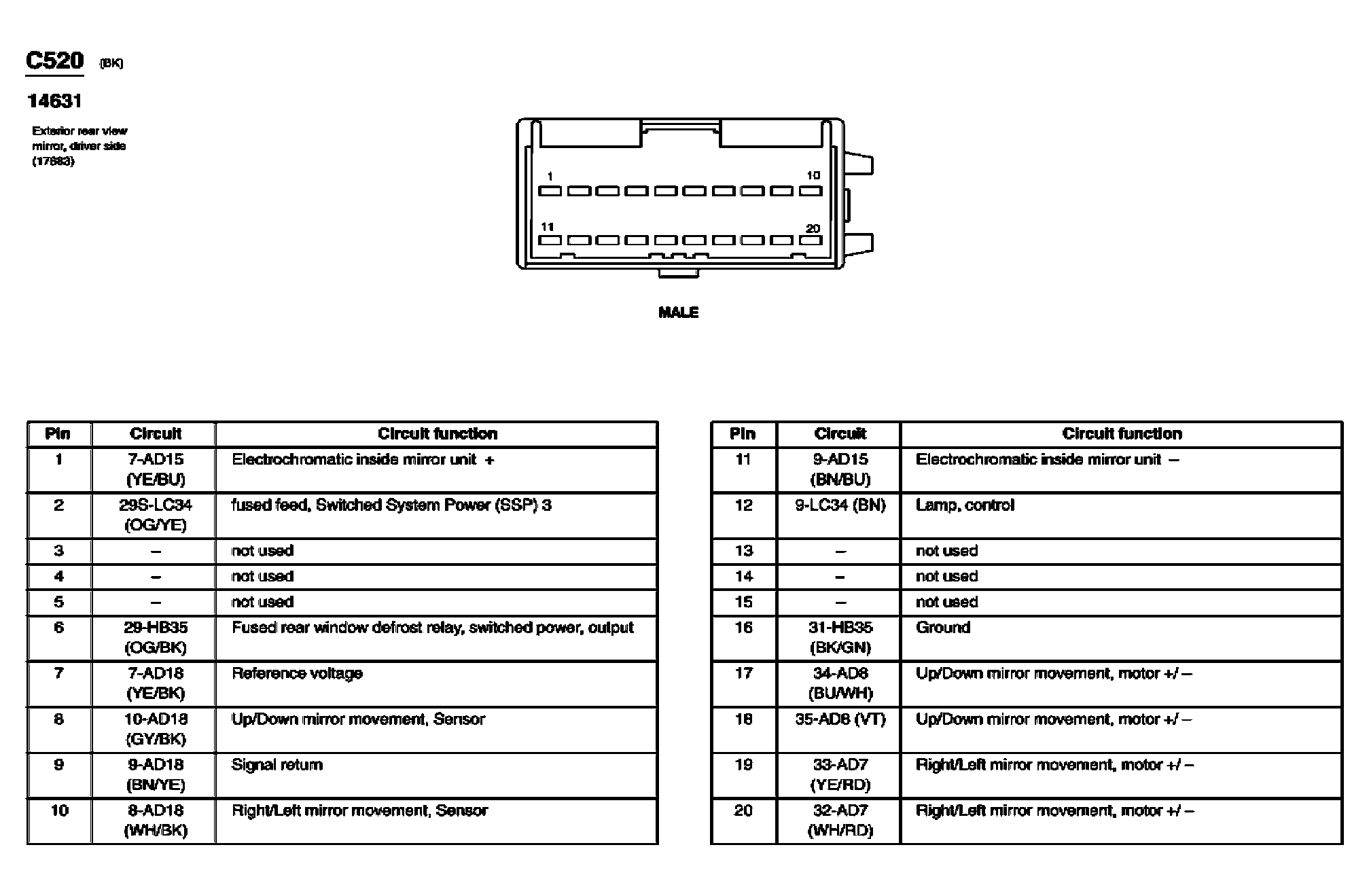

Fig 248: Exterior Rear View Mirror, Driver Side Connector End View (C520)

G03987789

Courtesy of FORD MOTOR CO.

Fig 249: Speaker, Left Front Connector End View (C523)

G07842779

Courtesy of FORD MOTOR CO.

Fig 250: Power Window Motor, Driver Side Front Connector End View (C524)

G07842780

Courtesy of FORD MOTOR CO.

Fig 251: Door Lock Unit, Driver Side Front Connector End View (C525)

G07842781

Courtesy of FORD MOTOR CO.

Fig 252: Exterior Rear View Mirror Switch Connector End View (C527)

G07842782

Courtesy of FORD MOTOR CO.

Fig 253: Inline Connector End View (C561)

G07842783

Courtesy of FORD MOTOR CO.

Fig 254: Inline Connector End View (C562)

G07842784

Courtesy of FORD MOTOR CO.

Fig 255: Exterior Rear View Mirror, Driver Side Connector End View (C601)

G03987792

Courtesy of FORD MOTOR CO.

Fig 256: Window Adjust Switch, Passenger Side Connector End View (C604)

G07842785

Courtesy of FORD MOTOR CO.

Fig 257: Door Lock Switch, Passenger Side Connector End View (C605)

G07842786

Courtesy of FORD MOTOR CO.

Fig 258: Power Window Motor, Passenger Side Front Connector End View (C608)

G07842787

Courtesy of FORD MOTOR CO.

Fig 259: Door Lock Unit, Passenger Side Front Connector End View (C609)

G07842788

Courtesy of FORD MOTOR CO.

Fig 260: Inline Connector End View (C610)

G07842789

Courtesy of FORD MOTOR CO.

Fig 261: Inline Connector End View (C611)

G07842790

Courtesy of FORD MOTOR CO.

Fig 262: Speaker, Right Front Connector End View (C612)

G07842791

Courtesy of FORD MOTOR CO.

Fig 263: Window Adjust Switch, Left Rear Connector End View (C701)

G07842792

Courtesy of FORD MOTOR CO.

Fig 264: Speaker, Left Rear Connector End View (C702)

G07842793

Courtesy of FORD MOTOR CO.

Fig 265: Power Window Motor, Left Rear Connector End View (C703)

G07842794

Courtesy of FORD MOTOR CO.

Fig 266: Door Lock Actuator, Left Rear Connector End View (C704)

G07842795

Courtesy of FORD MOTOR CO.

Fig 267: Inline Connector End View (C710)

G07842796

Courtesy of FORD MOTOR CO.

Fig 268: Seat Heater Switch, Left Rear Connector End View (C722)

G07842797

Courtesy of FORD MOTOR CO.

Fig 269: Window Adjust Switch, Right Rear Connector End View (C801)

G07842798

Courtesy of FORD MOTOR CO.

Fig 270: Speaker, Right Rear Connector End View (C802)

G07842799

Courtesy of FORD MOTOR CO.

Fig 271: Power Window Motor, Right Rear Connector End View (C803)

G07842800

Courtesy of FORD MOTOR CO.

Fig 272: Door Lock Actuator, Right Rear Connector End View (C804)

G07842801

Courtesy of FORD MOTOR CO.

Fig 273: Inline Connector End View (C810)

G07842802

Courtesy of FORD MOTOR CO.

Fig 274: Seat Heater Switch, Right Rear Connector End View (C822)

G07842803

Courtesy of FORD MOTOR CO.

Fig 275: Map Reading Lamp, Right Front Connector End View (C903)

G07842804

Courtesy of FORD MOTOR CO.

Fig 276: High Mounted Stoplamp Connector End View (C904)

G07842805

Courtesy of FORD MOTOR CO.

Fig 277: Map Reading Lamp Switch, Right Front Connector End View (C905)

G07842806

Courtesy of FORD MOTOR CO.

Fig 278: Vanity Mirror Lamp, Right Connector End View (C906)

G07842807

Courtesy of FORD MOTOR CO.

Fig 279: Vanity Mirror Lamp, Left Connector End View (C907)

G07842808

Courtesy of FORD MOTOR CO.

Fig 280: Map Reading Lamp, Left Front Connector End View (C908)

G07842809

Courtesy of FORD MOTOR CO.

Fig 281: Map Reading Lamp Switch, Left Front Connector End View (C910)

G07842810

Courtesy of FORD MOTOR CO.

Fig 282: Electrochromatic Inside Mirror Unit Connector End View (C911)

G07842811

Courtesy of FORD MOTOR CO.

Fig 283: Roof Opening Panel Switch Connector End View (C912)

G07842812

Courtesy of FORD MOTOR CO.

Fig 284: Inline Connector End View (C913)

G07842813

Courtesy of FORD MOTOR CO.

Fig 285: Roof Opening Panel Motor Assembly Connector End View (C920)

G07842814

Courtesy of FORD MOTOR CO.

Fig 286: COPS & Heated Oxygen Sensor (HO2S) Relay Connector End View (C1003)

G07842815

Courtesy of FORD MOTOR CO.

Fig 287: Auxiliary Coolant Pump Relay Connector End View (C1005)

G07842816

Courtesy of FORD MOTOR CO.

Fig 288: Horn Relay Connector End View (C1006)

G07842817

Courtesy of FORD MOTOR CO.

Fig 289: Fog Lamp Relay Connector End View (C1007)

G07842818

Courtesy of FORD MOTOR CO.

Fig 290: A/C Clutch Relay Connector End View (C1008)

G07842819

Courtesy of FORD MOTOR CO.

Fig 291: Junction Block Connector End View (C1010b)

G07842820

Courtesy of FORD MOTOR CO.

Fig 292: Junction Block Connector End View (C1010c)

G07842821

Courtesy of FORD MOTOR CO.

Fig 293: Heated Wiper Park Relay Connector End View (C1014)

G07842822

Courtesy of FORD MOTOR CO.

Fig 294: PCM Power Relay Connector End View (C1016)

G07842823

Courtesy of FORD MOTOR CO.

Fig 295: Starter Relay Connector End View (C1017)

G07842824

Courtesy of FORD MOTOR CO.

Fig 296: PCM Power Diode Connector End View (C1018)

G07842825

Courtesy of FORD MOTOR CO.

Fig 297: Headlamp, Left Connector End View (C1021)

G07842826

Courtesy of FORD MOTOR CO.

Fig 298: Park/Turn Lamp, Left Front Connector End View (C1023)

G07842827

Courtesy of FORD MOTOR CO.

Fig 299: Inline Connector End View (C1026)

G07842828

Courtesy of FORD MOTOR CO.

Fig 300: Coolant Control Valve Solenoid Connector End View (C1034)

G07842829

Courtesy of FORD MOTOR CO.

Fig 301: Headlamp, Right Connector End View (C1041)

G07842830

Courtesy of FORD MOTOR CO.

Fig 302: Park/Turn Lamp, Right Front Connector End View (C1043)

G07842831

Courtesy of FORD MOTOR CO.

Fig 303: Engine Cooling Fan Motor Connector End View (C1048)

G07842832

Courtesy of FORD MOTOR CO.

Fig 304: Fuel Rail Temperature Sensor Connector End View (C1257)

G07842833

Courtesy of FORD MOTOR CO.

Fig 305: A/C Pressure Transducer Sensor Connector End View (C1260)

G07842834

Courtesy of FORD MOTOR CO.

Fig 306: Brake Pedal Position Sensor Connector End View (C1347)

G07842835

Courtesy of FORD MOTOR CO.

Fig 307: Camshaft Position Sensor 1 Connector End View (C1366)

G07842836

Courtesy of FORD MOTOR CO.

Fig 308: Camshaft Position Sensor 2 Connector End View (C1367)

G07842837

Courtesy of FORD MOTOR CO.

Fig 309: Electronic Throttle Control (ETC) Motor Connector End View (C1368)

G07842838

Courtesy of FORD MOTOR CO.

Fig 310: Variable Valve Timing Solenoid 1 Connector End View (C1369)

G07842839

Courtesy of FORD MOTOR CO.

Fig 311: Variable Valve Timing Solenoid 2 Connector End View (C1370)

G07842840

Courtesy of FORD MOTOR CO.

Fig 312: Inlet Manifold Runner Control (IMRC) Solenoid 1 Connector End View (C1371)

G07842841

Courtesy of FORD MOTOR CO.

Fig 313: Inlet Manifold Runner Control (IMRC) Solenoid 2 Connector End View (C1372)

G07842842

Courtesy of FORD MOTOR CO.

Fig 314: High Intensity Discharge Headlamp Relay, Left Connector End View (C1379)

G07842843

Courtesy of FORD MOTOR CO.

Fig 315: High Intensity Discharge Headlamp Relay, Right Connector End View (C1380)

G07842844

Courtesy of FORD MOTOR CO.

Fig 316: Brake Fluid Level Sensor Connector End View (C1395)

G07842845

Courtesy of FORD MOTOR CO.

Fig 317: Adjustable Pedal Motor Connector End View (C2003)

G07842846

Courtesy of FORD MOTOR CO.

Fig 318: Brake Shift Interlock Connector End View (C2008)

G07842847

Courtesy of FORD MOTOR CO.

Fig 319: Electronic Throttle Control (ETC) Module Connector End View (C2040)

G07842848

Courtesy of FORD MOTOR CO.

Fig 320: Adjustable Pedal Switch Connector End View (C2089)

G07842849

Courtesy of FORD MOTOR CO.

Fig 321: Adjustable Pedal Memory Potentiometer Connector End View (C2090)

G07842850

Courtesy of FORD MOTOR CO.

Fig 322: Steering Column Position Switch Connector End View (C2250)

G07842851

Courtesy of FORD MOTOR CO.

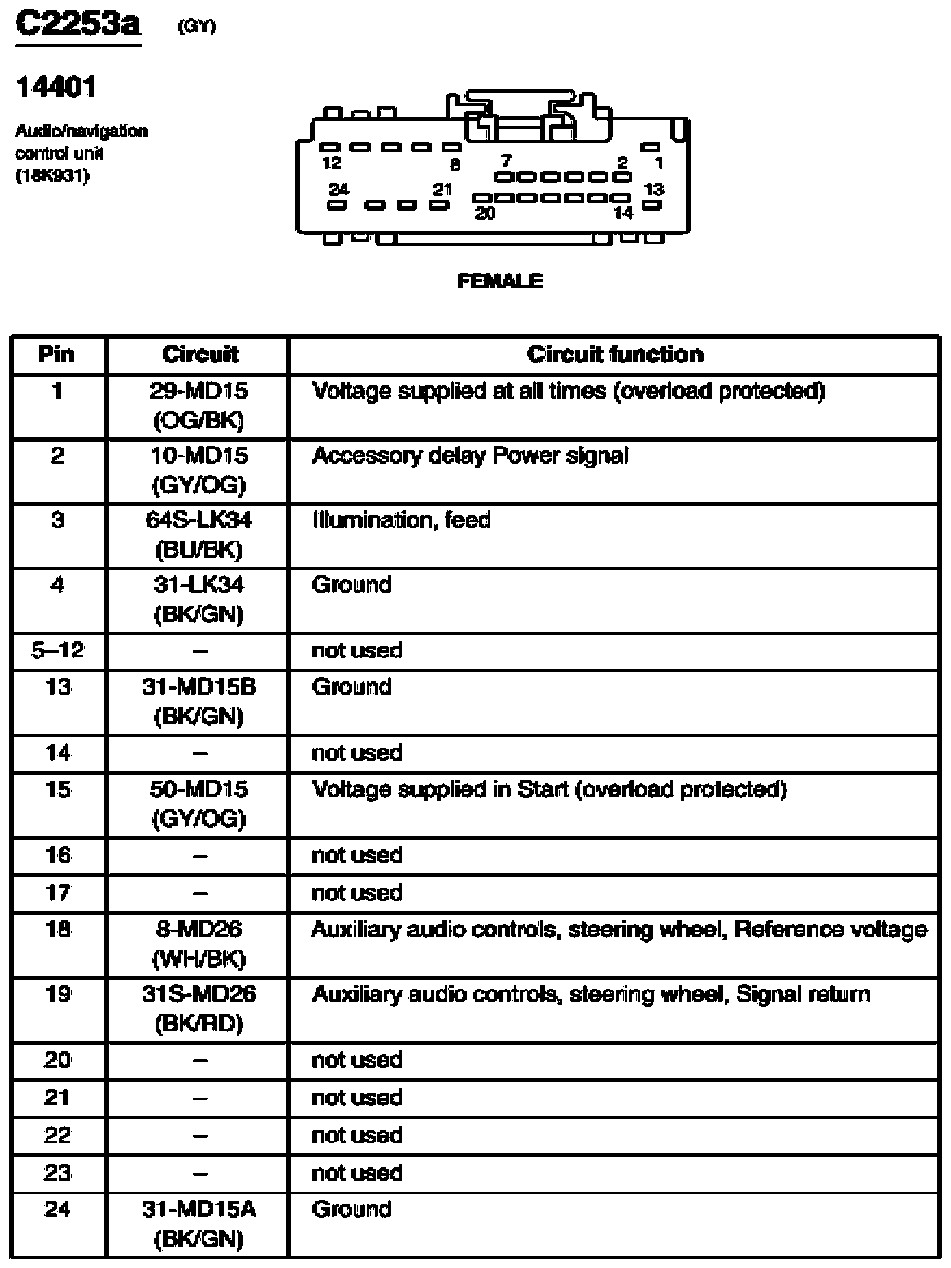

Fig 323: Audio/Navigation Control Unit Connector End View (C2253a)

G07842852

Courtesy of FORD MOTOR CO.

Fig 324: Audio/Navigation Control Unit Connector End View (C2253b)

G07842853

Courtesy of FORD MOTOR CO.

Fig 325: Audio/Navigation Control Unit Connector End View (C2253c)

G07842854

Courtesy of FORD MOTOR CO.

Fig 326: Audio/Navigation Control Unit Connector End View (C2253d)

G07842855

Courtesy of FORD MOTOR CO.

Fig 327: Fuel Door Release Switch Connector End View (C2258)

G07842856

Courtesy of FORD MOTOR CO.

Fig 328: Heated Wiper Park Connector End View (C2272a)

G07842857

Courtesy of FORD MOTOR CO.

Fig 329: Heated Wiper Park Connector End View (C2272b)

G07842858

Courtesy of FORD MOTOR CO.

Fig 330: Side Air Curtain Bridge Resistor, Left Connector End View (C2283)

G07842859

Courtesy of FORD MOTOR CO.

Fig 331: Side Air Curtain Bridge Resistor, Right Connector End View (C2284)

G07842860

Courtesy of FORD MOTOR CO.

Fig 332: Inline Connector End View (C3007)

G07842861

Courtesy of FORD MOTOR CO.

Fig 333: Climate Controlled Seat Module, Driver Side Connector End View (C3031a)

G07842862

Courtesy of FORD MOTOR CO.

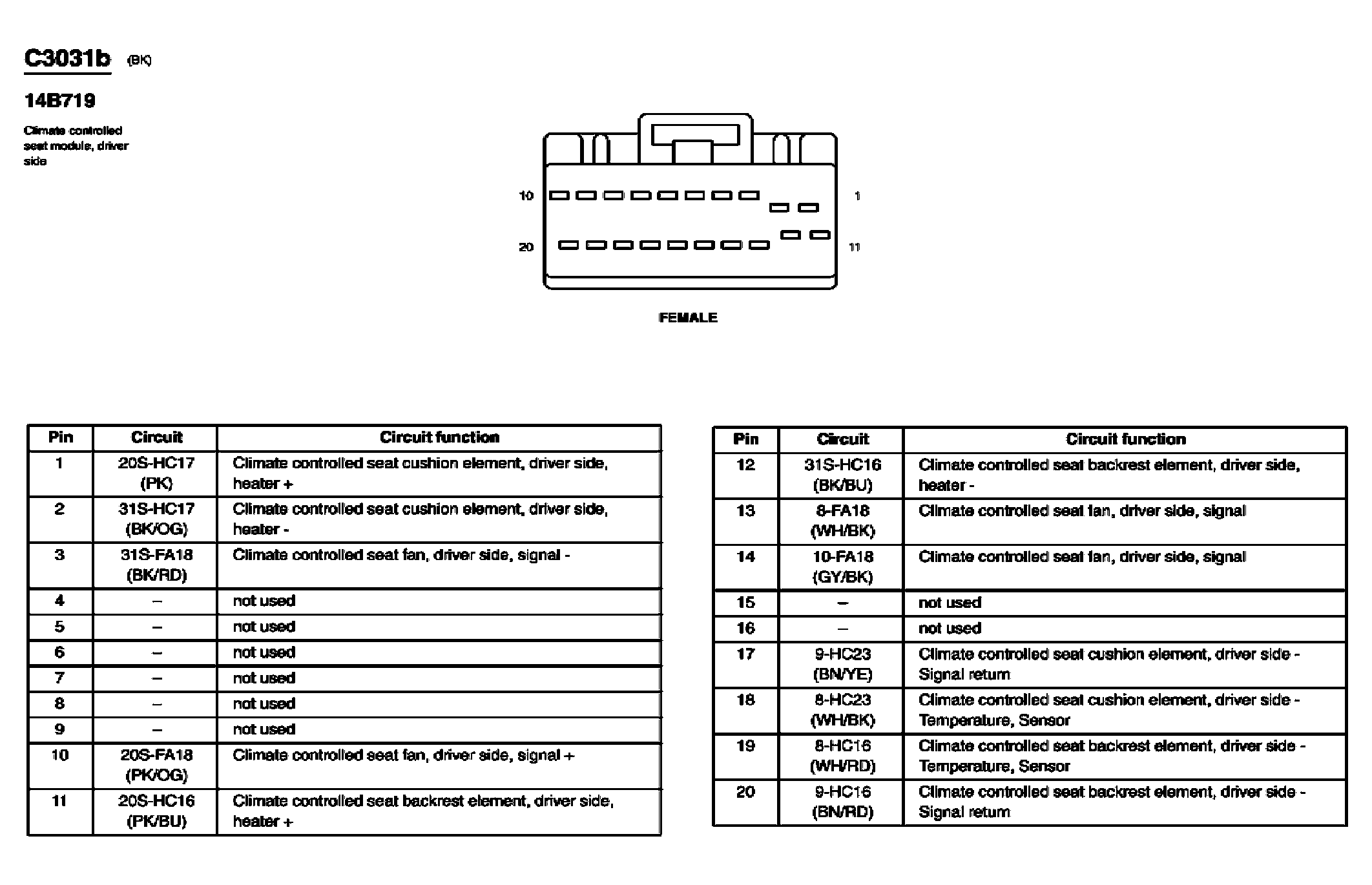

Fig 334: Climate Controlled Seat Module, Driver Side Connector End View (C3031b)

G03987821

Courtesy of FORD MOTOR CO.

Fig 335: Climate Controlled Seat Fan, Driver Side Connector End View (C3033)

G07842863

Courtesy of FORD MOTOR CO.

Fig 336: Climate Controlled Seat Backrest Element, Driver Side Connector End View (C3034)

G07842864

Courtesy of FORD MOTOR CO.

Fig 337: Climate Controlled Seat Cushion Element, Driver Side Connector End View (C3035)

G07842865

Courtesy of FORD MOTOR CO.

Fig 338: Climate Controlled Seat Module, Passenger Side Connector End View (C3036a)

G07842866

Courtesy of FORD MOTOR CO.

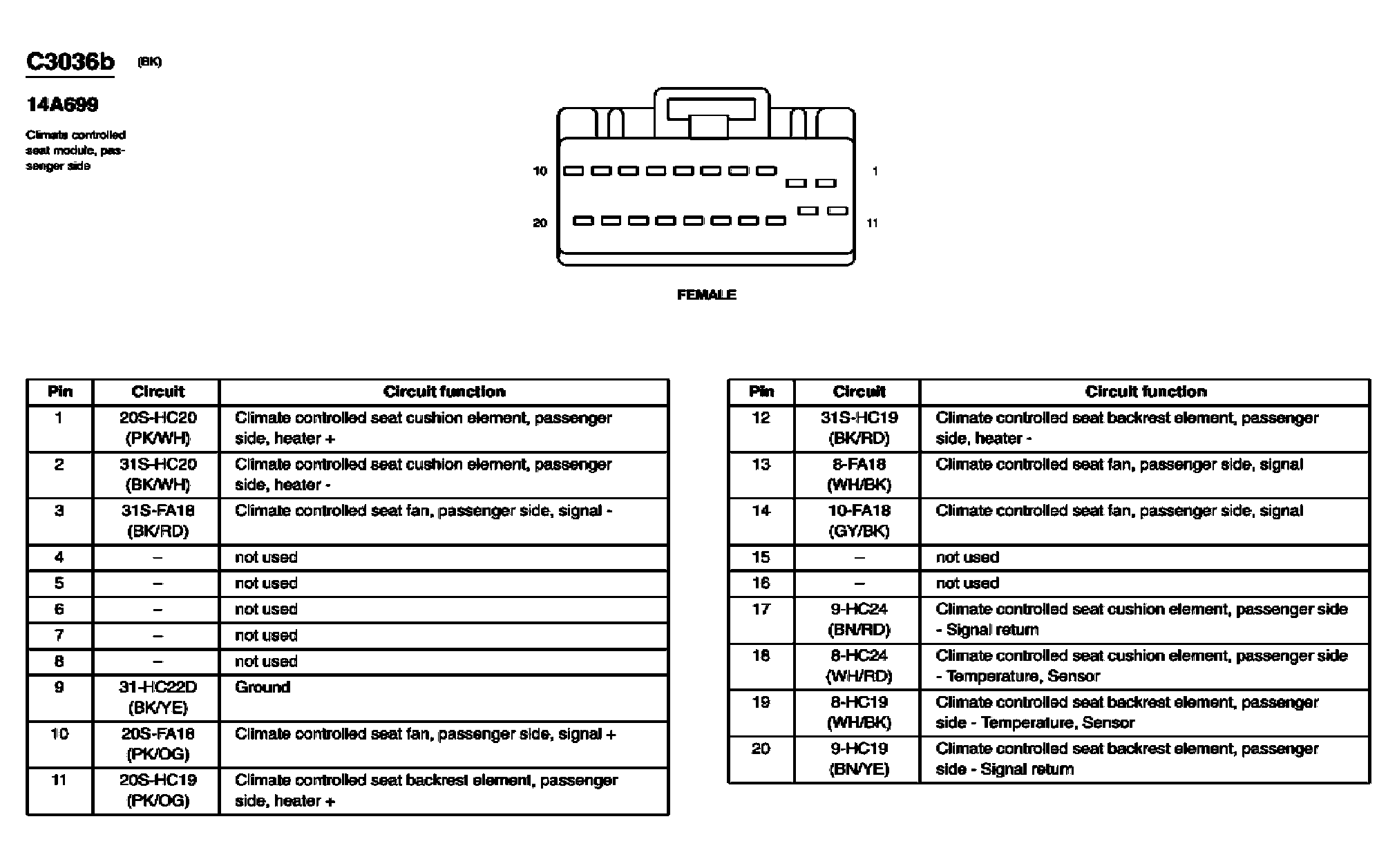

Fig 339: Climate Controlled Seat Module, Passenger Side Connector End View (C3036b)

G03987824

Courtesy of FORD MOTOR CO.

Fig 340: Climate Controlled Seat Fan, Passenger Side Connector End View (C3038)

G07842867

Courtesy of FORD MOTOR CO.

Fig 341: Climate Controlled Seat Backrest Element, Passenger Side Connector End View (C3039)

G07842868

Courtesy of FORD MOTOR CO.

Fig 342: Climate Controlled Seat Cushion Element, Passenger Side Connector End View (C3040)

G07842869

Courtesy of FORD MOTOR CO.

Fig 343: Inline Connector End View (C3049)

G07842870

Courtesy of FORD MOTOR CO.

Fig 344: Power Point, Console 2 Connector End View (C3064)

G07842871

Courtesy of FORD MOTOR CO.

Fig 345: Safety Belt Buckle Switch, Driver Connector End View (C3065)

G07842872

Courtesy of FORD MOTOR CO.

Fig 346: Safety Belt Buckle Switch, Passenger Connector End View (C3066)

G07842873

Courtesy of FORD MOTOR CO.

Fig 347: Yaw Velocity Sensor Connector End View (C3073)

G07842874

Courtesy of FORD MOTOR CO.

Fig 348: Heated Seat Module, Left Rear Connector End View (C3162)

G07842875

Courtesy of FORD MOTOR CO.

Fig 349: Heated Seat Module, Right Rear Connector End View (C3163)

G07842876

Courtesy of FORD MOTOR CO.

Fig 350: Seat Cushion Heater, Left Rear Connector End View (C3167)

G07842877

Courtesy of FORD MOTOR CO.

Fig 351: Seat Back Heater, Left Rear Connector End View (C3168)

G07842878

Courtesy of FORD MOTOR CO.

Fig 352: Seat Cushion Heater, Right Rear Connector End View (C3169)

G07842879

Courtesy of FORD MOTOR CO.

Fig 353: Seat Back Heater, Right Rear Connector End View (C3170)

G07842880

Courtesy of FORD MOTOR CO.

Fig 354: Seat Track Position Sensor, Driver Connector End View (C3207)

G07842881

Courtesy of FORD MOTOR CO.

Fig 355: Traction Control Switch Connector End View (C3208)

G07842882

Courtesy of FORD MOTOR CO.

Fig 356: Side Impact Sensor, Driver 1 Connector End View (C3209)

G07842883

Courtesy of FORD MOTOR CO.

Fig 357: Side Impact Sensor, Passenger 1 Connector End View (C3211)

G07842884

Courtesy of FORD MOTOR CO.

Fig 358: Auto Park Brake Release Switch Connector End View (C3218)

G07842885

Courtesy of FORD MOTOR CO.

Fig 359: Side Thorax Air Bag Module, Driver Connector End View (C3226)

G07842886

Courtesy of FORD MOTOR CO.

Fig 360: Side Thorax Air Bag Module, Passenger Connector End View (C3227)

G07842887

Courtesy of FORD MOTOR CO.

Fig 361: High Mounted Stoplamp Capacitor Connector End View (C3238)

G07842888

Courtesy of FORD MOTOR CO.

Fig 362: Side Impact Sensor, Left Rear Connector End View (C3248)

G07842889

Courtesy of FORD MOTOR CO.

Fig 363: Side Impact Sensor, Right Rear Connector End View (C3249)

G07842890

Courtesy of FORD MOTOR CO.

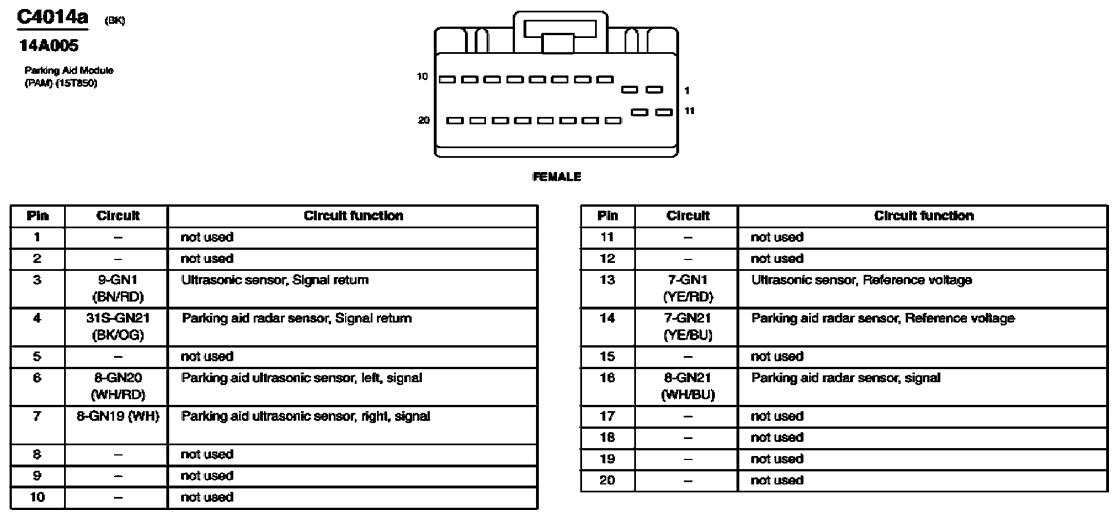

Fig 364: Parking Aid Module (PAM) Connector End View (C4014a)

G07842891

Courtesy of FORD MOTOR CO.

Fig 365: Parking Aid Module (PAM) Connector End View (C4014b)

G07842892

Courtesy of FORD MOTOR CO.

Fig 366: Mega Fuse Connector End View (C4066a)

G07842893

Courtesy of FORD MOTOR CO.

Fig 367: Mega Fuse Connector End View (C4066b)

G07842894

Courtesy of FORD MOTOR CO.

Fig 368: Subwoofer, Left Connector End View (C4068)

G07842895

Courtesy of FORD MOTOR CO.

Fig 369: Subwoofer, Right Connector End View (C4069)

G07842896

Courtesy of FORD MOTOR CO.

Fig 370: Battery Connector End View (C4070a)

G07842897

Courtesy of FORD MOTOR CO.

Fig 371: Battery Connector End View (C4070b)

G07842898

Courtesy of FORD MOTOR CO.

Fig 372: Parking Aid Radar Sensor Connector End View (C4191)

G07842899

Courtesy of FORD MOTOR CO.

Fig 373: Parking Aid Ultrasonic Sensor, Left Connector End View (C4192)

G07842900

Courtesy of FORD MOTOR CO.

Fig 374: Parking Aid Ultrasonic Sensor, Right Connector End View (C4193)

G07842901

Courtesy of FORD MOTOR CO.

Fig 375: Electronic Park Brake Module Connector End View (C4205a)

G07842902

Courtesy of FORD MOTOR CO.

Fig 376: Electronic Park Brake Module Connector End View (C4205b)

G07842903

Courtesy of FORD MOTOR CO.

Fig 377: Electronic Park Brake Motor Connector End View (C4206)

G07842904

Courtesy of FORD MOTOR CO.

Fig 378: Radio Amplifier Connector End View (C4208a)

G07842905

Courtesy of FORD MOTOR CO.

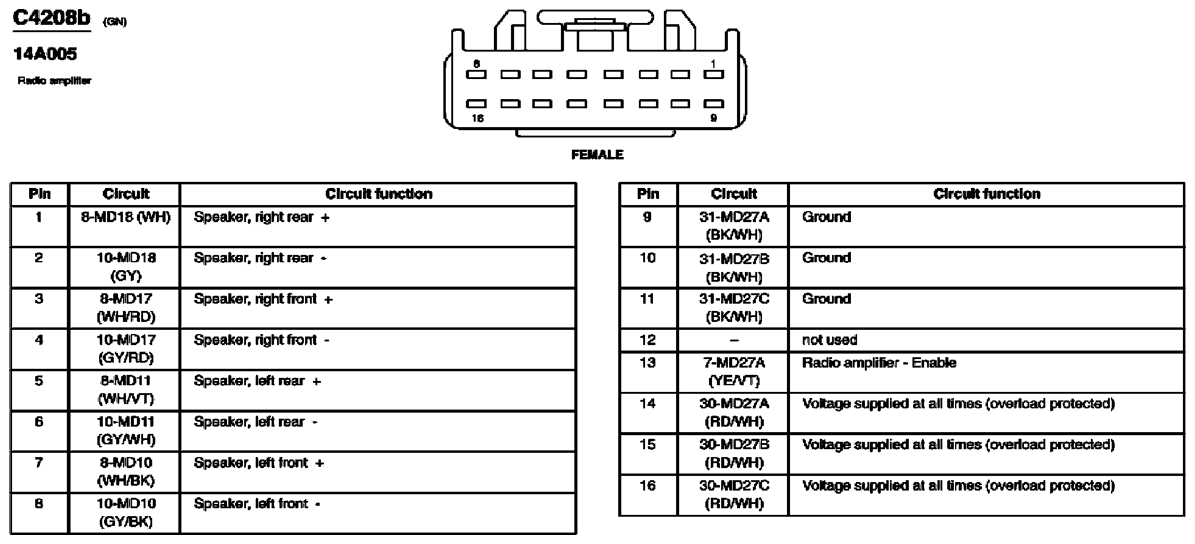

Fig 379: Radio Amplifier Connector End View (C4208b)

G03987838

Courtesy of FORD MOTOR CO.

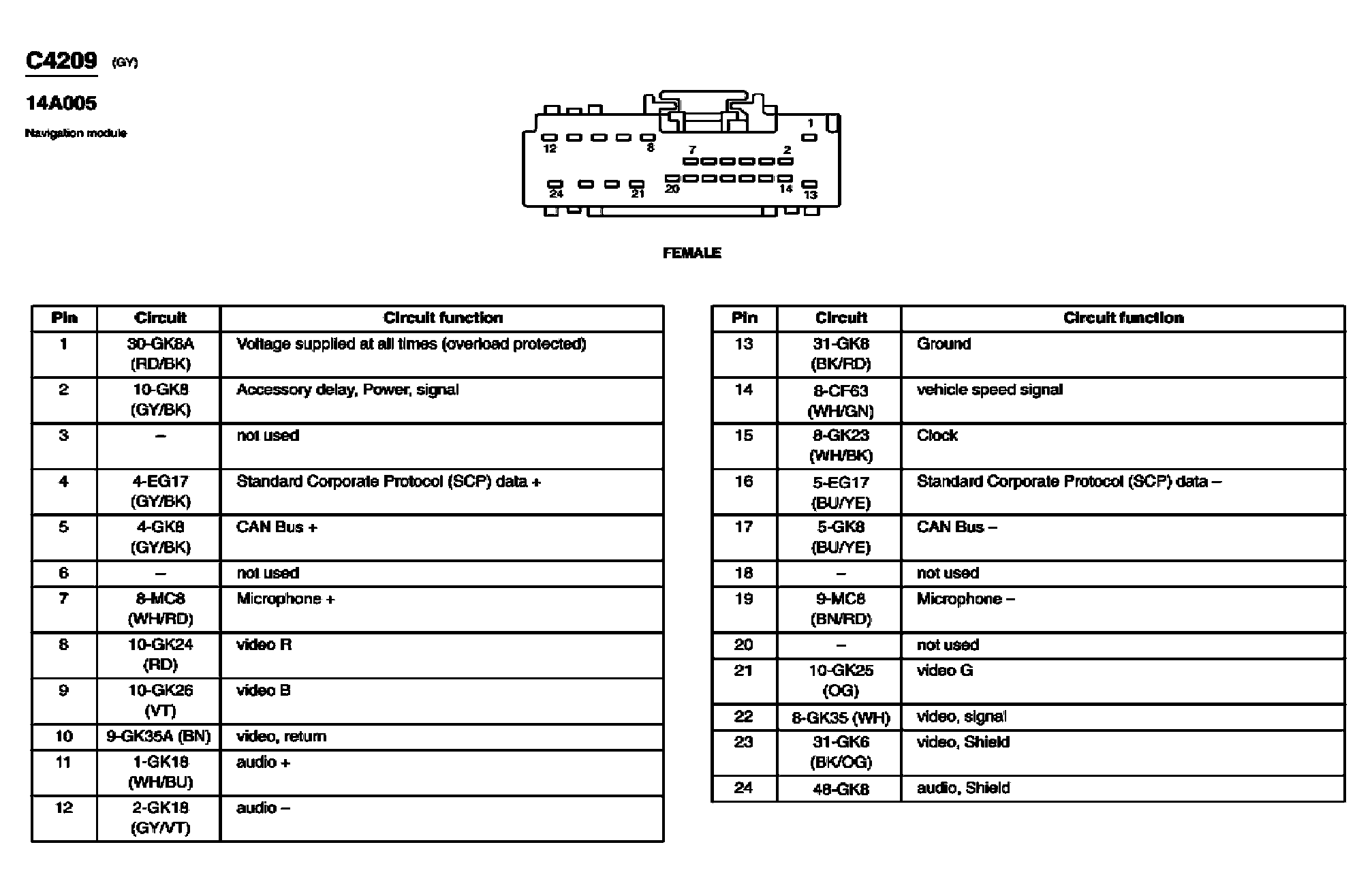

Fig 380: Navigation Module Connector End View (C4209)

G03987839

Courtesy of FORD MOTOR CO.

Fig 381: Rear Window Defroster Capacitor Connector End View (C4220)

G07842906

Courtesy of FORD MOTOR CO.

Fig 382: Side Air Curtain Module, Driver Connector End View (C9006)

G07842907

Courtesy of FORD MOTOR CO.

Fig 383: Side Air Curtain Module, Passenger Connector End View (C9007)

G07842908

Courtesy of FORD MOTOR CO.

Fig 384: Grab Handle Lamp, Left Rear Connector End View (C9009)

G07842909

Courtesy of FORD MOTOR CO.

Fig 385: Grab Handle Lamp, Right Rear Connector End View (C9010)

G07842910

Courtesy of FORD MOTOR CO.

Fig 386: Parking Aid Disable Switch Connector End View (C9011)

G07842911

Courtesy of FORD MOTOR CO.

Fig 387: Electrochromatic Inside Mirror Unit Connector End View (C9012)

G07842912

Courtesy of FORD MOTOR CO.

Fig 388: Electronic Hidden Antenna Module (EHAM) Connector End View (C9021)

G07842913

Courtesy of FORD MOTOR CO.
