Connector Circuit Reference

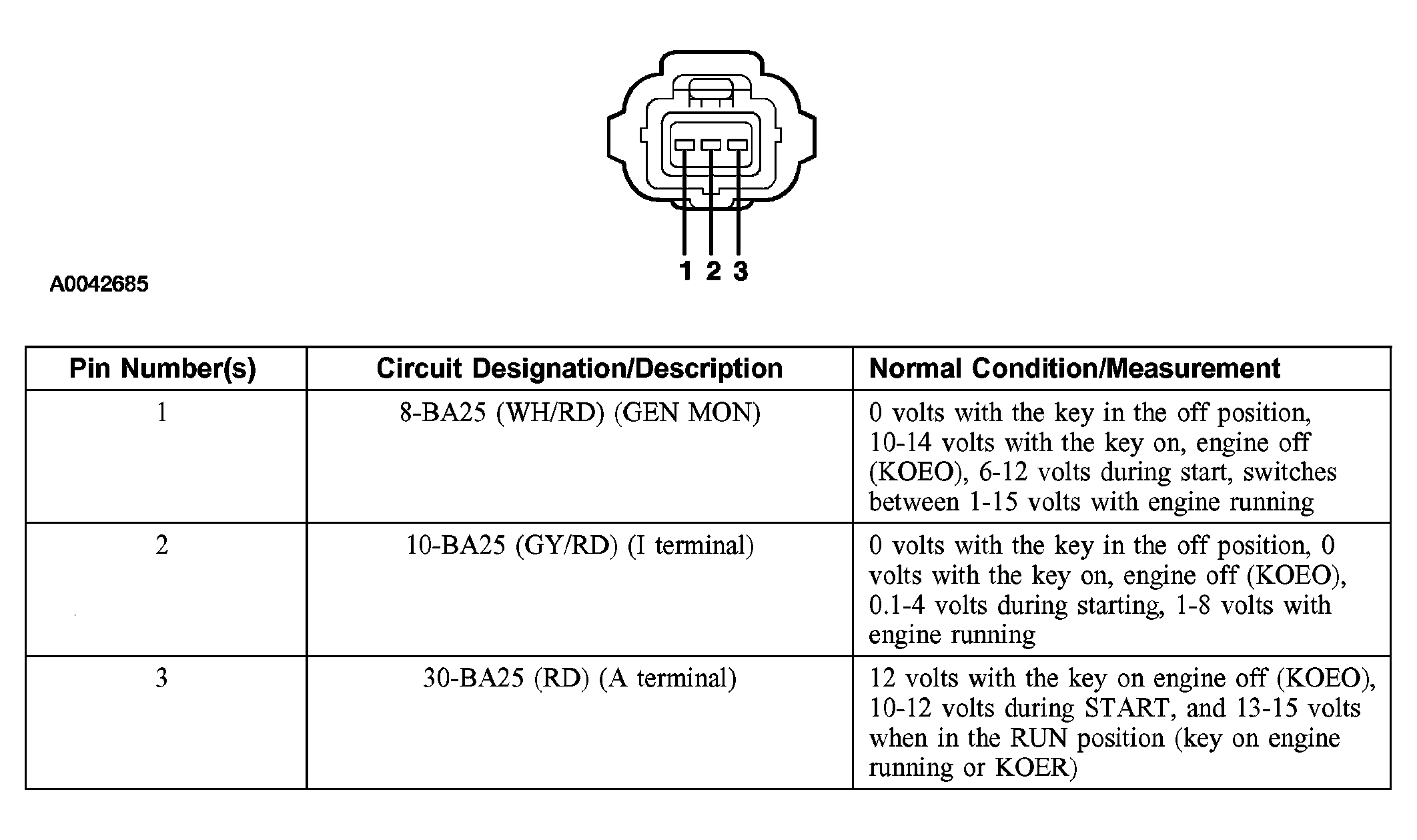

Fig 1: Connector Circuit Reference - [Generator C102a]
G04009257Courtesy of FORD MOTOR CO.

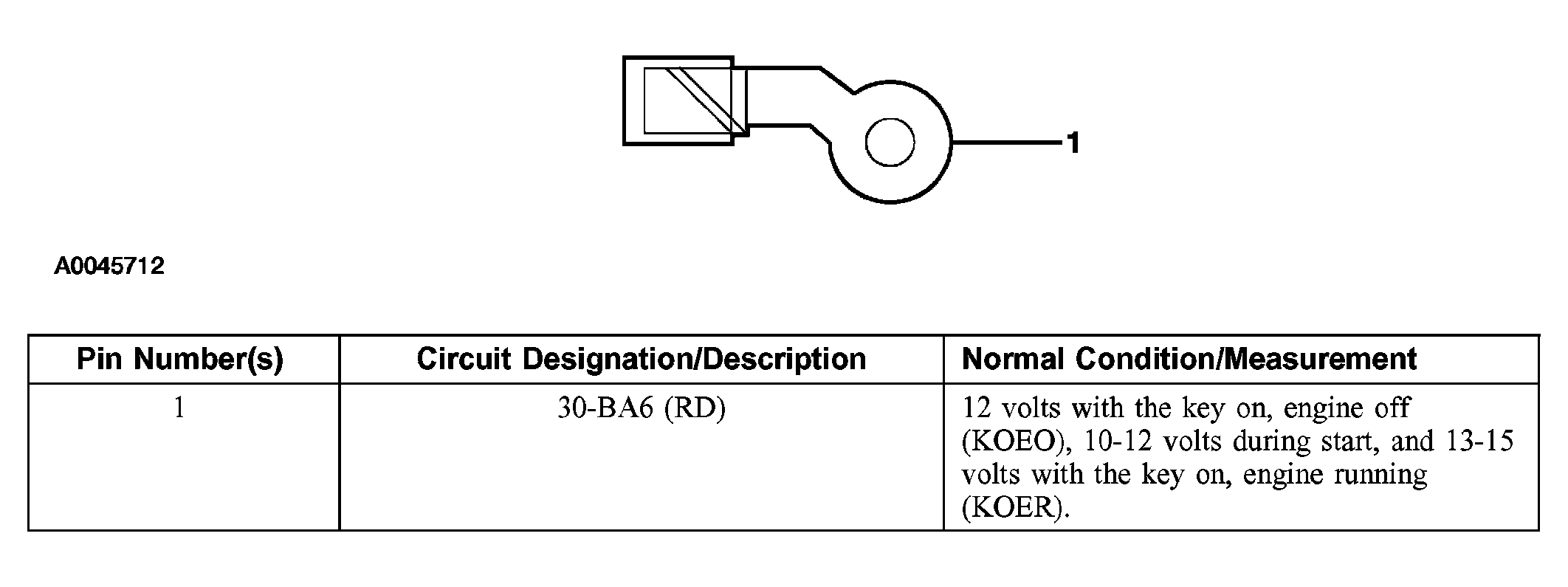

Fig 2: Connector Circuit Reference - [Generator C102b]
G03998438Courtesy of FORD MOTOR CO.

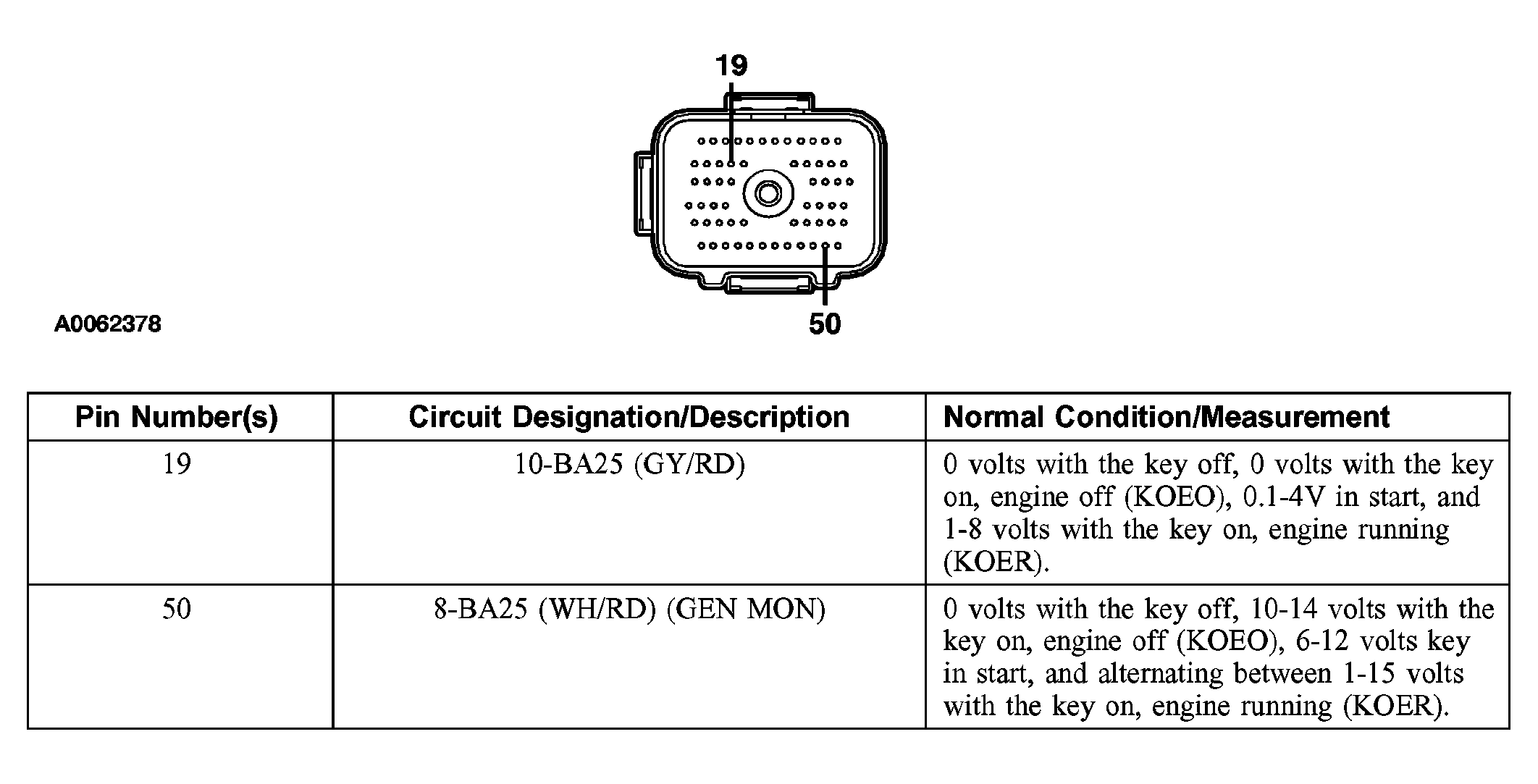

Fig 3: Connector Circuit Reference - [Powertrain Control Module C175c]
G03998439Courtesy of FORD MOTOR CO.
