Accelerator Pedal: Notes

Fixed Pedal

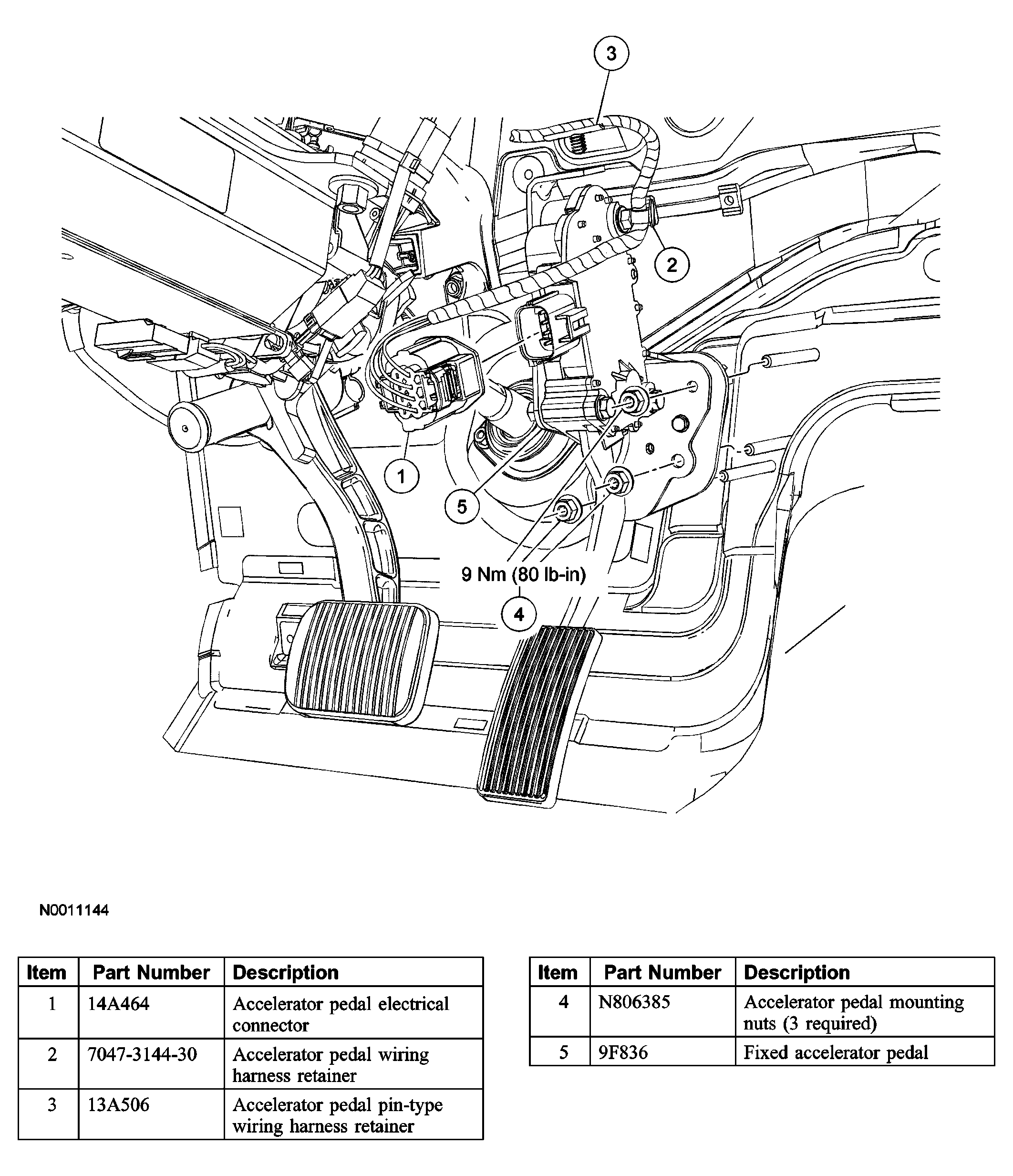

Fig 1: Removing Accelerator Pedal - Fixed Pedal
G03997940Courtesy of FORD MOTOR CO.

Adjustable Pedal

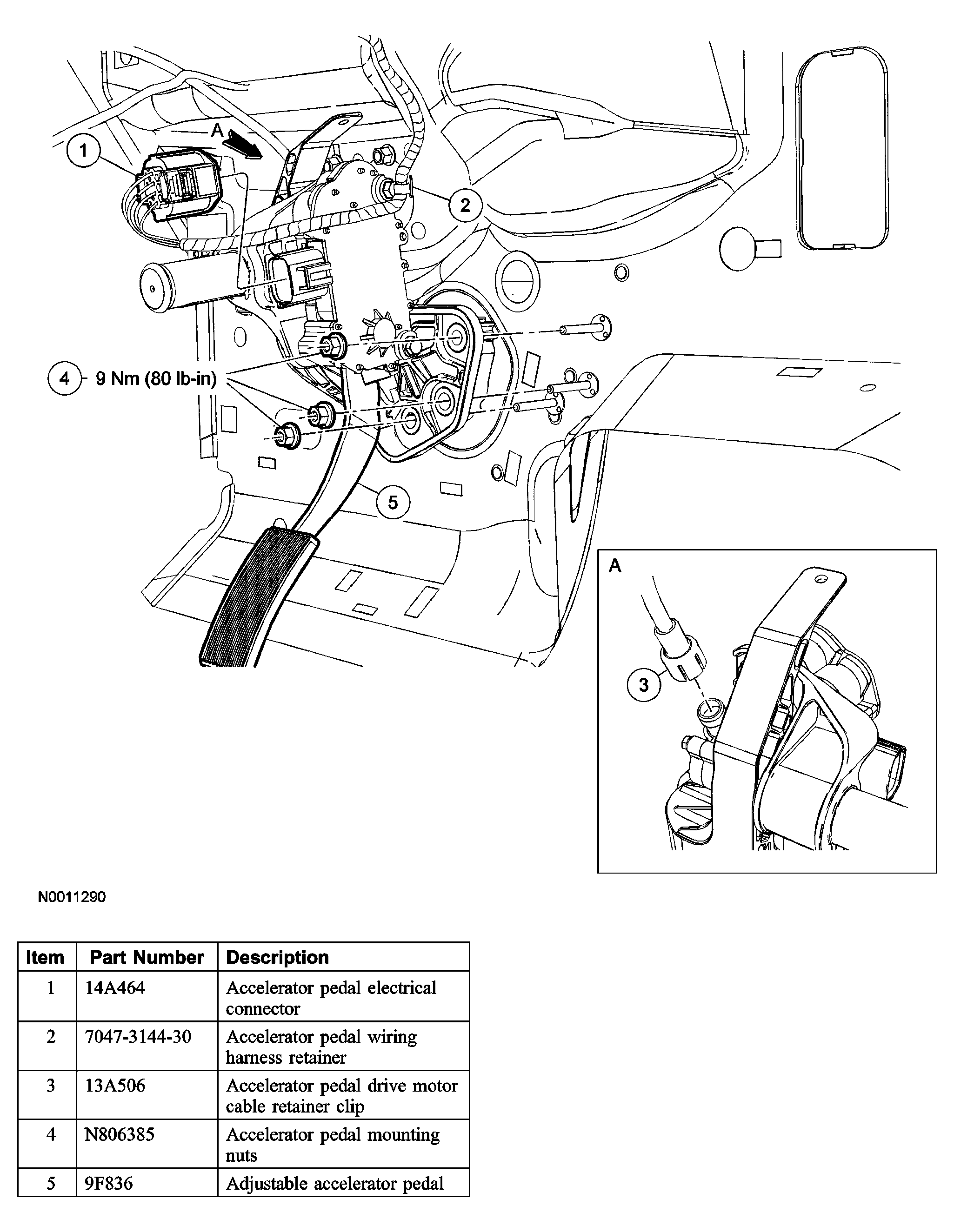

Fig 2: Removing Accelerator Pedal - Adjustable Pedal
G03997941Courtesy of FORD MOTOR CO.
