Front Electronic Module (FEM) C201a

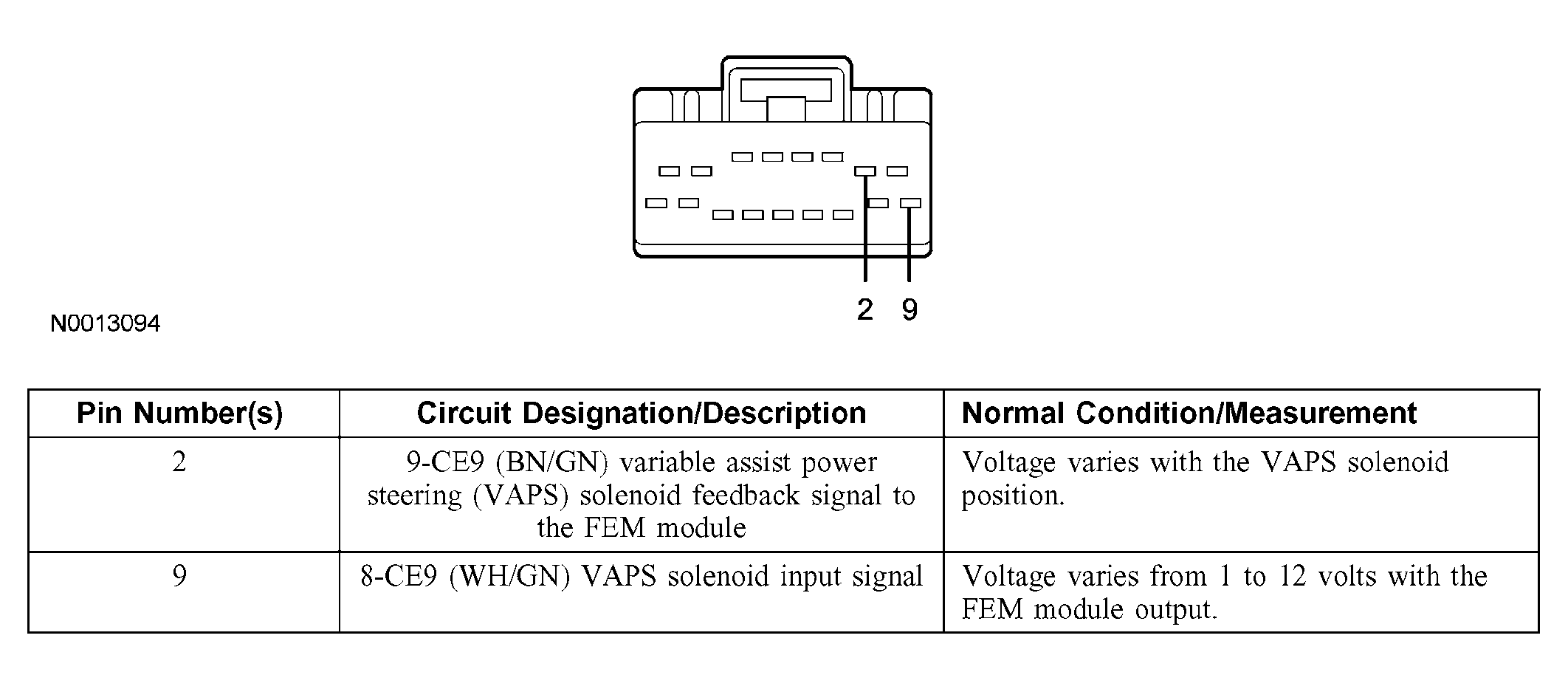

Fig 1: Identifying Front Electronic Module (FEM) C201a Connector Terminals
G03995596Courtesy of FORD MOTOR CO.
