Extension Housing Gasket: Notes

EXTENSION HOUSING GASKET SPECIAL TOOL

G04008227
 Installer, Drive Pinion Flange 205-479
G04008228
 Installer, Output Shaft Flange 307-404
G03997382
 Remover, Output Shaft Flange 307-523

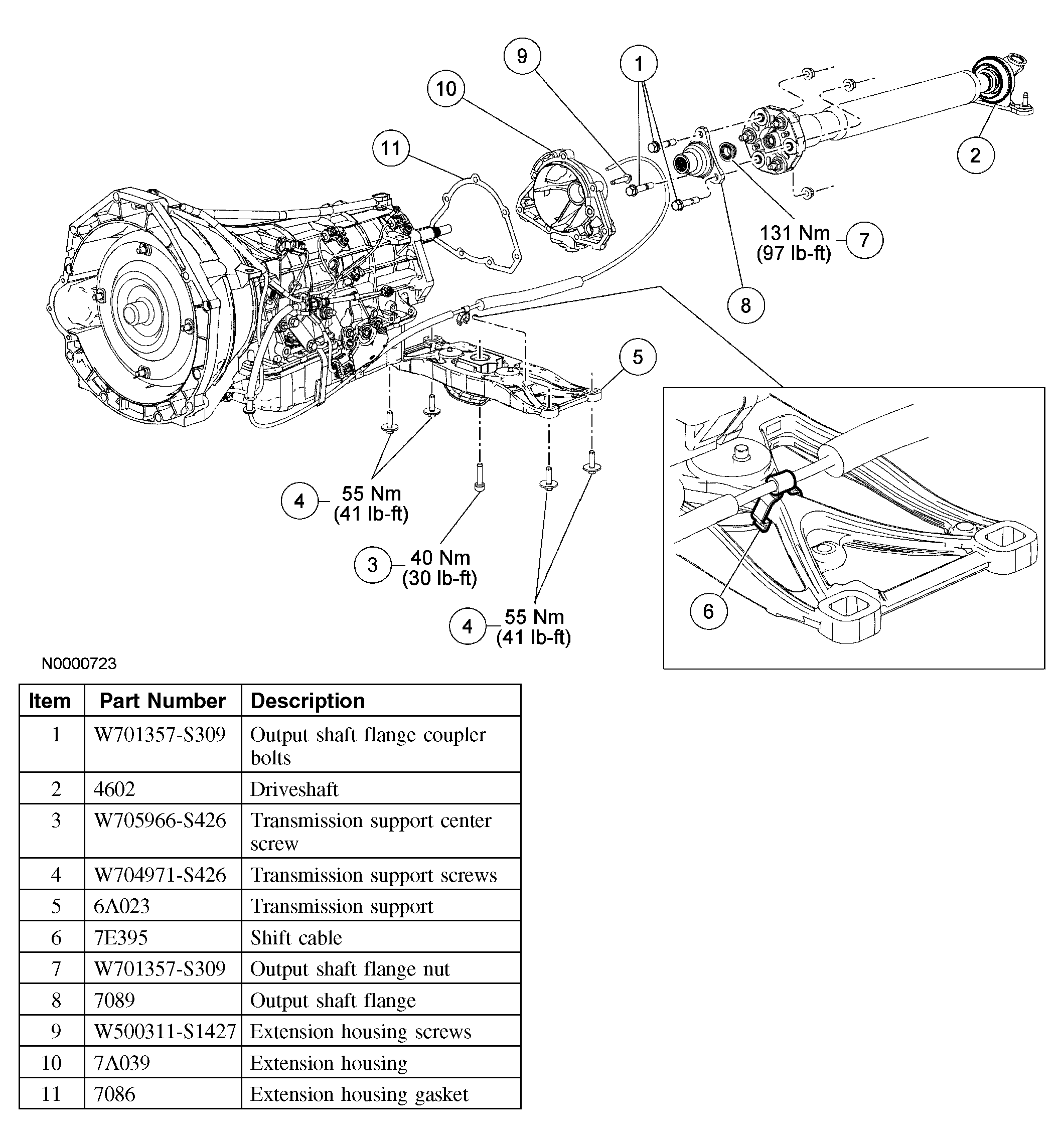

Fig 1: Identifying Components Extension Housing Gasket
G03997314Courtesy of FORD MOTOR CO.
