Engine Ignition Components - Exploded View

NOTE: RH shown, LH similar.

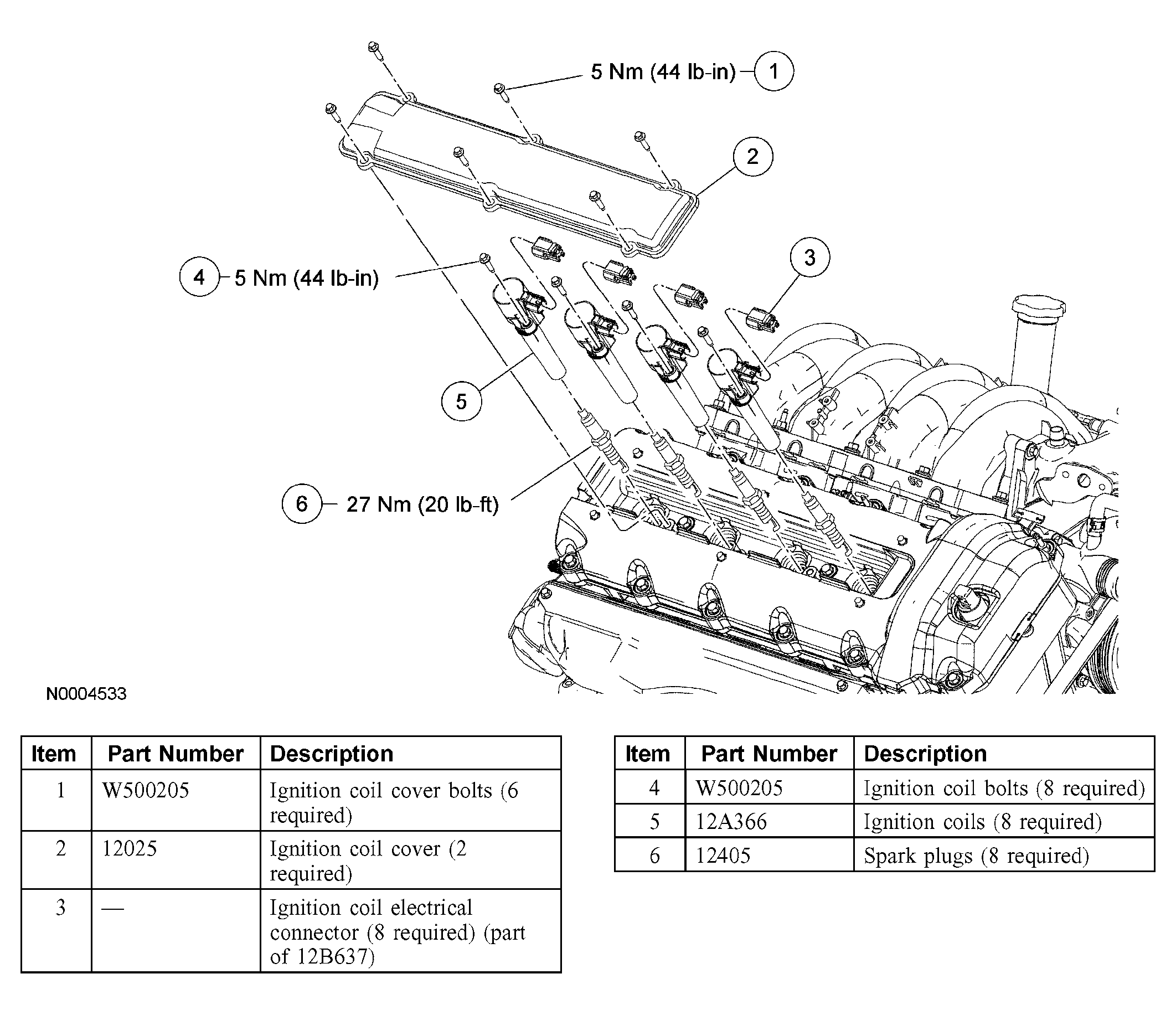

Fig 1: Exploded View Of Engine Ignition Components

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the in this section.
