Valve Cover - LH: Material

MATERIAL SPECIFICATIONS

Item Specification
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket Remover ZC-30 -
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4
Fig 1: Removing Valve Cover - LH (Items 1-3)
G03933361Courtesy of FORD MOTOR CO.

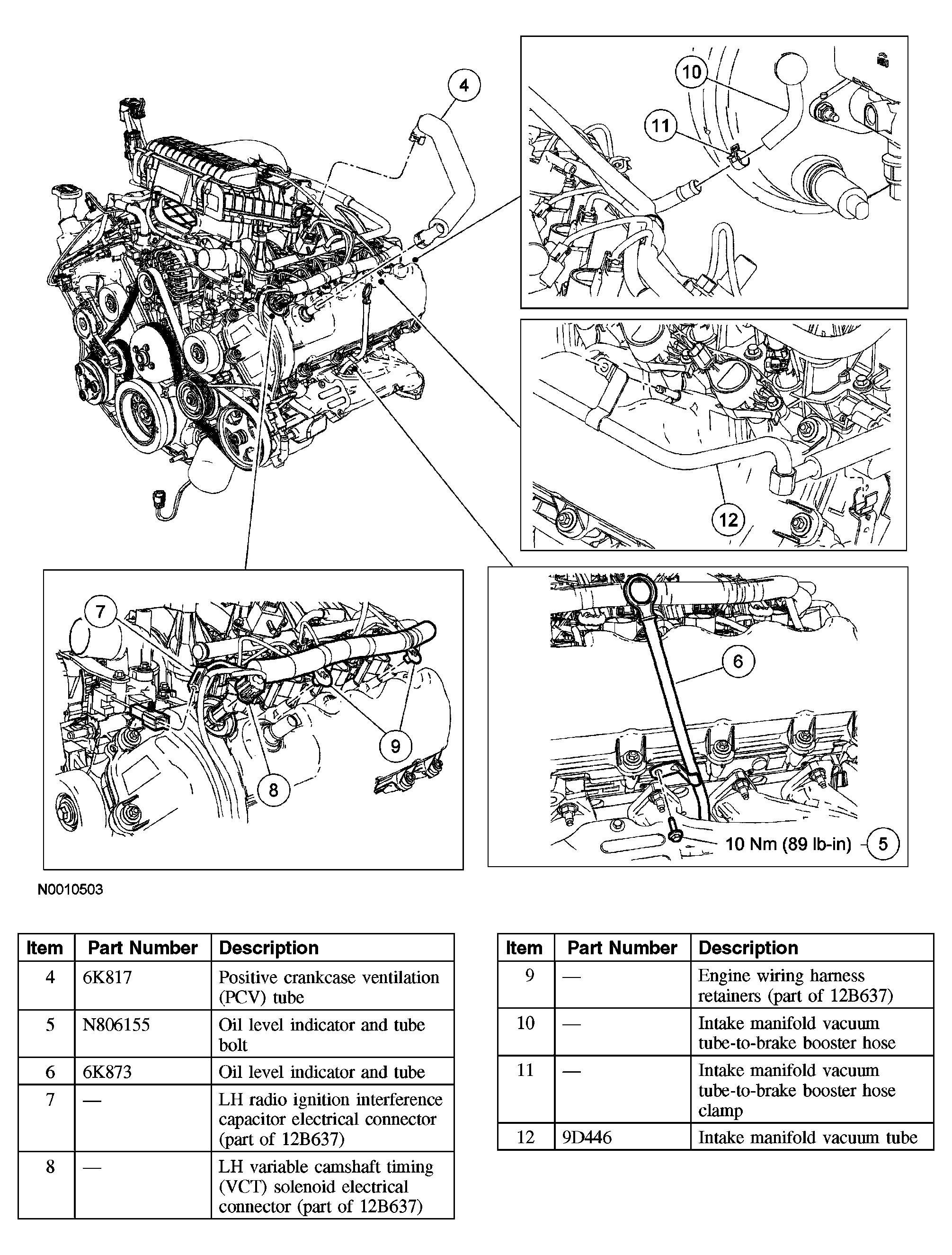

Fig 2: Removing Valve Cover - LH (Items 4-12)
G03933362Courtesy of FORD MOTOR CO.

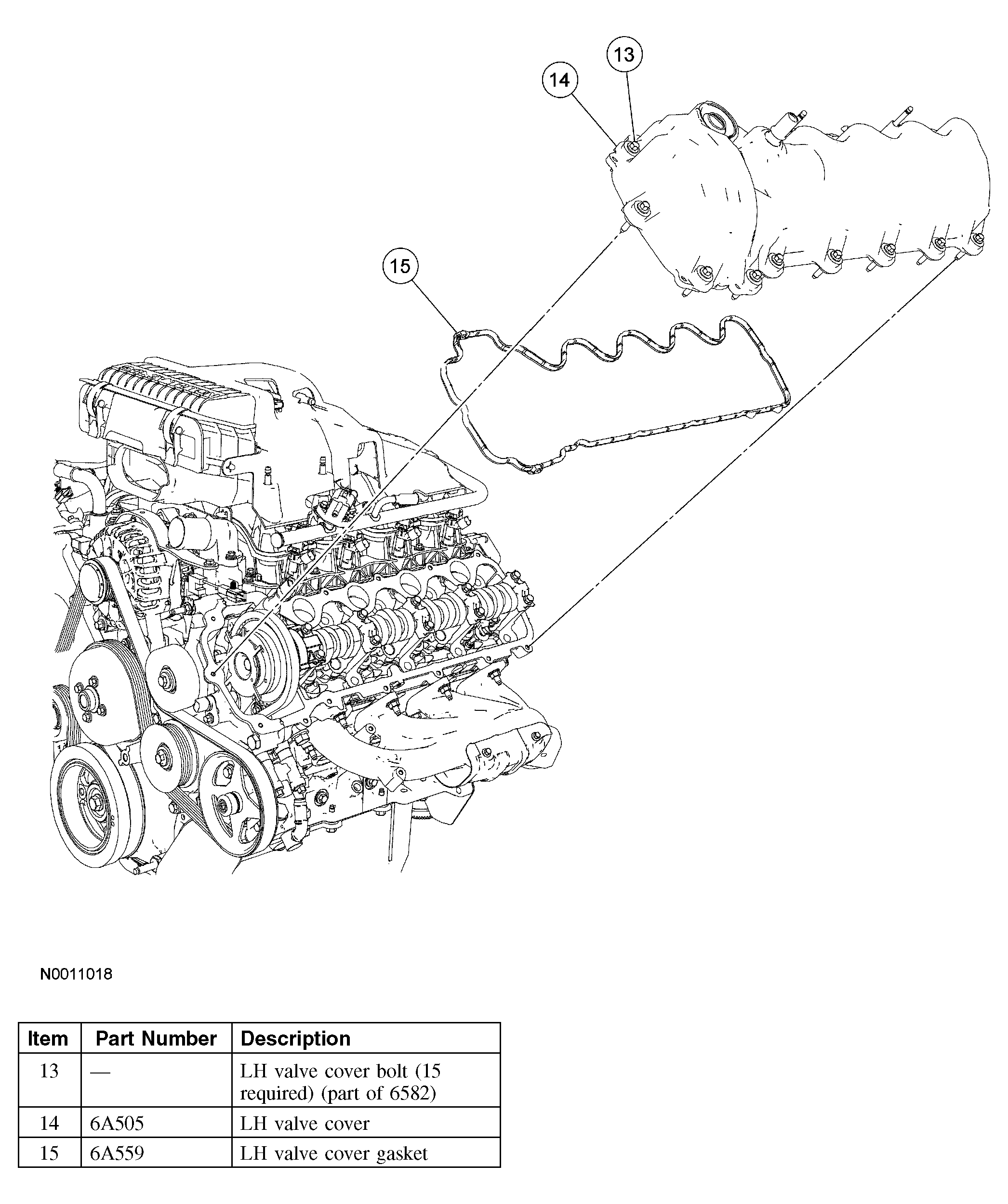

Fig 3: Removing Valve Cover - LH (Items 13-15)
G03933363Courtesy of FORD MOTOR CO.
