Lumbar Control Switch: Installation

Install the power lumbar switch into the side shield.

Fig 1: Installing Power Lumbar Switch Into Side Shield
Courtesy of FORD MOTOR CO.

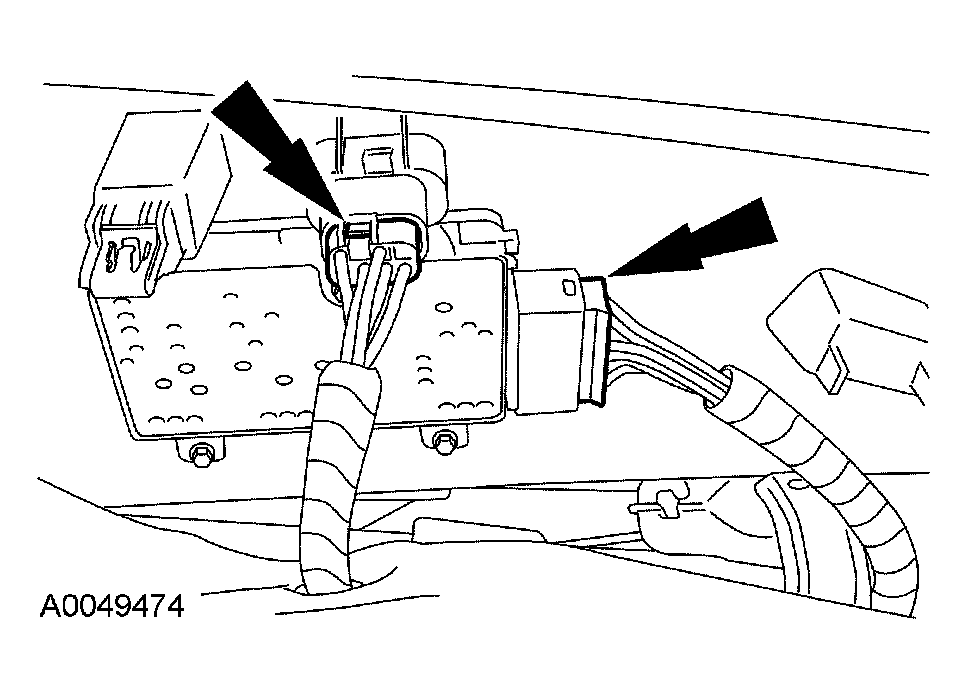

Connect the 8-way power seat and power lumbar switch electrical connectors.

Fig 2: Connecting 8-Way Power Seat And Power Lumbar Switch Electrical Connectors
Courtesy of FORD MOTOR CO.

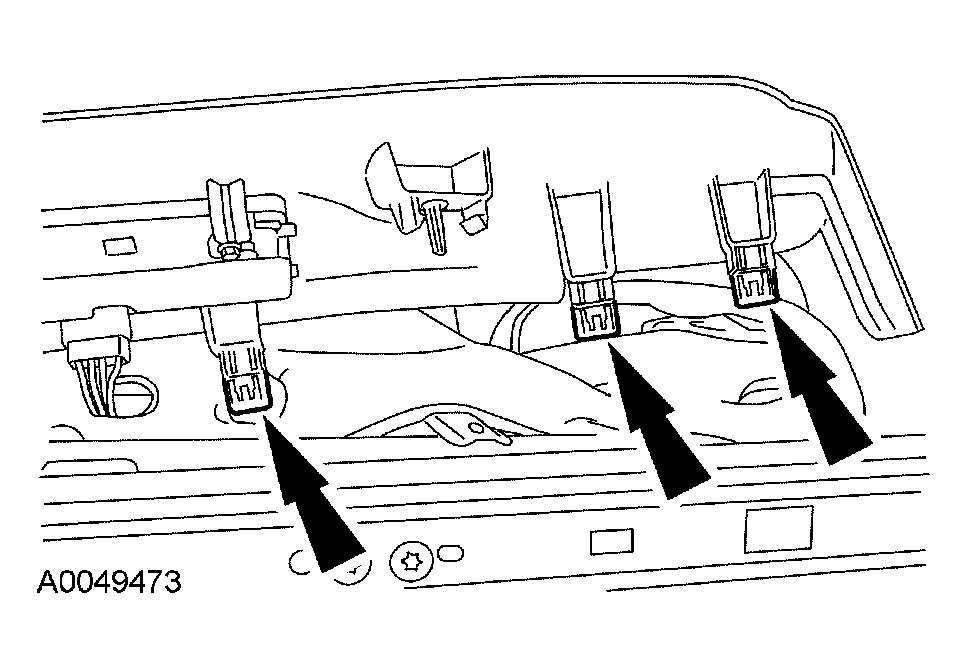

Push to install the three side shield retainers onto the seat frame.

Fig 3: Installing Side Shield Retainers Onto Seat Frame
Courtesy of FORD MOTOR CO.
Access and install the front side shield screw.

Fig 4: Installing Front Side Shield Screw
Courtesy of FORD MOTOR CO.
Install the 40 percent seat and repower the SRS. For additional information, refer to FRONT SEAT - 40 PERCENT .
