Removal and Installation
WARNING:
Do not smoke, carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and can be ignited. Failure to follow these instructions may result in personal injury.
- Remove the fuel tank. For additional information, refer to FUEL TANK .
- Disconnect the fuel and vapor tubes from the fuel pump module.

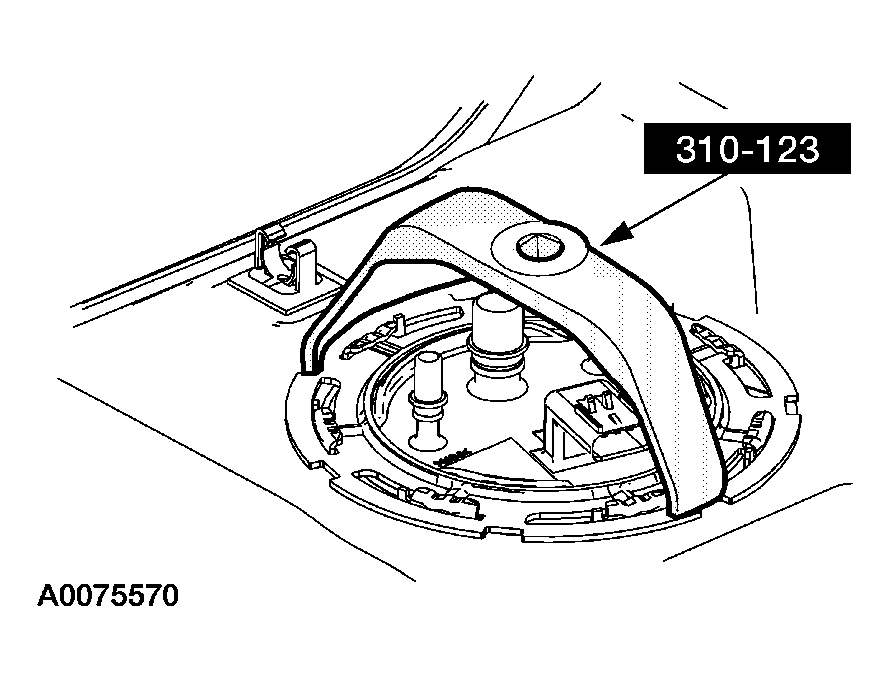

- Using the special tool, remove the fuel pump lock ring.
- Remove the fuel pump module assembly.
- Remove and discard the O-ring seal.
- To install, reverse the removal procedure.
CAUTION:
Note the location of the fuel pump alignment tabs.
CAUTION:
Carefully remove the fuel pump assembly to avoid damaging the fuel level sensor.
