Oil Pan: Removal

  1. Remove the front crossmember. For additional information, refer to FULL FRAME AND BODY MOUNTING .
  2. Remove the bolt and the nut. Position the transmission cooler tubes aside.

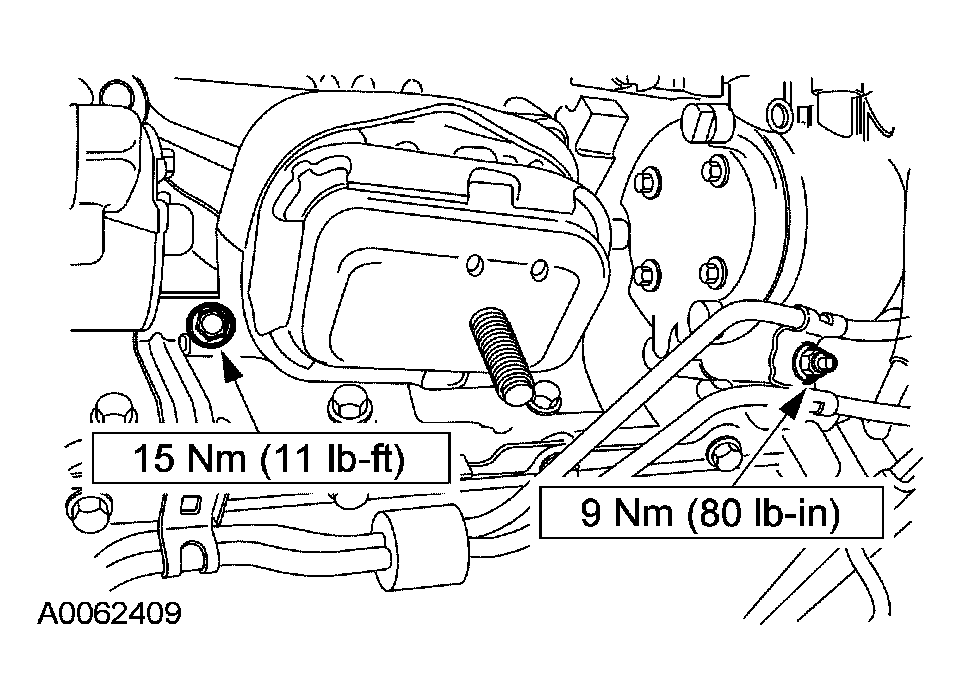

    Fig 1: Removing Bolt & Nut
    G04002034Courtesy of FORD MOTOR CO.
  3. Drain the engine oil.
    • Install the drain plug when finished.
    Fig 2: Identifying Drain Plug
    G03881653Courtesy of FORD MOTOR CO.
  4. Remove the oil pan bolts in the sequence shown.
    Fig 3: Identifying Removal Sequence Of Oil Pan Bolts
    G03886098Courtesy of FORD MOTOR CO.
  5. Remove the oil pan and the gasket.
