Front Toe Adjustment

Start the engine and center the steering wheel.
Turn the engine off, and hold the steering wheel in the "straight-ahead" position using a suitable holding device.
Remove the clamps.

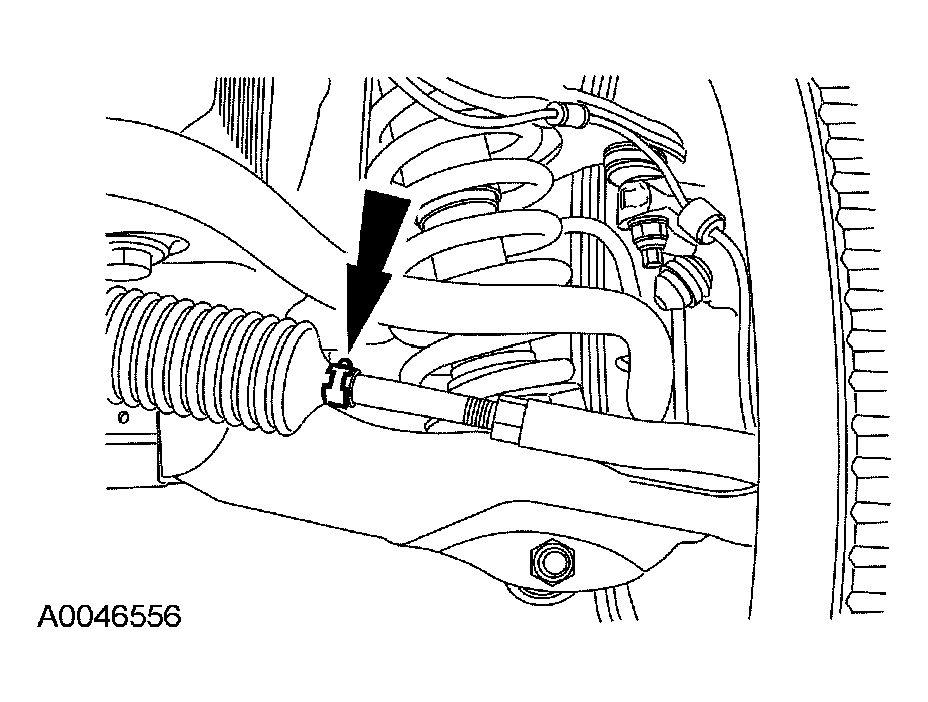

Fig 1: Removing Clamps
Courtesy of FORD MOTOR CO.
Loosen the nuts.
- Clean and lubricate the nuts and the tie-rod end threads.

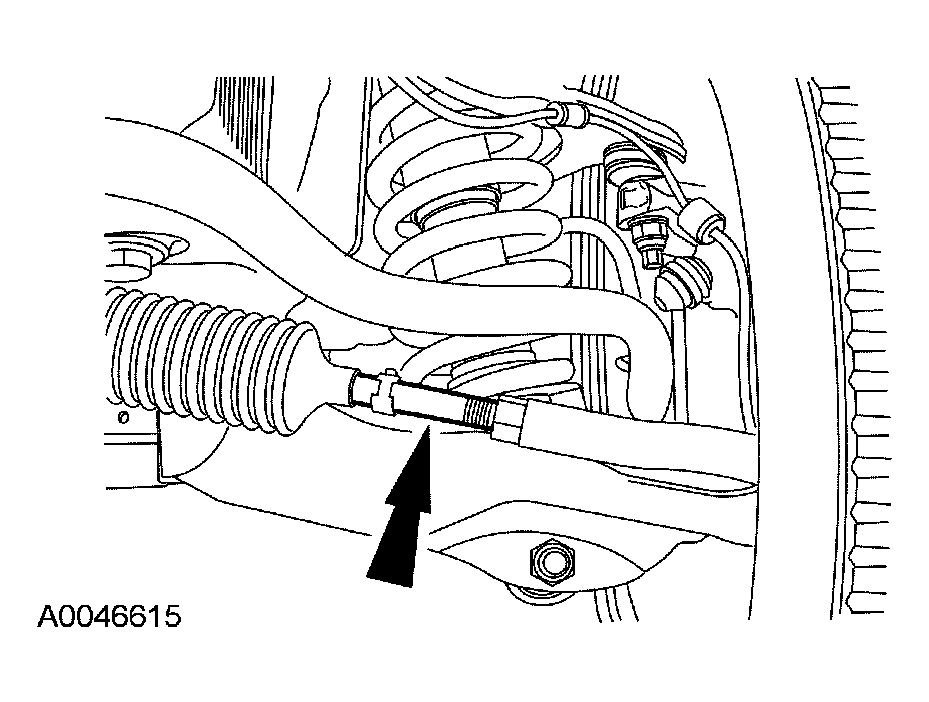

Fig 2: Loosening Nuts
Courtesy of FORD MOTOR CO.

NOTE: Do not allow the bellows boot to twist when the tie-rod is rotated.

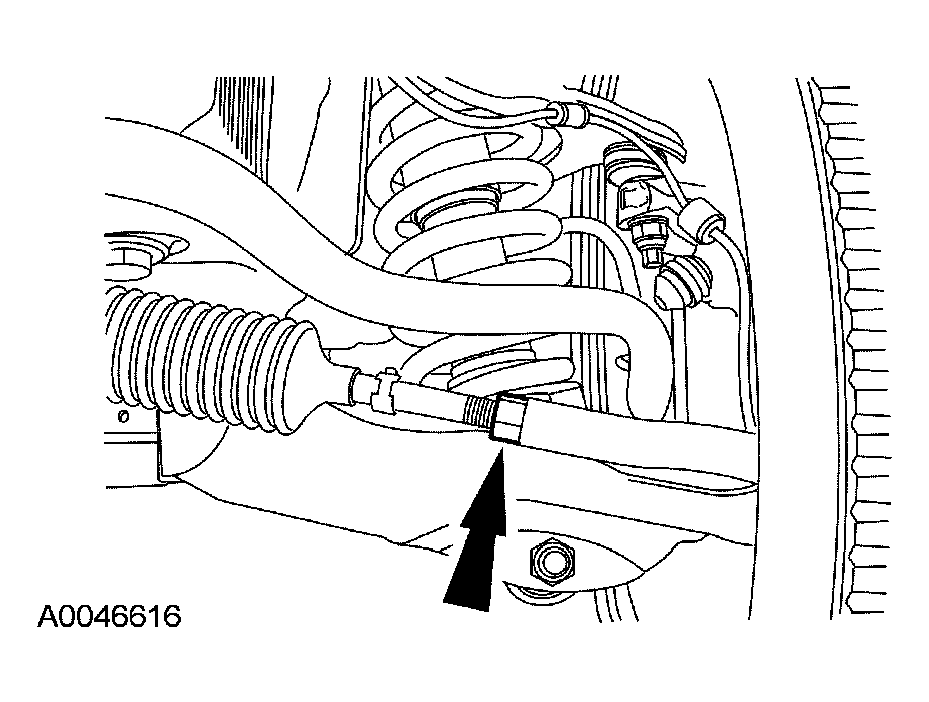

Fig 3: Rotating Tie-Rods

Courtesy of FORD MOTOR CO.

Rotate the tie-rods to obtain the correct toe setting.
Start the engine and recenter the steering wheel.
- Recheck the toe settings and adjust if necessary.
Tighten the nuts and install the clamps.

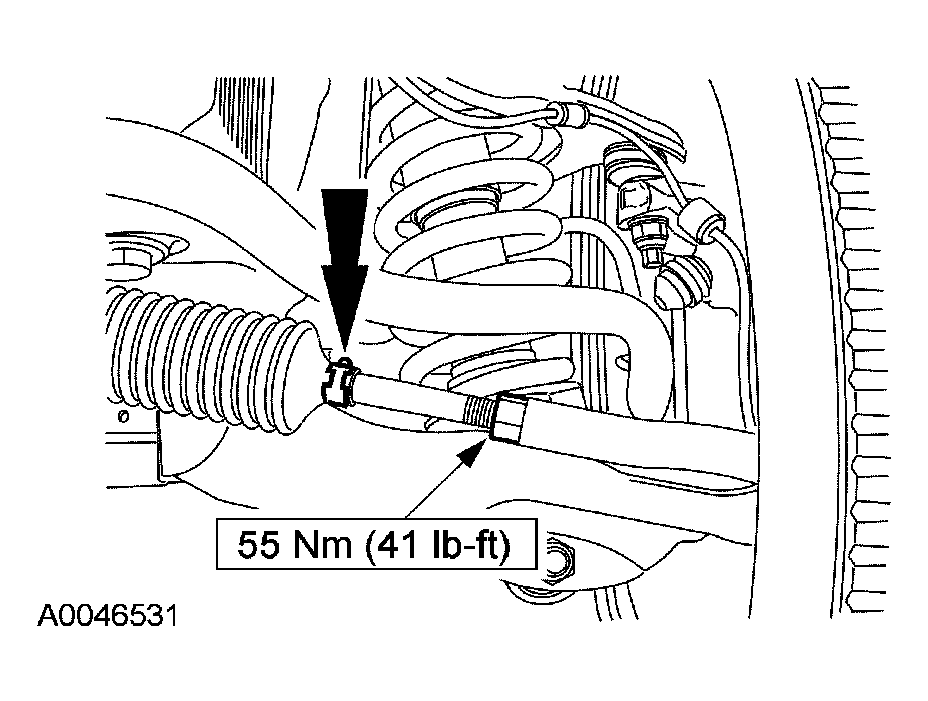

Fig 4: Tightening Nuts & Installing Clamps

Courtesy of FORD MOTOR CO.
