Seat - Exploded View, Rear

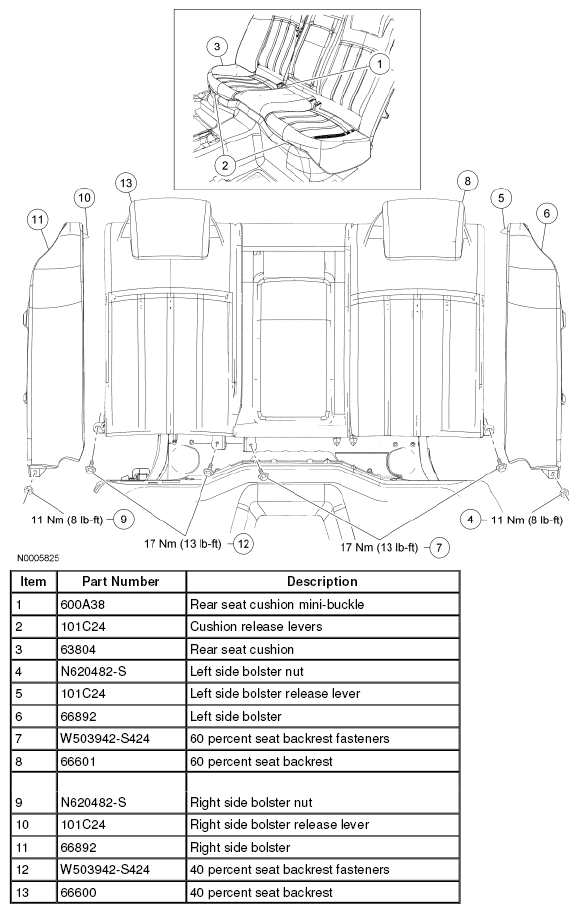

Fig 1: Exploded View Of Seat - Rear With Torque Specifications
G04693259Courtesy of FORD MOTOR CO.
  1. For additional information, refer to appropriate procedure.
