Removal and Installation

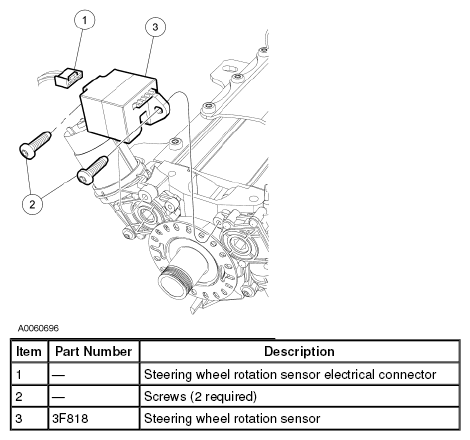

Fig 1: Identifying Steering Wheel Rotation Sensor Components
G04690094Courtesy of FORD MOTOR CO.
  1. Disconnect the steering wheel rotation sensor electrical connector.
  2. Remove the 2 screws and the steering wheel rotation sensor.
  3. To install, reverse the removal procedure.
