Instrument Panel - Exploded View

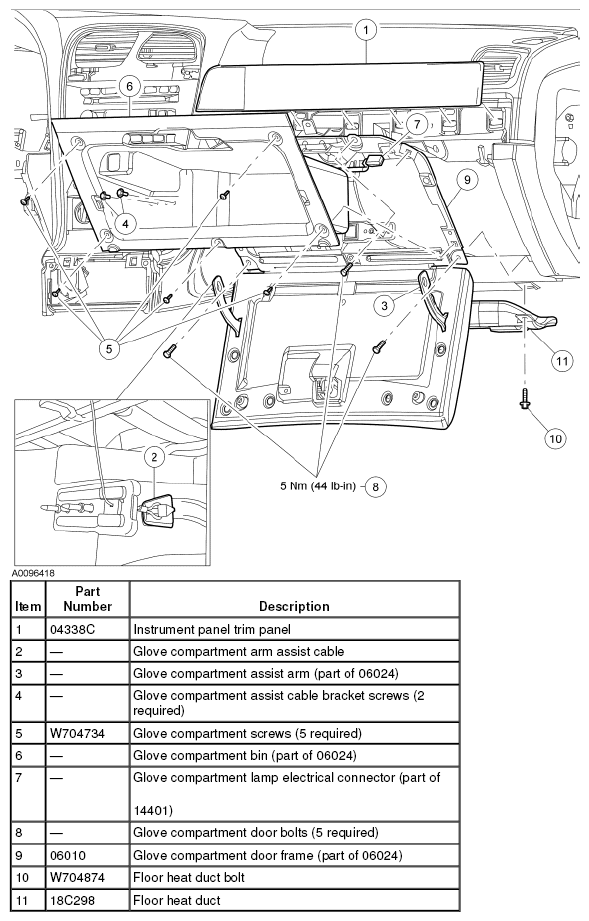

Fig 1: Exploded View Of Instrument Panel With Torque Specifications (Items 1-11)

Courtesy of FORD MOTOR CO.

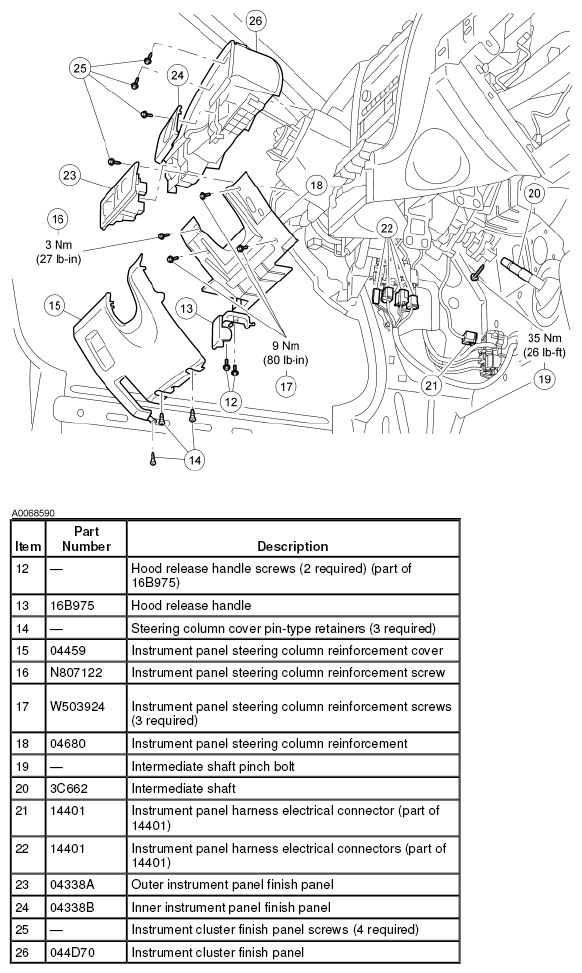

Fig 2: Exploded View Of Instrument Panel With Torque Specifications (Items 12-26)

Courtesy of FORD MOTOR CO.

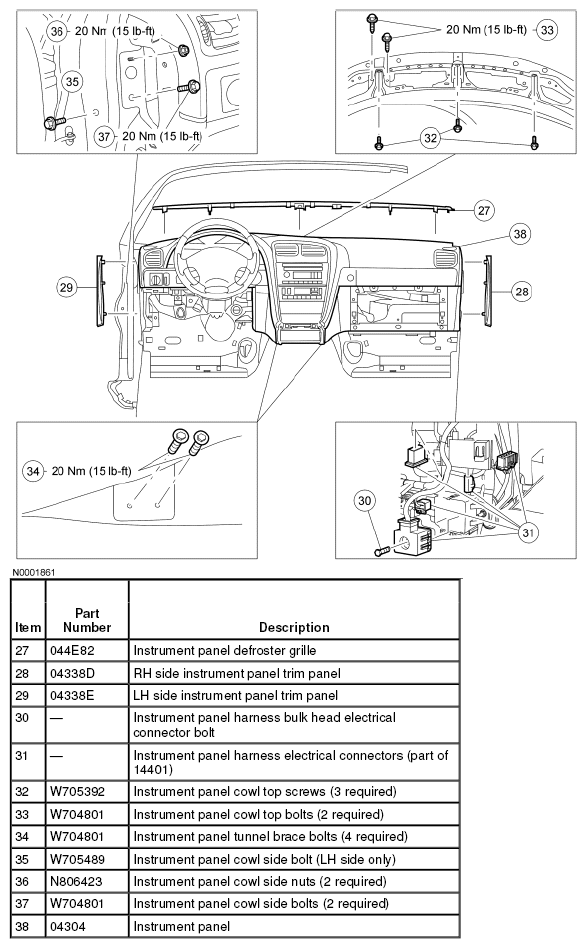

Fig 3: Exploded View Of Instrument Panel With Torque Specifications (Items 27-38)

Courtesy of FORD MOTOR CO.

1. For additional information, refer to appropriate procedure.
