Valve Cover - RH: Notes

MATERIAL SPECIFICATION

Item Specification
Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4

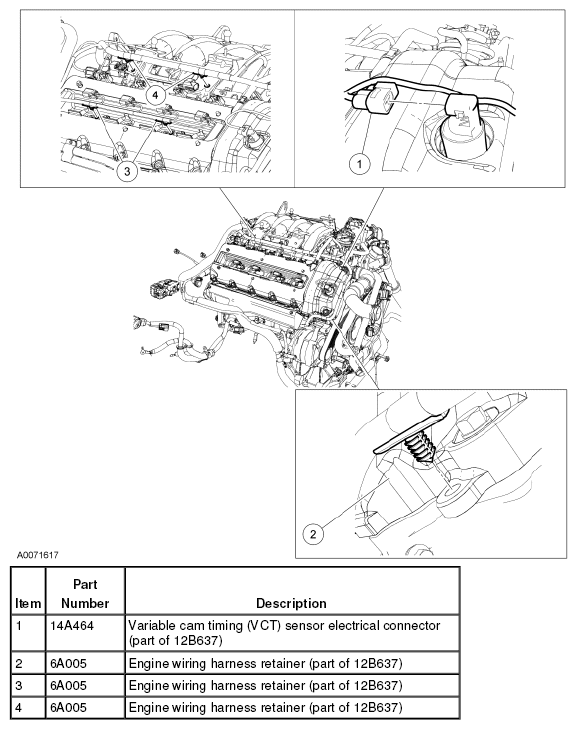

Fig 1: Identifying Valve Cover Components - RH (1 Of 2)
G04690263Courtesy of FORD MOTOR CO.

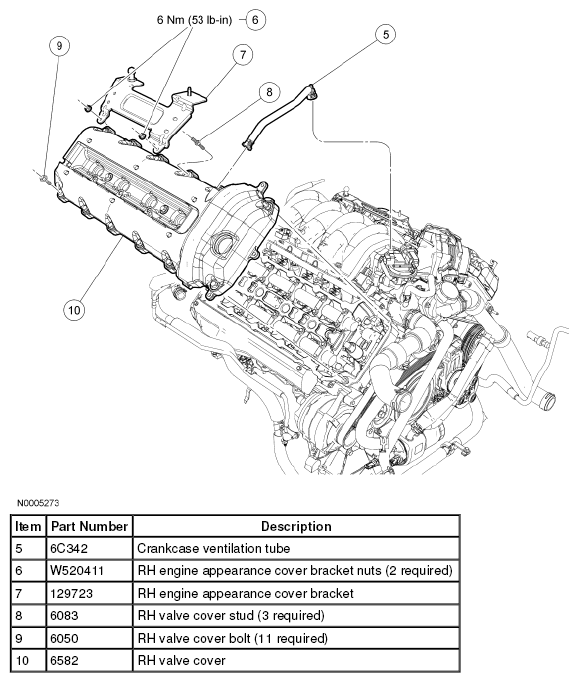

Fig 2: Identifying Valve Cover Components - RH (2 Of 2)
G04690264Courtesy of FORD MOTOR CO.
