Accelerator Pedal: Notes

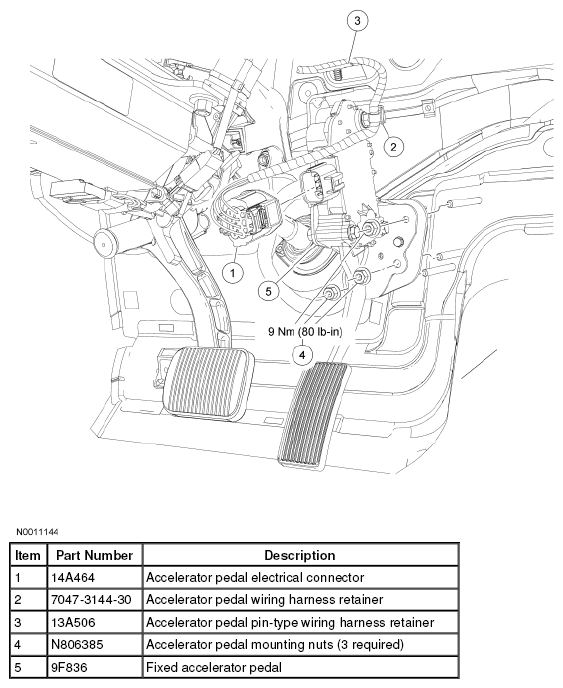

Fig 1: Accelerator Pedal Replacement Components - Fixed Pedal With Torque Specifications
Courtesy of FORD MOTOR CO.

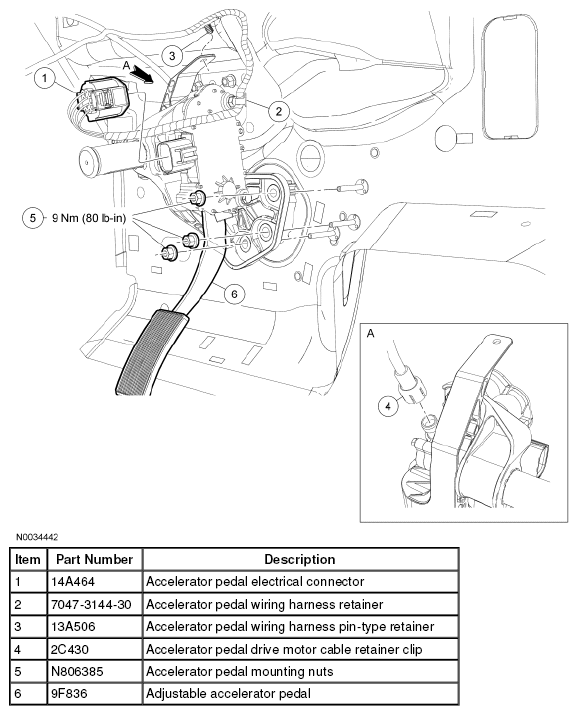

Fig 2: Accelerator Pedal Replacement Components - Adjustable Pedal With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
