EVAP Monitor

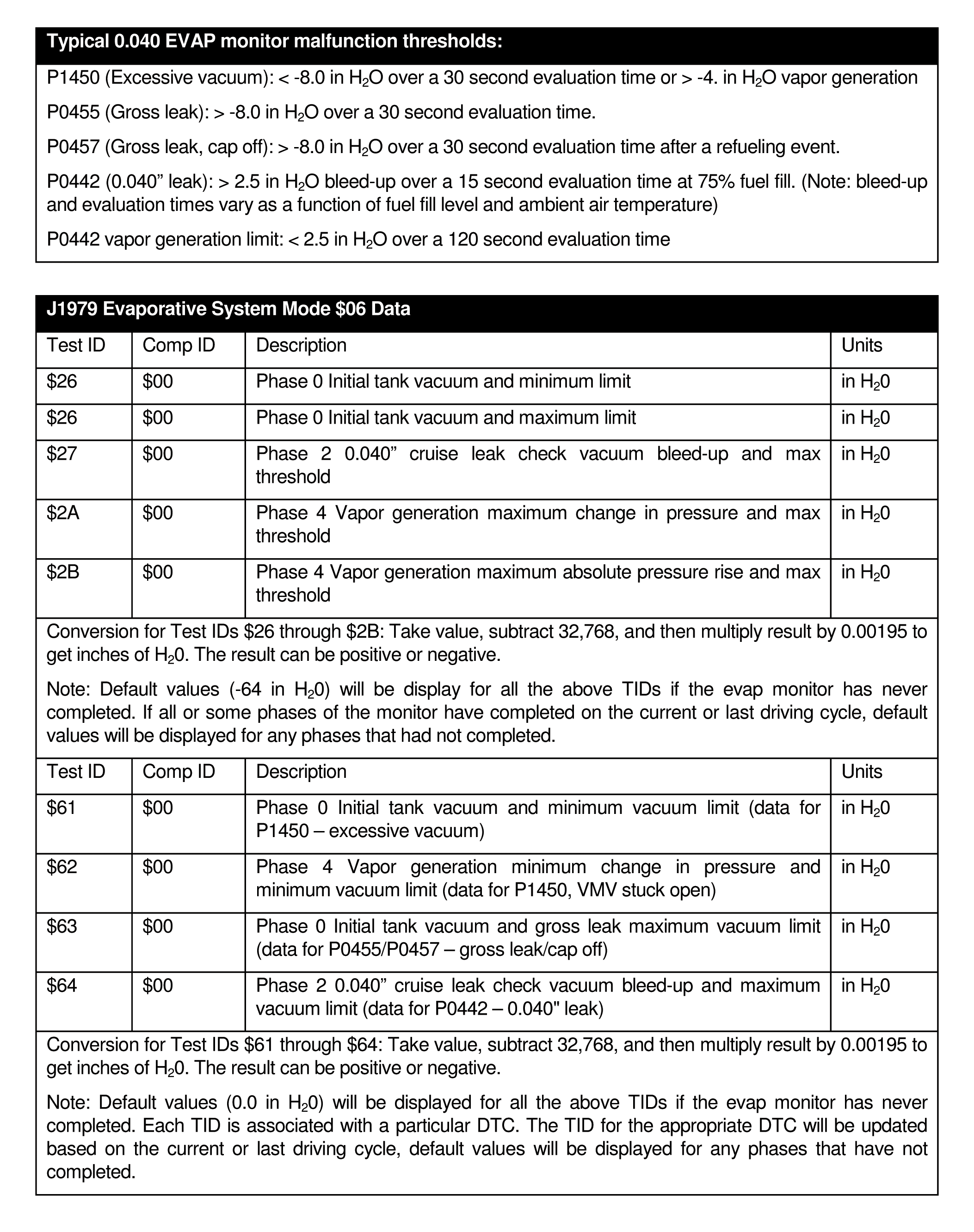

Fig 1: Mode $06 Data For EVAP Monitor (0.040" Leak)
G00152337Courtesy of FORD MOTOR CO.

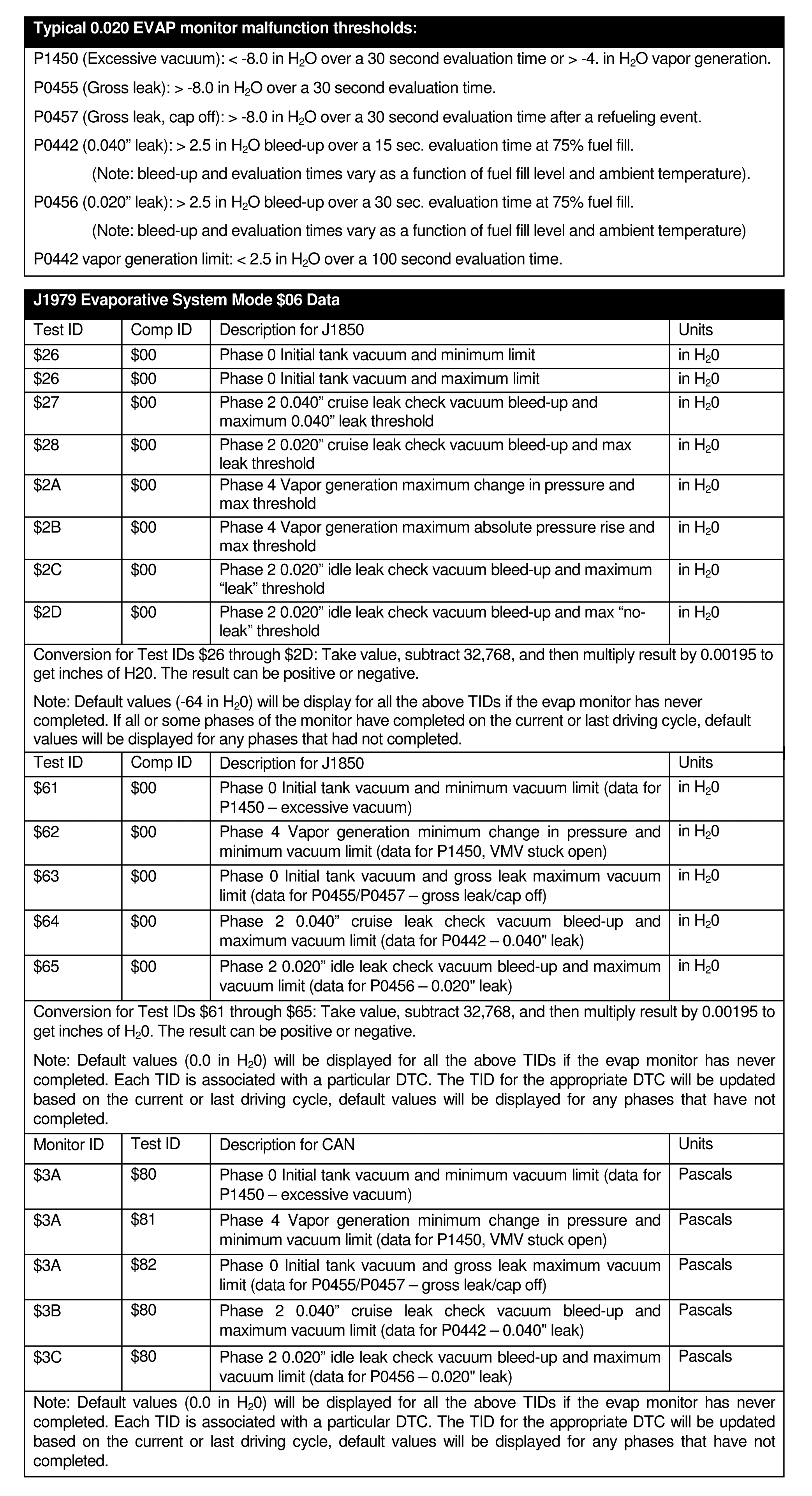

Fig 2: Mode $06 Data For EVAP Monitor (0.020" Leak)
G00152338Courtesy of FORD MOTOR CO.

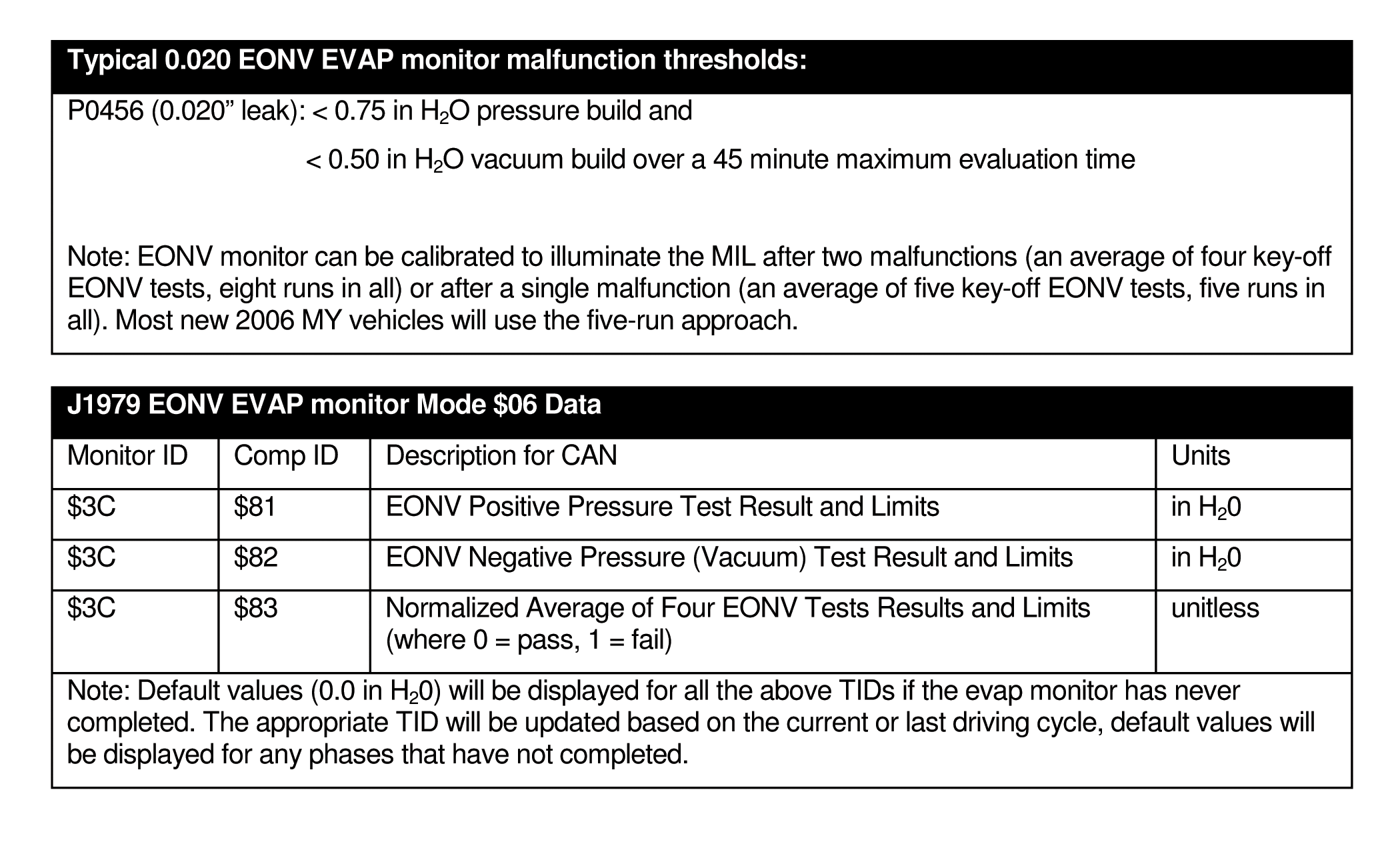

Fig 3: Mode $06 Data For EVAP Monitor (EONV 0.020" Leak)
G00152339Courtesy of FORD MOTOR CO.
