Powertrain Control Module (PCM): Notes

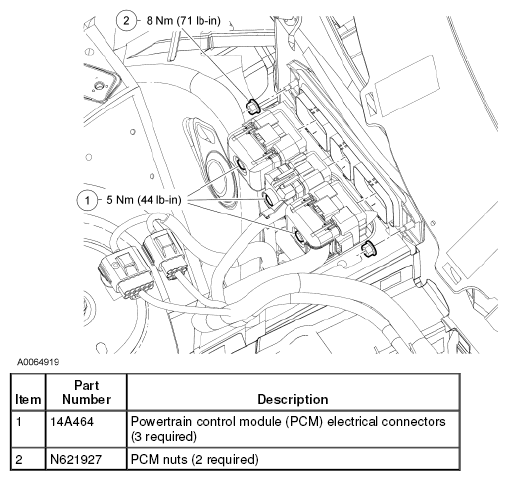

Fig 1: Powertrain Control Module (PCM) Replacement Components With Torque Specifications (Items 1--2)
G04691058Courtesy of FORD MOTOR CO.

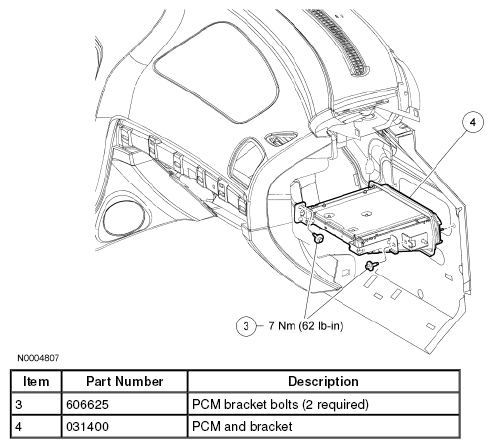

Fig 2: Powertrain Control Module (PCM) Replacement Components With Torque Specifications (Items 3--4)
G04691059Courtesy of FORD MOTOR CO.
