Fuel Tank Pressure (FTP) Sensor

The FTP sensor or in-line FTP sensor is used to measure the fuel tank pressure.

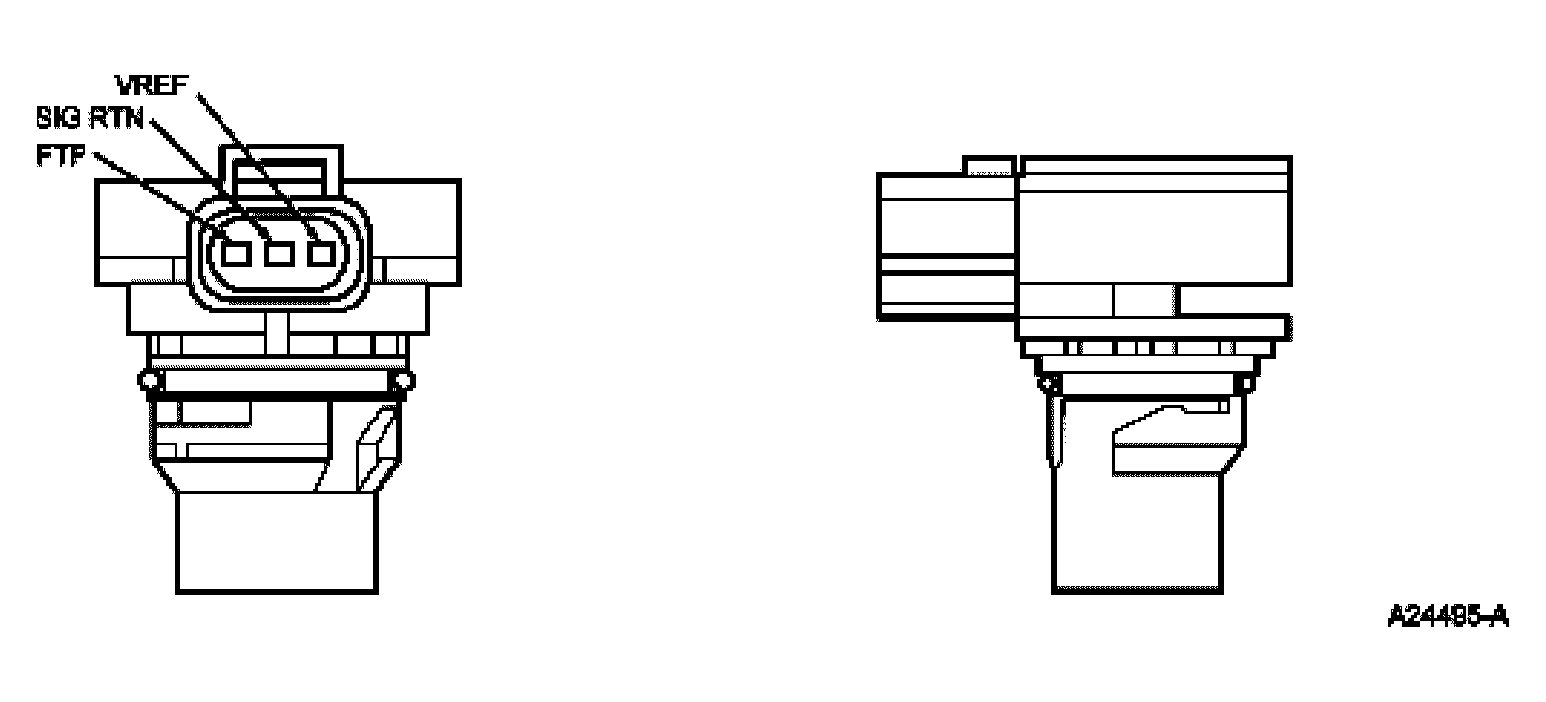

Fig 1: Identifying Fuel Tank Pressure (FTP) Sensor

Courtesy of FORD MOTOR CO.

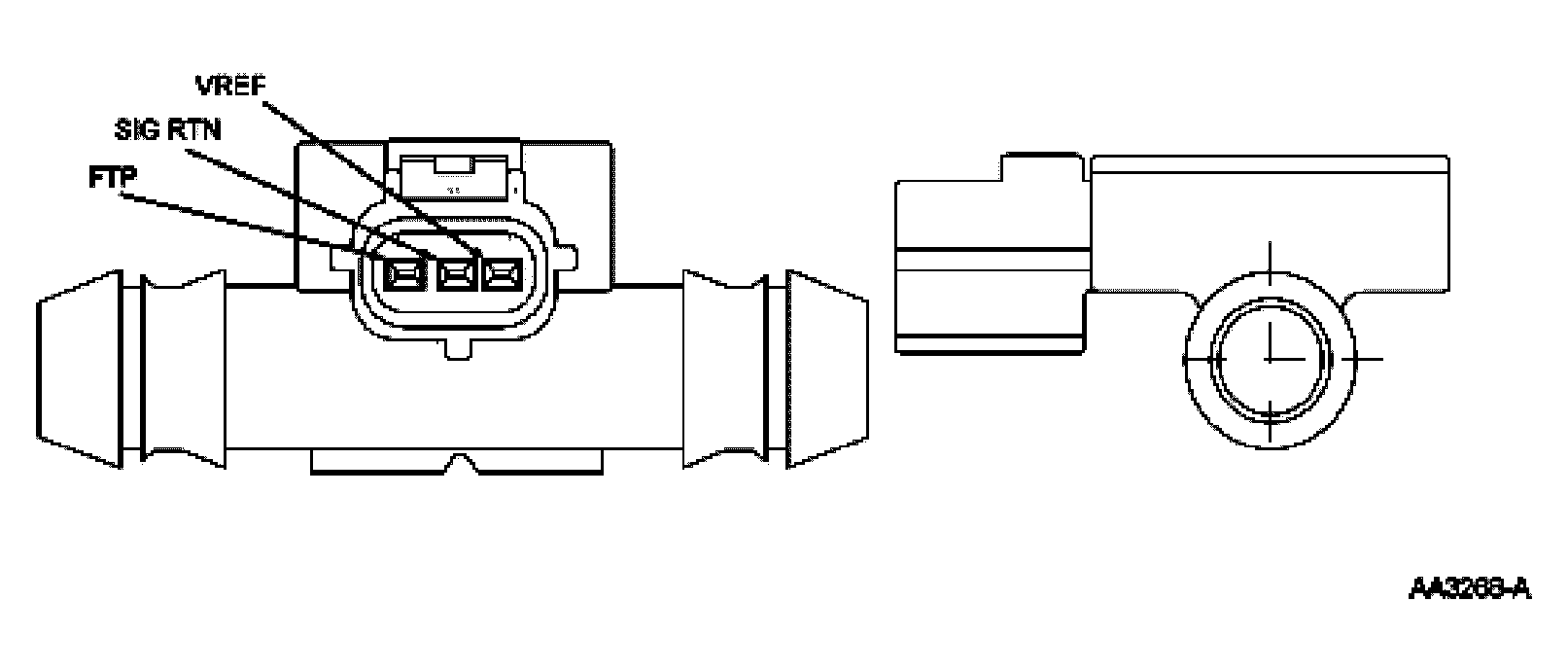

Fig 2: Identifying In-Line Fuel Tank Pressure (FTP) Sensor

Courtesy of FORD MOTOR CO.
