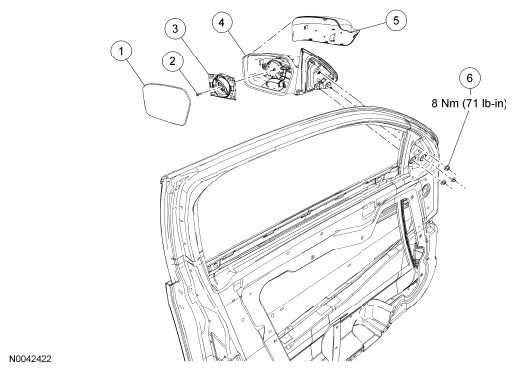

Exterior Mirrors - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 17K707 | Exterior mirror glass |
| 2 | - | Exterior mirror motor screw |
| 3 | 17D696 | Exterior mirror motor |
| 4 | 17682 | RH/17683 LH Exterior mirror |
| 5 | 17D742 | RH/17D743 LH Exterior mirror cover |
| 6 | N621906 | Exterior mirror nut (3 required) |
- For additional information, refer to the appropriate procedure(s).
