Air Conditioning (A/C) Compressor: Notes

MATERIAL SPECIFICATION

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

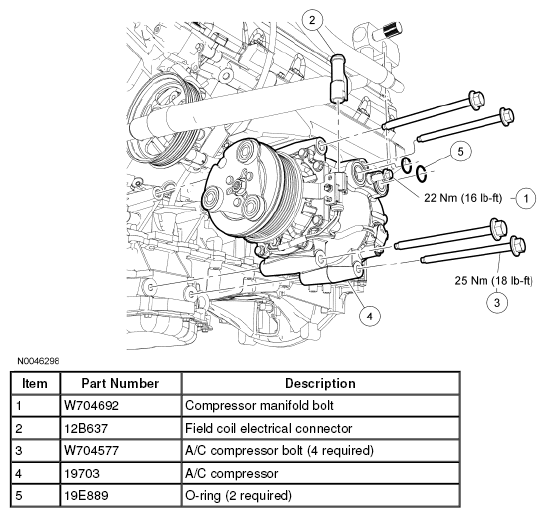

Fig 1: Air Conditioning Compressor Replacement Components With Torque Specifications
